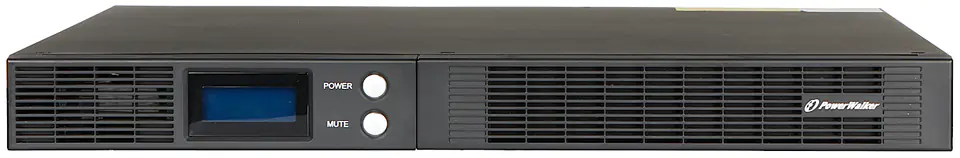

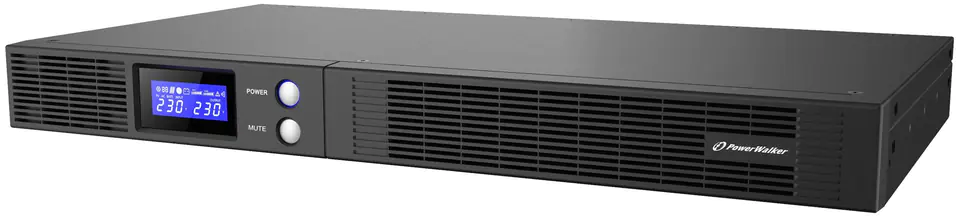

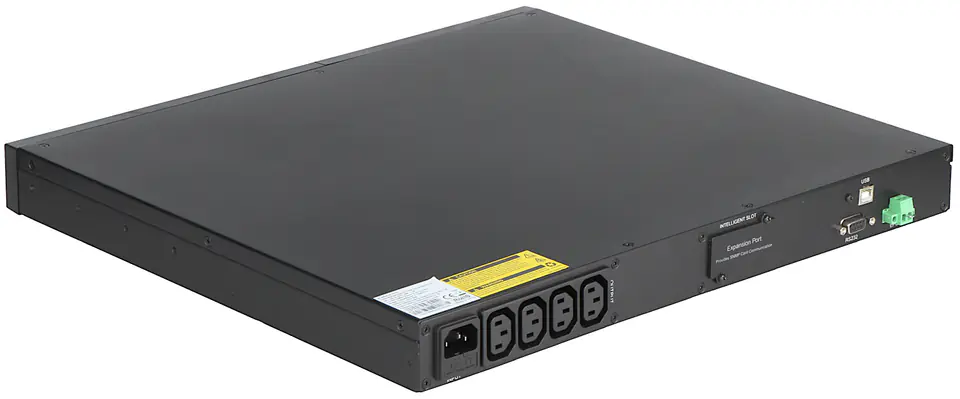

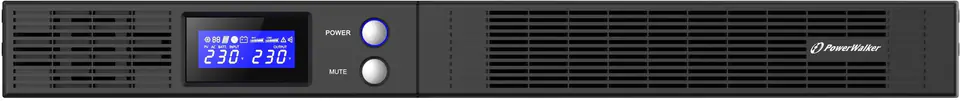

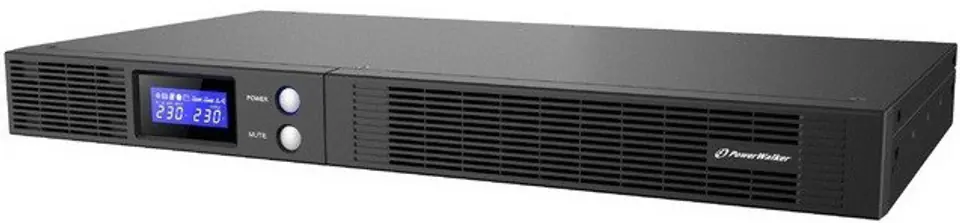

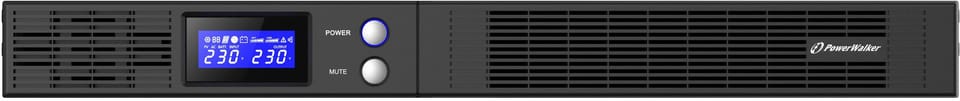

The VI-1500/R1U UPS is a professional device used to maintain the operation of the components connected to itThe device is mounted to a 19" RACK cabinet
POWER SUPPLY VI-1500/R1U 1500 VA PowerWalker UPS
€480.01
Shipping from warehouse: H7
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- PowerWalker
- Product code:
- VI 1500 R1U / 4260074980417
Share this product:
Specification
| Ac outlet types: | C13 coupler |
|---|---|
| Ac outlets quantity: | 4 AC outlet(s) |
| Accumulator: | 4 x 6V/9Ah |
| Active power: | 900 watts (Printing) |
| Apparent power: | 1500 VA |
| Battery recharge time (90%): | 8 h |
| Battery voltage: | 6 V |
| Charging time (up to 90%): | 8 hours |
| Depth: | 485 mm |
| Destiny: | monitoring systems, data storage centers, network, servers, workstations, industrial equipment |
| Dimensions: | 435 x 400 x 44 mm ; 19" RACK, 1U |
| Enclosure type: | Rack |
| Estimated battery life: | 3.1 minutes @ load 100% 12.1 minutes @ 50% load |
| Harmonized system (hs) code: | 85078000 |
| Height: | 44 mm |

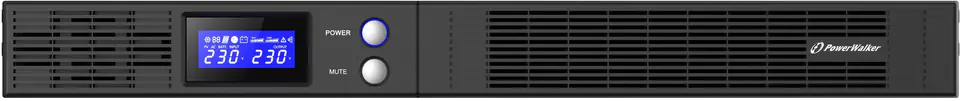

| Indication of operating status: | LCD display: operating mode, battery charge level, I/O voltage level Audible - muted |
| Input frequency: | 45/55 Hz |
| Input frequency: | 45 ... 55 Hz |
| Input operation voltage (max): | 290 V |
| Input operation voltage (min): | 165 V |
| Input voltage: | 165 ... 290 VAC |
| Management software: | PowerMaster |
| Number of batteries supported: | 4 |

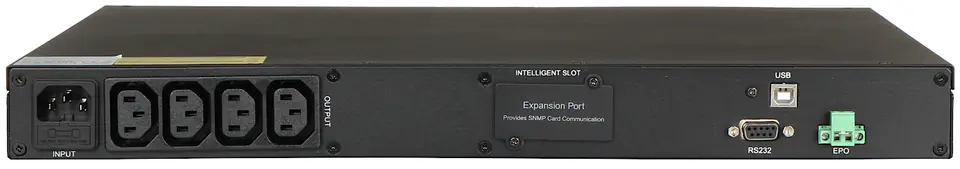

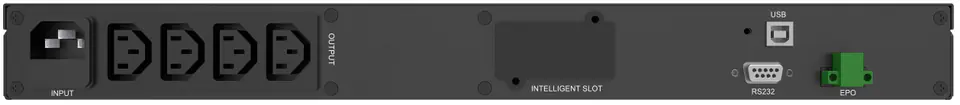

| Number of outputs: | 4 pcs. IEC320 C13 socket |
| Operating relative humidity (h-h): | 0 - 90% |
| Operating temperature (t-t): | 0 - 40 °C |
| Operating temperature / relative humidity: | 0 °C ... 40 °C / 0 ... 90 % (non-condensing) |
| Output frequency: | 50 Hz |
| Output operation voltage (max): | 230 V |
| Output operation voltage (min): | 230 V |
| Output power: | 900 W |
| Output power capacity: | 1.5 kVA |
| Output voltage: | 230 V AC (pure sine wave) |
| Power plug: | C14 coupler |
| Power protection features: | Overload |
| Producer / brand: | PowerWalker |
| Product colour: | Black |
| Rack capacity: | 1U |
| Rs-232 ports: | 1 |
| Scales: | 16.31 kg |
| Security: | Fuse Fuse Surge Protection Overload Protection Circuit Breaker EPO (Emergency power off) |

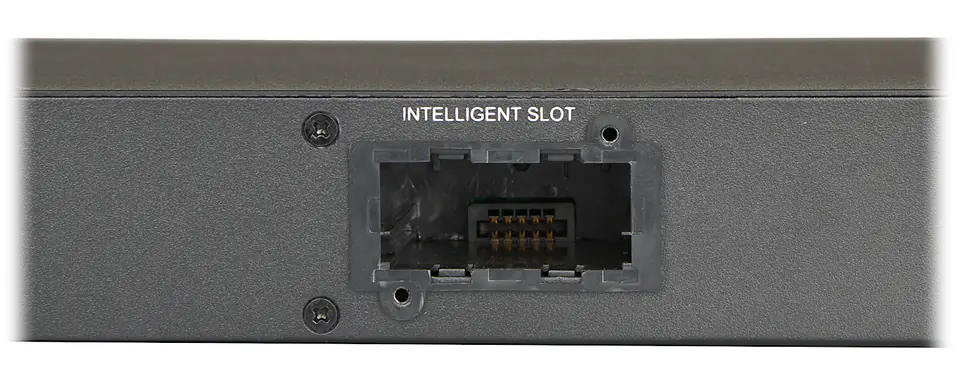

| Selected features: | "Cold start" function Expansion slot Battery charging and maintenance control. USB/RS-232 communication port |
| Switching time: | .max. 4 ms |
| Typical backup time at full load: | 0.4 min |
| Typical backup time at half load: | 8.7 min |
| Ups topology: | Line-Interactive |
| Usb port: | Yes |
| Voltage regulation: | ± 10 % |
| Warranty: | 2 years |
| Weight: | 16.2 kg |
| Width: | 433 mm |
