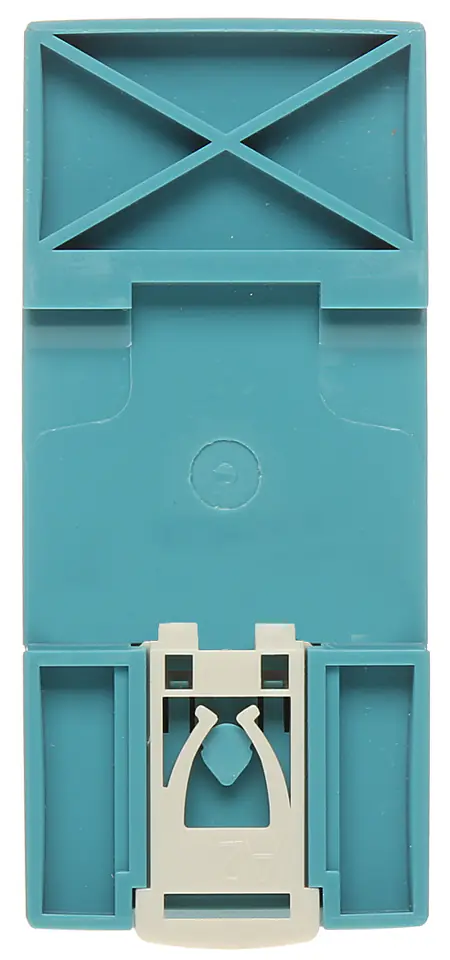

Switch mode power supply installed on TS35/7.5 or 15 DIN rail, resistant to high operating temperatures (up to 70°C)

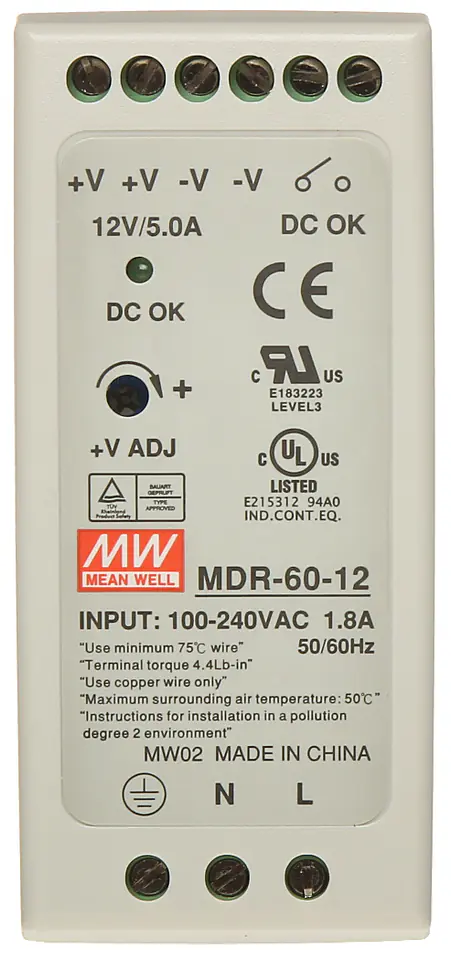

POWER SUPPLY MDR-60-12
PLN 102.86
Shipping from warehouse: D4
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- MDR-60-12 / 5901643191641
Share this product:
Specification

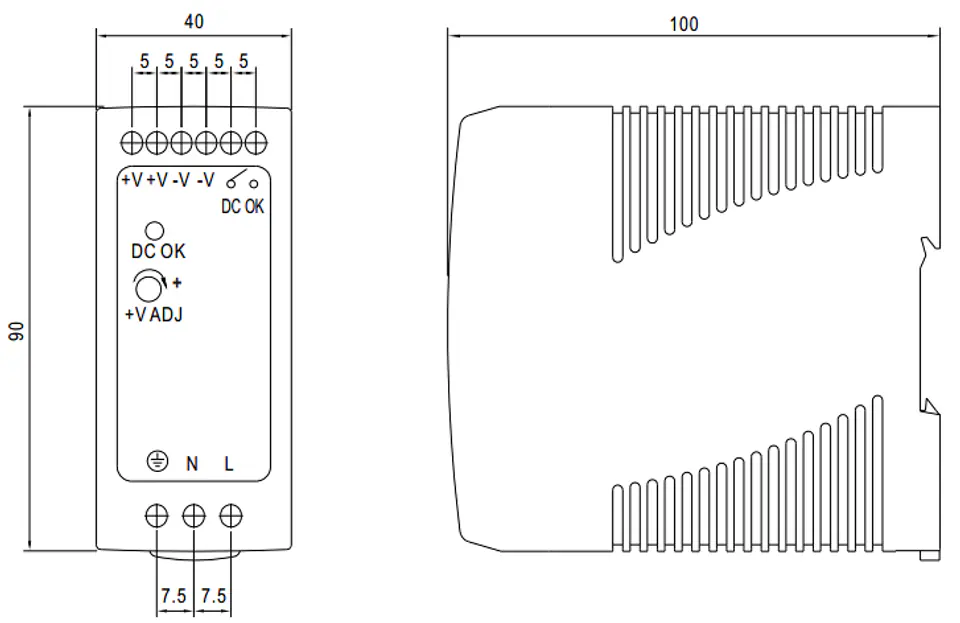

| Dimensions: | 40 x 90 x 100 mm |
|---|---|
| Efficiency: | 86 % |
| Enclosure type: | DIN |
| Mtbf (mean time between failures): | 299200 hrs |
| Number of outputs: | 2 pcs. |
| Operating temperature / relative humidity: | -20 °C ... 70 °C / < 90 % |
| Output voltage: | 12 volts DC |
| Output voltage adjustment: | 12 ... 15 volts |
| Power supply: | 60 watts (Printing) |
| Power supply current efficiency: | 5 A |
| Scales: | 0.28 kg |
| Security: | Short-circuit surge protection Overload protection |
| Supply voltage: | 100 ... 240 VAC |
| Type of power supply: | Pulse |
| Vibration resistance: | IEC60068-2-6, 10 ... 500 Hz max. 2 G for 90 minutes |
| Voltage tolerance: | ± 1 % |
| Warranty: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
