| Connector type: | cable clamps |
|---|---|
| Current efficiency (total): | 15 amps |
| Dimensions: | 305 x 262 x 85 mm |
| Enclosure type: | Metal, wall mounted |
| Input voltage: | 200 ... 240 V, 50 / 60 Hz |
| Max. single output current: | 1 A |
| Number of outputs: | 16 |
| Operating temperature / relative humidity: | -10 °C ... 40 °C / 20 ... 90 % |
| Output voltage: | 12 volts DC |
| Output voltage adjustment: | 12 volts ... 15 V - potentiometer |
| Power: | 180 W (max) |
| Producer / brand: | PULSAR |
| Protection of outputs: | 1 A Fuse |
| Scales: | 2.64 kg |
| Security: | Short-circuit overload overvoltage |
| Selected features: | Efficiency: 85 % LED signaling FPS output - determines the operating status of the power supply: normal or failure Tamper detection - enclosure opening Protection class EN 62368-1 : I Protection class: IP20 |
| Type of power supply: | Pulse |
| Warranty: | 2 years |

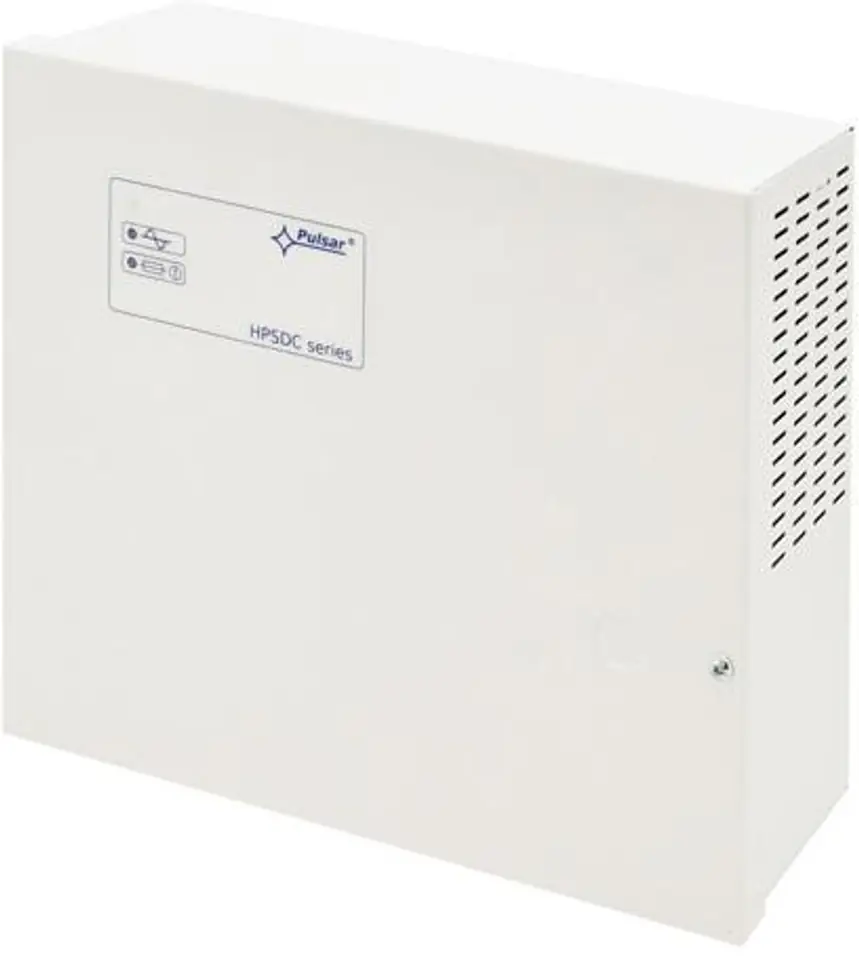

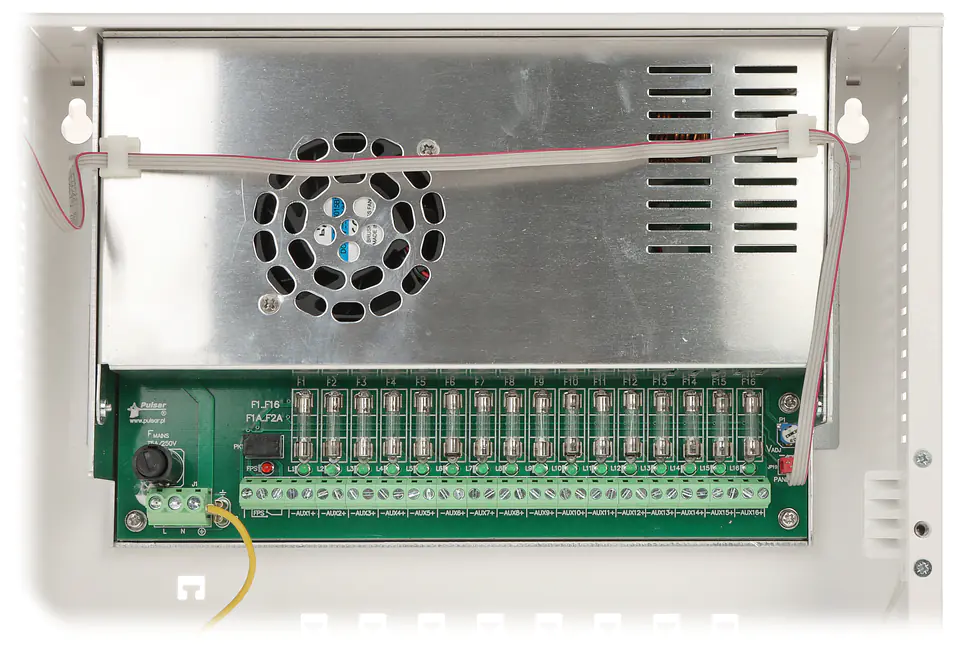

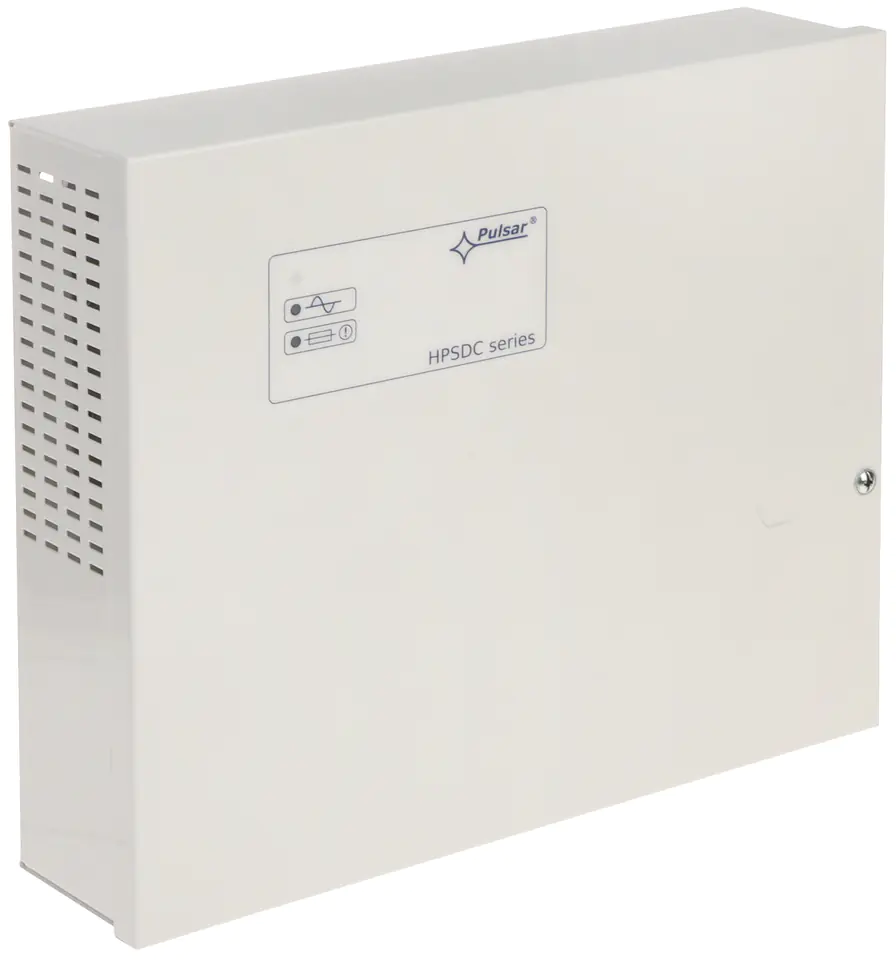

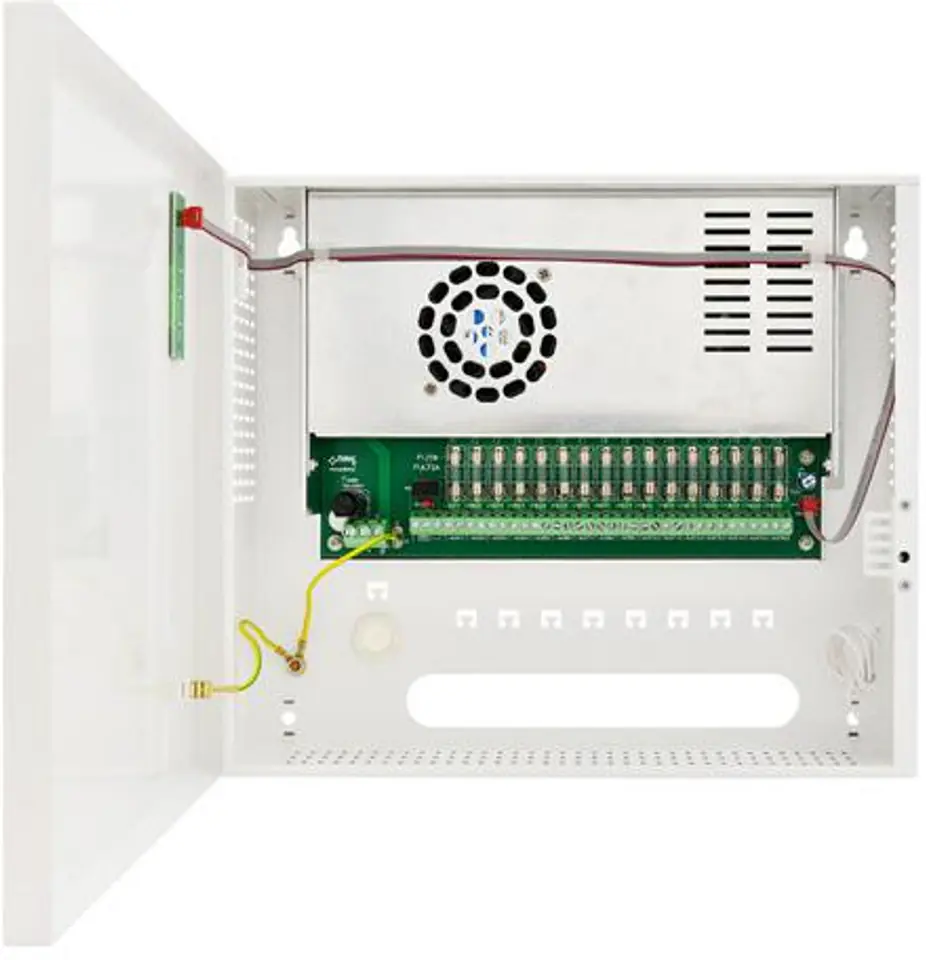

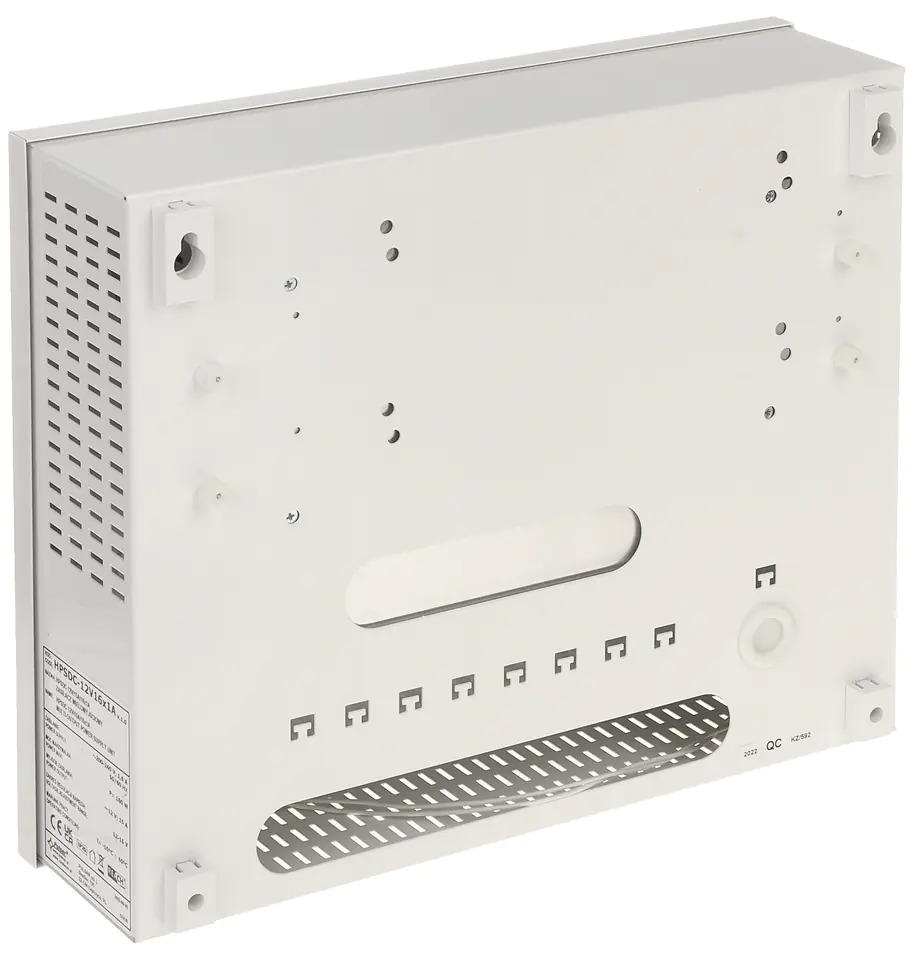

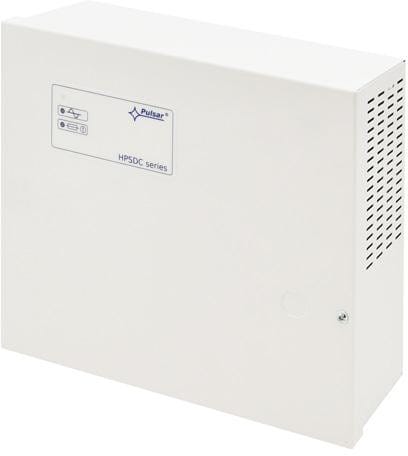

The power supply has an aesthetic, solidly made metal housingThe power supply supplies 12V DC voltage at the output and supports up to 16 devicesThe maximum load of a single output is 1A, but it should be remembered that the total load of all outputs should not exceed 15AKeach output is protected independently with a fuse
Particular attention should be paid to the proper cooling of the power supply during operation!
