Switch mode power supply installed on TS35/7.5 or 15 DIN rail, resistant to high operating temperatures (up to 70°C)

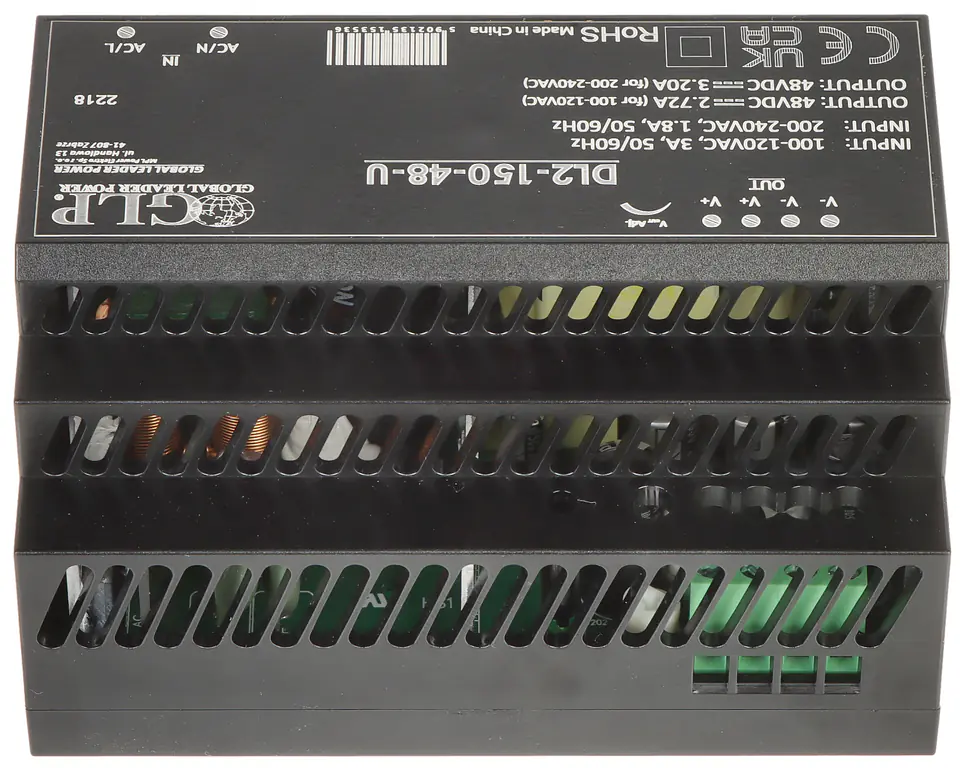

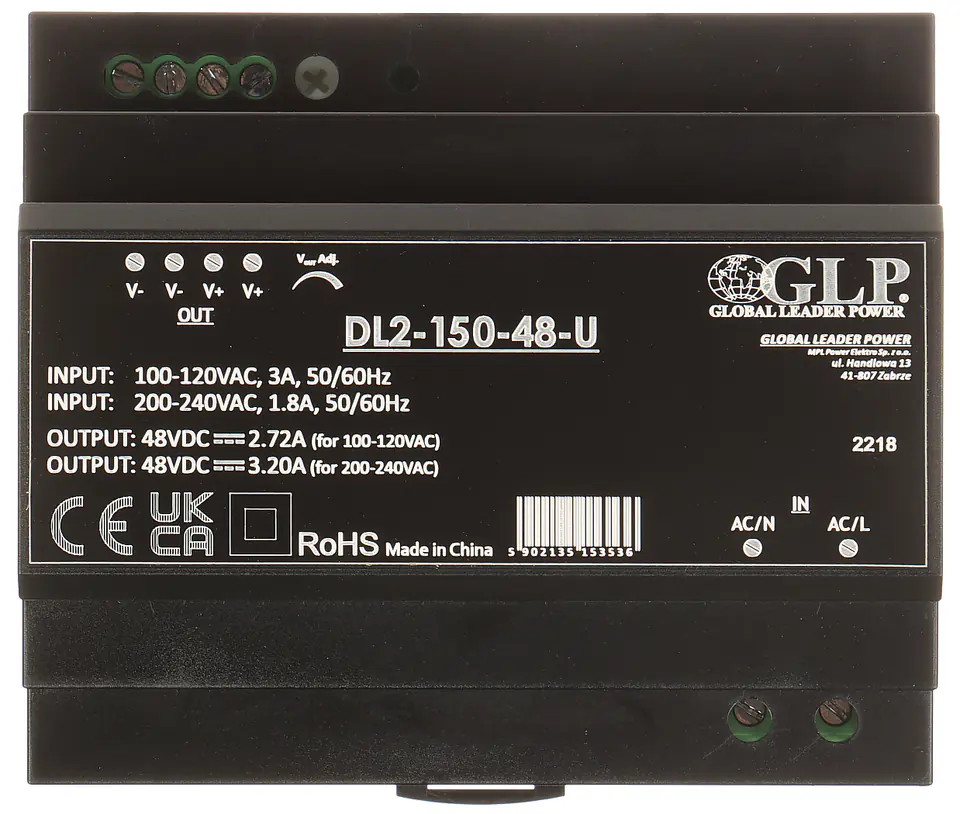

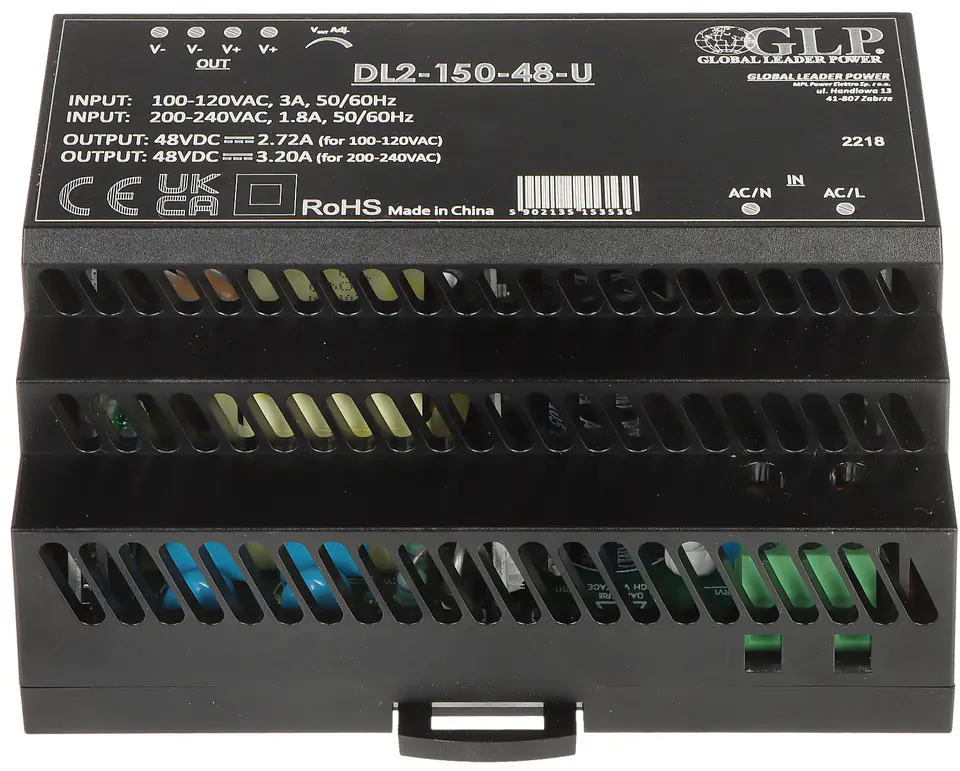

POWER SUPPLY FOR SWITCHING MODE DL2-150-48-U
PLN 145.43
Shipping from warehouse: D4
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- DL2-150-48-U / 5902135153536
Share this product:
Specification

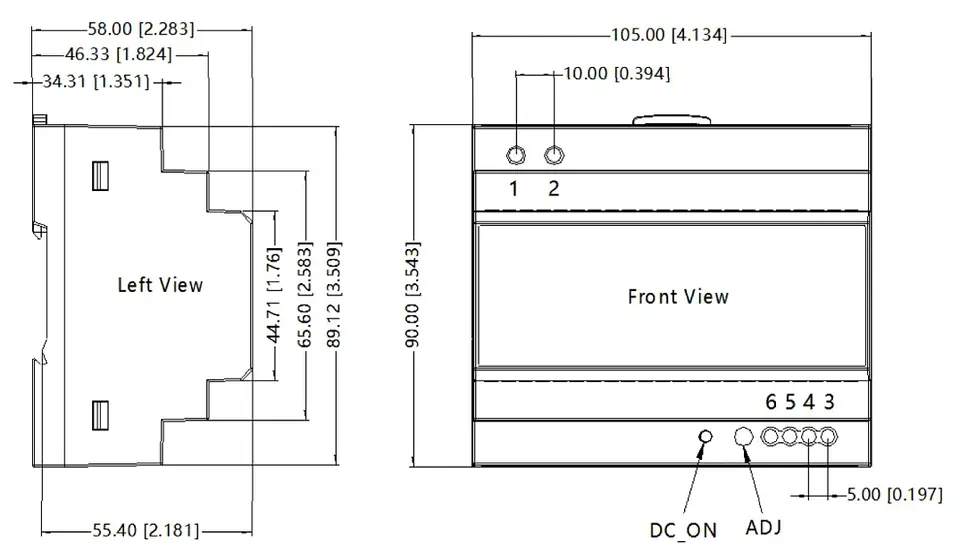

| Dimensions: | 105 x 89 x 58 mm |
|---|---|
| Efficiency: | 91 % |
| Enclosure type: | DIN |
| Number of outputs: | 2 pcs. |
| Operating temperature / relative humidity: | -30 °C ... 70 °C / 10 ... 95 % |
| Output voltage: | 48 VDC |
| Output voltage adjustment: | 43.2 ... 55.2 volts DC |
| Power supply: | 130 watts @ 100 ... 120 V AC, 153 W @ 200 ... 240 VAC |
| Power supply current efficiency: | 2.7 A @ 100 ... 120 V AC, 3.2 A @ 200 ... 240 VAC |
| Scales: | 0.34 kg |
| Security: | Short circuit overload anti-surge temperature |
| Supply voltage: | 85 ... 264 volts AC 120 ... 370 VDC |
| Type of power supply: | Pulse |
| Warranty: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
