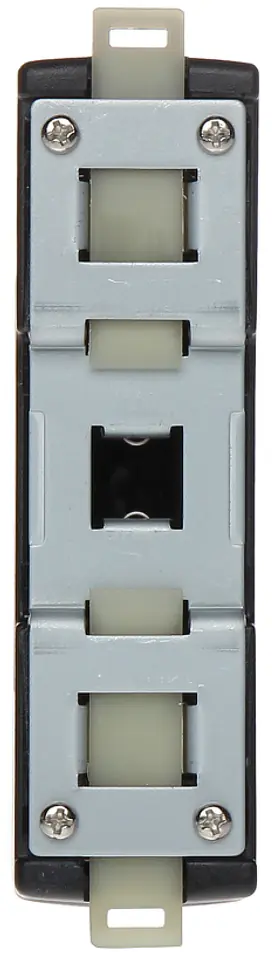

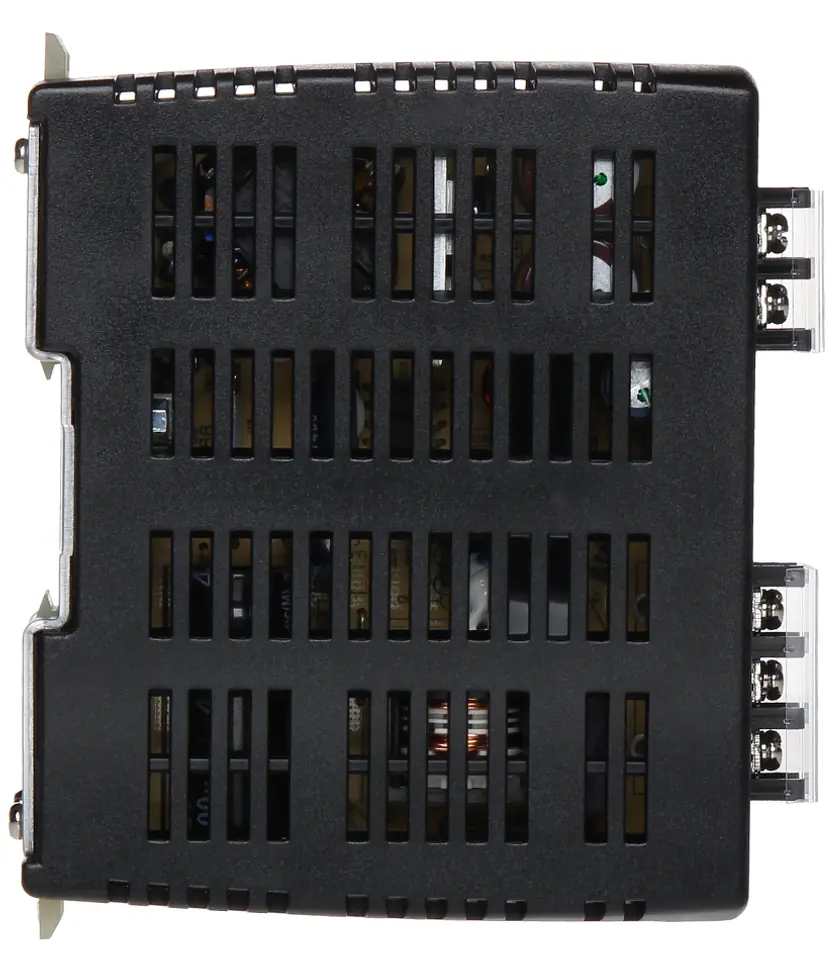

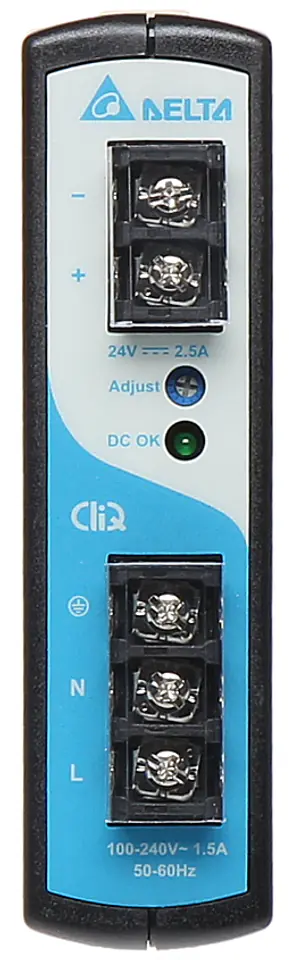

Switch mode power supply installed on TS35/7.5 or 15 DIN rail, resistant to high operating temperatures (up to 70°C)
POWER SUPPLY DRP-024V060W-1AZ
PLN 122.78
Shipping from warehouse: D4
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- DELTA ELECTRONICS
- Product code:
- DRP-024V060W-1AZ / 5902887028977
Share this product:
Specification
| Dimensions: | 32 x 114 x 127 mm |
|---|---|
| Efficiency: | 86 % |
| Enclosure type: | DIN |
| Mtbf (mean time between failures): | 800000 hrs |
| Number of outputs: | 1 pc |
| Operating temperature / relative humidity: | -20 °C ... 75 °C / < 95 % |
| Output voltage: | 24 volts DC |
| Output voltage adjustment: | 22 ... 28 volts |
| Power supply: | 60 watts (Printing) |
| Power supply current efficiency: | 2.5 A |
| Scales: | 0.325 kg |
| Security: | Short-circuit surge protection Overload protection |
| Supply voltage: | 86 ... 264 VAC |
| Type of power supply: | Pulse |
| Vibration resistance: | IEC60068-2-6, 10 ... 150 Hz max. 5 G for 90 minutes |
| Voltage tolerance: | ± 2 % |
| Warranty: | 5 years |
