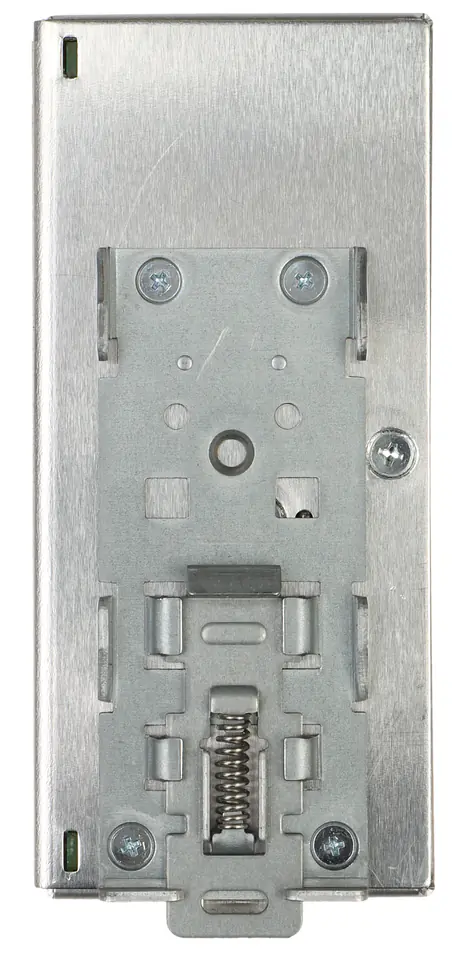

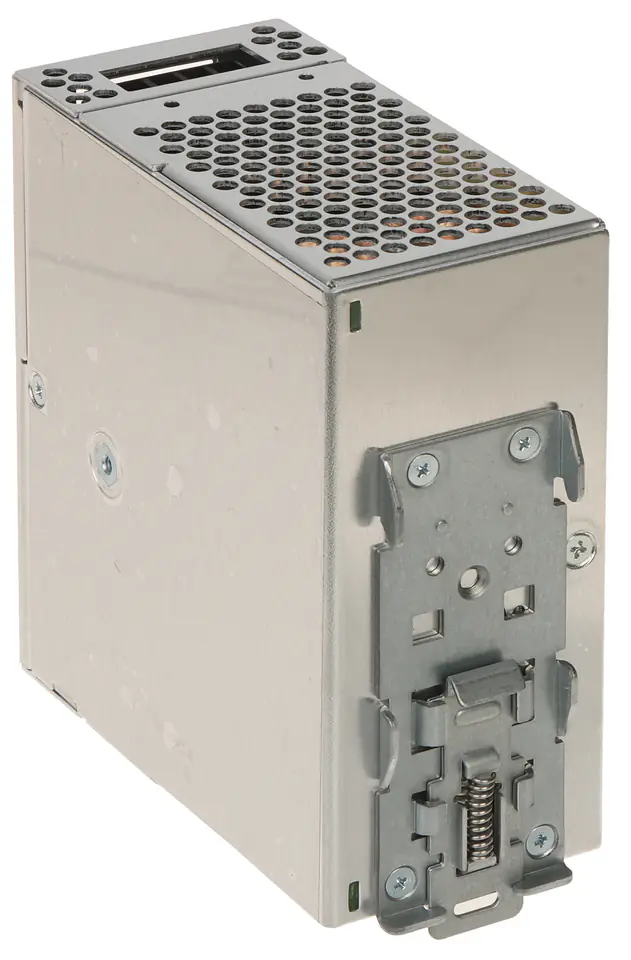

Switch mode power supply installed on TS35/7.5 or 15 DIN rail, resistant to high operating temperatures (up to 70°C)
POWER SUPPLY DRL-24V480W-1EN
PLN 458.73
Shipping from warehouse: D4
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- DELTA ELECTRONICS
- Product code:
- DRL-24V480W-1EN / 5902887072796
Share this product:
Specification

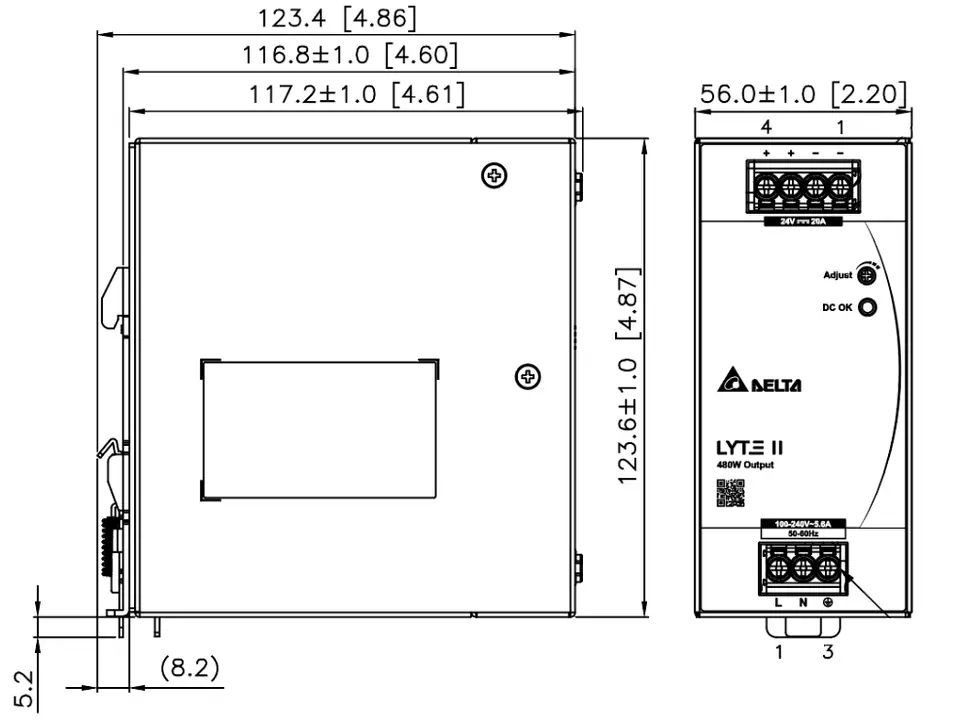

| Dimensions: | 56 x 123.4 x 123.6 mm |
|---|---|
| Efficiency: | 93 % |
| Enclosure type: | DIN |
| Mtbf (mean time between failures): | 700,000 hours |
| Number of outputs: | 2 pcs. |
| Operating temperature / relative humidity: | -30 °C ... 70 °C / 20 % ... 90 % |

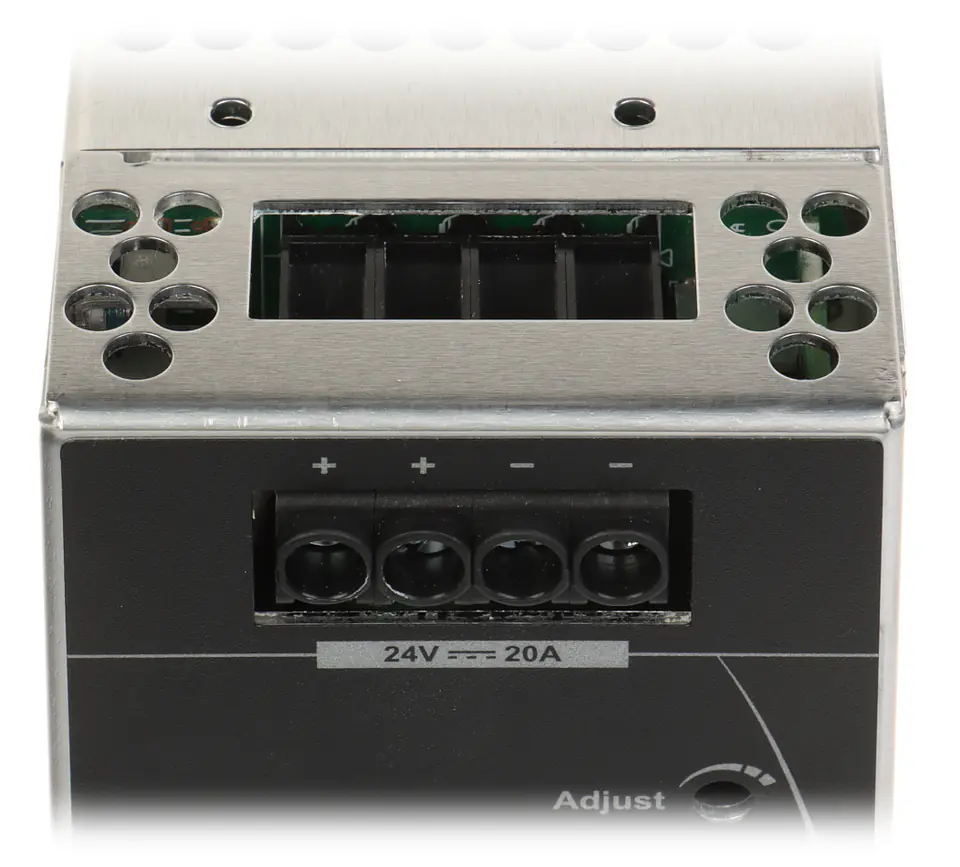

| Output voltage: | 24 volts DC |
| Output voltage adjustment: | 24 ... 28 volts |
| Power supply: | 480 watts (Printing) |
| Power supply current efficiency: | 20 amps |
| Scales: | 0.87 kg |
| Security: | Short-circuit Temperature Surge Protection Overload Protection |

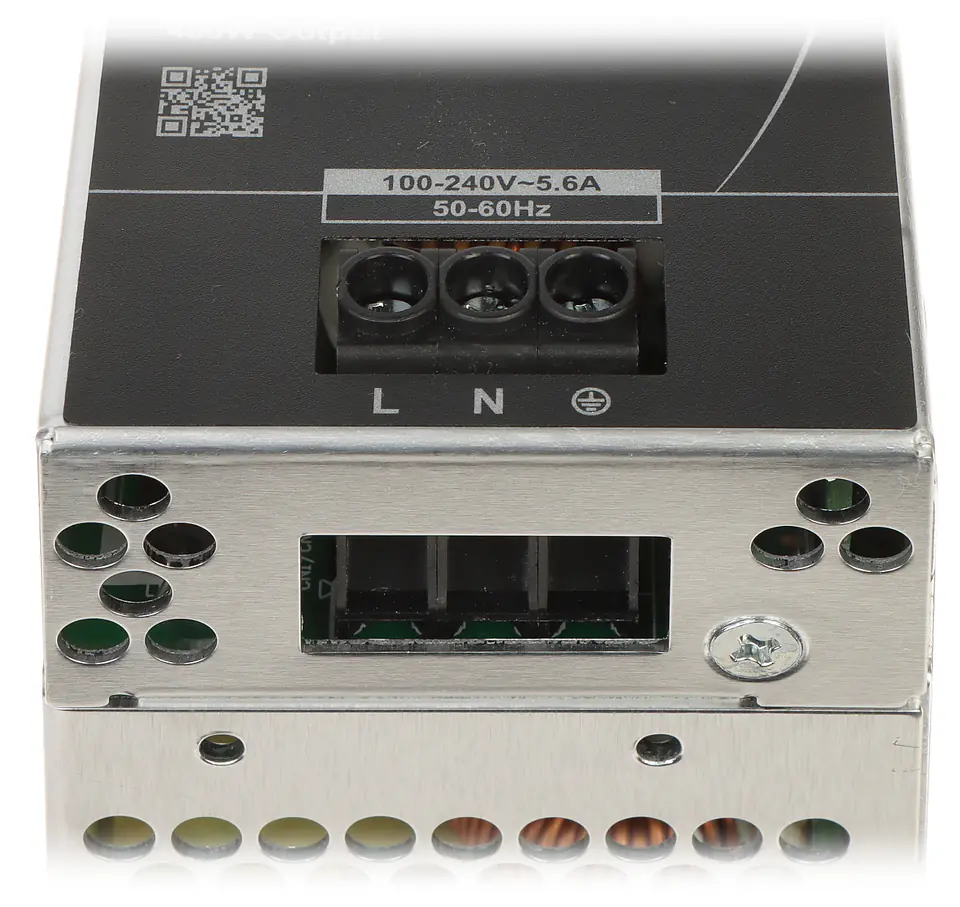

| Supply voltage: | 90 ... 264 VAC |
| Type of power supply: | Pulse |
| Vibration resistance: | IEC60068-2-6, 10 ... 500 Hz max. 3 G for 60 minutes |
| Voltage tolerance: | ± 1 % |
| Warranty: | 5 years |
