Switch mode power supply installed on TS35/7.5 or 15 DIN rail, resistant to high operating temperatures (up to 70°C)
POWER SUPPLY DRL-12V120W-1EN
PLN 148.57
Shipping from warehouse: D4
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- DELTA ELECTRONICS
- Product code:
- DRL-12V120W-1EN / 5902887072758
Share this product:
Specification

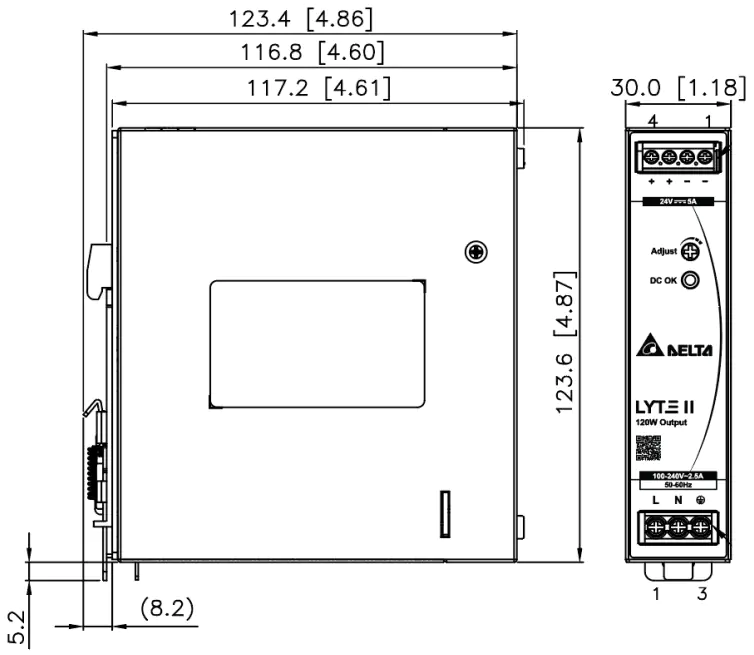

| Dimensions: | 123.4 x 123.6 x 30 mm |
|---|---|
| Efficiency: | 86 % |
| Enclosure type: | DIN |
| Mtbf (mean time between failures): | > 700,000 hours |
| Number of outputs: | 2 pcs. |
| Operating temperature / relative humidity: | -40 °C ... 70 °C / 10 ... 95 % |

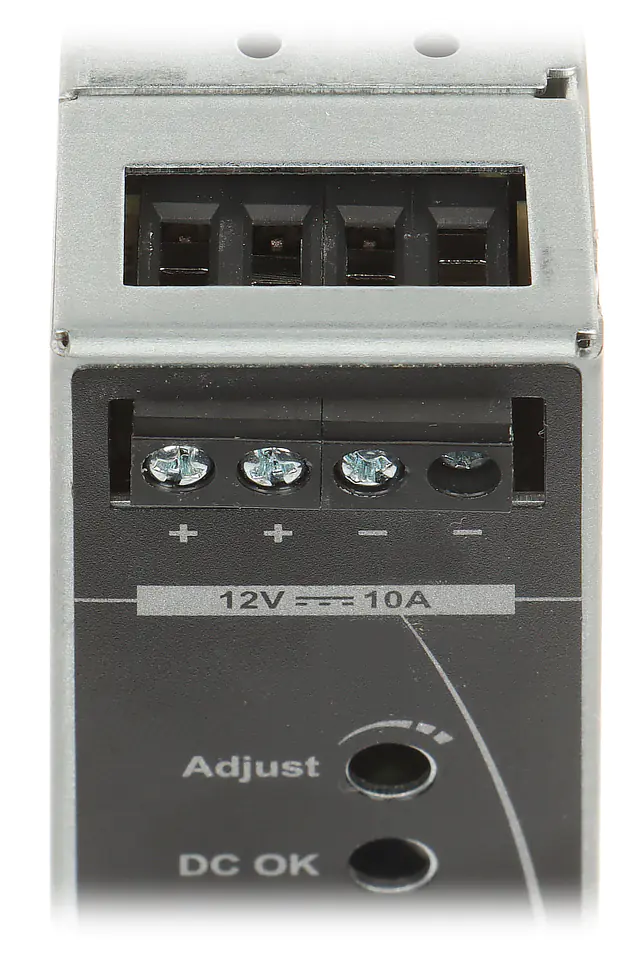

| Output voltage: | 12 volts DC |
| Output voltage adjustment: | 10.8 ... 13.2 VDC |
| Power supply: | 120 watts (Printing) |
| Power supply current efficiency: | 10 amps |
| Scales: | 0.45 kg |
| Security: | Short circuit overload suppression surge protector |

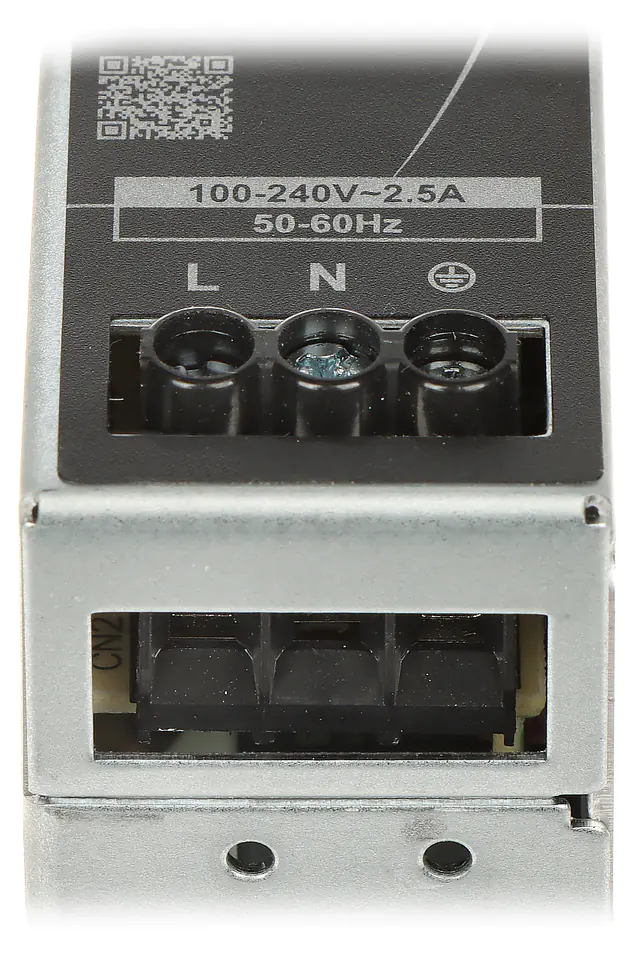

| Supply voltage: | 90 ... 264 VAC |
| Type of power supply: | Pulse |
| Warranty: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
