Switch mode power supply installed on TS35/7.5 or 15 DIN rail, resistant to high operating temperatures (up to 70°C)
POWER SUPPLY DRC-24V100W-1AZ
PLN 193.84
Shipping from warehouse: D4
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- DELTA ELECTRONICS
- Product code:
- DRC-24V100W-1AZ / 5902887021770
Share this product:
Specification

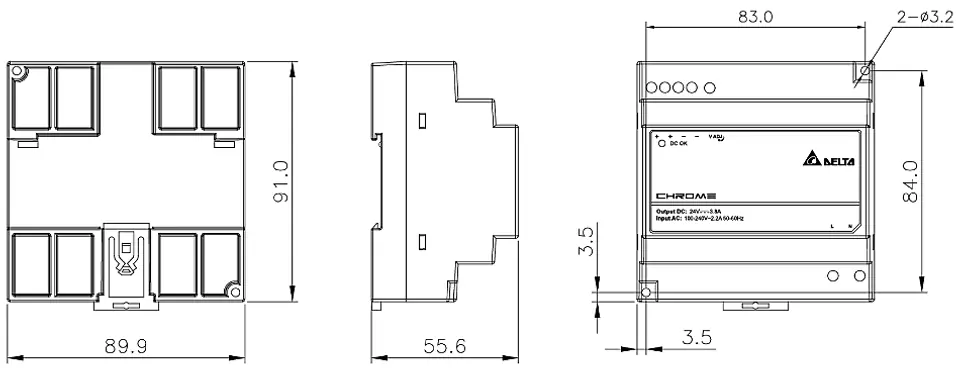

| Dimensions: | 90 x 91 x 56 mm |
|---|---|
| Efficiency: | > 87 % |
| Enclosure type: | DIN |
| Number of outputs: | 2 pcs. |
| Operating temperature / relative humidity: | -25 °C ... 71 °C / 5 ... 95 % |
| Output voltage: | 24 volts DC |
| Output voltage adjustment: | 20.0 ... 24.48 volts |
| Power supply: | 91.2 watts |
| Power supply current efficiency: | 3.8 A |
| Scales: | 0.345 kg |
| Security: | Short circuit overload suppression surge protector |
| Supply voltage: | 90 ... 264 VAC |
| Type of power supply: | Pulse |
| Warranty: | 5 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
