The new Elite V3 power supply is a reliable choice for the casual PC user. The included silent 120mm fan, PCI-E support, and global 3-year warranty delivers the power supply that delivers the functionality and durability you can count on. This is an ideal option for users and apps that don't require 80 Plus performance to get the job done. This power supply is designed for reliability, focusing on reducing accidental shutdowns in power failure conditions when power sources are unstable. Elite V3 is a complete solution that provides high stability in a small package at an affordable price.

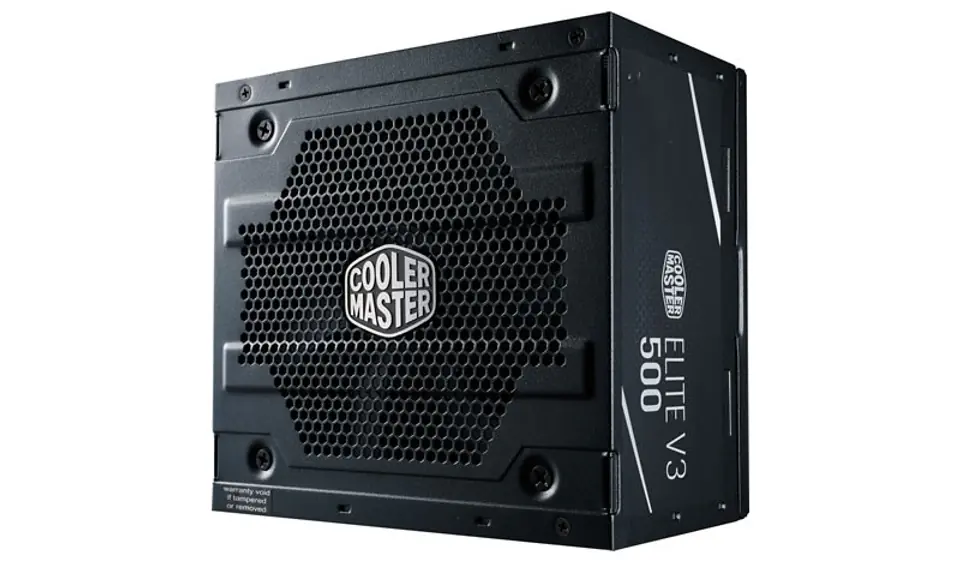

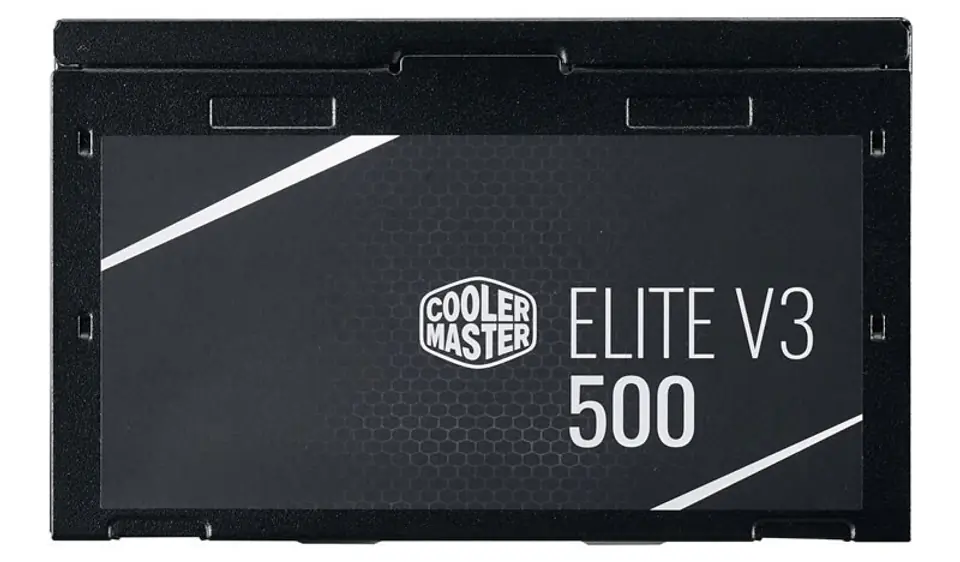

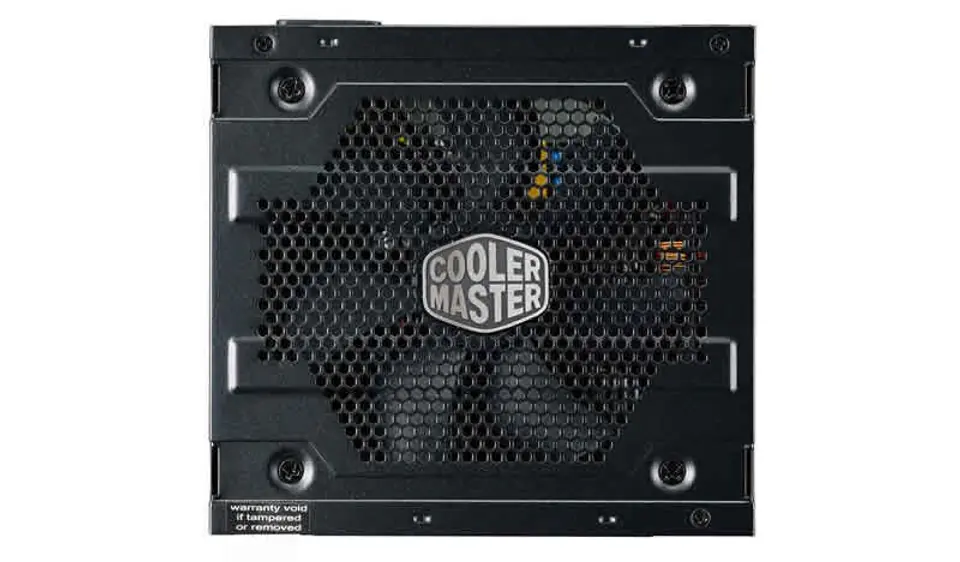

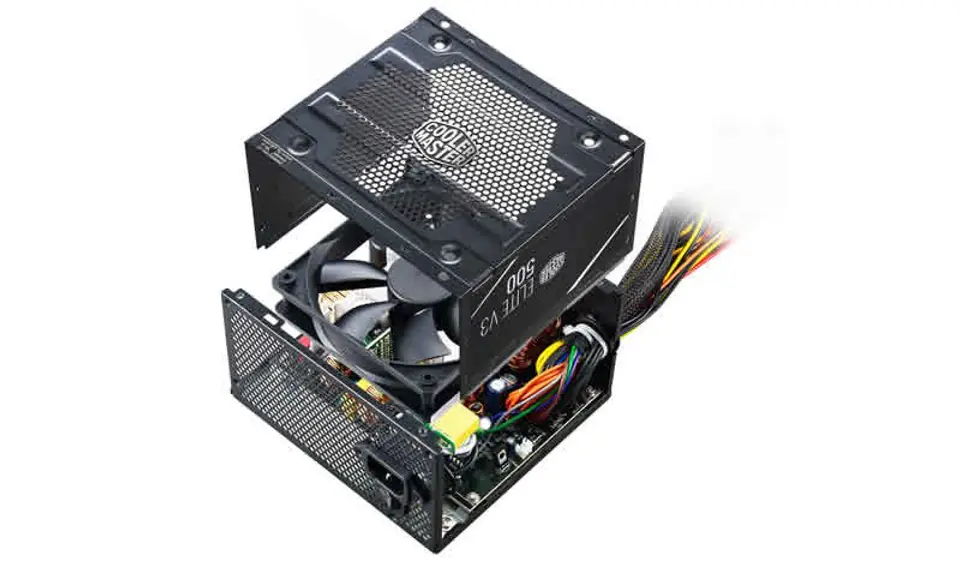

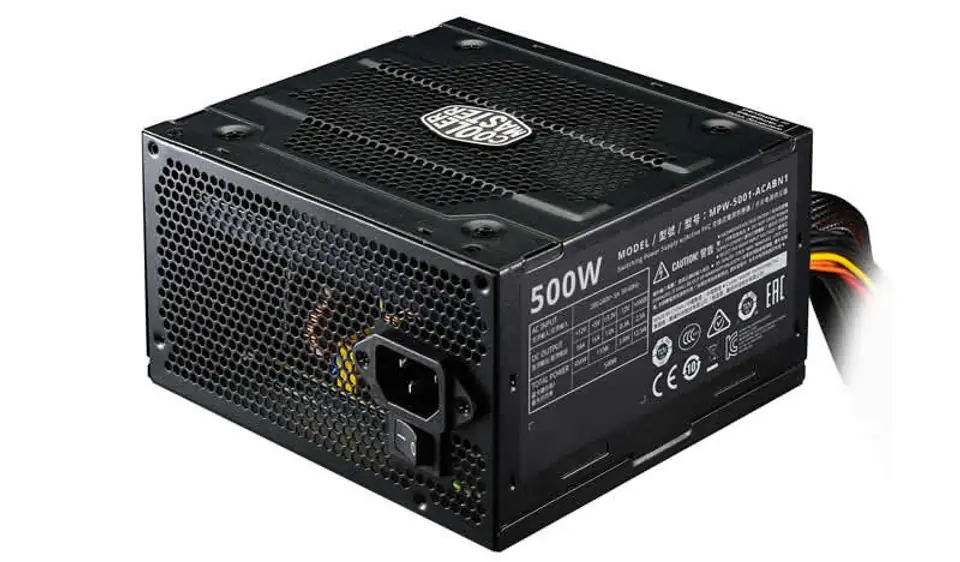

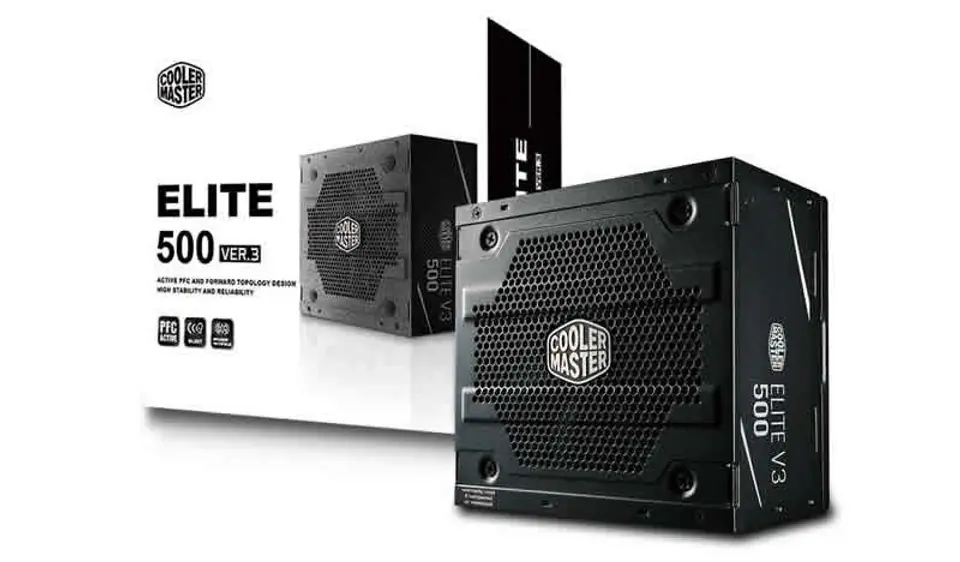

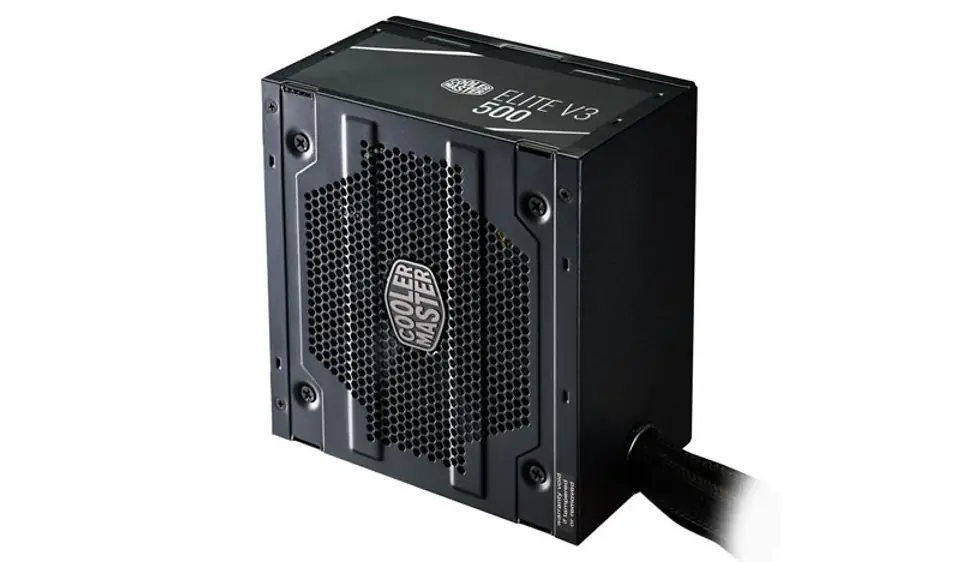

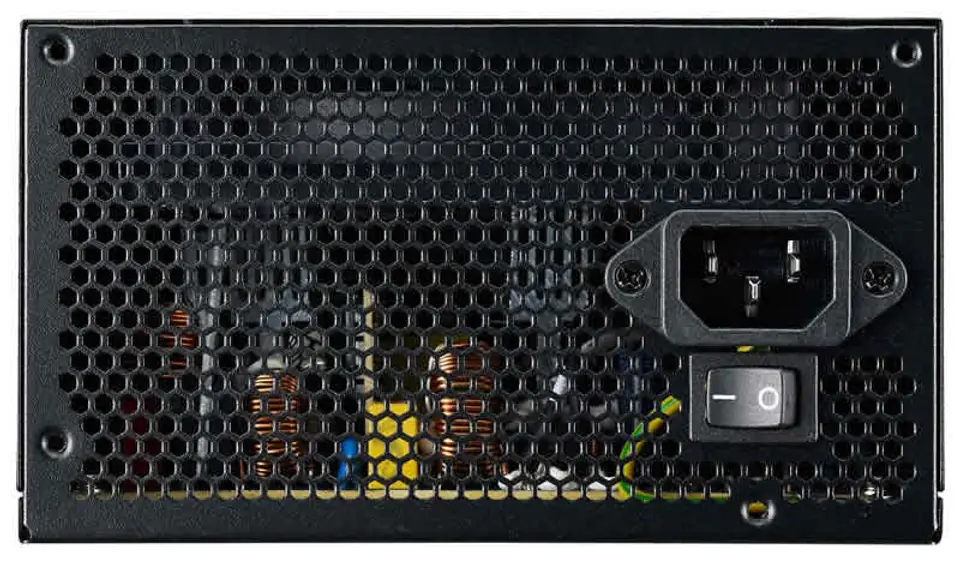

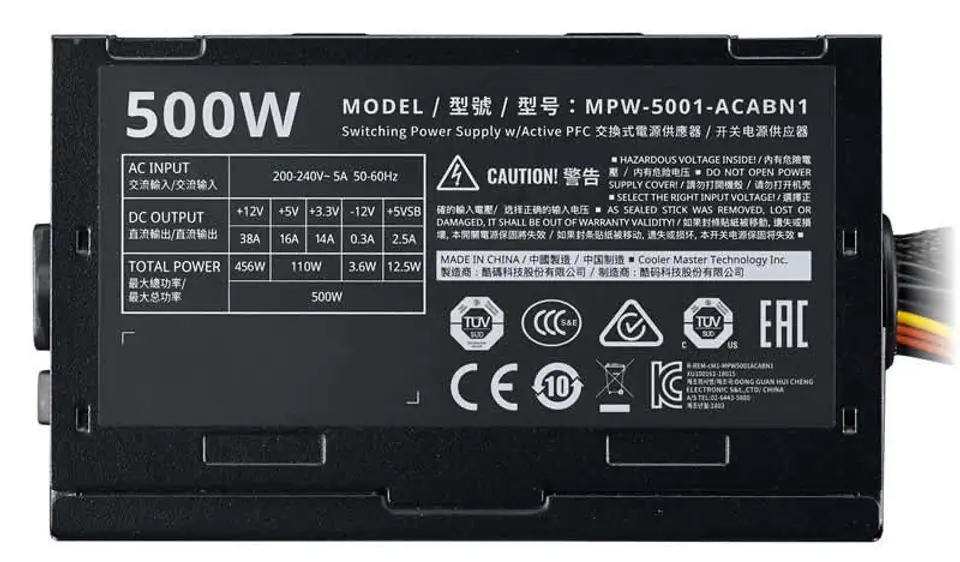

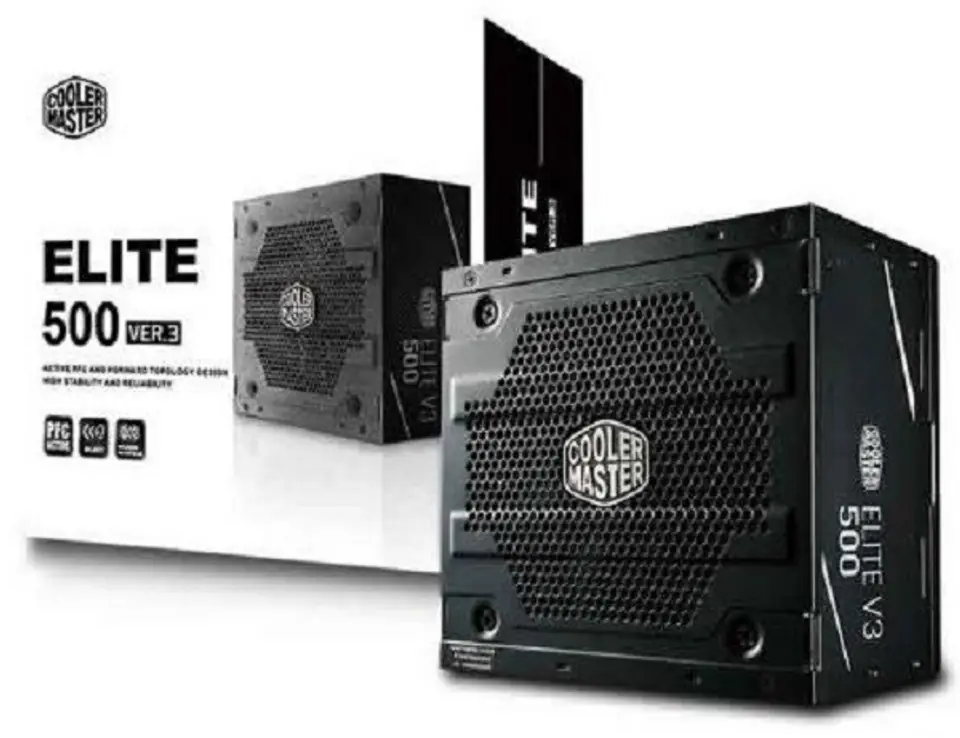

Power Supply Cooler Master Elite V3 500W MPW-5001-ACABN1-EU 500W; Active; 120 mm
This product is not available
- Availability:
- expected delivery
- Brand:
- Cooler Master
- Product code:
- MPW-5001-ACABN1-EU / 4719512066201
Share this product:
Specification
| 80 plus certificate: | 80 PLUS |
|---|---|
| 80 plus certification: | 80 PLUS |
| Ac input frequency: | 47 - 63 Hz |
| Ac input voltage: | 200 - 240 V |
| Applied backlight: | no |
| Atx 24-pin plugs (20+4): | 1 |
| Atx version: | 2.31 |
| Atx version: | 2.31 |
| Bulk box width (external): | 228 mm |
| Combined power (-12v): | 3.6 W |
| Combined power (+12v): | 264 W |
| Combined power (+3.3v): | 80 W |
| Combined power (+5v): | 80 W |
| Combined power (+5vsb): | 12.5 W |
| Compliant standards: | ATX 12V V2.31 |
| Cpu connector (4+4 pin): | yes |
| Cpu power cable length: | 55 cm |
| Cpu power connector (4+4 pin): | Y |
| Delay range good power signal: | 100 - 500 ms |
| Depth: | 150 mm |
| Depth (mm): | 150 |
| Destiny: | PC |
| Diameter of fan canopy: | 12 cm |
| Efficiency: | 82% |
| Efficiency: | 82% |
| Fan diameter: | 12 cm |
| Floppy disk drive connector: | Y |
| Floppy disk drive slot: | yes |
| Floppy drive power connector: | 1 |
| Floppy plugins: | 1 |
| Harmonized system (hs) code: | 84733020 |
| Height: | 86 mm |
| Height (mm): | 86 |
| Height of reference box (external): | 215 mm |
| Hold time: | 10 ms |
| Input current: | 4 A |
| Line: | Elite |
| Main box length (outer): | 500 mm |
| Master (outer) case height: | 215 mm |
| Master (outer) case length: | 500 mm |
| Master (outer) case width: | 228 mm |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 22 A |
| Max output current (+3.3v): | 12 A |
| Max output current (+5v): | 12 A |
| Max output current (+5vsb): | 2.5 A |
| Maximum output current (-12 v): | 0.3 A |
| Maximum output current (+12 v): | 22 amps |
| Maximum output current (+3.3v): | 12 amps |
| Maximum output current (+5 v): | 12 amps |
| Maximum output current (+5 vsb): | 2.5 A |
| Mean time between failures (mtbf): | 1000000 h |
| Modular wiring type: | no |
| Molex plugins: | 3 |
| Motherboard cable length: | 50 cm |
| Motherboard power cable length: | 50 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Mtbf (mean time between failures): | 1000000 h |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 3 |
| Operating temperature (t-t): | 10 - 40 °C |
| Other connectors: | 1 x CPU 4+4 (8) pin |
| Other parameters: | Certificates: TUV, cTUVus, CE, FCC, BSMI |
| Package depth: | 213 mm |
| Package height: | 96 mm |
| Package type: | Box |
| Package weight: | 1.65 kg |
| Package width: | 195 mm |
| Pause time: | 10 ms |
| Pci express power cable length: | 65 cm |
| Pci express power cable length: | 65 cm |
| Pci express power connectors (6+2 pin): | 1 |
| Pci express power connectors (6+2 pin): | 1 |
| Pci-e 6-pin slots: | no |
| Pci-e 8-pin plugs (6+2): | 1 |
| Pci-e 8-pin slots: | no |
| Peripheral (molex) power connectors (4-pin): | 3 |
| Peripheral power connectors (molex) (4-pin): | 3 |
| Pfc: | Active |
| Pfc (power factor correction) type: | Active |
| Power factor: | 0.9 |
| Power factor correction (pfc) type: | Active |
| Power good signal delay range: | 100 - 500 ms |
| Power protection features: | Short circuit, Over voltage, Over power, Overheating |
| Power supply (w): | 500 |
| Power supply efficiency (%): | 82 |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Product depth: | 150 mm |
| Product height: | 86 mm |
| Product weight: | 1.45 kg |
| Product width: | 140 mm |
| Products in the main (outer) case: | 5 pcs. |
| Products on the pallet: | 40 pcs. |
| Products per master (outer) case: | 5 pc(s) |
| Products per pallet: | 40 pc(s) |
| Purpose: | PC |
| Sata plugs: | 3 |
| Sata power cable length: | 870, 750 mm |
| Security measures applied: | OVP, SCP, OTP, OPP |
| Supported motherboard form factors: | ATX |
| Supported motherboard type: | ATX |
| Temperature range (operation): | 10 - 40 °C |
| Total power: | 500 W |
| Total power (-12v): | 3.6 W |
| Total power (+12 v): | 264 watts (Printing) |
| Total power (+3.3 v): | 80 watts (Printing) |
| Total power (+5 v): | 80 watts (Printing) |
| Total power (+5 vsb): | 12.5 W |
| Type of cooling: | Fan 120 mm |
| Type of packaging: | Box |
| Type of power supply (psu): | ATX |
| Warranty: | 3 years |
| Weight: | 1.45 kg |
| Weight with packaging: | 1.65 kg |
| Width: | 140 mm |
| Width (mm): | 140 |
