| -40 °c ... 45 °c: | Operating temperature: |
|---|---|
| < 95 %: | Permissible relative humidity: |
| 0 ... 24 vdc (typically 12v): | Maximum supply voltage: |
| 0.08 kg: | Scales: |
| 116 x 46 x 25 mm: | Dimensions: |
| 2: | Number of power inputs: |
| 5.6 a terminal block 4 a socket 5.5/2.1: | Maximum supply current: |
| 8: | Number of power outputs: |
| 8 x 0.7 a polymer fuse: | Type of protection: |
| Delta: | Manufacturer / Brand: |
| Input : 2.1/5.5 mm socket / cable terminalsexference : cable terminals: | Type of power connectors: |
| Lifetime warranty: | Warranty: |

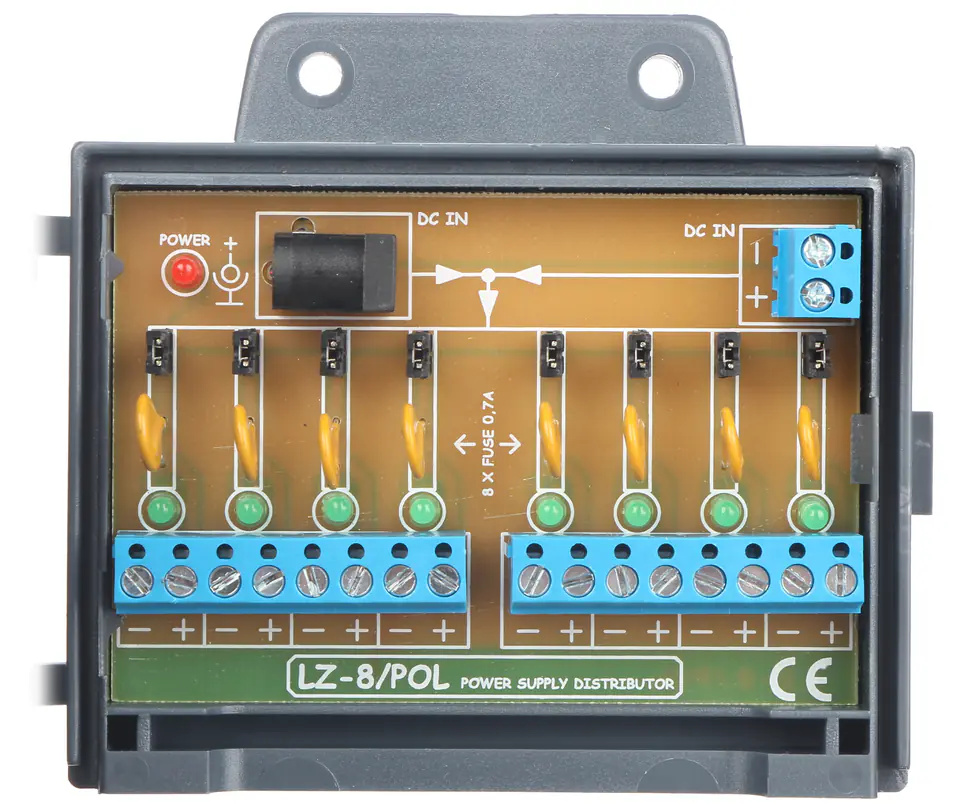

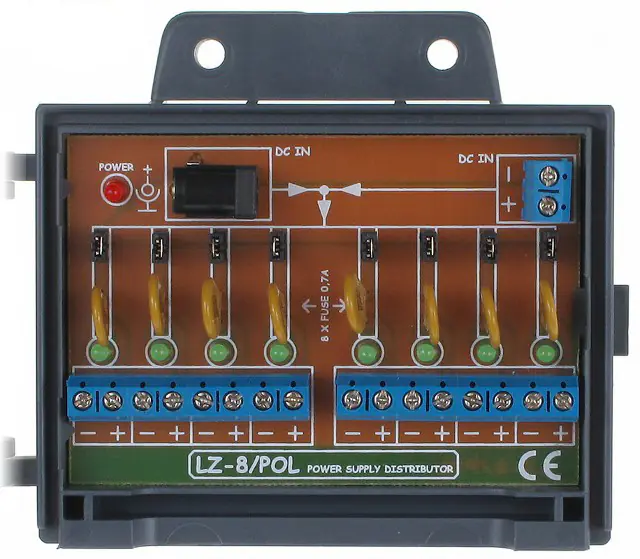

LZ-8/POL is a passive element and is used for power distribution
The unquestionable advantage of using LZ-8 / POL for monitoring systems with power supply from a central point is additional tamper protectionIn the absence of individual protection for each current path, it is enough for an intruder to cause a short circuit for one camera, and the entire system will be deprived of power
