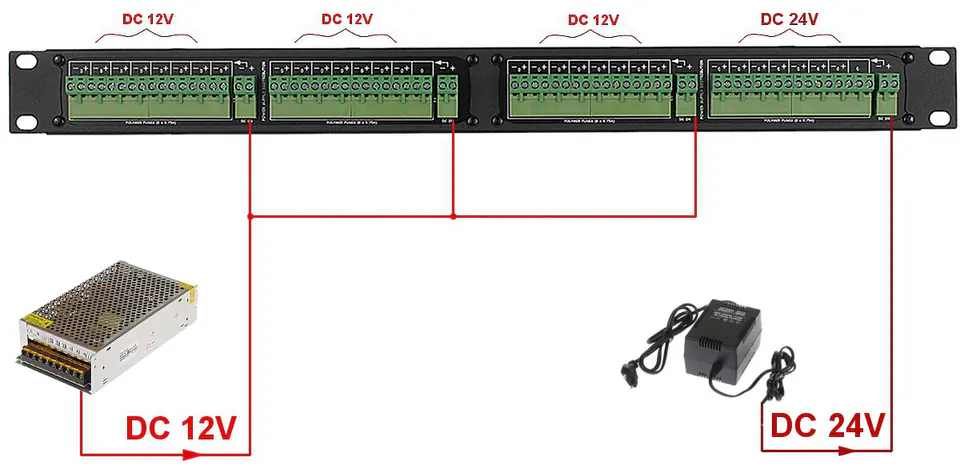

LZ-32/POL/R19 is a passive device, helping to branch the power supply from one or several power supplies of higher power
If necessary, the individual slats can be connected in parallel
POWER CONNECTOR LZ-32/POL/R19
€65.53
Shipping from warehouse: D4
Estimated shipping: Wed, May 8 - Mon, May 13
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Delta
- Product code:
- LZ-32/POL/R19 / 5902887044731
Share this product:
Specification
| Dimensions: | 484 x 44 x 35 mm |
|---|---|
| Enclosure type: | 1 U 19" rack |
| Max. single output current: | 0.75 A |
| Maximum supply current: | 5 A (for single strip) |
| Maximum supply voltage: | 24 V DC (typically 12V) |
| Number of power inputs: | 4 (one for each 8-output strip) |
| Number of power outputs: | 32 (4 x 8 outputs) |
| Operating temperature: | -50 °C ... 55 °C |
| Permissible relative ambient humidity: | < 95 % |

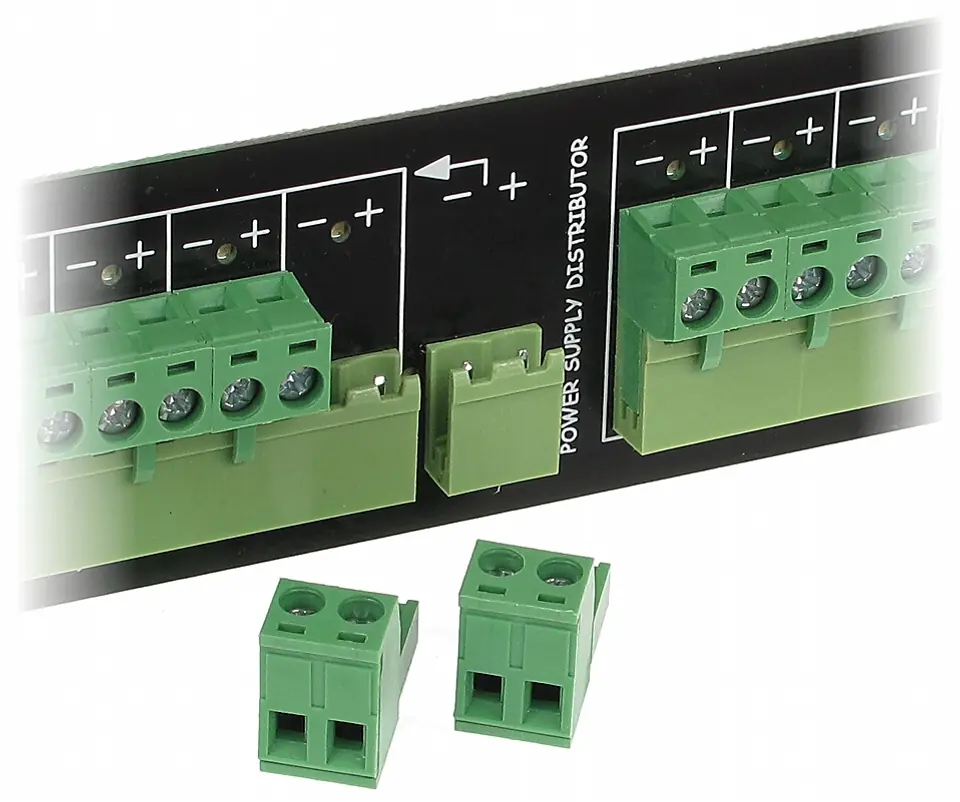

| Power connector type: | Input : Cable terminalsOutput : Cable terminals |
| Producer / brand: | DELTA |
| Scales: | 0.38 kg |
| Type of protection: | 32 x 0.75 A - Polymer fuse |
| Warranty: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
