| -10 °c ... 50 °c: | Operating temperature: |
|---|---|
| 0.03 kg: | Scales: |
| 1 a: | Max. single output current: |
| 2: | Number of power inputs: |
| 2 years: | Warranty: |
| 30 v dc (typically 12 v): | Maximum supply voltage: |
| 4: | Number of power outputs: |
| 4 a: | Maximum supply current: |
| 4 x 1 a - ptc polymer fuse: | Type of protection: |
| 80 x 43 x 22 mm: | Dimensions: |
| Input - socket 5.5/2.1, cable terminalsextrait - cable terminals: | Type of power connectors: |
| Plastic: | Housing Type: |
| Protection : short-circuit, surge protector, overload diode indicator: | Selected features: |
| Pulsar: | Manufacturer / Brand: |

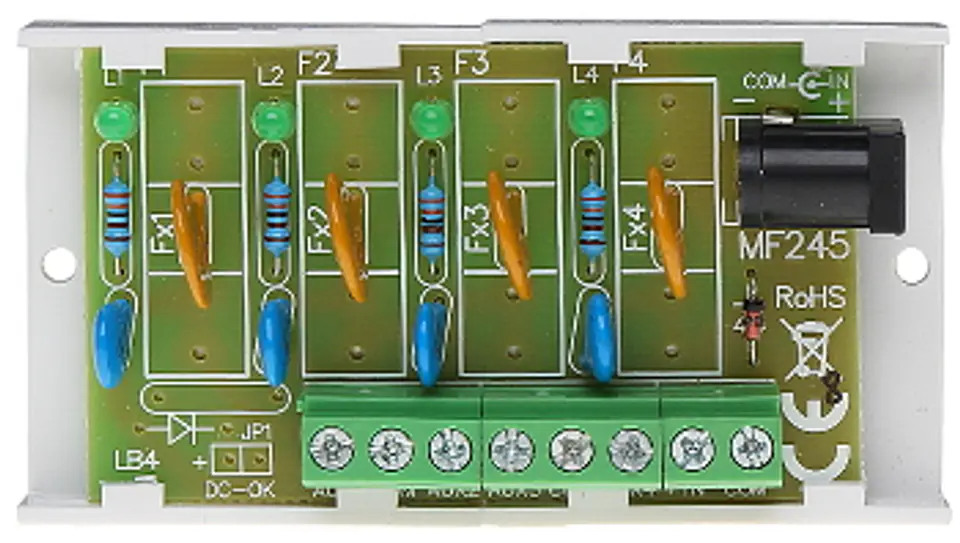

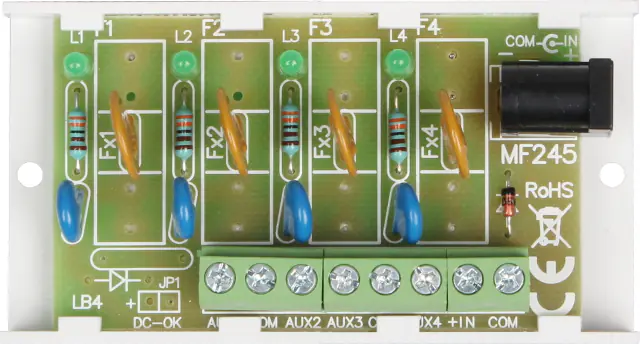

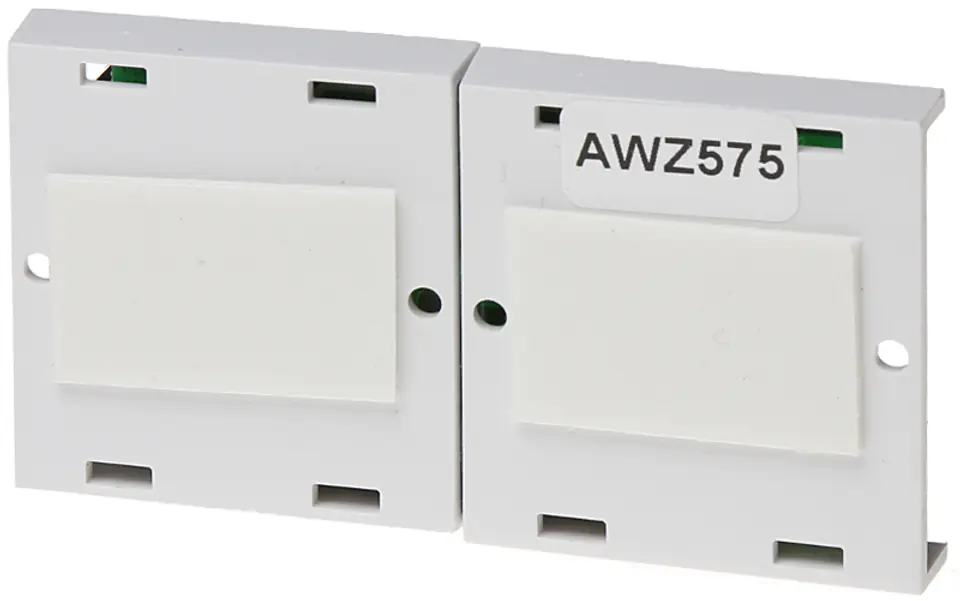

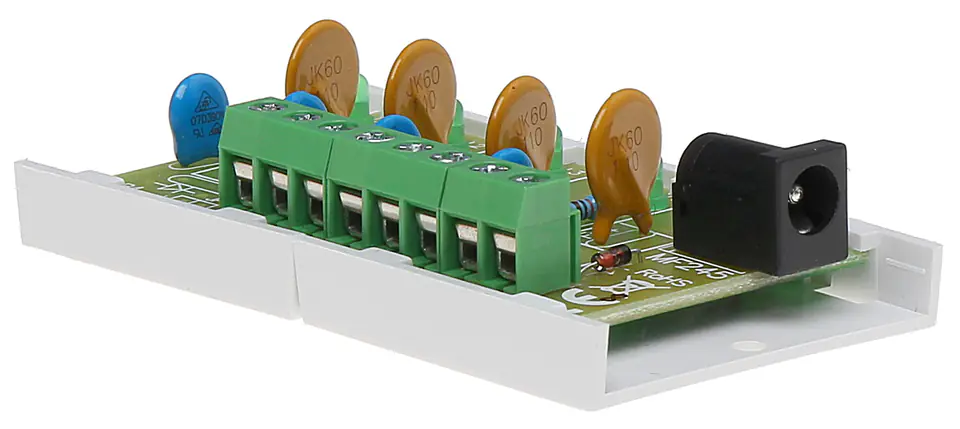

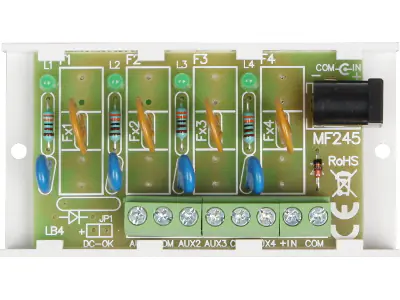

AWZ-575 is a passive element and is used for power distributionThe undisputed advantage of using AWZ-575 for monitoring systems with power supply from a central point is additional tamper protection
For more than 4 receivers, the receivers can be connected in parallel at the same terminal
