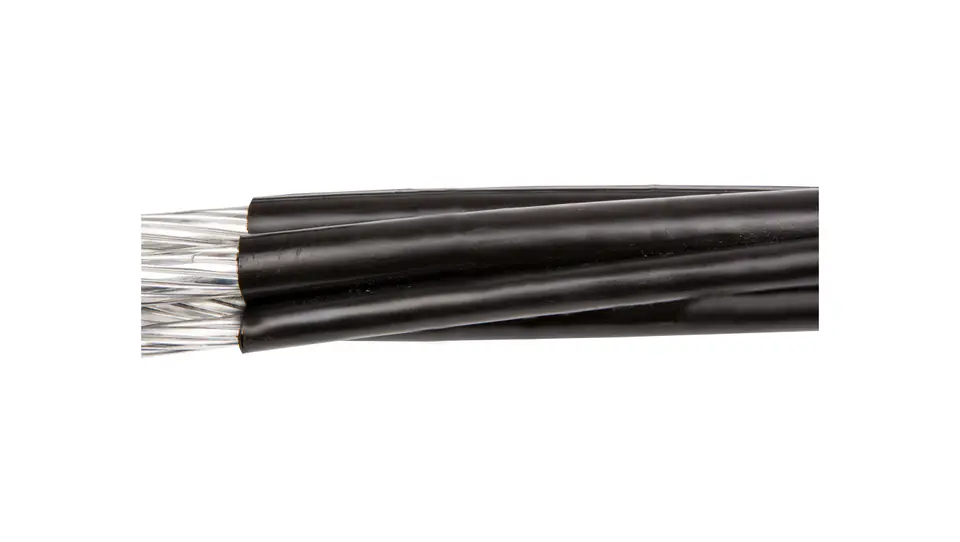

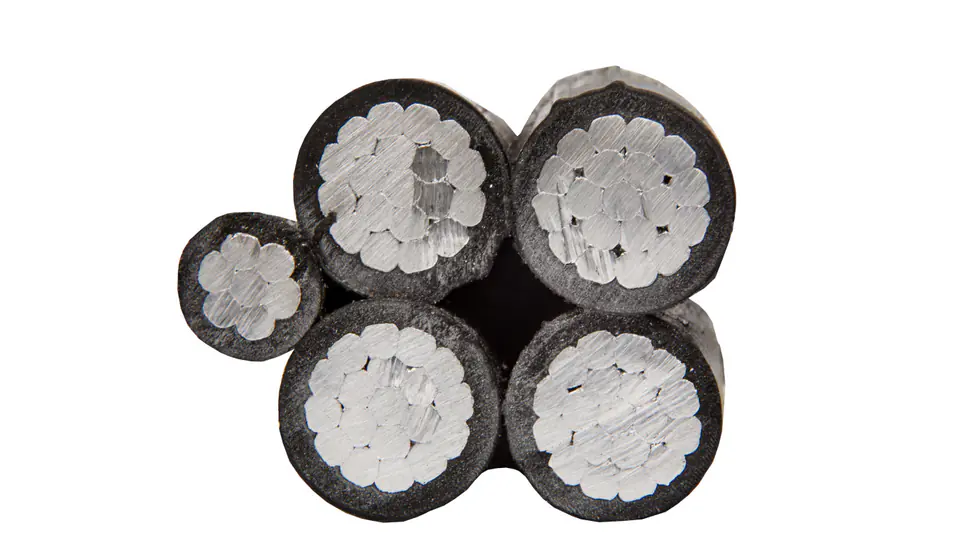

Power cable AsXSn 4x70 + 1x35 0,6/1kV /drum/
€13.73
Shipping from warehouse: T2
Estimated shipping: Tue, May 21 - Fri, May 24
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- ELTRIM
- Product code:
- WAPB004N0MCEA0O_B /
Share this product:
Specification
| Approximate cable weight [kg/km]: | 1070 |
|---|---|
| Approximate outside diameter [mm]: | 34.3000 |
| Armor: | no |
| Conductor isolation: | XLPE (Cross-linked Polyethylene) |
| Conductor material: | Al |
| Function behavior: | no |
| Grounding vein: | no |
| Halogen-free en 50267-2-2: | no |
| Identification of veins: | Digits |
| Insulation strength (durability): | no |
| Lead coating: | no |
| Low fume emissions (according to en 61034-2): | no |
| Maximum core temperature [°c]: | 90 |
| Maximum length of the outlet section [m]: | 50 |
| Non-propagating flame: | According to EN 60332-1-2 |
| Number of auxiliary wires: | 1 |
| Number of veins: | 4 |
| Outer shell material: | Lack |
| Permissible temperature of permanently laid cable [°c] from: | -40 |
| Permissible temperature of permanently laid cable [°c] to: | 70 |
| Protective vein: | no |
| Rated conductor cross-section [mm2]: | 70 |
| Rated section of auxiliary conductor [mm2]: | 35 |
| Rated voltage u [v]: | 1 |
| Rated voltage u0 [v]: | 0.6000 |
| Screen: | no |
| Vein class: | Class 2 = multi-wire |
| Vein shape: | Round |
