| Baud:: | 10 / 100 Mbps : 1 LAN Port + 5 LAN & PoE Ports |
|---|---|
| Dimensions:: | 255 x 205 x 95 mm |
| Lan ports:: | 1 x RJ45 10/100 Base-T - Uplink 5 x RJ45 10/100 Base-T + PoE (802.3af/at) / Passive PoE |
| Leds:: | Power, LAN |
| Manufacturer / brand:: | ATTE |
| Maximum output power:: | 40W @ Passive PoE - 1 Ports ... 4.70 W @ Passive PoE - Port 5.30 W @ PoE (802.3af/at) - Ports 1 ... 5 |
| Maximum total power:: | 96 watts (Printing) |
| Operating modes:: | Normal: 100 m @ 10/100 Mbps - Ports 1 ... 5 Long Range: 280 m @ 10 Mbps - Ports 1 ... 4 ; 100 m @ 10/100 Mbps - Port 5 LAN Port 6 - Uplink |
| Power:: | 230 V AC - cable terminals |
| Scales:: | 1.4 kg |
| Selected features:: | Possibility of cascading devices (power transmission between devices via Passive PoE via LAN port 5) The PoE output voltage is equal to the input voltage The ability to independently turn on and off the PoE power supply for each of the LAN ports 1 ... LAN 5 Modular design streamlines service tasks and enables quick, easy system expansion Raster module mounting system makes it easy to expand the device with additional modules |
| Warranty:: | 3 years |

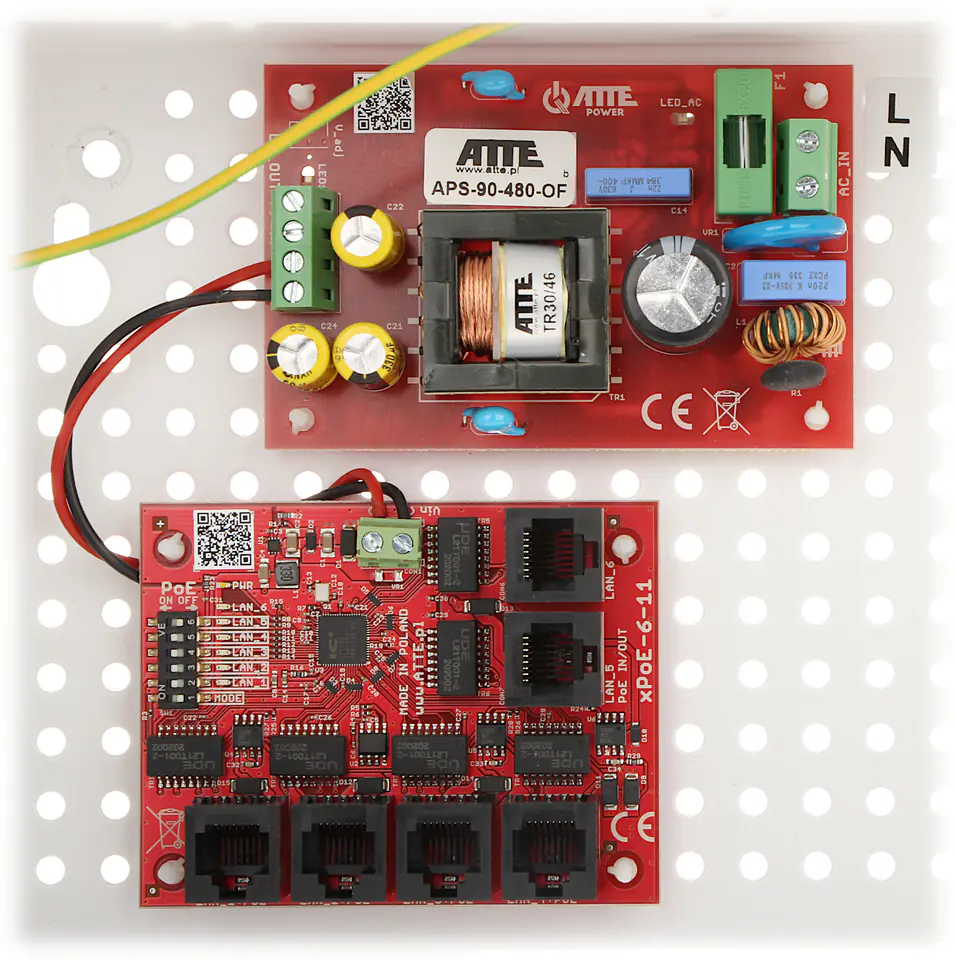

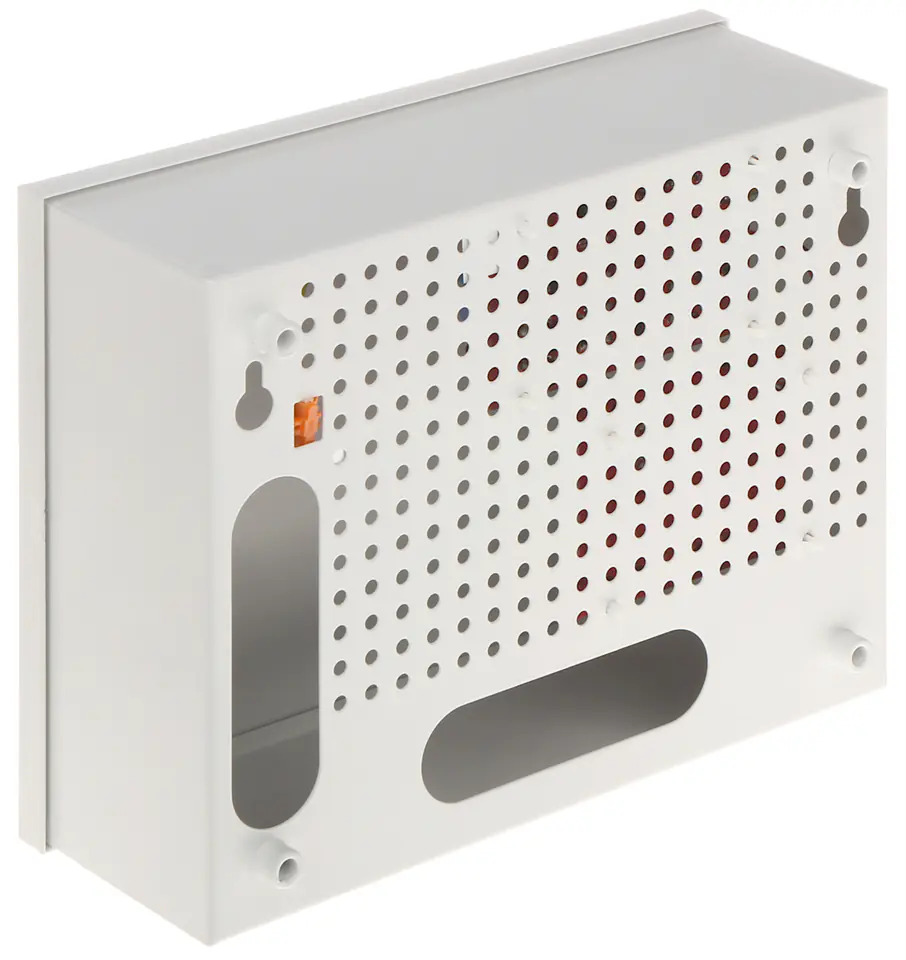

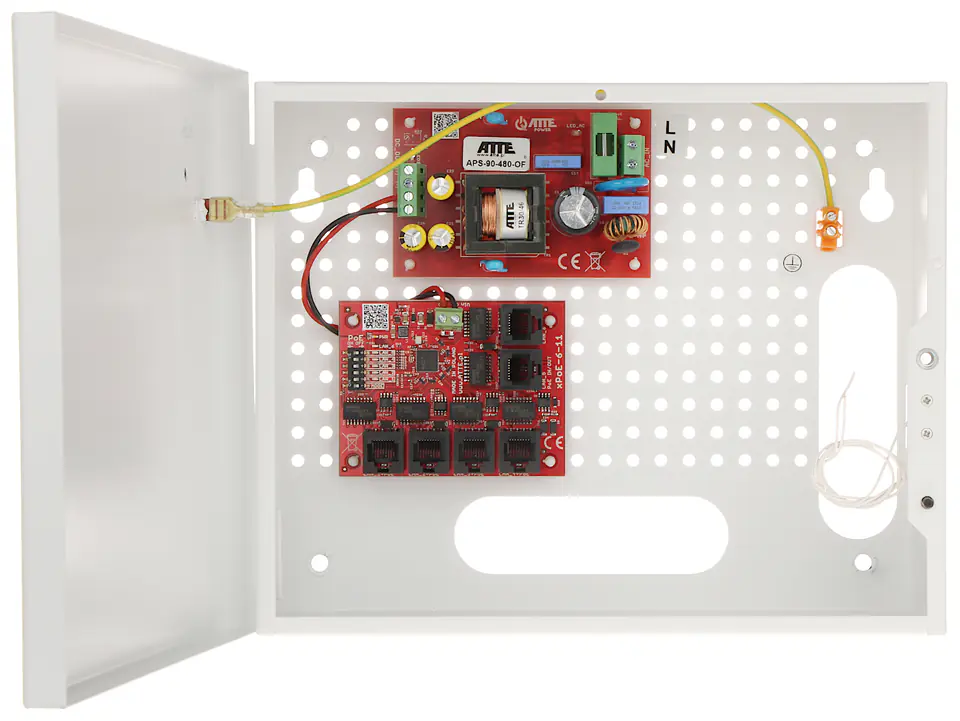

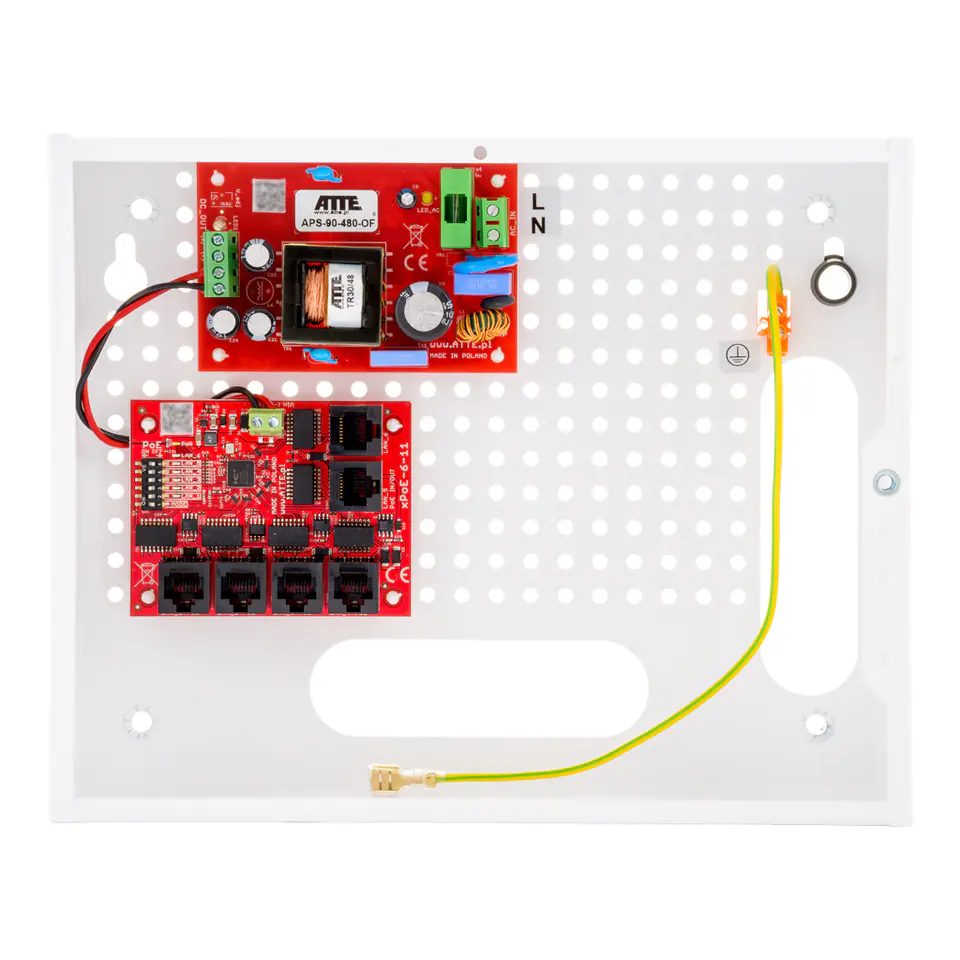

The IP-5-11-E kit consists of an XPOE-6-11-OF switch module and an APS-90-480-OF switching power supply enclosed in an ABOX-E internal housing
Long RANGE mode allows you to increase the range of power and data transmission for LAN ports 1 ... LAN 4 to 280m with limited network bandwidth for these ports to 10Mbps
