With reliability and high transmission quality, the DS-3E0105P-E/M(B) 4-port PoE desktop switch is ideal for home or office network expansionFour ports support Power over Ethernet (PoE)
POE SWITCH DS-3E0105P-E/M B) Hikvision 4-POR
PLN 160.77
Shipping from warehouse: H7
Estimated shipping: Thu, Nov 6 - Mon, Nov 10
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- DS-3E0105P-E/M(B) / 6941264013952
Share this product:
Specification
| 10g support: | No |
|---|---|
| Basic switching rj-45 ethernet ports quantity: | 5 |
| Basic switching rj-45 ethernet ports type: | Fast Ethernet (10/100) |
| Baud:: | 10 / 100 Mbps : 1 LAN Port + 4 LAN & PoE Ports |
| Certificates:: | CE |
| Dc input voltage: | 48 V |
| Depth: | 83.1 mm |
| Dimensions:: | 105 x 86 x 28 mm |
| Height: | 27.6 mm |
| Housing material: | Metal |
| Input current: | 0.8 A |
| Lan ports:: | 1 x RJ45 100 Base-T - Uplink, 4 x 10/100 Base-T ( 4 x PoE (802.3af/at) ) 1, 2 - High Priority Ports |
| Leds:: | Power, PoE Max, Link/Act |
| Mac address table: | 2000 entries |
| Mac address table:: | 1k |
| Manufacturer / brand:: | Hikvision |
| Maximum output power:: | 30 W/ PoE port |
| Maximum total power:: | 35 watts (Printing) |
| Networking standards: | IEEE 802.3af, IEEE 802.3at |
| Operating modes:: | Extend On: 300 m, 10 Mb / s @ UTP cat. 5e, 6 - Ports 1 ... 4 Extend Off : 100 m, 100 Mbps @ UTP Cat 5e, 6 |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | 0 - 40 °C |
| Operating temperature:: | -10 °C ... 55 °C |
| Package weight: | 480 g |
| Packet buffer memory: | 0.768 MB |
| Power consumption (max): | 38 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) ports quantity: | 4 |
| Power over ethernet (poe) power per port: | 30 W |

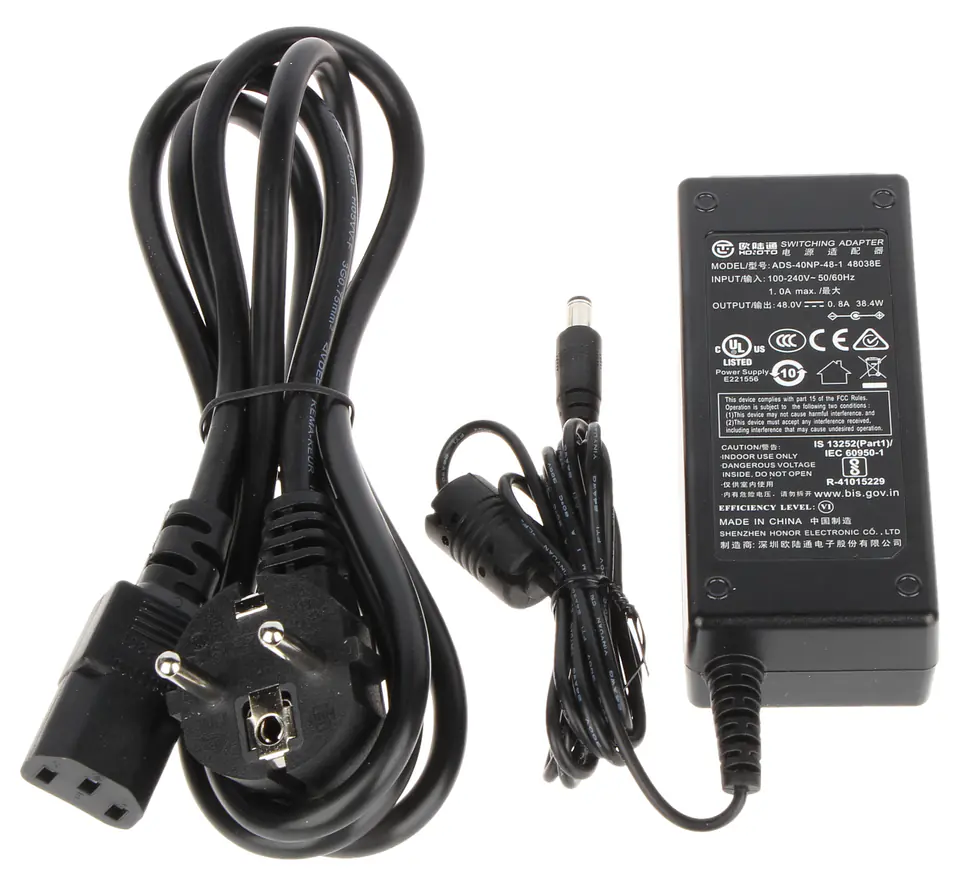

| Power:: | 48 V DC / 800 mA (power supply included) |
| Product colour: | Blue |
| Sap code:: | 301801136 |
| Scales:: | 0.2 kg |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -40 - 85 °C |
| Switch type: | Unmanaged |
| Switching capacity: | 1 Gbit/s |
| Warranty:: | 3 years |
| Weight: | 200 g |
| Width: | 105 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
