Manufacturer no: 10061996

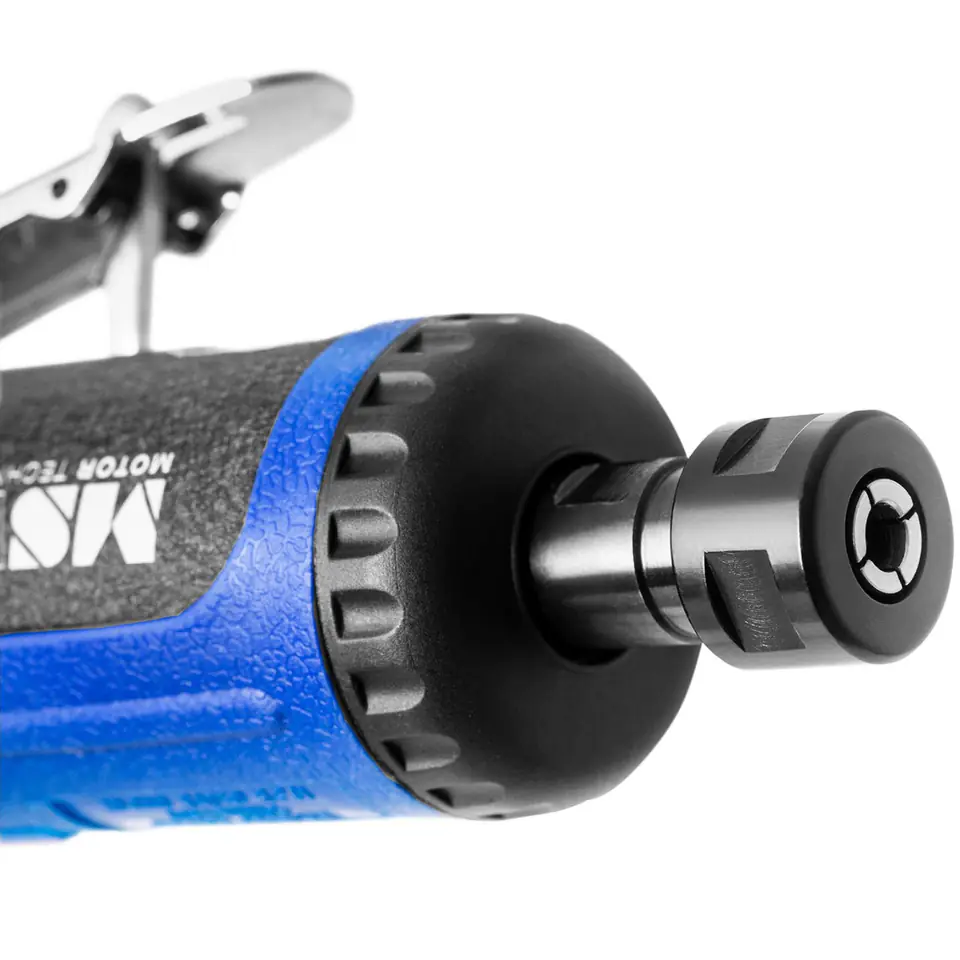

The MSW pneumatic grinder will work well for grinding, separating, polishing, milling, trimming as well as processing or roughing. The device operates at a speed of 22000 rpm. It is driven by air with a flow rate of 113 l / min with a maximum pressure of 6.3 bar. The rotational speed can be set depending on the type of work. The grinder has a concentricity tolerance of 0.15 mm. The handle has an ergonomic shape and the lightweight design allows comfortable work even for a long time. The compressed air is discharged laterally by 360 via a rotating outlet. High-quality gearbox and bearings ensure long service life with low maintenance requirements.
Product features:
- - Handiness - ergonomic design for safe driving,
- - Efficiency - powerful drive offers a speed of 22000 rpm,
- - Accuracy - speed adjustable in 4 degrees depending on the situation,
- - Efficiency - works at an operating pressure of up to 6.3 bar and an air flow of 113 l / min,
- - Durability - high-quality gear, smoothly working bearings.
- - Model - MSW-ADG-01
- - Manufacturer's code - 10061996
- - Stan - New
- - Voltage [V] - -
- - Air outlet - Return
- - Clamping bracket [mm] - 6; 3
- - Max. disk size - 76
- - Air consumption [l/min] - 113
- - Maximum working pressure [bar] - 6,3
- - Sound power level [dB] - 93
- - Housing material - Aluminum, steel
- - Maximum rotational speed [rpm] - 22000
- - Diameter of air/water connection ['] - 1/4
- - Dimensions (LxWxH) [cm] - 16 x 3 x 3
- - Weight [kg] - 0,65
- - Shipping dimensions (LxWxH) [cm] - 20 x 9 x 5
- - Shipping weight [kg] - 0,85
- - Pneumatic mandrel grinder
- - User Manual
