- AMD AM5 socket: Supports AMD Ryzen 7000 series processors
- Unrivaled performance: 12+2+2 phase digital VRM solution
- Dual-channel DDR5 memory: 4*SMD DIMM with support for AMD EXPO and Intel XMP memory modules
- SuperSpeed Memory: 1 * PCIe 5.0 + 2 * PCIe 4.0 M.2
- Advanced Thermal Design and M.2 Thermal Shield: To ensure VRM power stability and 25110 M.2 SSD performance
- EZ Latch: PCIe x16 slot with quick release design

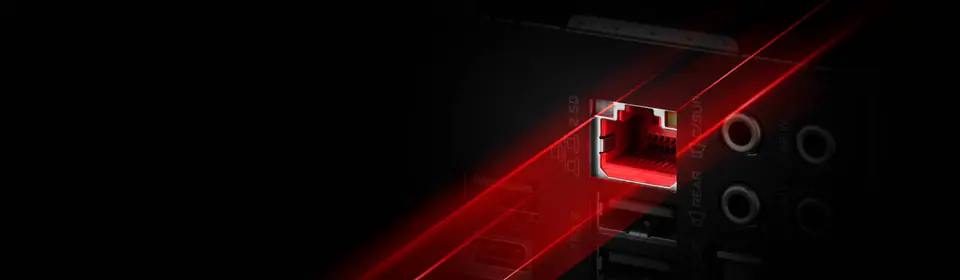

- Fast networks: Wi-Fi 6E 802.11ax and GbE LAN

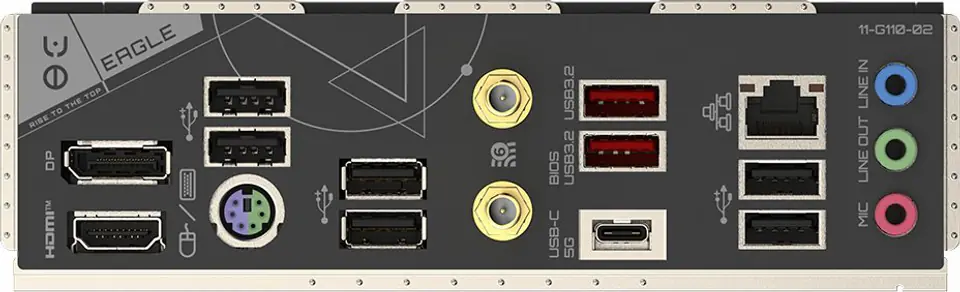

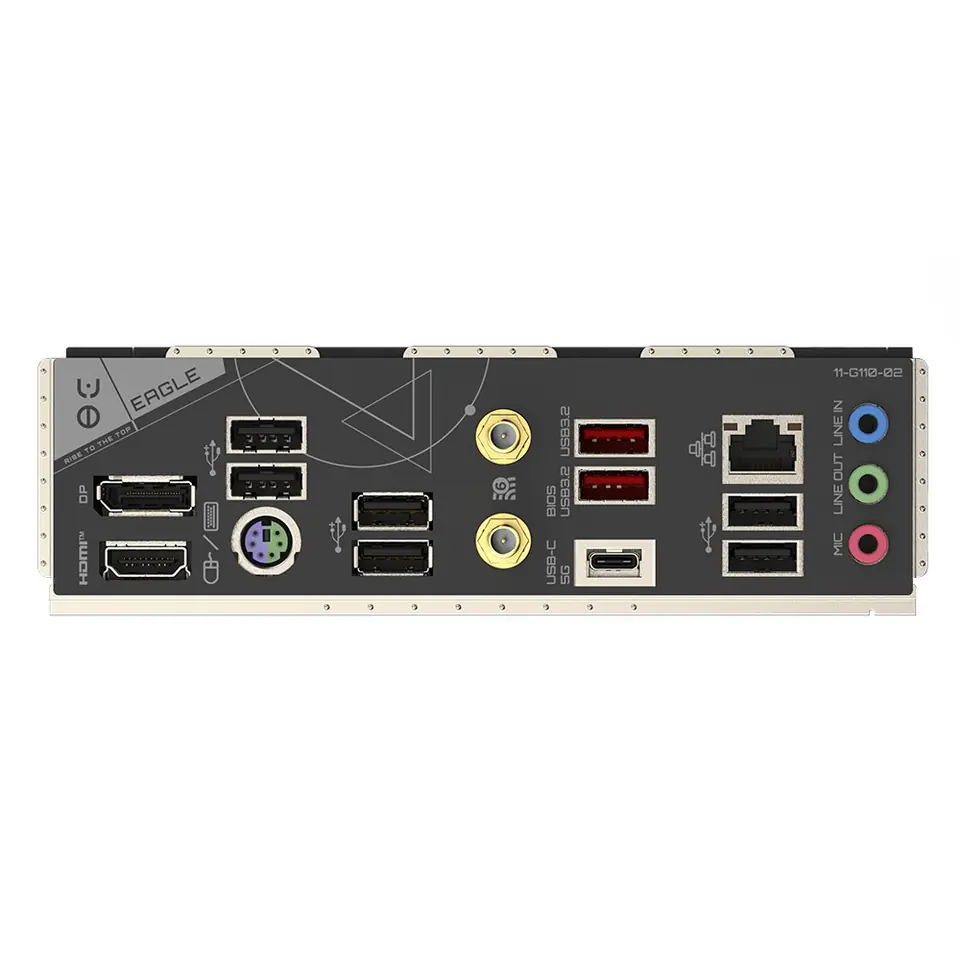

- Enhanced connectivity: DP, HDMI, rear USB 10Gbps
- Smart Fan 6: Includes multiple temperature sensors, hybrid fan connectors with FAN STOP function
- Q-Flash Plus: Update BIOS without installing CPU, memory and graphics card

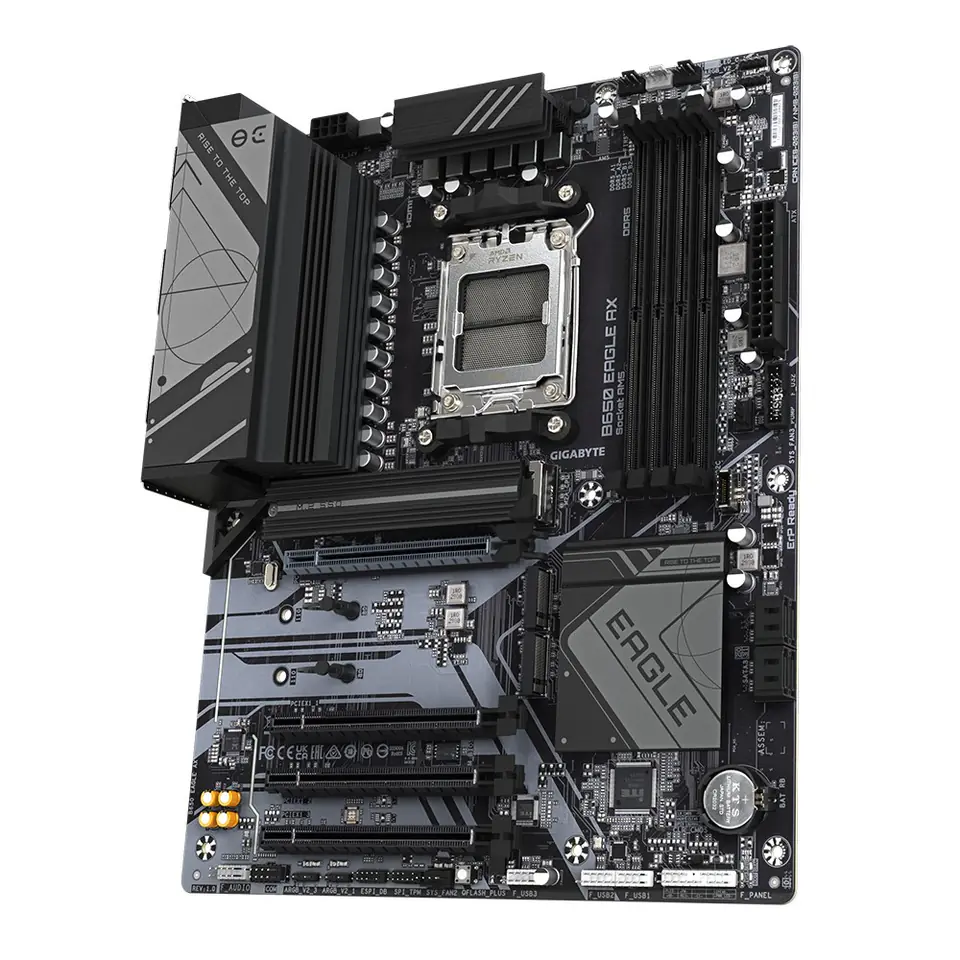

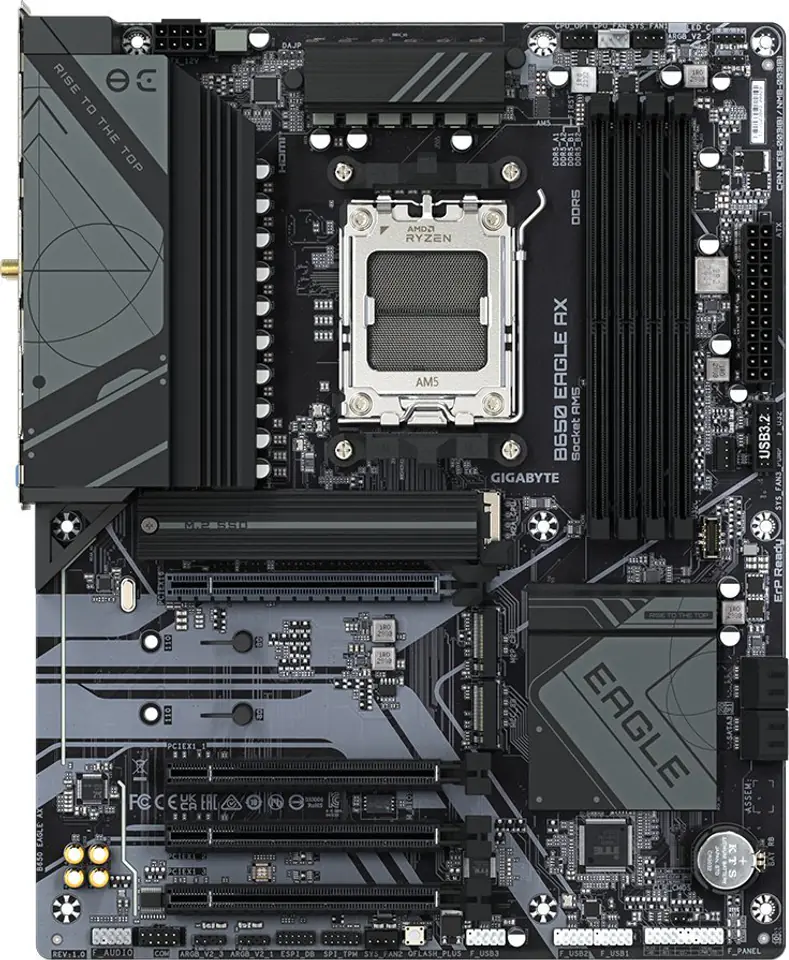

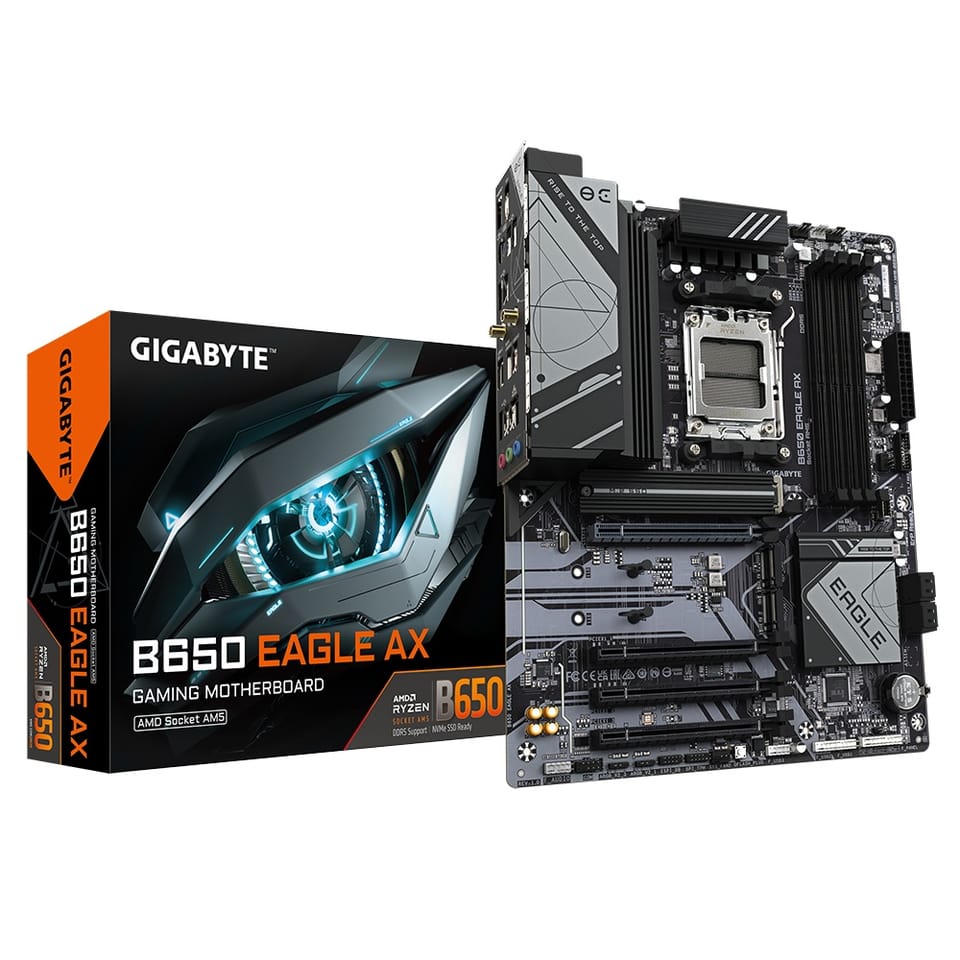

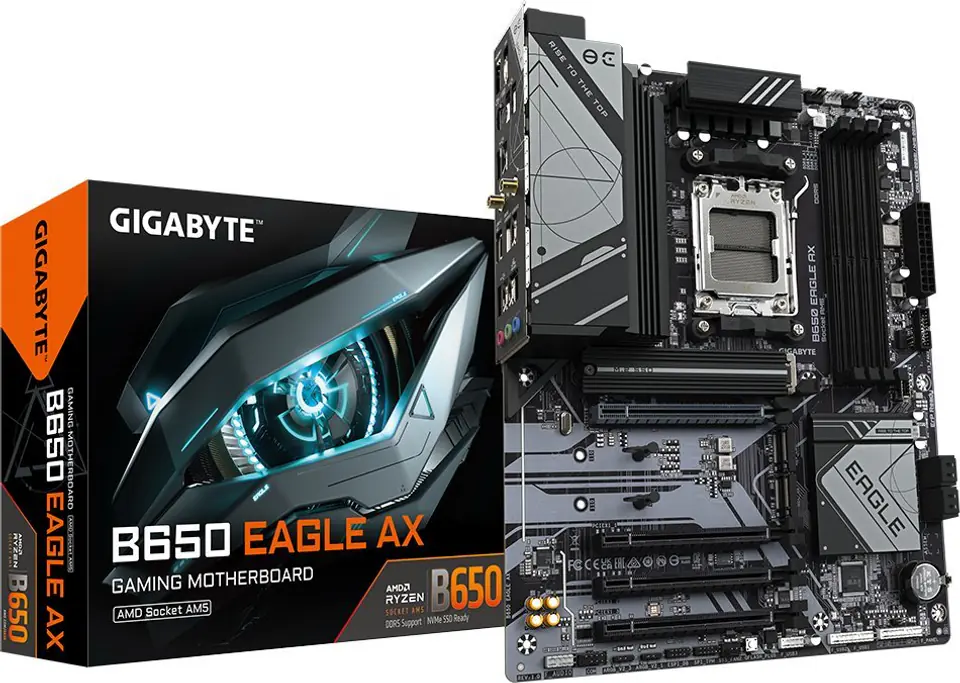

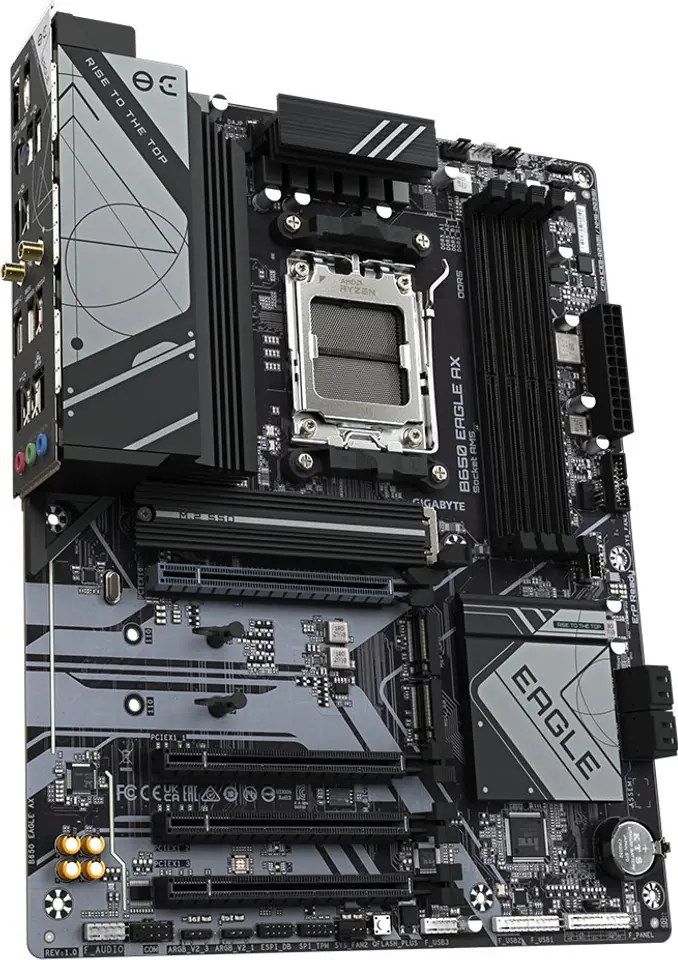

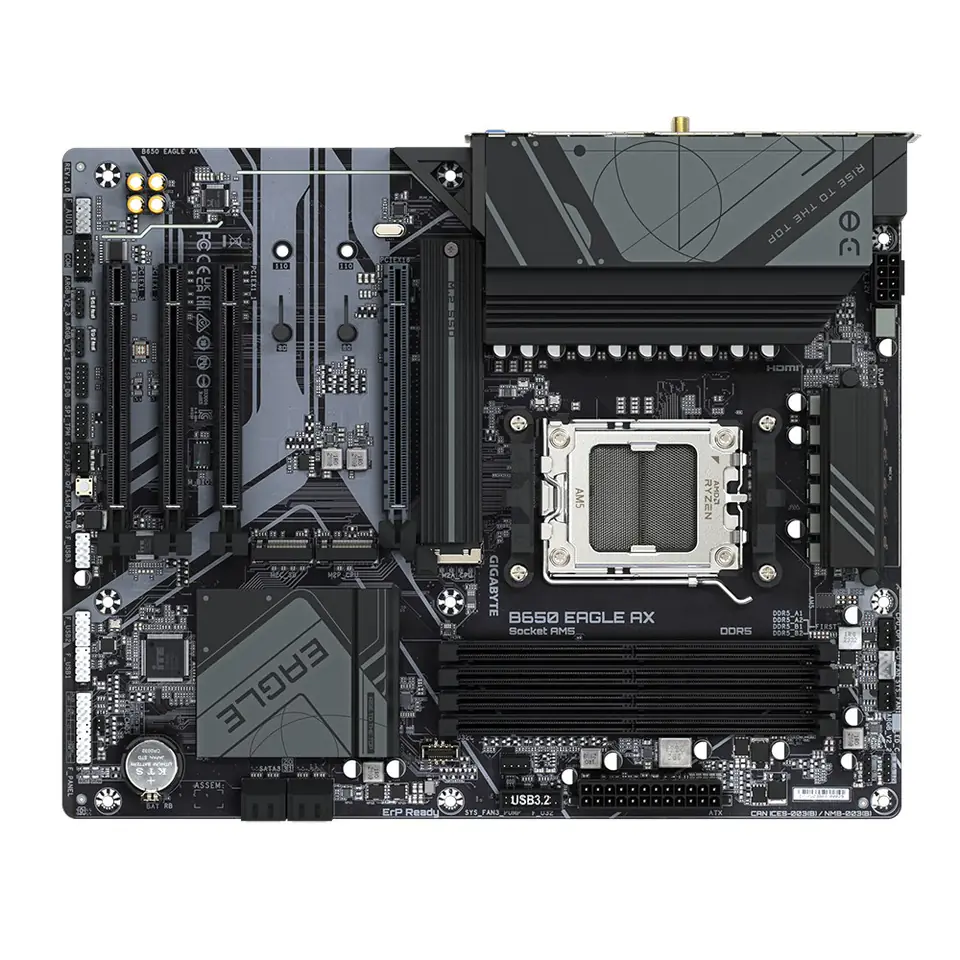

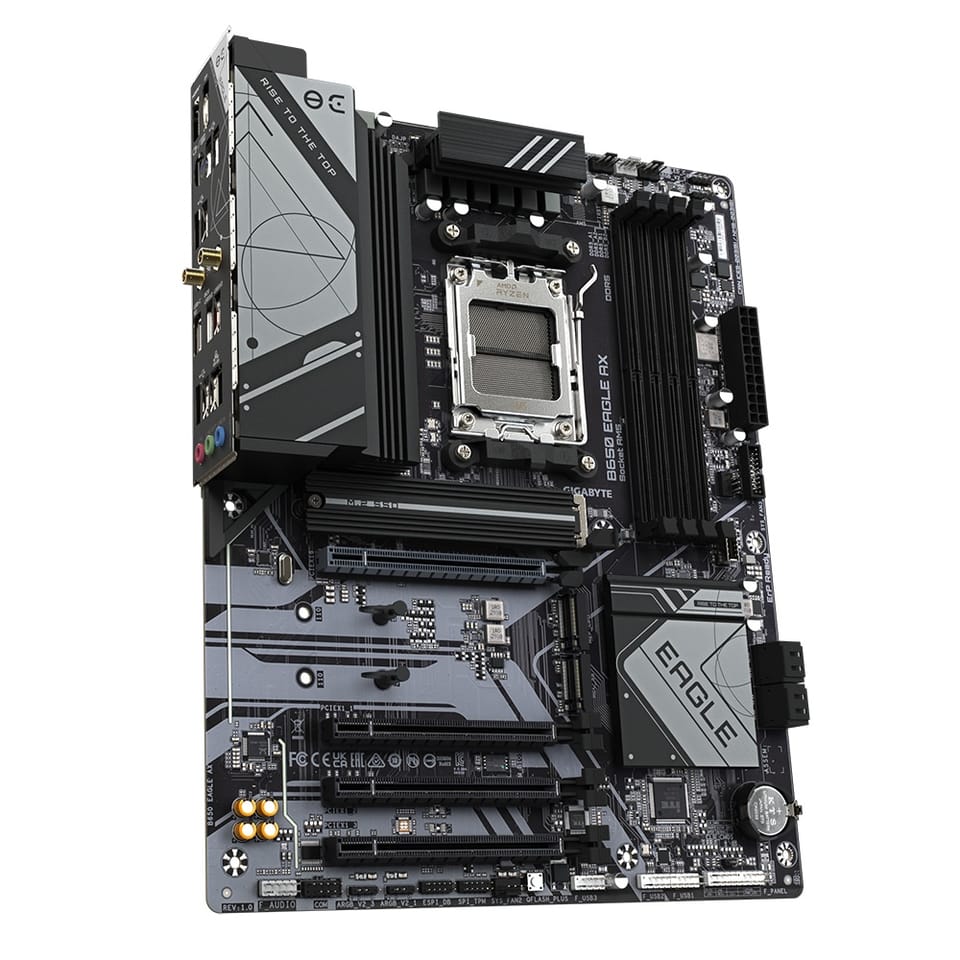

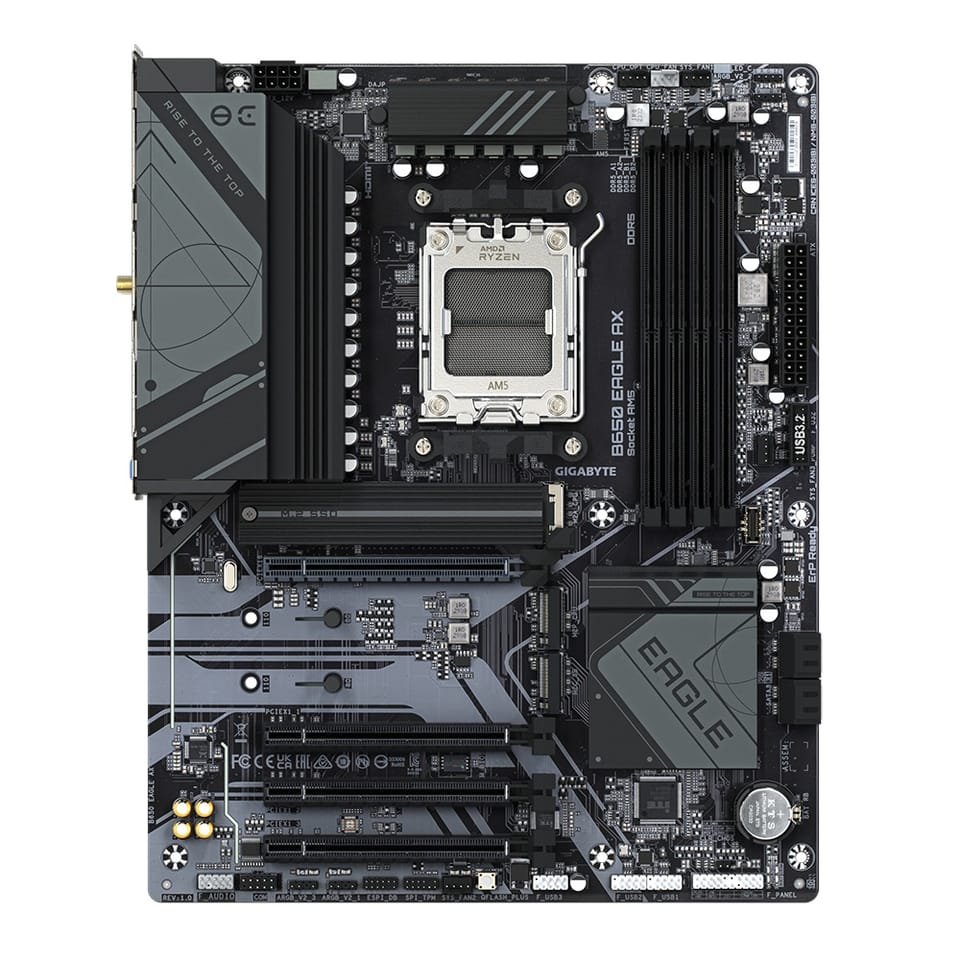

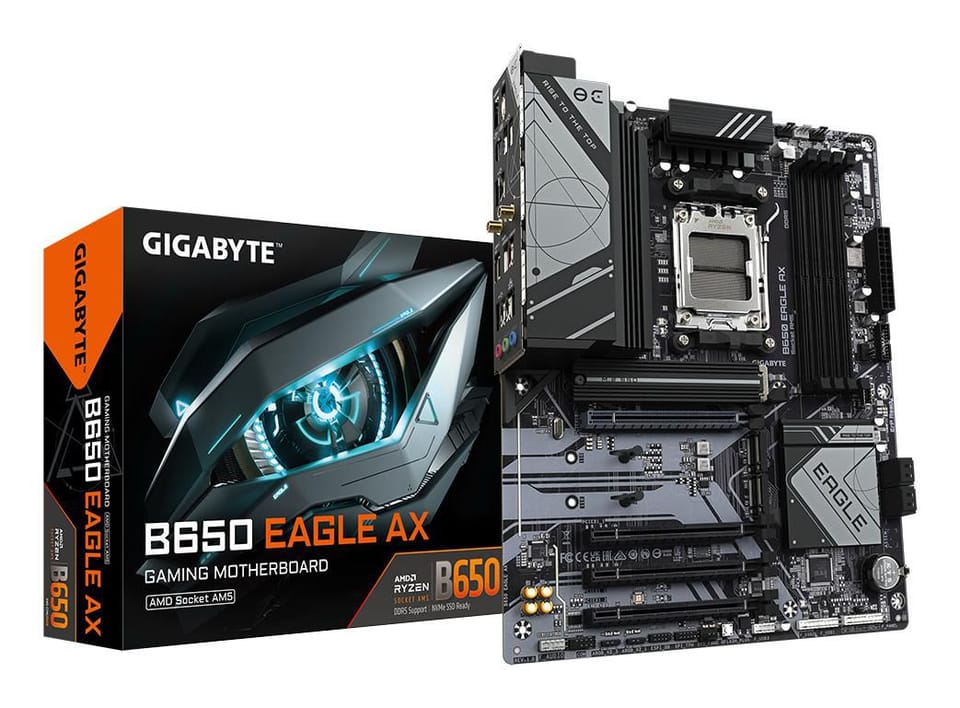

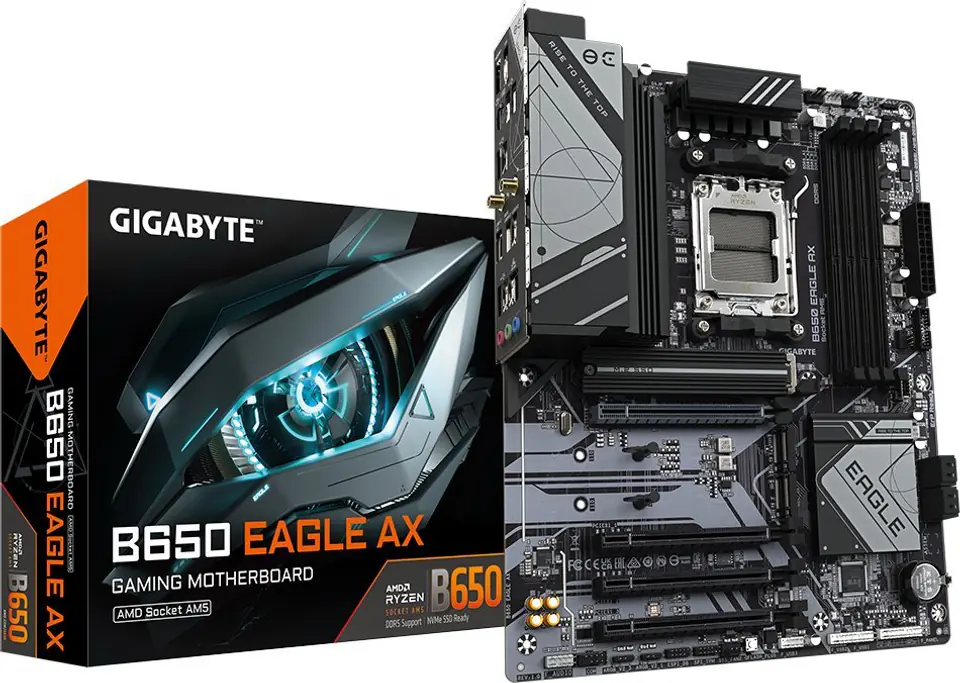

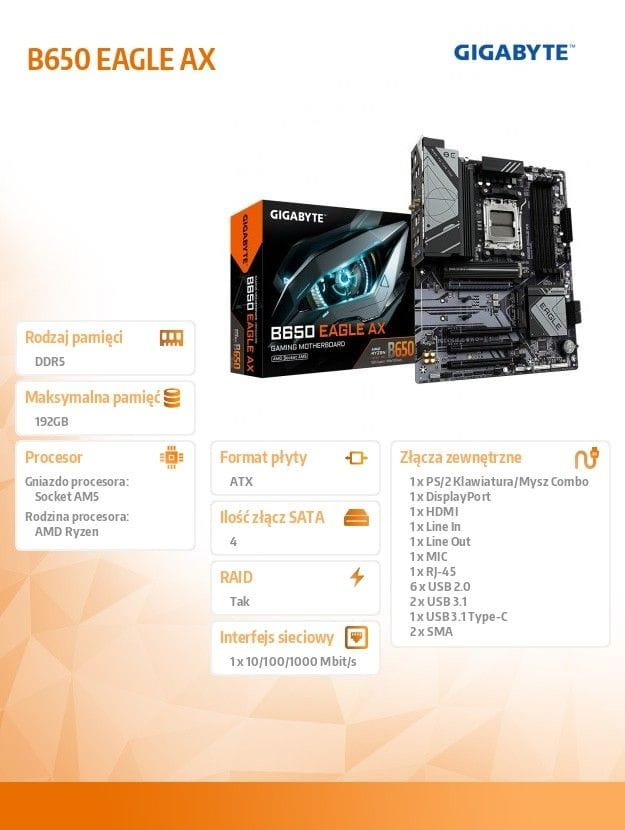

Płyta główna Gigabyte B650 EAGLE AX
€163.73
Shipping from warehouse: A3
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Gigabyte
- Product code:
- B650 EAGLE AX / 4719331860158
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Batteries included: | Yes |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type: | CR2032 |
| Battery weight: | 3 g |
| Bios type: | UEFI AMI |
| Cables included: | SATA |
| Clear cmos button: | Yes |
| Clear cmos jumper: | Yes |
| Compatible processor series: | AMD Ryzen 7000 Series |
| Cooling type: | Active |
| Country of origin: | China |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Desktop management interface (dmi) version: | 2.7 |
| Displayport version: | 1.4 |
| Displayports quantity: | 1 |
| Ecc сompatibility: | Non-ECC |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Hdcp: | Yes |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.1 |
| Headphone outputs: | 3 |
| Height: | 35 mm |
| Lithium weight per battery: | 0.07 g |
| Maximum internal memory: | 192 GB |
| Maximum internal memory supported by processor: | 192 GB |
| Maximum resolution: | 4096 x 2160 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | AMD B650 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | ATX |
| Number of battery cells: | 1 |
| Number of hdds supported: | 1 |
| Number of m.2 (m) slots: | 3 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| Number of storage drives supported: | 5 |
| Package depth: | 270 mm |
| Package height: | 80 mm |
| Package weight: | 1.74 kg |
| Package width: | 335 mm |
| Parallel processing technology support: | Not supported |
| Pc health monitoring: | Fan, Temperature, Voltage, Water cooling |
| Pci express x16 slots: | 3 |
| Power source type: | ATX |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Product colour: | Black |
| Products per shipping (inner) case: | 1 pc(s) |
| Raid levels: | 0, 1, 10 |
| Raid support: | Yes |
| Rgb led pin header: | Yes |
| Serial port headers: | 1 |
| Supported memory clock speed (max): | 7600 MHz |
| Supported memory clock speeds: | 6000 MHz, 7600 MHz, 7000, 4400 MHz, 5600, 7200, 6400, 6600, 5200, 4800 MHz, 6200, 6800 |
| Supported memory module capacities: | 12GB, 1GB, 2GB, 4GB, 16GB, 48GB, 32GB, 8GB |
| Supported memory types: | DDR5-SDRAM |
| Supported processor sockets: | Socket AM5 |
| Supported storage drive interfaces: | M.2, PCI Express 4.0, SATA III |
| Supported storage drive types: | HDD & SSD |
| Top wi-fi standard: | Wi-Fi 6E (802.11ax) |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 3 |
| Usb 2.0 ports quantity: | 6 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) connectors: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 2 |
| Usb connector type: | USB Type-C, USB Type-A |
| Warranty period: | 3 year(s) |
| Wi-fi: | Yes |
| Width: | 305 mm |
| Wifi-ap antenna jack: | 2 |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
