Specifications:
Item no.: 97 68 145 A
EAN: 4003773071754
Head: polished
Handles: with multi-component caps, insulated according to VDE
Weight: 175 g
Dimensions: 145 x 55 x 25 mm
Standard: DIN EN 60900 IEC 60900
REACH: does not contain SVHC
RoHS: not applicable
Application: Sleeves without flange
Operating range in mm2: 0.25 - 2.5 mm2
Number of slots: 4
AWG: 24-14

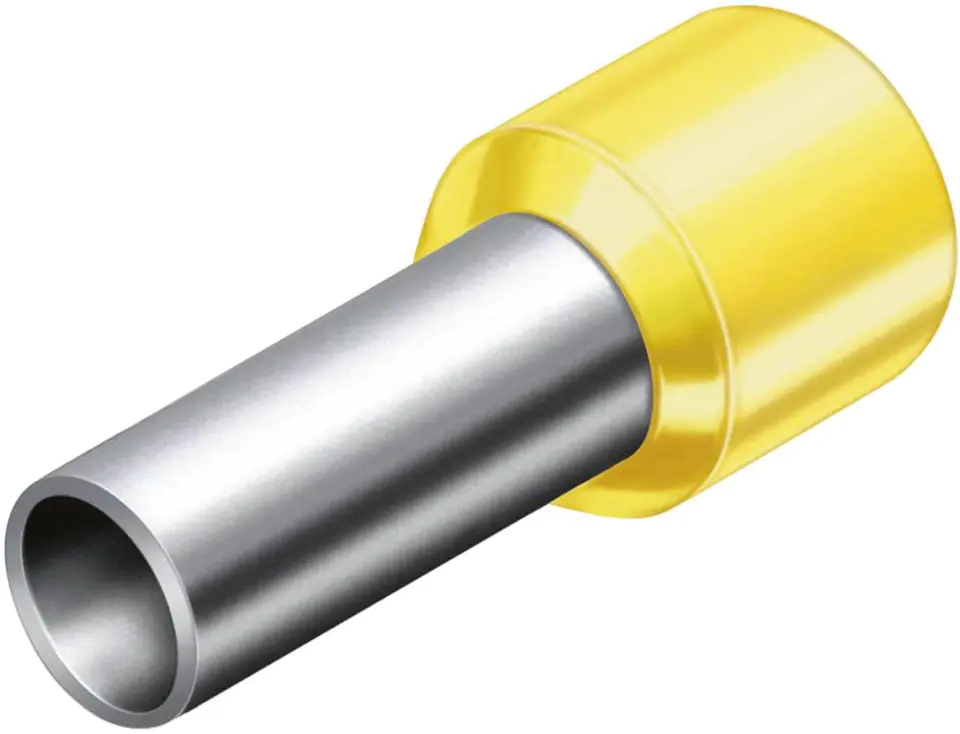

For crimping cable sleeves according to DIN 46228 part 1 + 4 in the range from 0.25 to 2.5 mm2
Keystone crimping profile provides a secure connection between sleeve and cable
Electric steel, vanadium, forged, oil hardened
**

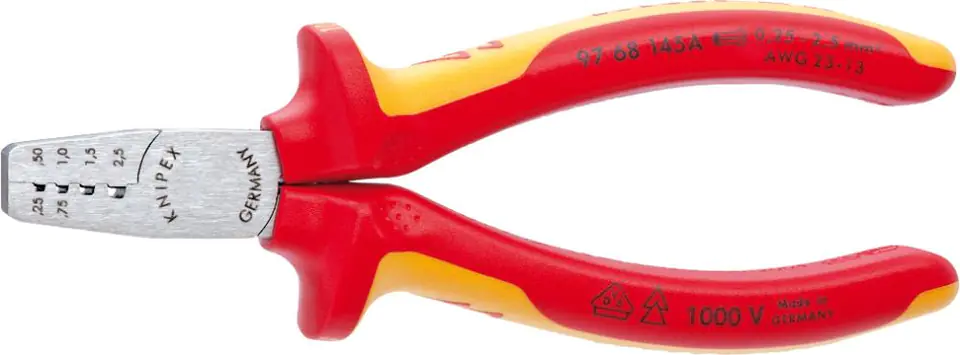

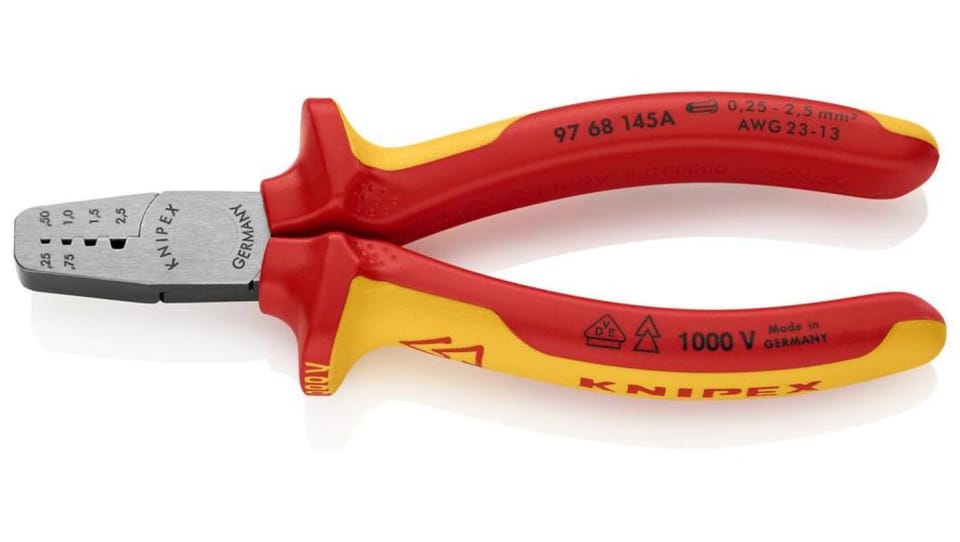

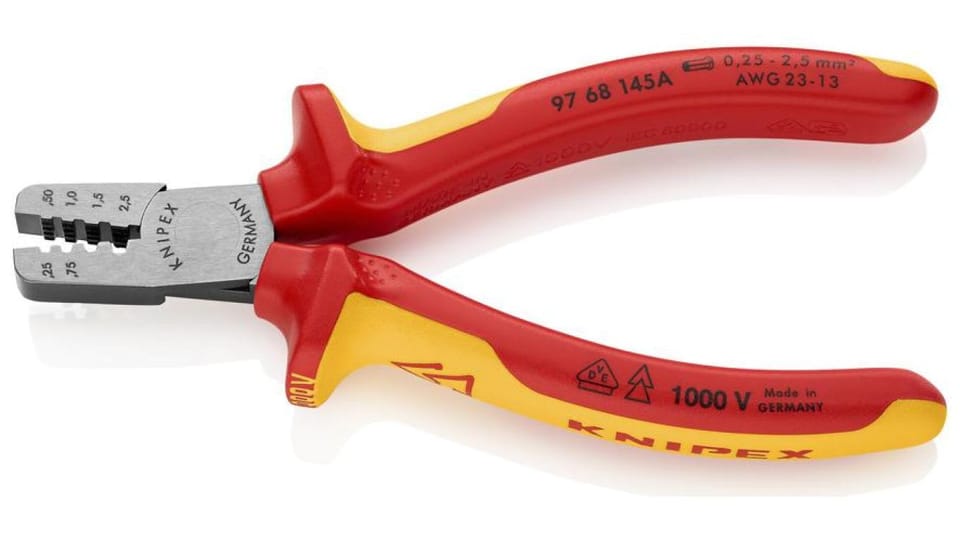

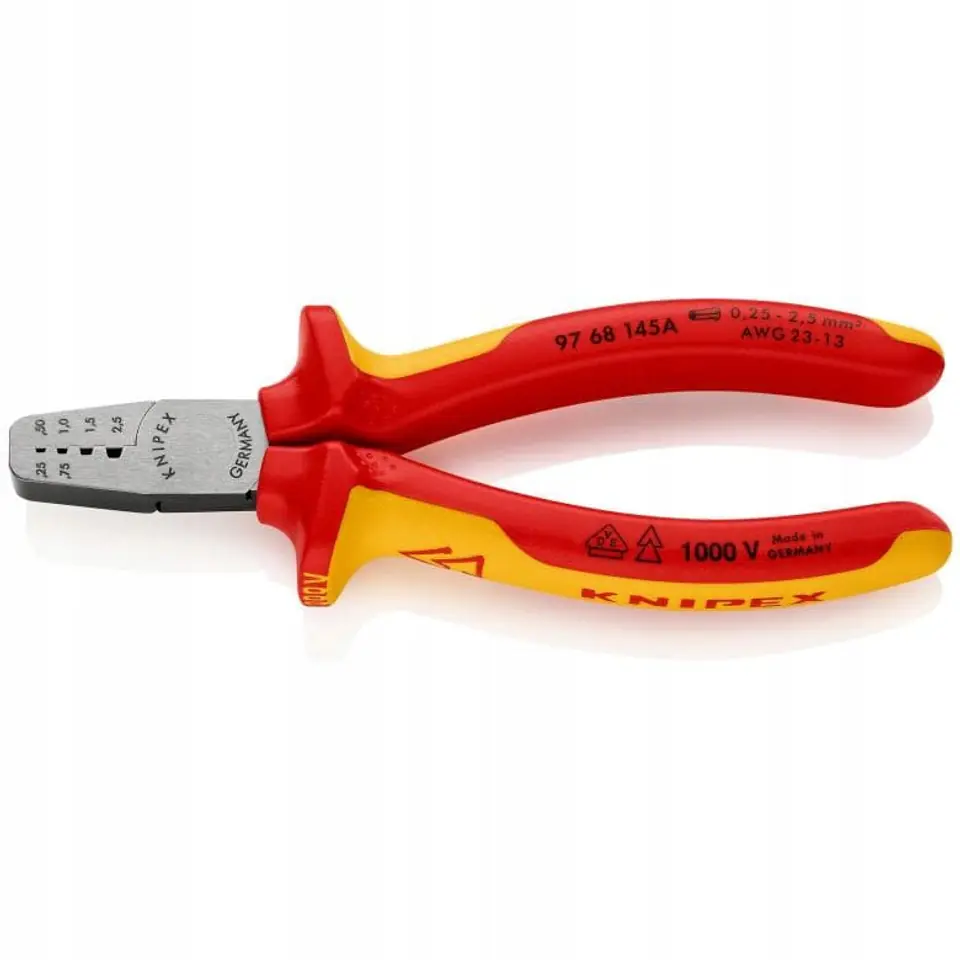

Illustrative photo.
PLIERS FOR CRIMPING CABLE SLEEVES. 0.25-2.5MM INSULATED
€35.20
Shipping from warehouse: U1
Estimated shipping: Tue, May 7 - Fri, May 10
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- KNIPEX
- Product code:
- 8255020006 / 4003773071754
Share this product:
Specification
| Wire cross section: | 0,25 to 2,5 mm2 |
|---|
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
