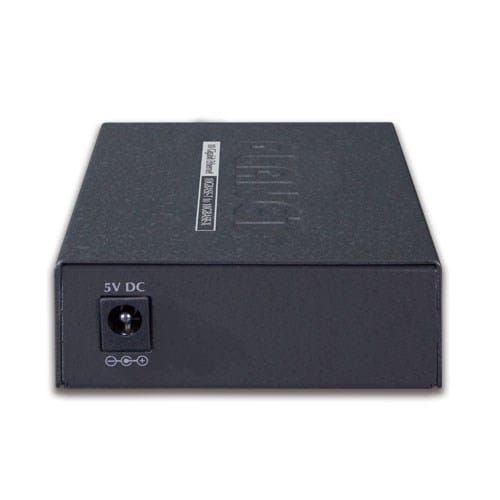

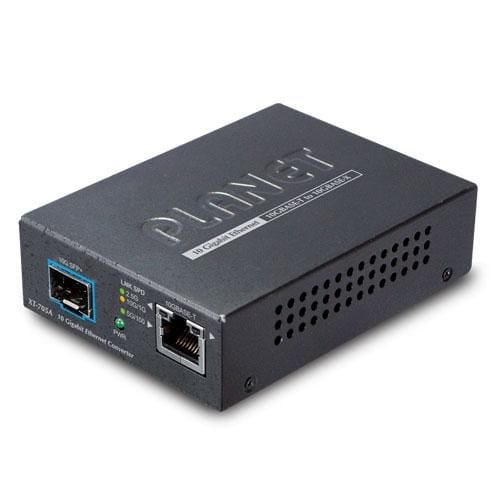

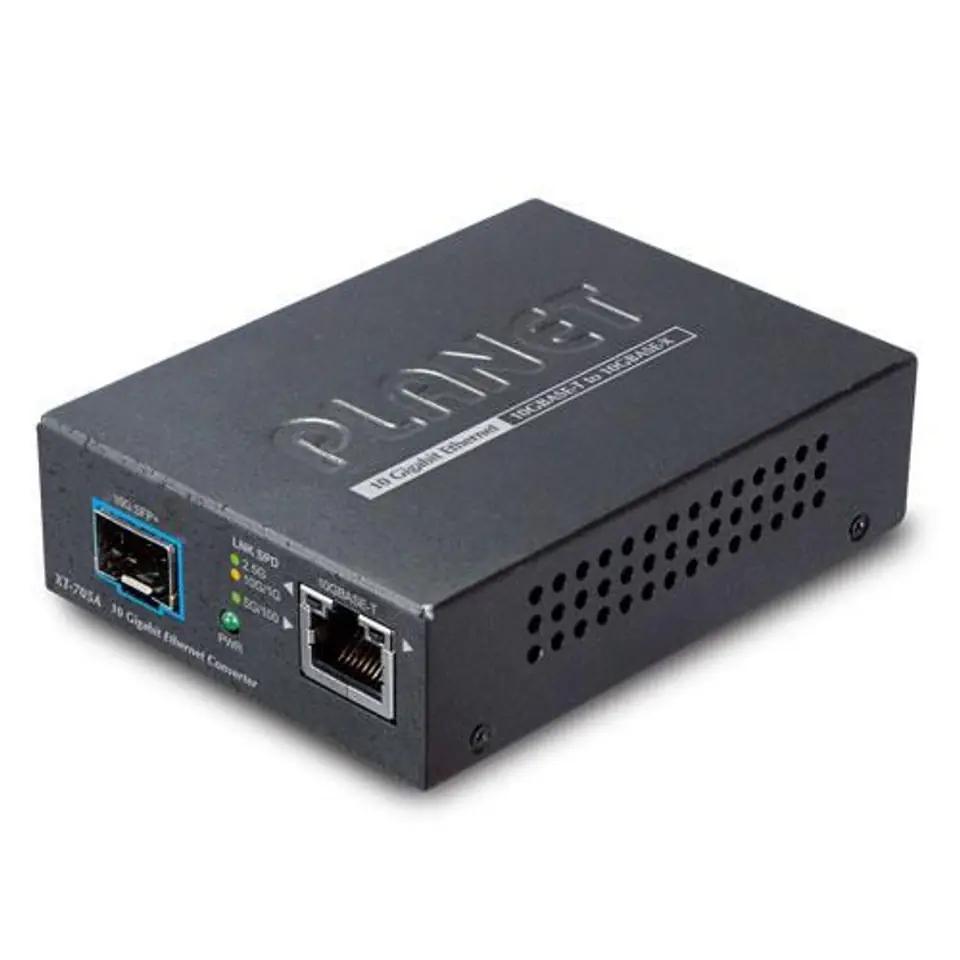

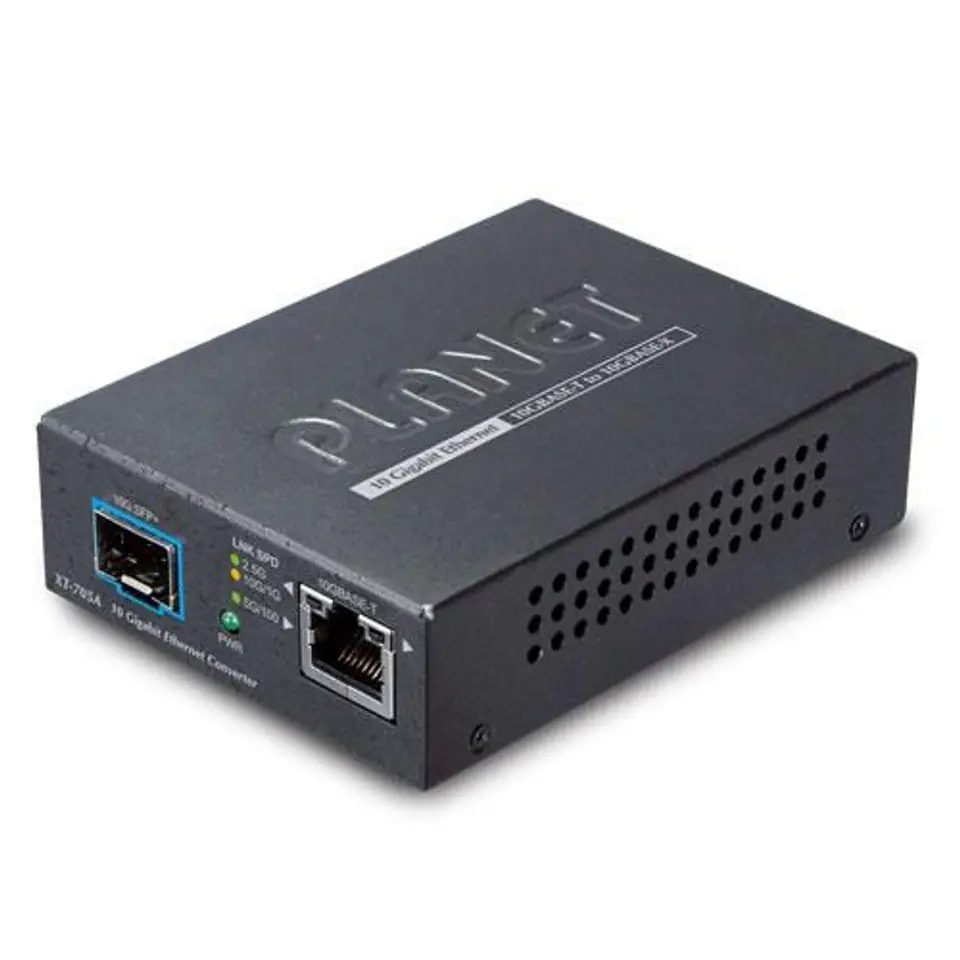

Planet XT-705A network media converter 10000 Mbit/s Multi-mode,Single-mode
PLN 774.05
Shipping from warehouse: A3
Estimated shipping: Fri, Oct 31 - Mon, Nov 3
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- PLANET
- Product code:
- XT-705A / 4711605283656
Share this product:
Specification
| Auto mdi/mdi-x: | Yes |
|---|---|
| Auto-negotiation: | Yes |
| Cable types supported: | Cat6, Cat6a, Cat5, Cat5e, Cat7 |
| Connectivity technology: | Wired |
| Depth: | 70 mm |
| Din rail mounting: | Yes |
| Duplex system: | Full, Half |
| Ethernet interface type: | Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Fast Ethernet, 5 Gigabit Ethernet |
| Ethernet lan (rj-45) ports: | 1 |
| Fiber cable diameters supported (core/cladding): | 50/125, 9/125 µm, 62.5/125 µm |
| Fiber ethernet cabling technology: | 10GBASE-X |
| Fiber mode structure: | Multi-mode, Single-mode |
| Fiber optic connector: | SFP+ |
| Fiber ports quantity: | 1 |
| Flow control support: | Yes |
| Height: | 26 mm |
| Housing material: | Metal |
| Input current: | 2 A |
| Input voltage: | 5 V |
| Internal: | No |
| Jumbo frames: | 16000 |
| Jumbo frames support: | Yes |
| Led indicators: | Link, Power |
| Maximum data transfer rate: | 10000 Mbit/s |
| Maximum transfer distance: | 60000 m |
| Networking standards: | IEEE 802.3x, IEEE 802.3an, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3u |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | 0 - 50 °C |
| Power consumption (typical): | 26 W |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -10 - 70 °C |
| Store-and-forward: | Yes |
| Weight: | 180 g |
| Width: | 94 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
