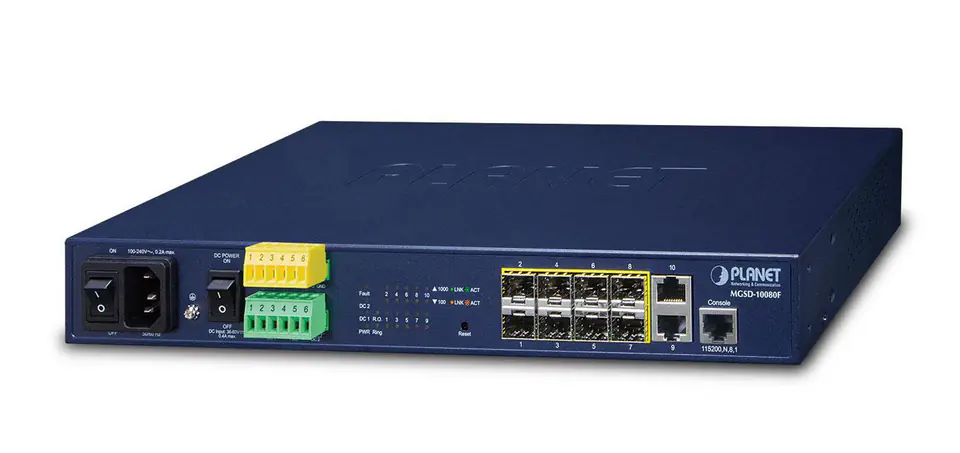

PLANET MGSD-10080F network switch Managed L2+ 1U Blue
€429.16
Shipping from warehouse: E12
Estimated shipping: Wed, Jun 18 - Mon, Jun 23
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- PLANET
- Product code:
- MGSD-10080F / 4711213689406
Share this product:
Specification
| 10g support: | N |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Access control list (acl): | Y |
| Arp inspection: | Y |
| Authentication: | Port-based authentication |
| Auto mdi/mdi-x: | Y |
| Auto-negotiation: | Y |
| Bpdu filtering/protection: | Y |
| Broadcast storm control: | Y |
| Console port: | RJ-45 |
| Copper ethernet cabling technology: | 100BASE-TX, 10BASE-T |
| Depth: | 155 mm |
| Din rail mounting: | N |
| Fiber ethernet cabling technology: | 1000BASE‑SX, 1000BASE‑LX |
| Firmware upgradeable: | Y |
| Flow control support: | Y |
| Form factor: | 1U |
| Full duplex: | Y |
| Gigabit ethernet (copper) ports quantity: | 2 |
| Harmonized system (hs) code: | 85176990 |
| Height: | 43.5 mm |
| Igmp snooping: | Y |
| Input current: | 0.15 A |
| Jumbo frames: | 9216 |
| Jumbo frames support: | Y |
| Led indicators: | Y |
| Link aggregation: | Y |
| Loop protection: | Y |
| Mac address auto-aging supported: | Y |
| Mac address auto-learning supported: | Y |
| Mac address table: | 8000 entries |
| Management protocols: | Web, Telnet, SNMP |
| Multicast support: | Y |
| Networking standards: | IEEE 802.1D, IEEE 802.3z, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1ab, IEEE 802.3u, IEEE 802.1s, IEEE 802.1x, IEEE 802.1w |
| Number of queues: | 8 |
| Number of vlans: | 4094 |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | -10 - 60 °C |
| Port mirroring: | Y |
| Power consumption (max): | 11.2 W |
| Power over ethernet (poe): | N |
| Power supply included: | N |
| Product colour: | Blue |
| Quality of service (qos) support: | Y |
| Rack mounting: | Y |
| Rate limiting: | Y |
| Redundant power supply (rps) support: | Y |
| Reset button: | Y |
| Security algorithms: | SSH, SSL/TLS, SNMP |
| Sfp module slots quantity: | 8 |
| Spanning tree protocol: | Y |
| Ssh/ssl support: | Y |
| Stackable: | Y |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -10 - 70 °C |
| Store-and-forward: | Y |
| Supported network protocols: | IPv4 / IPv6 |
| Switch layer: | L2+ |
| Switch type: | Managed |
| Switching capacity: | 20 Gbit/s |
| System event log: | Y |
| Throughput: | 14.8 Mpps |
| Traffic classification: | Y |
| Virtual lan features: | Stacked VLAN, Protocol-based VLAN, Tagged VLAN, Private VLAN |
| Vlan support: | Y |
| Web-based management: | Y |
| Weight: | 1.66 kg |
| Width: | 330 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
