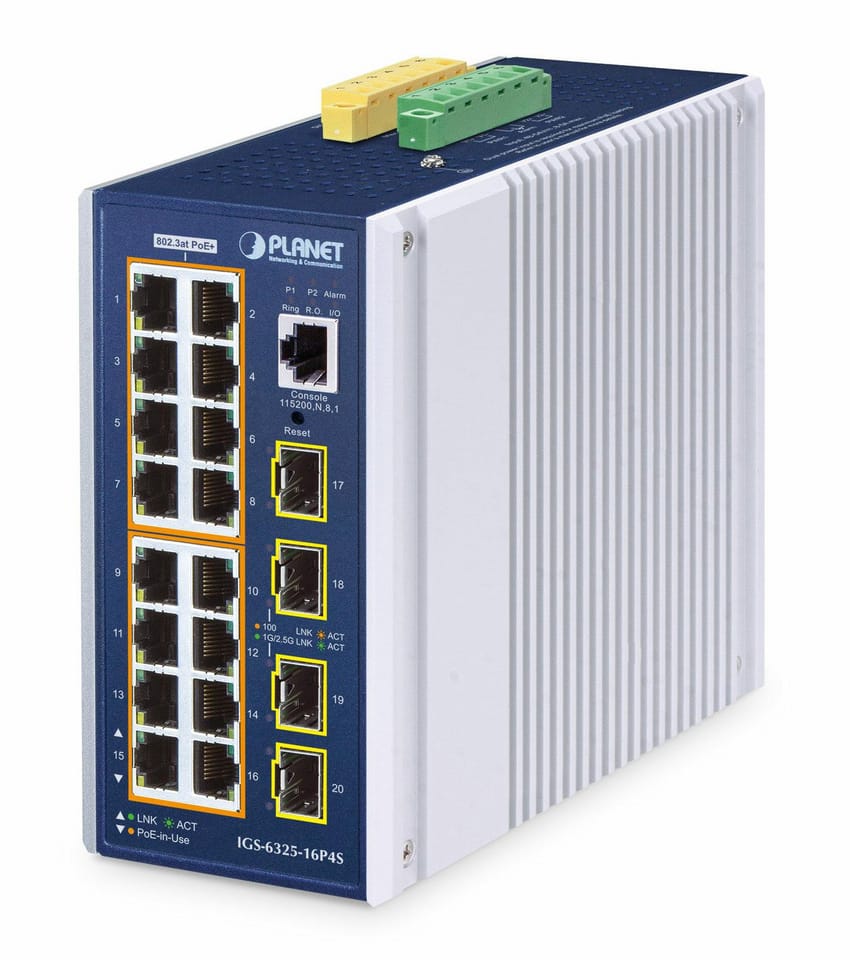

PLANET IGS-6325-16P4S network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Aluminium, Blue
€1,060.28
Shipping from warehouse: E12
Estimated shipping: Thu, Sep 11 - Mon, Sep 15
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- PLANET
- Product code:
- IGS-6325-16P4S / 4711605284134
Share this product:
Specification
| Access control list (acl): | Y |
|---|---|
| Authentication: | Port-based authentication |
| Auto mdi/mdi-x: | Y |
| Auto-negotiation: | Y |
| Basic switching rj-45 ethernet ports quantity: | 16 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Bpdu filtering/protection: | Y |
| Broadcast storm control: | Y |
| Console port: | RJ-45 |
| Copper ethernet cabling technology: | 1000BASE-T, 10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-LX, 1000BASE-SX |
| Dc input voltage: | 48 - 56 V |
| Depth: | 107 mm |
| Din rail mounting: | Y |
| Flow control support: | Y |
| Full duplex: | Y |
| Garp vlan registration protocol (gvrp): | Y |
| Harmonized system (hs) code: | 85176990 |
| Heat dissipation: | 1173.04 BTU/h |
| Height: | 152 mm |
| Housing material: | Aluminium |
| Igmp entries: | 255 |
| Igmp snooping: | Y |
| Installed sfp modules quantity: | 4 |
| International protection (ip) code: | IP30 |
| Ip routing: | Y |
| Ipv4 & ipv6 features: | IPv6 Telnet |
| Jumbo frames: | 10000 |
| Jumbo frames support: | Y |
| Led indicators: | Ring, Link, PoE, Power, Activity, Fault |
| Link aggregation: | Y |
| Loop protection: | Y |
| Mac address table: | 16000 entries |
| Mld entries: | 255 |
| Multicast listener discovery (mld) snooping: | v1/v2 |
| Multicast support: | Y |
| Networking standards: | IEEE 802.1D, IEEE 802.3z, IEEE 802.3af, IEEE 1588, IEEE 802.1x, IEEE 802.3u, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1ad, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3ah, IEEE 802.1w |
| Number of static routes: | 128 |
| Number of trunks: | 10 |
| Number of vlans: | 4094 |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | -40 - 75 °C |
| Packet buffer memory: | 32 MB |
| Port mirroring: | Y |
| Power connector: | Terminal block (3-pin) |
| Power consumption (max): | 344 W |
| Power over ethernet (poe): | Y |
| Power over ethernet (poe) ports quantity: | 16 |
| Power over ethernet (poe) power per port: | 36 W |
| Product colour: | Blue, Aluminium |
| Quality of service (qos) support: | Y |
| Queue scheduling algorithms: | Weighted Round Robin (WRR), Priority queuing (PQ) |
| Reset button: | Y |
| Routing entries: | 128 |
| Routing protocols: | OSPF |
| Security algorithms: | SNMPv3, SSL/TLS, SSH, SNMP |
| Spanning tree protocol: | Y |
| Static route: | Y |
| Storage temperature (t-t): | -40 - 85 °C |
| Store-and-forward: | Y |
| Switch layer: | L3 |
| Switch type: | Managed |
| Switching capacity: | 52 Gbit/s |
| Throughput: | 29.7 Mpps |
| Total power over ethernet (poe) budget: | 320 W |
| Virtual lan features: | Voice VLAN, Tagged VLAN, Protocol-based VLAN, MAC address-based VLAN, Multicast VLAN, Private VLAN |
| Vlan support: | Y |
| Wall mountable: | Y |
| Web-based management: | Y |
| Weight: | 1.55 kg |
| Width: | 86.8 mm |
