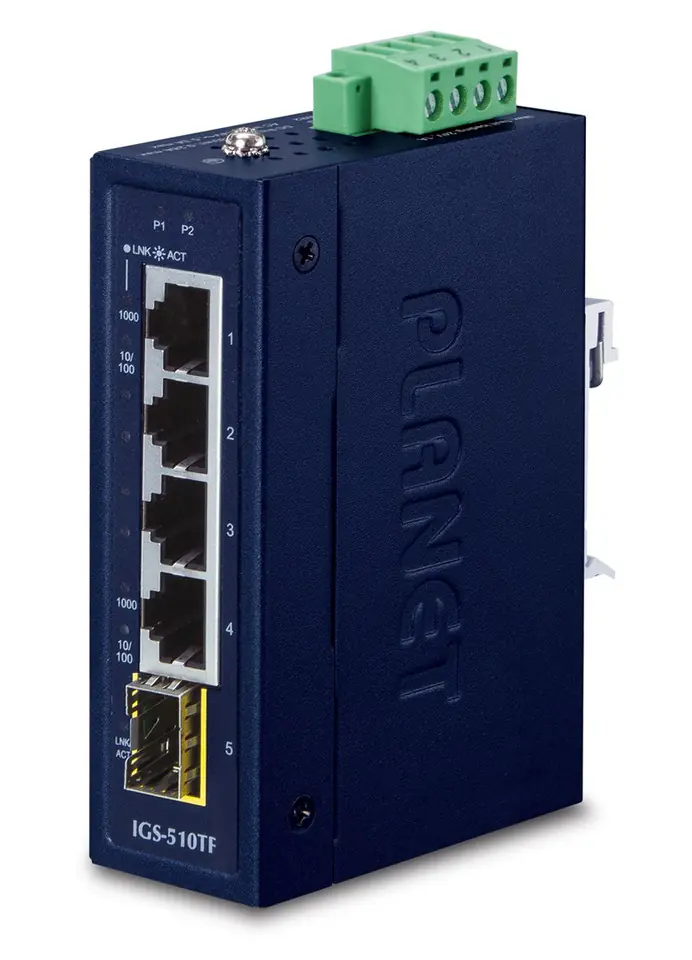

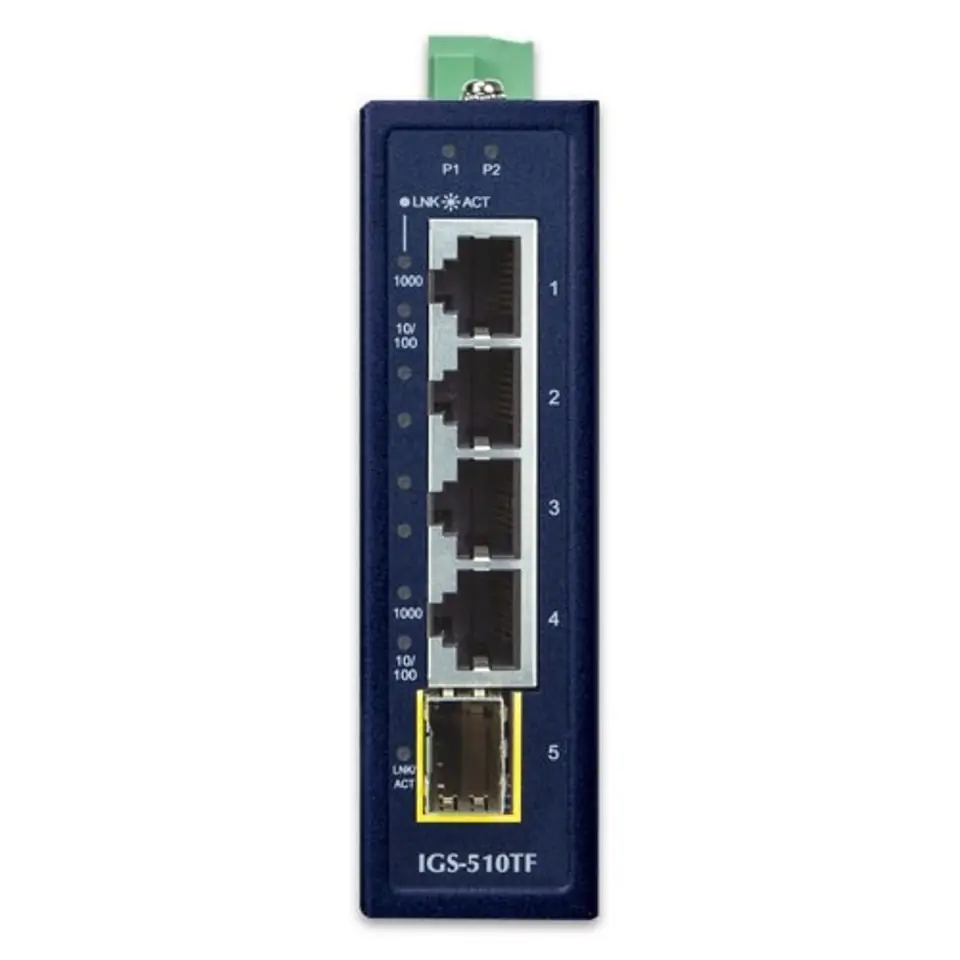

PLANET IGS-510TF network switch Unmanaged Gigabit Ethernet (10/100/1000) Blue
PLN 620.28
Shipping from warehouse: E12
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- PLANET
- Product code:
- IGS-510TF / 4711605284448
Share this product:
Specification
| 10g support: | No |
|---|---|
| Auto mdi/mdi-x: | Yes |
| Auto-negotiation: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 4 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Cable types supported: | Cat5, Cat5e, Cat6, Cat4, Cat3 |
| Connectivity technology: | Wired |
| Dc input voltage: | 9 - 48 V |
| Depth: | 70 mm |
| Din rail mounting: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan (rj-45) ports: | 4 |
| Ethernet lan data rates: | 10,100,1000 Mbit/s |
| Fiber optic connector: | SFP |
| Fiber ports quantity: | 1 |
| Flow control support: | Yes |
| Full duplex: | Yes |
| Half duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Heat dissipation: | 9.5 BTU/h |
| Height: | 104 mm |
| Housing material: | Metal |
| Input current: | 24 A |
| Input voltage: | 9 - 48 V |
| International protection (ip) code: | IP30 |
| Jumbo frames: | 9000 |
| Jumbo frames support: | Yes |
| Led indicators: | Power |
| Mac address table: | 4000 entries |
| Maximum data transfer rate: | 1000 Mbit/s |
| Networking standards: | IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.3, IEEE 802.1p, IEEE 802.3u |
| Operating relative humidity (h-h): | 5 - 90% |
| Operating temperature (t-t): | -40 - 75 °C |
| Power consumption (max): | 2.8 W |
| Power over ethernet (poe): | No |
| Product colour: | Blue |
| Sfp module slots quantity: | 1 |
| Storage relative humidity (h-h): | 5 - 90% |
| Storage temperature (t-t): | -40 - 75 °C |
| Store-and-forward: | Yes |
| Switch type: | Unmanaged |
| Switching capacity: | 10 Gbit/s |
| Throughput: | 7.4 Mpps |
| Wall mountable: | Yes |
| Weight: | 252 g |
| Width: | 30 mm |
