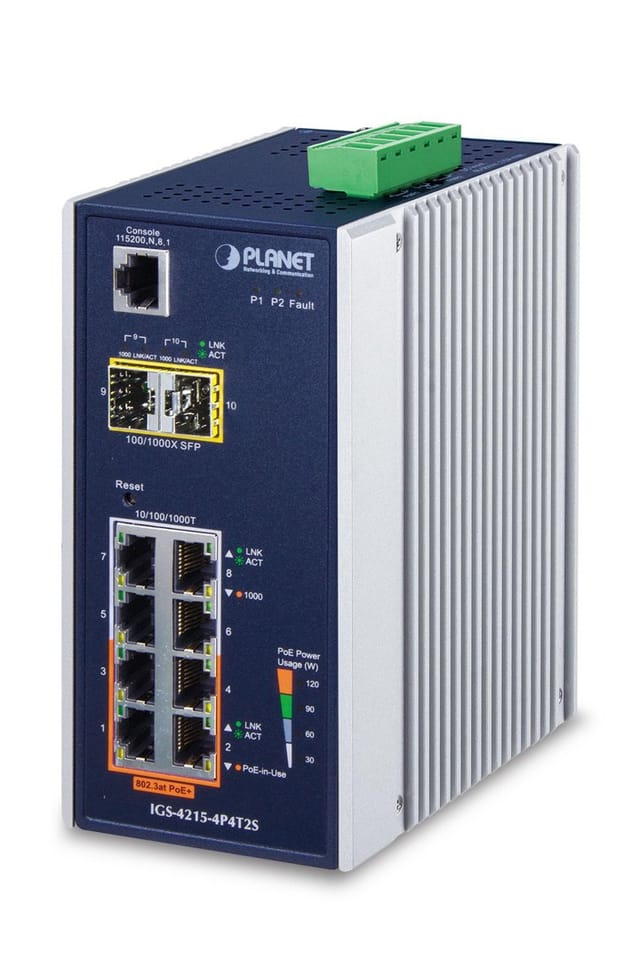

PLANET IGS-4215-4P4T2S network switch Managed L2/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue, White
PLN 1,715.92
Shipping from warehouse: A3
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- PLANET
- Product code:
- IGS-4215-4P4T2S / 4711605281607
Share this product:
Specification
| 10g support: | No |
|---|---|
| Access control list (acl): | Yes |
| Arp inspection: | Yes |
| Authentication: | Port-based authentication |
| Auto mdi/mdi-x: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 8 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Bpdu filtering/protection: | Yes |
| Broadcast storm control: | Yes |
| Copper ethernet cabling technology: | 1000BASE-SX, 10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-LX |
| Dc input voltage: | 48 - 56 V |
| Depth: | 107.3 mm |
| Dhcp features: | DHCP client |
| Din rail mounting: | Yes |
| Fiber ethernet cabling technology: | 1000BASE‑BX, 100BASE-FX, 1000BASE‑LX, 1000BASE‑SX |
| Firmware upgradeable: | Yes |
| Flow control support: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Heat dissipation: | 523.8 BTU/h |
| Height: | 152 mm |
| Housing material: | Aluminium |
| Igmp snooping: | Yes |
| Input current: | 3.5 A |
| International protection (ip) code: | IP30 |
| Ip-mac-port binding: | Yes |
| Jumbo frames: | 10000 |
| Jumbo frames support: | Yes |
| Led indicators: | Power, Link, PoE, System, Activity |
| Link aggregation: | Yes |
| Mac address filtering: | Yes |
| Mac address table: | 8000 entries |
| Mib support: | RFC 1215, RFC 1493, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3635 |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.1D, IEEE 802.3z, IEEE 802.1x, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1ab, IEEE 802.1w, IEEE 802.3ad, IEEE 802.1s, IEEE 802.3u, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p |
| Number of multicast groups filtered: | 256 |
| Number of trunks: | 4 |
| Number of vlans: | 256 |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | -40 - 75 °C |
| Packet buffer memory: | 4.1 MB |
| Port mirroring: | Yes |
| Power consumption (max): | 152.96 W |
| Power consumption (typical): | 5.04 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) ports quantity: | 4 |
| Power over ethernet (poe) voltage range: | 48 - 56 V |
| Product colour: | White, Blue |
| Quality of service (qos) support: | Yes |
| Rack mounting: | No |
| Rate limiting: | Yes |
| Reset button: | Yes |
| Safety: | IEC 60068-2-32, IEC 60068-2-27, IEC 60068-2-6 |
| Security algorithms: | SSH, 802.1x RADIUS, SNMP, 128-bit SSL |
| Sfp module slots quantity: | 2 |
| Spanning tree protocol: | Yes |
| Ssh/ssl support: | Yes |
| Stackable: | No |
| Static port security: | Yes |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -40 - 85 °C |
| Store-and-forward: | Yes |
| Switch layer: | L2/L4 |
| Switch type: | Managed |
| Switching capacity: | 20 Gbit/s |
| System event log: | Yes |
| Terminal block port: | Yes |
| Throughput: | 14.8 Mpps |
| Total power over ethernet (poe) budget: | 144 W |
| Traffic classification: | Yes |
| Virtual lan features: | Private VLAN, Protocol-based VLAN, Stacked VLAN |
| Vlan support: | Yes |
| Wall mountable: | Yes |
| Web-based management: | Yes |
| Weight: | 1 kg |
| Width: | 76.8 mm |
