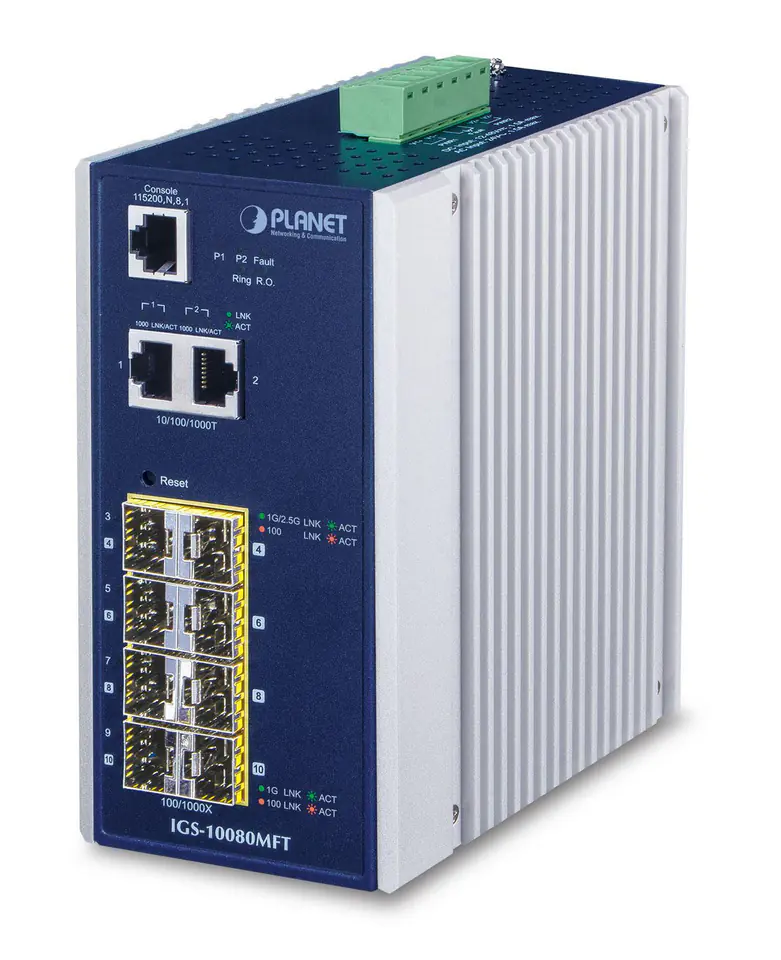

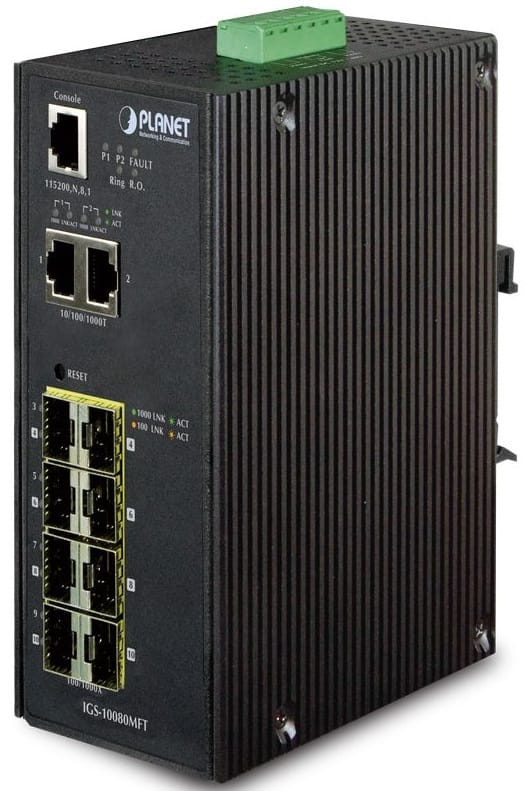

PLANET IGS-10080MFT network switch Managed Gigabit Ethernet (10/100/1000) Blue, White
PLN 1,770.28
Shipping from warehouse: E12
Estimated shipping: Wed, Oct 29 - Mon, Nov 3
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- PLANET
- Product code:
- IGS-10080MFT / 4711213689284
Share this product:
Specification
| 10g support: | N |
|---|---|
| Access control list (acl): | Y |
| Arp inspection: | Y |
| Authentication: | Port-based authentication |
| Auto-negotiation: | Y |
| Basic switching rj-45 ethernet ports quantity: | 2 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Bpdu filtering/protection: | Y |
| Copper ethernet cabling technology: | 100BASE-TX, 10BASE-T, 1000BASE-T |
| Dc input voltage: | 12 - 48 V |
| Depth: | 107.3 mm |
| Din rail mounting: | Y |
| Fiber ethernet cabling technology: | 100BASE-FX, 1000BASE‑LX, 1000BASE‑SX |
| Fiber optic connector: | MiniGBIC |
| Flow control support: | Y |
| Full duplex: | Y |
| Gigabit ethernet (copper) ports quantity: | 2 |
| Half duplex: | Y |
| Heat dissipation: | 47.76 BTU/h |
| Height: | 152 mm |
| Housing material: | Aluminium |
| Igmp snooping: | Y |
| Installed sfp modules quantity: | 8 |
| International protection (ip) code: | IP30 |
| Jumbo frames: | 9000 |
| Jumbo frames support: | Y |
| Led indicators: | Y |
| Link aggregation: | Y |
| Loop protection: | Y |
| Mac address auto-aging supported: | Y |
| Mac address auto-learning supported: | Y |
| Mac address table: | 8000 entries |
| Management protocols: | web, telnet, SNMP |
| Multicast support: | Y |
| Networking standards: | IEEE 802.1ab, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 1588v2, IEEE 802.1w, IEEE 802.1x, IEEE 802.3bz, IEEE 802.3ad, IEEE 802.1s, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1D, IEEE 802.3z |
| Number of queues: | 8 |
| Number of vlans: | 4095 |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | -40 - 75 °C |
| Port mirroring: | Y |
| Power consumption (max): | 13.92 W |
| Power over ethernet (poe): | N |
| Product colour: | Blue, White |
| Quality of service (qos) support: | Y |
| Rack mounting: | N |
| Rate limiting: | Y |
| Redundant power supply (rps) support: | Y |
| Reset button: | Y |
| Security algorithms: | 802.1x RADIUS, SSH, SSL/TLS |
| Spanning tree protocol: | Y |
| Ssh/ssl support: | Y |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -40 - 75 °C |
| Store-and-forward: | Y |
| Supported network protocols: | IPv4 / IPv6 |
| Switch type: | Managed |
| Switching capacity: | 26 Gbit/s |
| System event log: | Y |
| Throughput: | 19.3 Mpps |
| Traffic classification: | Y |
| Virtual lan features: | Private VLAN, Tagged VLAN, Protocol-based VLAN |
| Vlan support: | Y |
| Wall mountable: | Y |
| Web-based management: | Y |
| Weight: | 1.04 kg |
| Width: | 76.8 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
