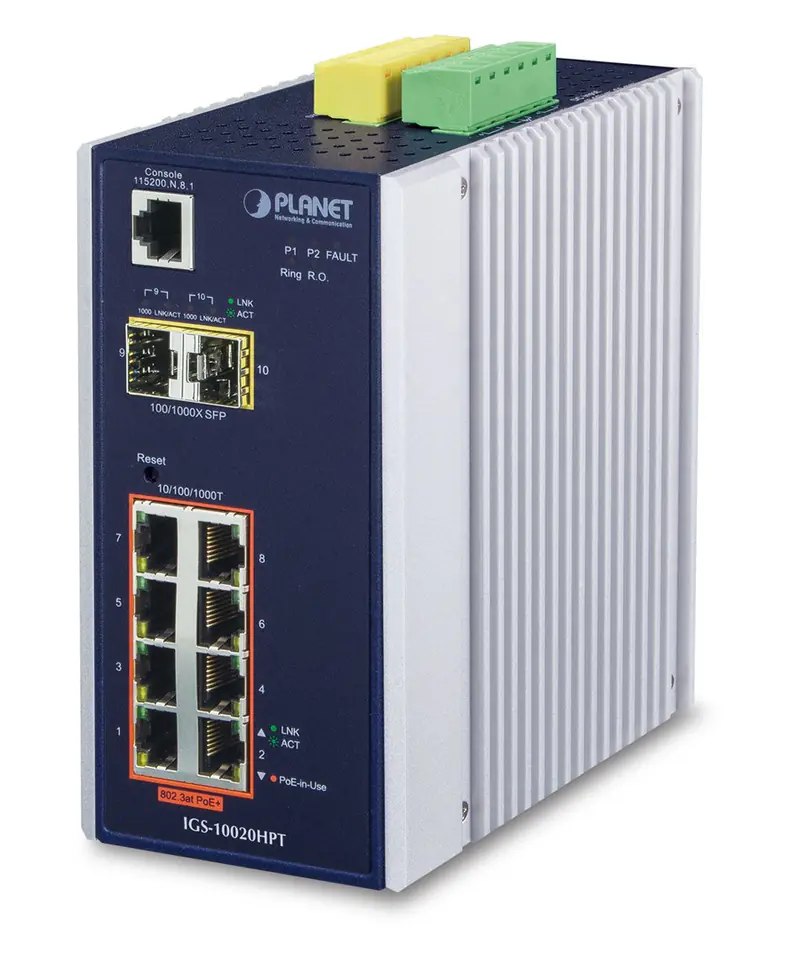

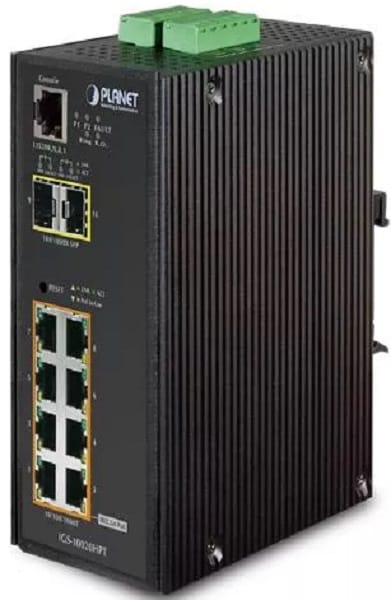

PLANET IGS-10020HPT network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, White
PLN 2,567.24
Shipping from warehouse: E12
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- PLANET
- Product code:
- IGS-10020HPT / 4711213689116
Share this product:
Specification
| 10g support: | No |
|---|---|
| Access control list (acl): | Yes |
| Arp inspection: | Yes |
| Authentication: | MAC-based authentication, Port-based authentication |
| Auto mdi/mdi-x: | Yes |
| Auto-negotiation: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 8 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Bpdu filtering/protection: | Yes |
| Broadcast storm control: | Yes |
| Console port: | RJ-45 |
| Depth: | 107 mm |
| Din rail mounting: | Yes |
| Fiber ethernet cabling technology: | 1000BASE‑SX, 100BASE-FX, 1000BASE‑LX, 1000BASE‑BX |
| Fiber optic connector: | MiniGBIC |
| Firmware upgradeable: | Yes |
| Flow control support: | Yes |
| Full duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 72 mm |
| Housing material: | Aluminium |
| Igmp snooping: | Yes |
| Input voltage: | 48 V |
| International protection (ip) code: | IP30 |
| Jumbo frames: | 9000 |
| Jumbo frames support: | Yes |
| Led indicators: | Yes |
| Link aggregation: | Yes |
| Loop protection: | Yes |
| Mac address auto-aging supported: | Yes |
| Mac address auto-learning supported: | Yes |
| Mac address table: | 8000 entries |
| Management protocols: | Telnet, SNMP v1/v2c |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.3af, IEEE 802.1D, IEEE 802.3z, IEEE 802.3x, IEEE 802.1w, IEEE 802.1s, IEEE 802.3u, IEEE 802.3at, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.1ab |
| Number of ip interfaces: | 8 |
| Number of queues: | 8 |
| Number of vlans: | 4094 |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | -40 - 75 °C |
| Port mirroring: | Yes |
| Power consumption (typical): | 31.9 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) power per port: | 36 W |
| Power over ethernet plus (poe+) ports quantity: | 8 |
| Product colour: | Black, White |
| Quality of service (qos) support: | Yes |
| Rack mounting: | No |
| Redundant power supply (rps) support: | Yes |
| Reset button: | Yes |
| Security algorithms: | SNMP, SSH, SSL/TLS |
| Sfp module slots quantity: | 2 |
| Spanning tree protocol: | Yes |
| Storage temperature (t-t): | -40 - 85 °C |
| Store-and-forward: | Yes |
| Supported network protocols: | IPv4 / IPv6 |
| Switch layer: | L2+ |
| Switch type: | Managed |
| Switching capacity: | 26 Gbit/s |
| System event log: | Yes |
| Throughput: | 14.8 Mpps |
| Total power over ethernet (poe) budget: | 270 W |
| Traffic classification: | Yes |
| Virtual lan features: | Private VLAN, Tagged VLAN, Protocol-based VLAN, Stacked VLAN |
| Vlan support: | Yes |
| Wall mountable: | Yes |
| Web-based management: | Yes |
| Weight: | 1.68 kg |
| Width: | 152 mm |
