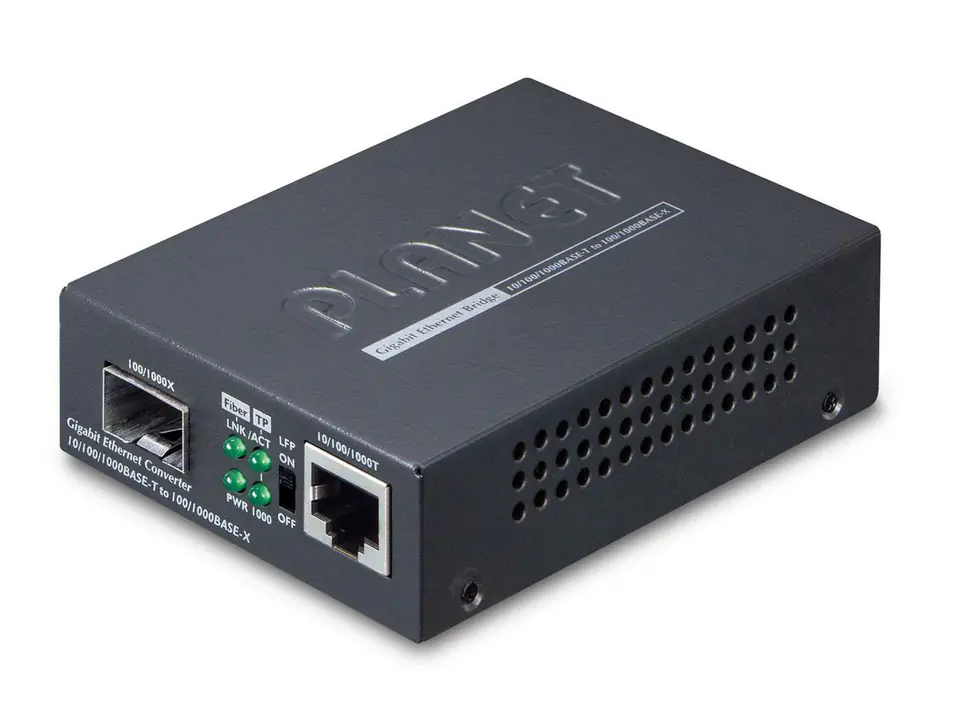

PLANET GT805A network media converter 1000 Mbit/s Multi-mode Black
€60.33
Shipping from warehouse: E12
Estimated shipping: Wed, Dec 10 - Mon, Dec 15
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- PLANET
- Product code:
- GT-805Av4 / 4711213686887
Share this product:
Specification
| Auto mdi/mdi-x: | Y |
|---|---|
| Connectivity technology: | Wired |
| Converter input interface: | 10Base-T, 1000Base-T, 100Base-T |
| Converter output interface: | 1000Base-SX, 1000Base-LX |
| Depth: | 70 mm |
| Din rail mounting: | Y |
| Duplex system: | Full, Half |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan (rj-45) ports: | 2 |
| Ethernet lan data rates: | 100, 10, 1000 Mbit/s |
| Fiber cable diameters supported (core/cladding): | 50/125, 9/125 µm, 62.5/125 µm |
| Fiber mode structure: | Multi-mode |
| Fiber optic connector: | SFP |
| Height: | 26 mm |
| Input current: | 2 A |
| Input voltage: | 5 V |
| Internal: | N |
| Led indicators: | Y |
| Maximum data transfer rate: | 1000 Mbit/s |
| Maximum transfer distance: | 100 m |
| Networking standards: | IEEE 802.3u, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3z |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | 0 - 50 °C |
| Power consumption (typical): | 5.6 W |
| Product colour: | Black |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -10 - 70 °C |
| Weight: | 200 g |
| Width: | 94 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
