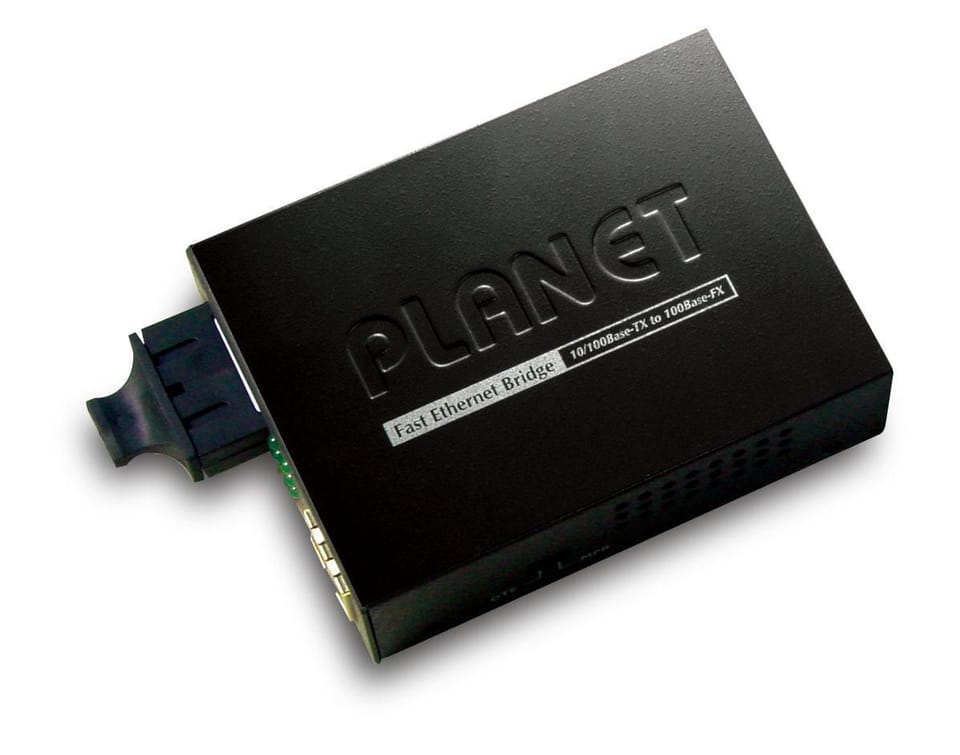

PLANET FT-802 network media converter 100 Mbit/s 1310 nm Multi-mode, Single-mode Black
€57.92
Shipping from warehouse: E12
Estimated shipping: Fri, Aug 1 - Mon, Aug 4
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- PLANET
- Product code:
- FT-802 / 4711213680526
Share this product:
Specification
| Connectivity technology: | Wired |
|---|---|
| Converter input interface: | 100Base-TX, 100BASE-FX, 10Base-T |
| Converter output interface: | 100Base-FX |
| Depth: | 70 mm |
| Duplex system: | Half, Full |
| Ethernet interface type: | Fast Ethernet |
| Ethernet lan (rj-45) ports: | 1 |
| Ethernet lan data rates: | 100, 10 |
| Fiber cable diameters supported (core/cladding): | 62.5/125 µm, 9/125 µm, 50/125 |
| Fiber mode structure: | Single-mode, Multi-mode |
| Fiber optic connector: | SC |
| Fiber ports quantity: | 1 |
| Height: | 26 mm |
| Housing material: | Metal |
| Input current: | 2 A |
| Input voltage: | 5 V |
| Internal: | N |
| Led indicators: | Y |
| Maximum data transfer rate: | 100 Mbit/s |
| Maximum transfer distance: | 2000 m |
| Networking standards: | IEEE 802.3u, IEEE 802.3x, IEEE 802.3 |
| Operating relative humidity (h-h): | 5 - 90% |
| Operating temperature (t-t): | 0 - 50 °C |
| Product colour: | Black |
| Sensitivity: | -31.8 dBmW |
| Storage relative humidity (h-h): | 5 - 90% |
| Storage temperature (t-t): | -40 - 70 °C |
| Tx power (max): | -14 dBmW |
| Tx power (min): | -23.5 dBmW |
| Wavelength: | 1310 nm |
| Weight: | 200 g |
| Width: | 94 mm |
