Passive infrared sensor PRO-PLUS is designed for indoor useThank to advanced signal analysis algorithms, it is distinguished by very stable operation and low false alarm rate

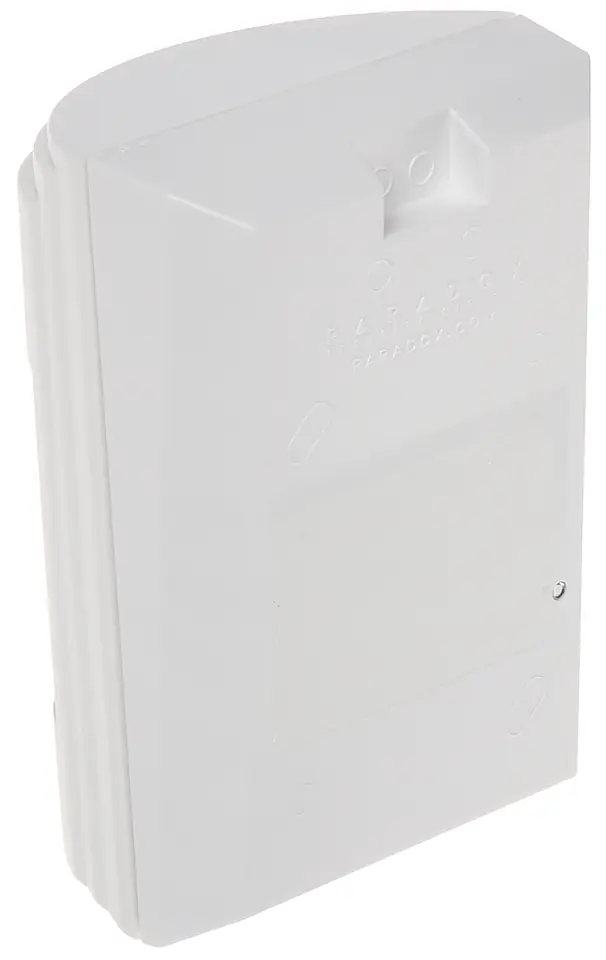

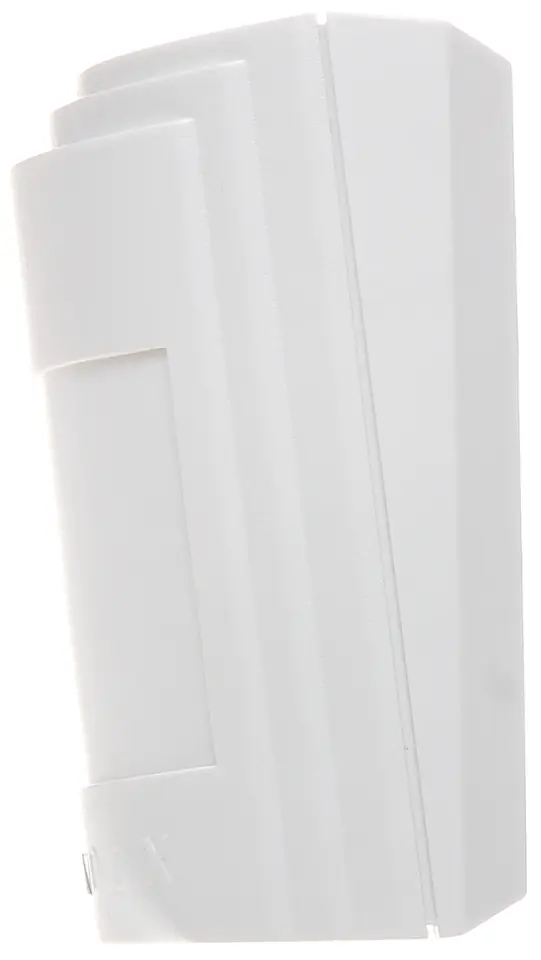

PIR PRO-PLUS PARADOX DETECTOR
€11.42
Shipping from warehouse: D4
Estimated shipping: Mon, May 6 - Wed, May 8
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- PRO-PLUS / 5902887012853
Share this product:
Specification
| Alarm outputs:: | NC |
|---|---|
| Colour:: | white |
| Country of origin:: | Canada |
| Detectable movement speed:: | 0.2 ... 3.5 m/s |

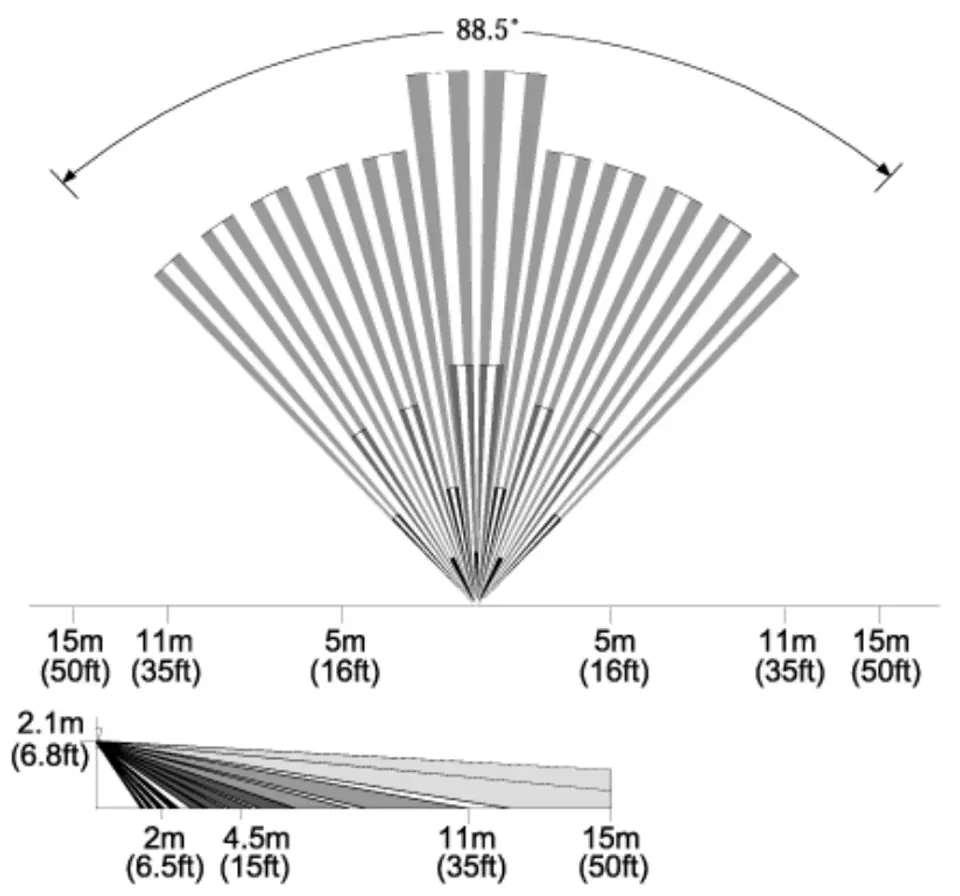

| Detection angle:: | 88.5 ° |
| Dimensions:: | 67 x 93 x 52 mm |
| Manufacturer / brand:: | PARADOX |
| Maximum current consumption:: | 31 mA |
| Maximum load on outputs:: | 28 VDC / 150 mA |
| Operating temperature:: | -20 °C ... 50 °C |
| Power:: | 9 ... 16 VDC |
| Pyroelement:: | Double |
| Range:: | 11 x 11 m |
| Recommended mounting height:: | 2.1 ... 2.7 m |
| Scales:: | 0.082 kg |
| Selected features:: | Replaceable Fresnel Lenses Tamper Protection Digital Pulse Signal Processing Technology Metal EMI Interference Protection Screen, RFI Test Mode EN 50130-4, EN 55022 |
| Sensor type:: | Passive infrared (PIR) |
| Use:: | Internal |
| Violation signaling time:: | 3 sec |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
