The DG-55/PLUS passive infrared sensor is designed for indoor useThanks to advanced signal analysis algorithms, it is distinguished by very stable operation and low false alarm rate
PIR DETECTOR DG-55/PLUS PARADOX
€18.91
Shipping from warehouse: D4
Estimated shipping: Tue, May 21 - Fri, May 24
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- DG-55/PLUS / 5902887030932
Share this product:
Specification
| Alarm outputs:: | NC |
|---|---|
| Colour:: | white |
| Detectable movement speed:: | 0.2 ... 3.5 m/s |

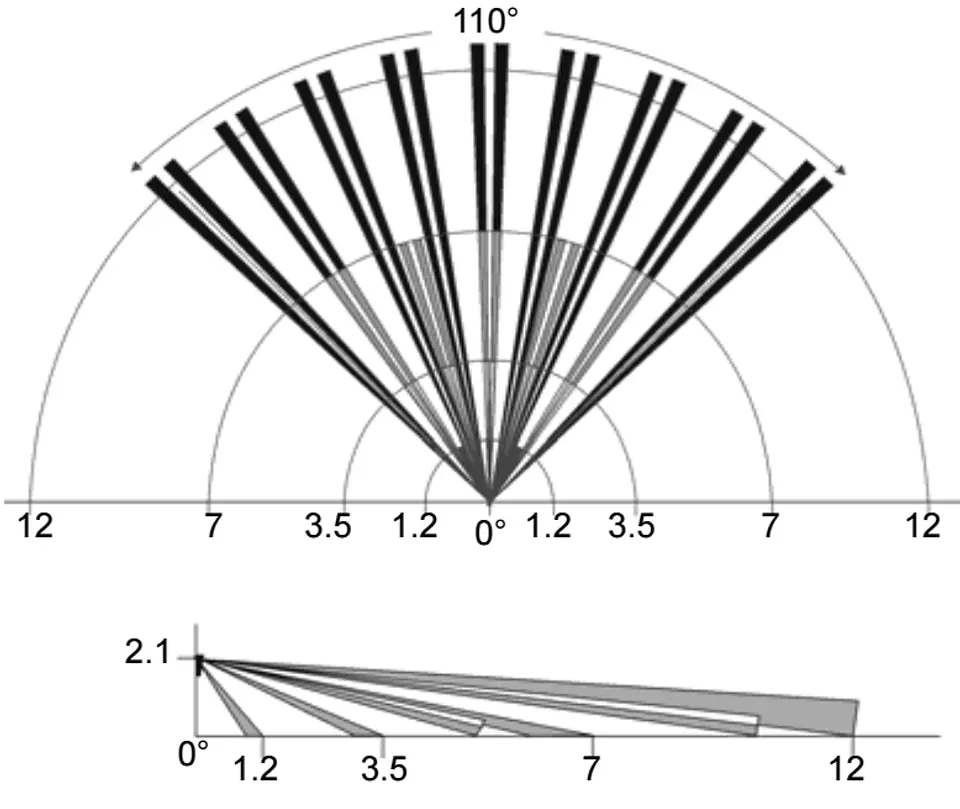

| Detection angle:: | 110 ° |
| Dimensions:: | 74 x 101 x 56 mm |
| Environmental class:: | Class I |
| Manufacturer / brand:: | PARADOX |
| Maximum current consumption:: | 15 mA |
| Maximum load on outputs:: | 28 VDC / 100 mA |
| Operating temperature:: | -20 °C ... 50 °C |
| Power:: | 9 ... 16 VDC |
| Pyroelement:: | Double |
| Range:: | 12 x 12 m |
| Recommended mounting height:: | 2.1 ... 2.7 m |
| Scales:: | 0.096 kg |
| Selected features:: | Interchangeable Fresnel Lenses Tamper Protection Patented Motion Analysis (Without Analog Signal Processing) Digital Pulse Signal Processing Technology Digital Shield Algorithm Reducing False Alarms Metal EMI Interference Protection Screen , RFI Test Mode EN 50131 II Protection Class |
| Sensor type:: | Passive infrared (PIR) |
| Use:: | Internal |
| Violation signaling time:: | 3 sec |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
