| Alarm output: | NC |
|---|---|
| Colour: | white |
| Detection angle: | 4 ° |
| Dimensions: | 37 x 130 x 34 mm |
| Environmental class: | EN 50131-2-2 Grade 2 |
| Infringement signalling time: | 4 sec |
| Operating temperature: | -25 °C ... 55 °C |
| Power: | 9 ... 15 V DC @ 12 mA / 23 mA (max) |
| Producer / brand: | VIDICON |
| Pyroelement: | Double |
| Range: | 3.5 m |
| Scales: | 0.06 kg |
| Selected features: | Digital detector The adjustable lens allows you to set the detector as a horizontal or vertical curtain Bright LED Alarm trigger delay Detection of the direction of movement from which the alarm is to be triggered LED Indication Pulse counter Switch indicating the opening of the TAMPER housing Lens - 6 zones in 1 level |
| Sensor type: | Passive infrared (PIR) |
| Use: | Internal |
| Warranty: | 2 years |

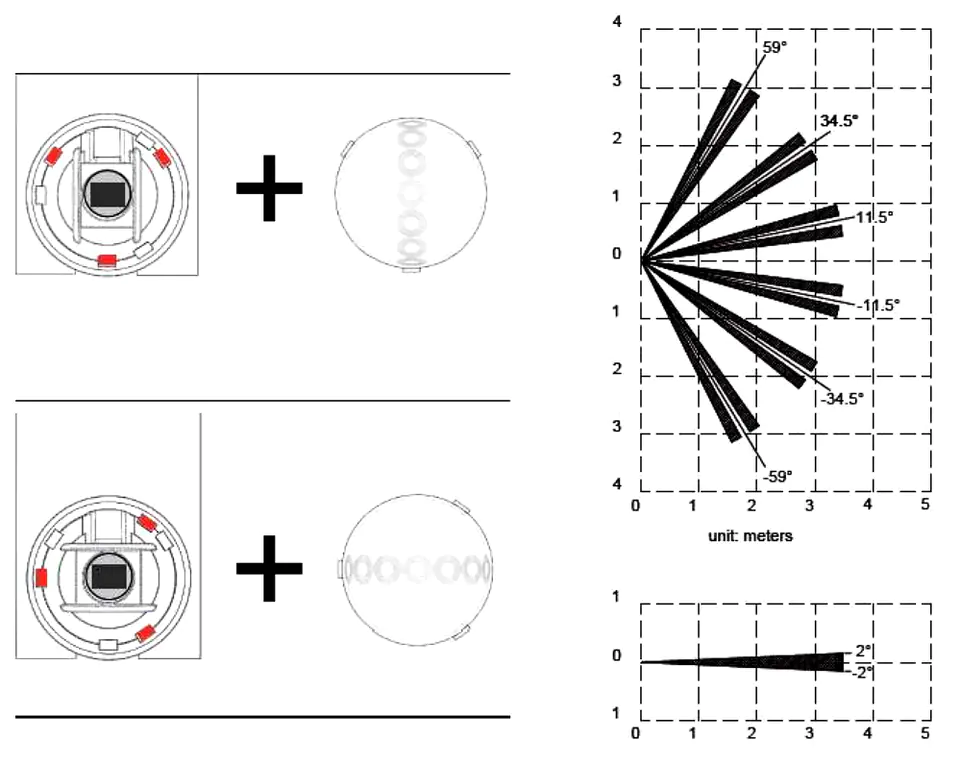

Curtain detector provides a narrow detection angle
Thanks to the FULLY digital technology, the detector is much more accurate in detecting intrusion and is not subject to interference such as: white light, ultraviolet light, temperature change, air movement from heating/cooling systems and is completely resistant to electromagnetic radiation.
