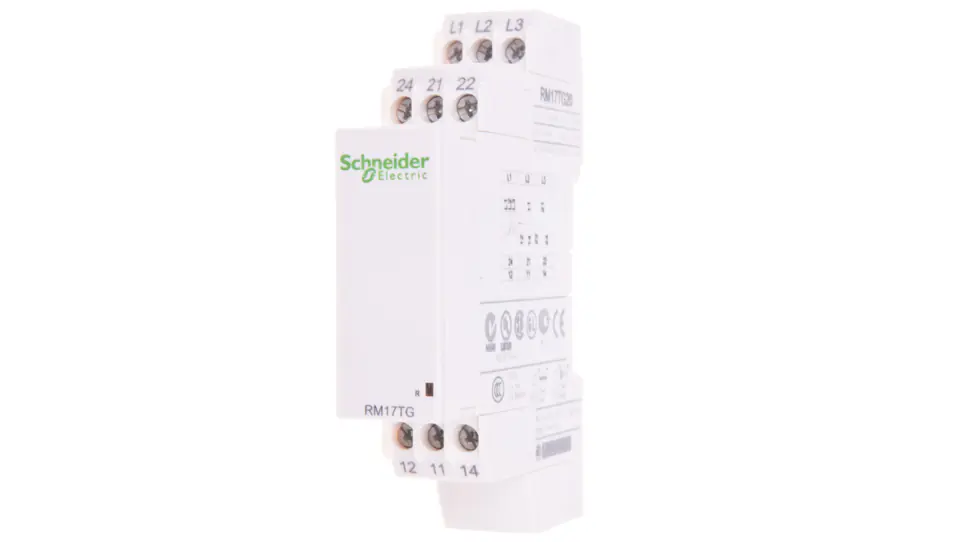

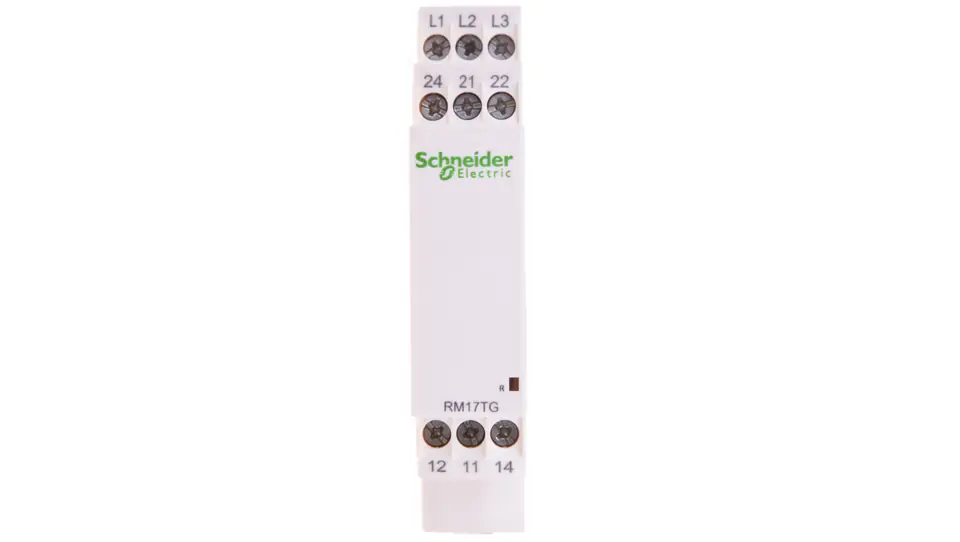

Phase sequence and decay relay 5A 2P 200-500V RM17TG20
This product is not available
- Availability:
- expected delivery
- Brand:
- Schneider
- Product code:
- RM17TG20 / 3389119405072
Share this product:
Specification
| Depth [mm]: | 80 |
|---|---|
| Height [mm]: | 78 |
| Minimum adjustable time delay in the event of a power outage [s]: | 0 |
| Minimum adjustable time delay when supplying power [s]: | 0 |
| Number of nc contacts: | 0 |
| Number of no contacts: | 0 |
| Number of switching contacts: | 2 |
| Overvoltage control function: | No |
| Phase asymmetry control: | Yes |
| Phase decay control: | Yes |
| Phase sequence control: | Yes |
| Rated control voltage us for ac 50 hz [v] from: | 183 |
| Rated control voltage us for ac 50 hz [v] up to: | 484 |
| Rated control voltage us for ac 60 hz [v] from: | 183 |
| Rated control voltage us for ac 60 hz [v] to: | 484 |
| Type of control voltage: | AC |
| Type of electrical connection: | Screw connection |
| Undervoltage control function: | No |
| Voltage measuring range [v] from: | 198 |
| Voltage measuring range [v] to: | 484 |
| Width [mm]: | 22,5 |
| With detachable terminals: | No |
