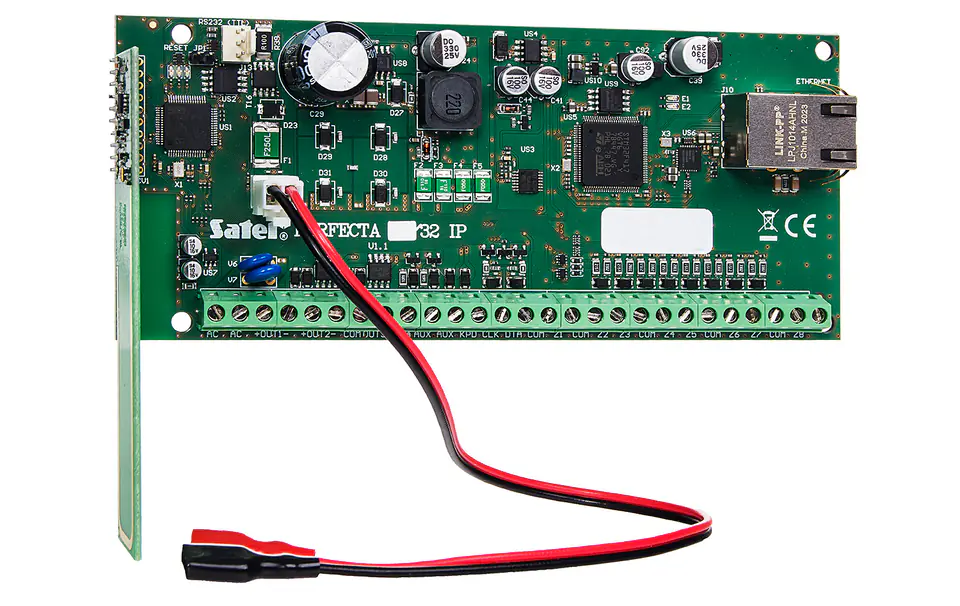

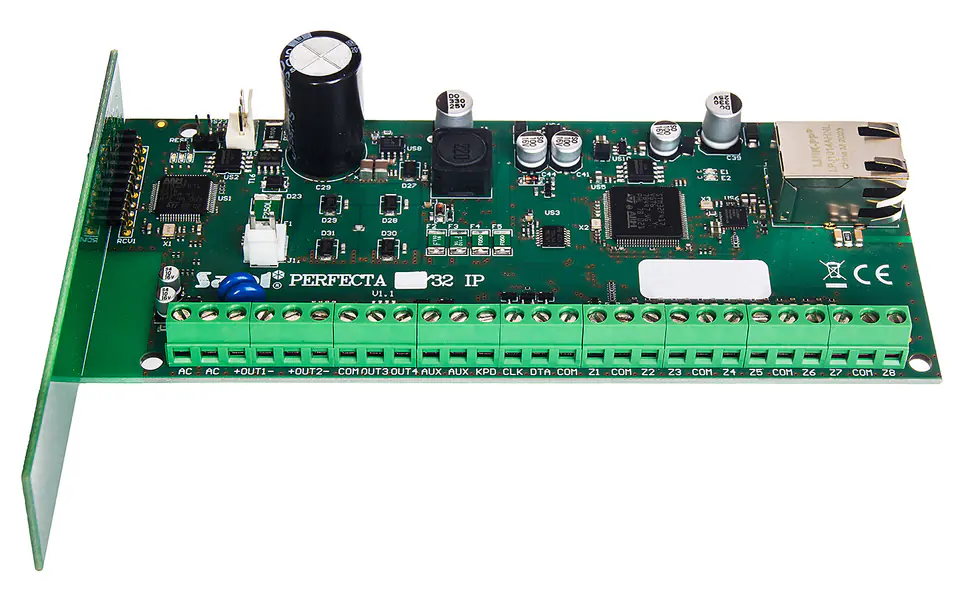

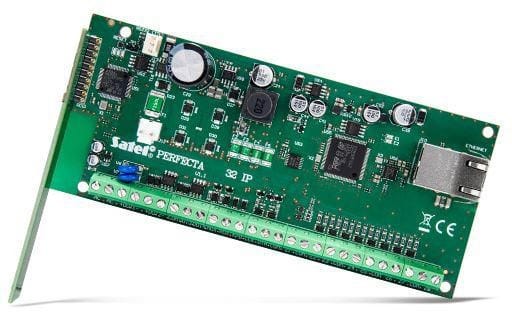

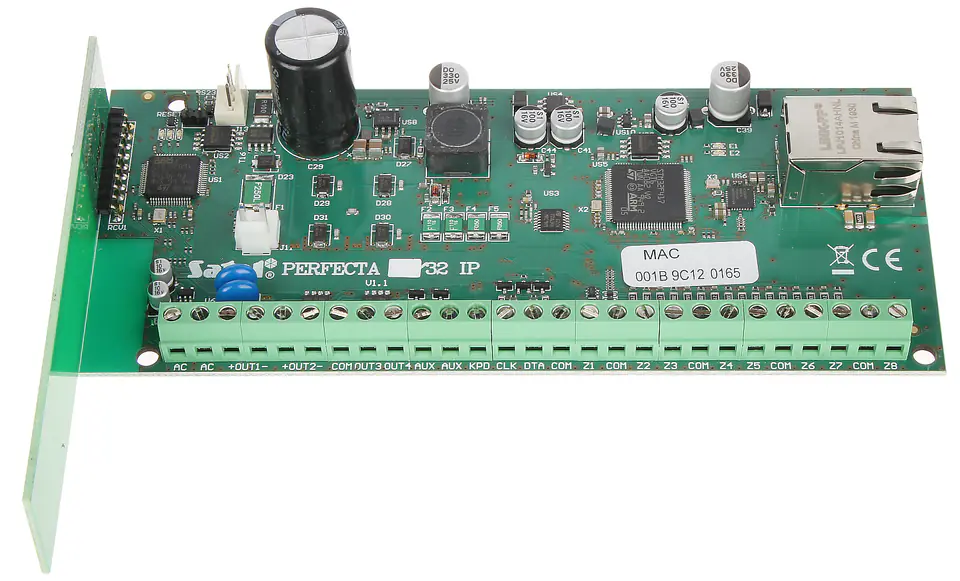

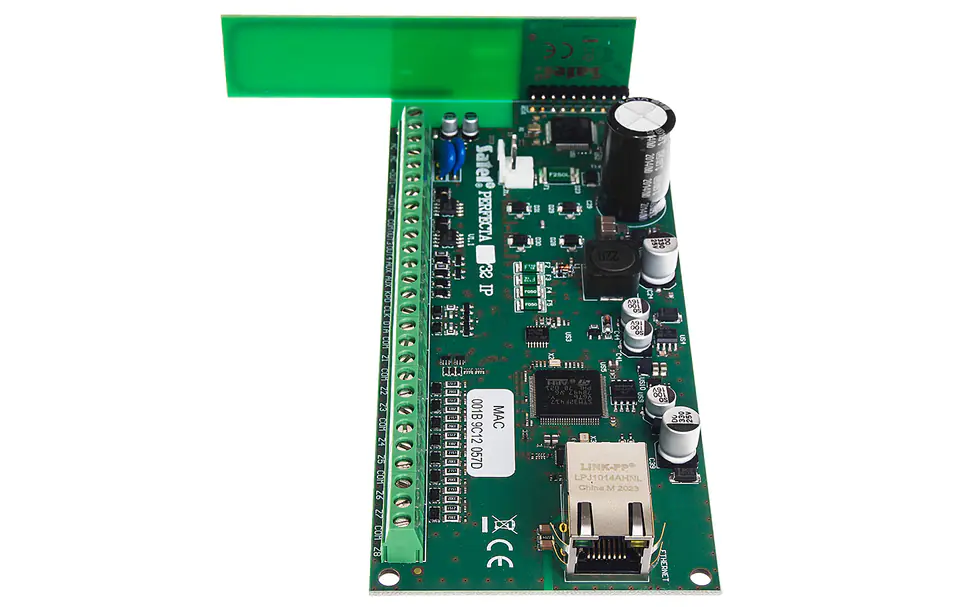

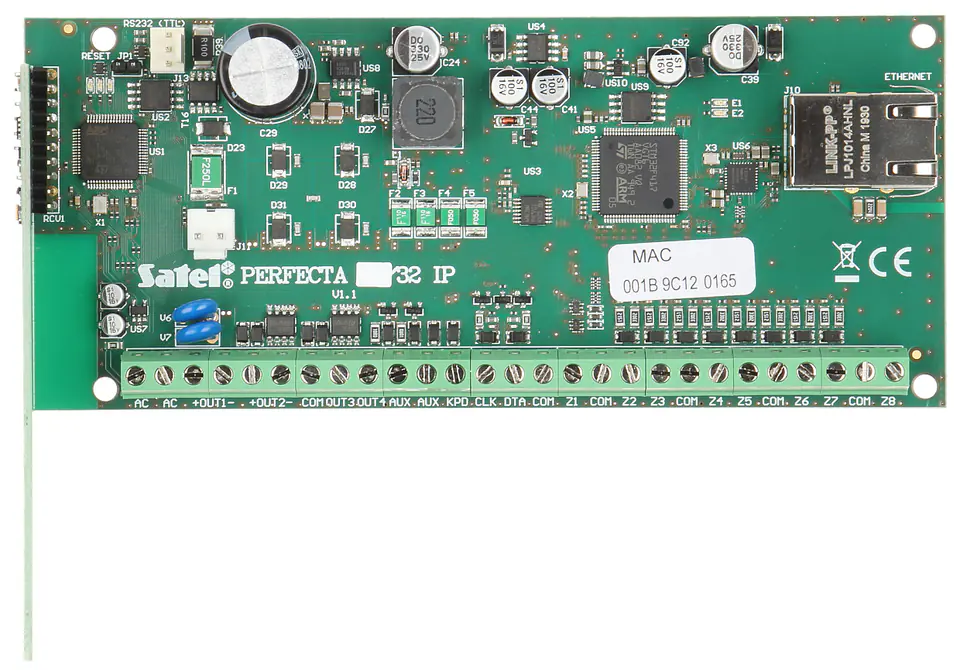

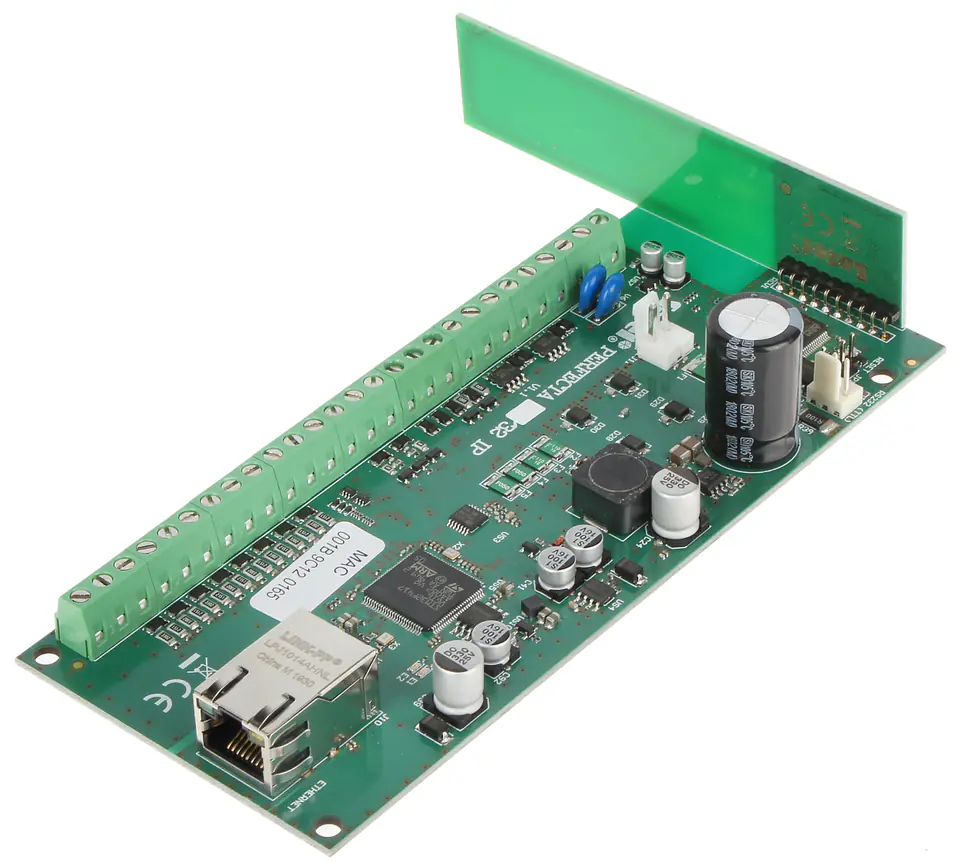

PERFECTA-IP-32-WRL SATEL CONTROL PANEL BOARD

Name: PERFECTA-IP-32-WRL SATEL CONTROL PANEL BOARD
Brand: Satel
SKU: 515417
Price: 262.97 EUR
Availability: InStock

€262.97

Shipping from warehouse: ⁨H7⁩

Estimated shipping: Tue, Apr 30 - Fri, May 3

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:
Product code:: PERFECTA-IP-32-WRL / 5905033337244

Specification

Current efficiency of the power supply::	2 A
Dimensions::	160 x 110 mm
Event memory::	3584
Grade::	2
Manufacturer / brand::	SATEL
Maximum number of supported inputs::	32 pcs. - programmable
Maximum number of supported outputs::	12 pcs. - programmable
Motherboard inputs::	8 pcs. - programmable
Motherboard outputs::	4 pcs. - programmable
Operating temperature::	-10 °C ... 55 °C
Permissible relative humidity::	93 %
Power::	18 V AC
Scales::	0.1 kg
Selected features::	Built-in Ethernet module (monitoring to the station, mobile application, PUSH notifications) Built-in module for wireless devices operating in the 433 MHz frequency band Two-way communication with PRF-LCD-WRL wireless keypads and MSP-300-R sirens takes place in the 433 MHz band Wireless one-way communication with MICRA series detectors and MPT-350 remote controls in the 433 MHz band 3 surveillance modes in each zone Possibility to assign an input to two Zones Control by the user or using timers Communication bus for connecting keypads (PRF-LCD) and expansion modules (INT-E, INT-O, INT-ORS) Editing names (users, zones, inputs, outputs and modules) for easy system control and its supervision Built-in advanced power supply with extensive diagnostics - 2 power outputs Support for vibration and roller shutter detectors Possibility of software update
Supported keyboards::	Max. 4 pcs.
Supported languages::	Polish - no possibility to change the language
Timers::	8
Users + administrators::	15 + 1
Warranty::	2 years
Zone::	2

PerfectA series alarm control panels are designed to protect small and medium-sized buildings, such as apartments, single-family houses, segments in terraced houses, offices, small businesses, etc. Provides protection in accordance with the requirements of Grade 2 EN 50131

The control panel enables the creation of a wired and wireless installation (frequency band 433 MHz)Two-way communication with prF-LCD-WRL wireless keypads and MSP-300-R sirens takes place in the 433 MHzW band of the wireless installation, MICRA series detectors and new MPT-350 remote controls are also usedIt is a possibility of easy expansion of the existing system, without the need to lay additional cable tracks

In addition to the basic, traditional methods of system control, the control panel also offers, among others, a functional and intuitive application for mobile devices PERFECTA CONTROL

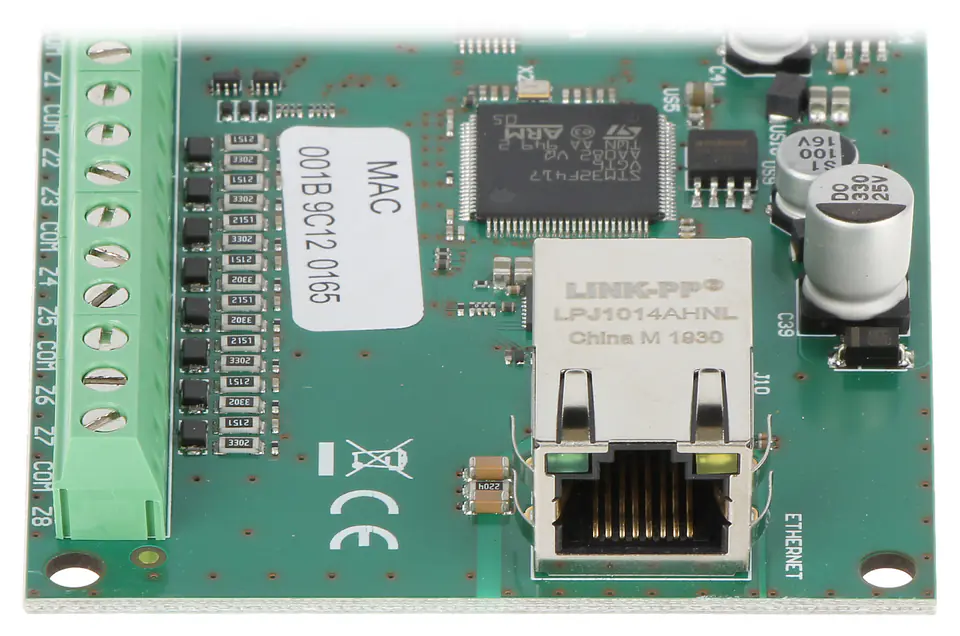

The PERFECTA-IP-32-WRL model uses an Ethernet communicator that allows the use of a mobile application, remote configuration of the system using the PERFECTA Soft program and event monitoring (e.g. to the monitoring station of the security agency)

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
