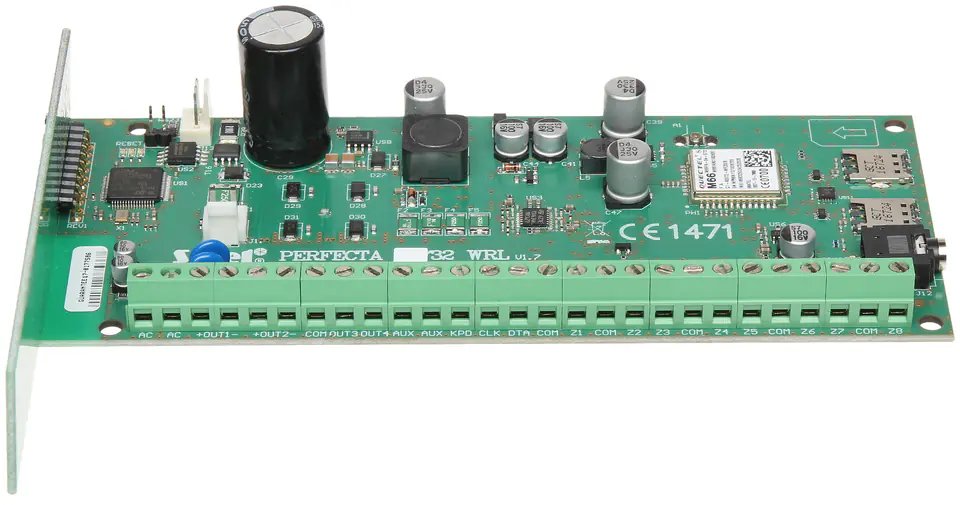

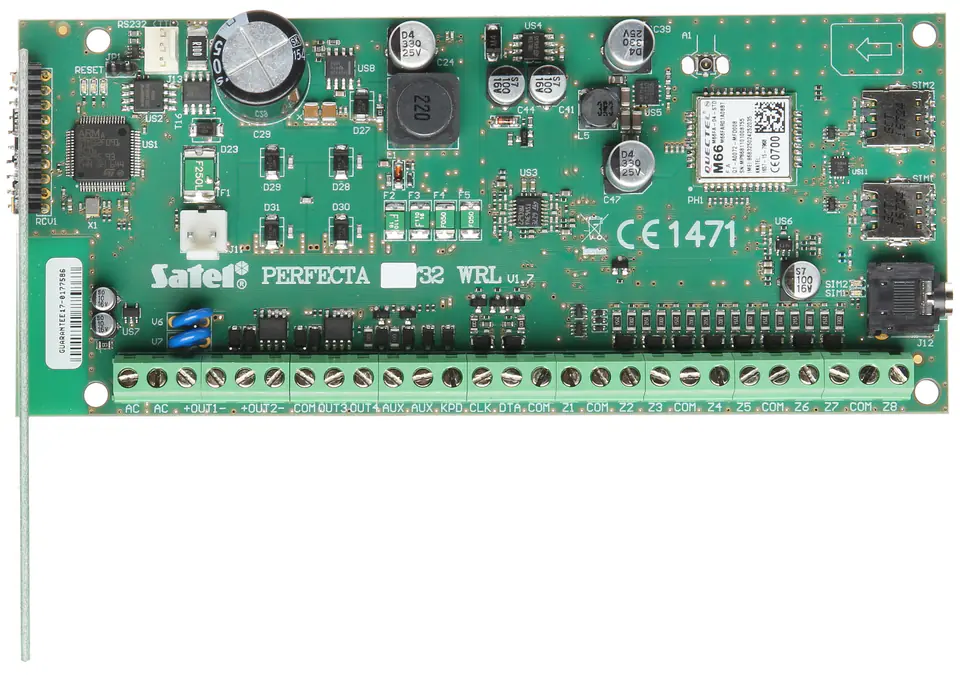

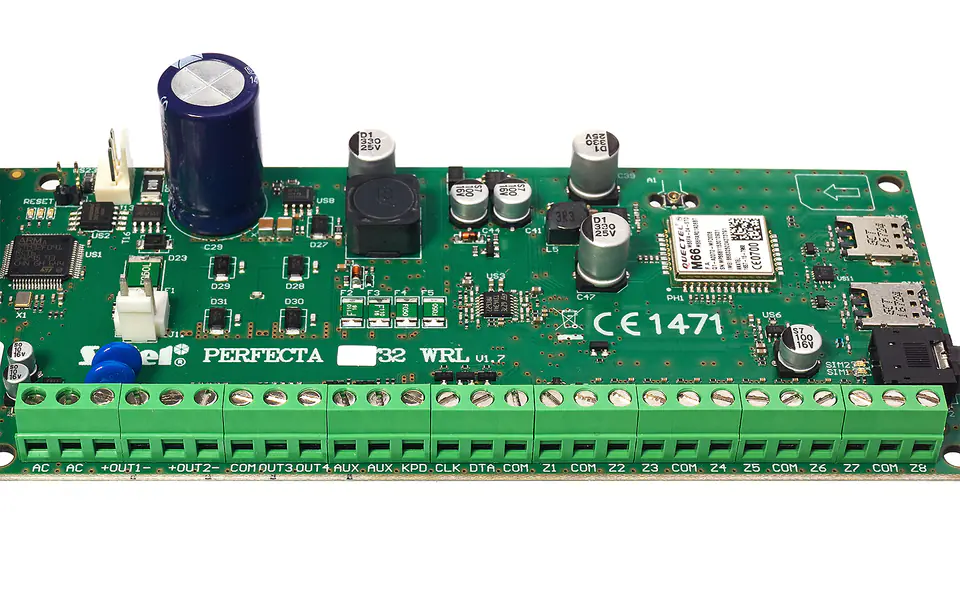

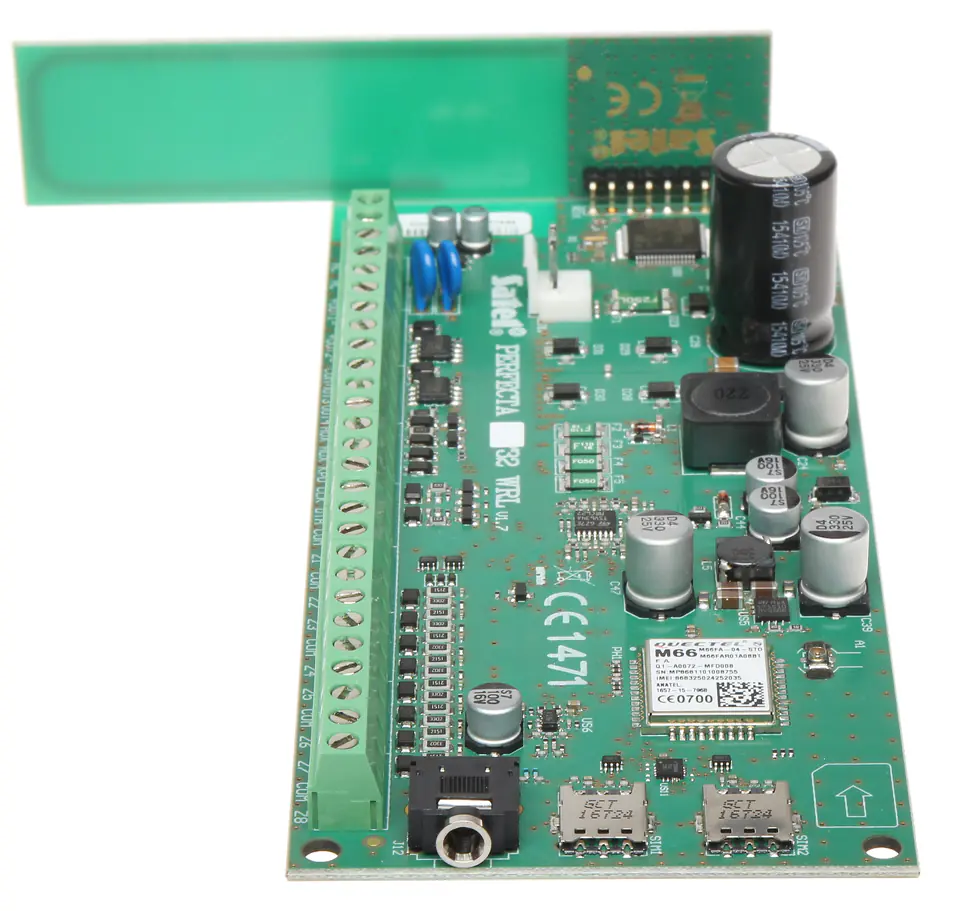

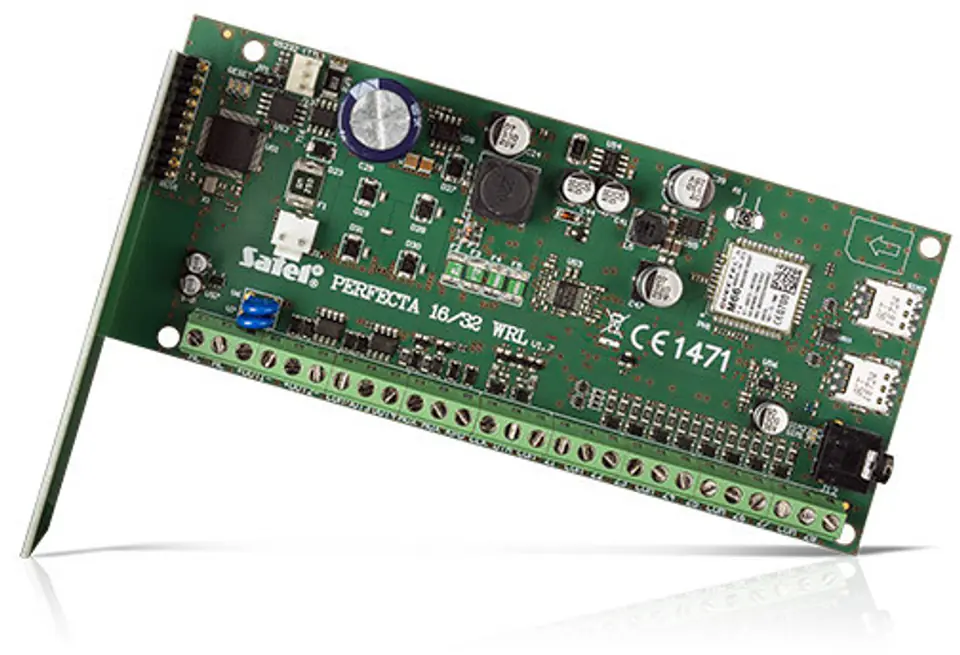

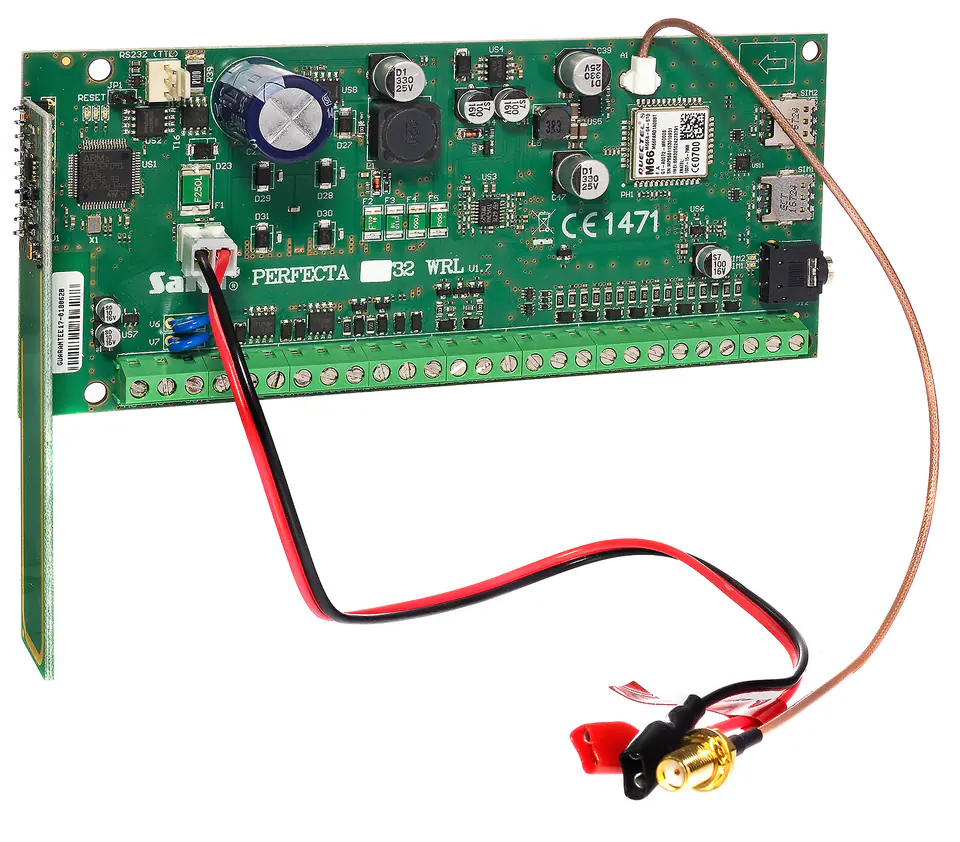

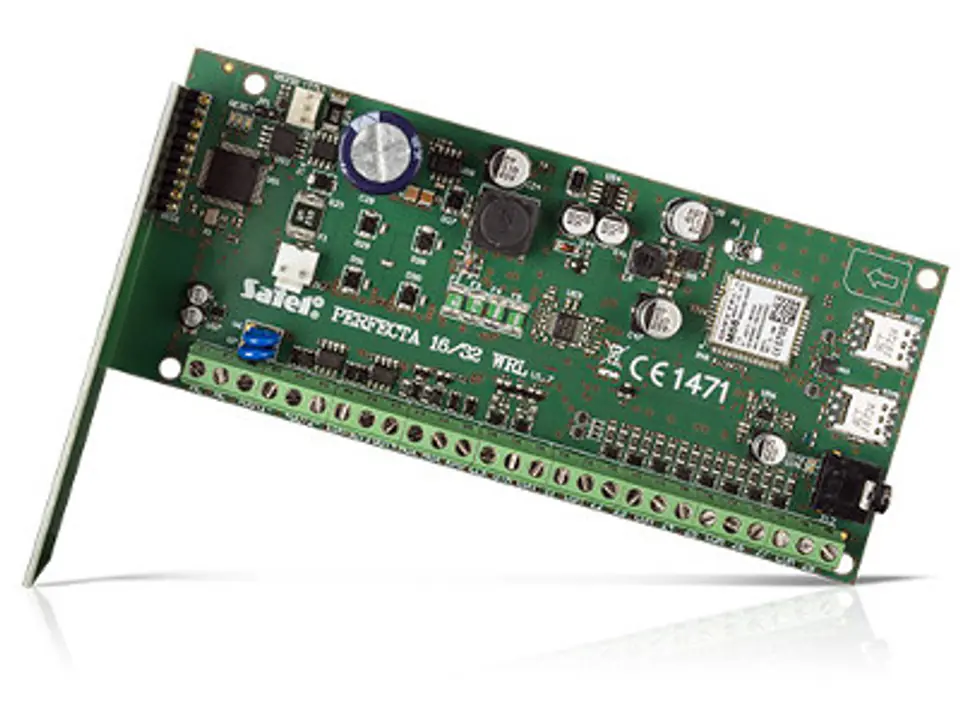

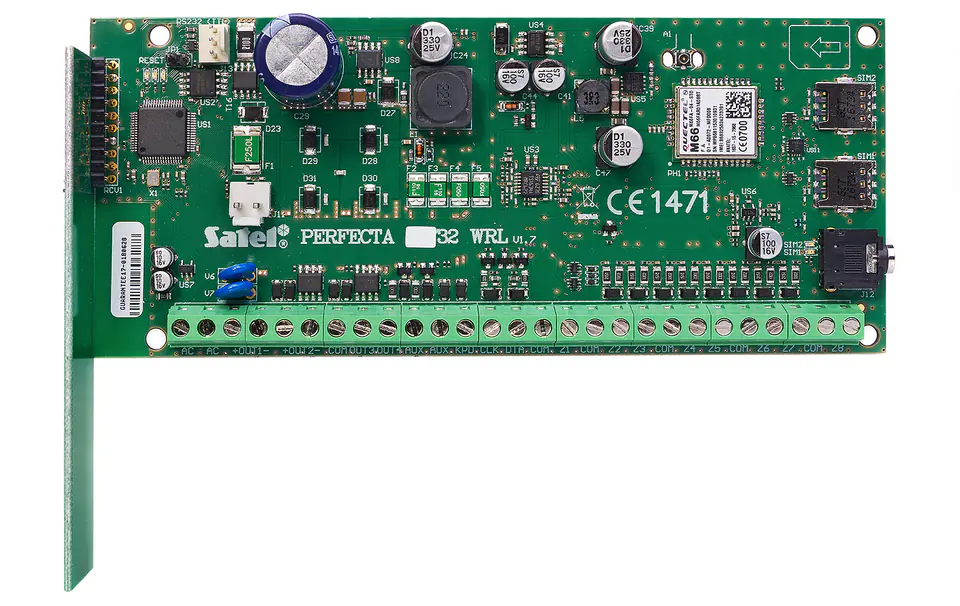

PERFECTA-32-WWL SATEL CONTROL PANEL BOARD

€204.35
Shipping from warehouse: ⁨H7⁩
Estimated shipping: Mon, May 13 - Tue, May 14
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Satel
Product code:
PERFECTA-32-WRL / 5905033332973

Specification

Dimensions:160 x 110 mm
Event memory:3584
Grade:2
Maximum number of supported inputs:32 pcs. -Programmable
Maximum number of supported outputs:16 pcs. -Programmable
Motherboard inputs:8 pcs. -Programmable
Motherboard outputs:4 pcs. -Programmable
Operating temperature:-10 °C ... 55 °C
Permissible relative ambient humidity:93 %
Power:18 V AC
Power supply current efficiency:2 A
Producer / brand:SATEL
Scales:0.110 kg
Selected features:Built-in GSM/GPRS module with 2 SIM slots (SMS, monitoring to the station, mobile application, PUSH notifications) Built-in voice module (playback of voice messages for telephone notification) - 16 voice messages Built-in acoustic alarm verification module (listening to sounds) Two-way communication with PRF-LCD-WRL wireless keypads and MSP-300-R sirens takes place in the 433 MHz band Wireless one-way communication with detectors with MICRA series and MPT-350 remote controls in the 433 MHz band 3 surveillance modes in each zone Possibility to assign input to two zones User control or timer control Communication bus for connecting keypads (PRF-LCD) and expansion modules (INT-E, INT-O, INT-ORS) Edit names (users, zones, inputs, outputs and modules) for easy system control and supervision Built-in advanced power supply with extensive diagnostics - 2 power outputs Detector support vibration and roller shutters Possibility of software updates
Supported keyboards:.max. 4 pcs.
Supported languages:Polish - no possibility to change the language
Timers:8
Users + administrators:15  + 1
Warranty:2 years
Zone:2

PERFECTA series control panels are designed to protect small and medium-sized buildings, such as apartments, single-family houses, segments in terraced houses, offices, small businesses, etc. Provides protection in accordance with EN 50131 Grade 2 requirements

The PERFECTA-32-WRL control panel allows to create a wireless and hybrid installation (connection with a traditional wired system)Two-way communication with wireless keypads PRF-LCD-WRL and MSP-300-R sirens takes place in the 433 MHz bandThe wireless system also uses MICRA series detectors and new MPT-350 keyfobsThis makes it possible to easily expand the existing system, without the need to lay additional cable paths

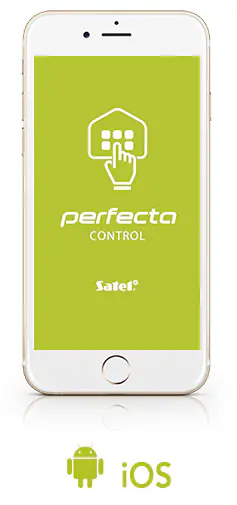

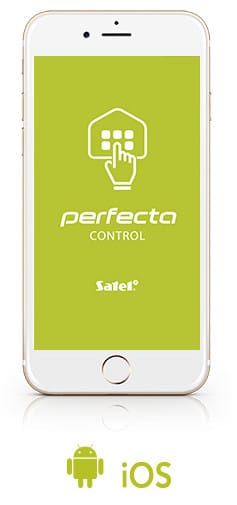

In addition to the basic, traditional methods of system control, the control panel also offers, among others, a functional and intuitive application for mobile devices PERFECTA CONTROL

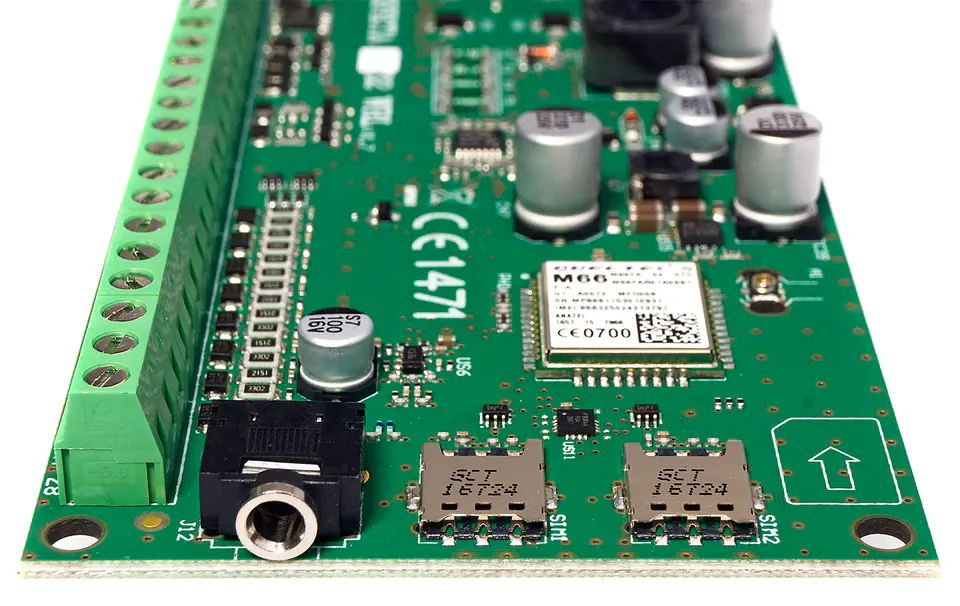

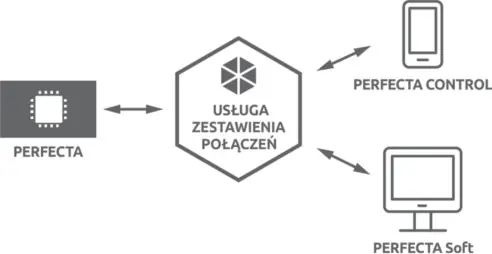

The built-in GSM/GPRS module gives a wide range of possibilities: enables cooperation with a mobile application, with PUSH message support, remote configuration using the PERFECTA Soft program, event monitoring (e.g. to the monitoring station of a security agency), voice notification, control via SMS and audio verification (listening to sounds from the protected facility)Two nano-SIM cards are supported, which ensures continuity of communication: in case of problems with the range of the first operator, A second tab is automatically selected
