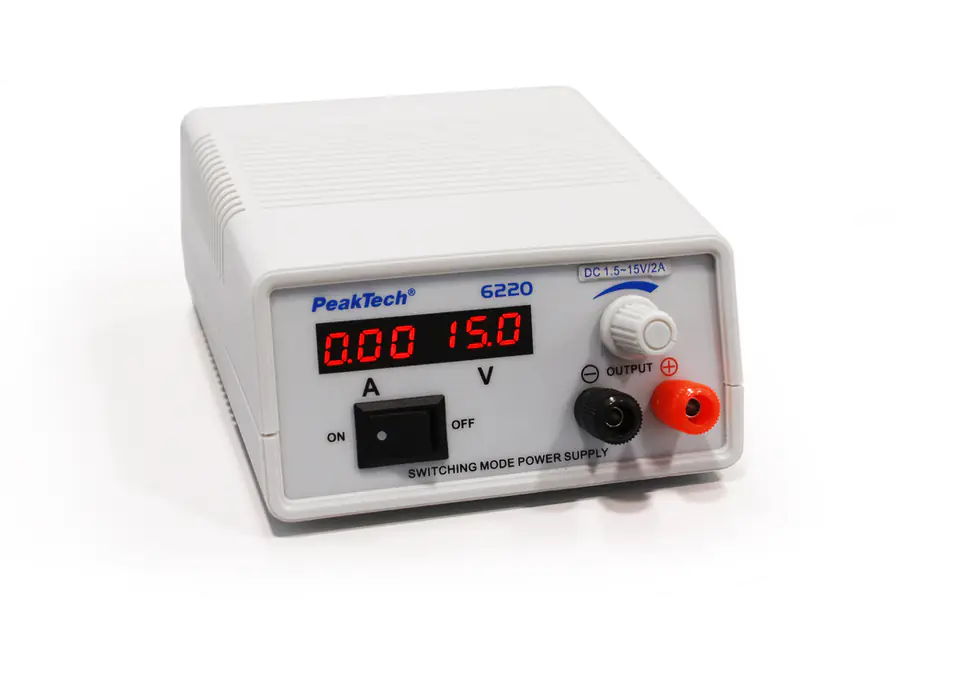

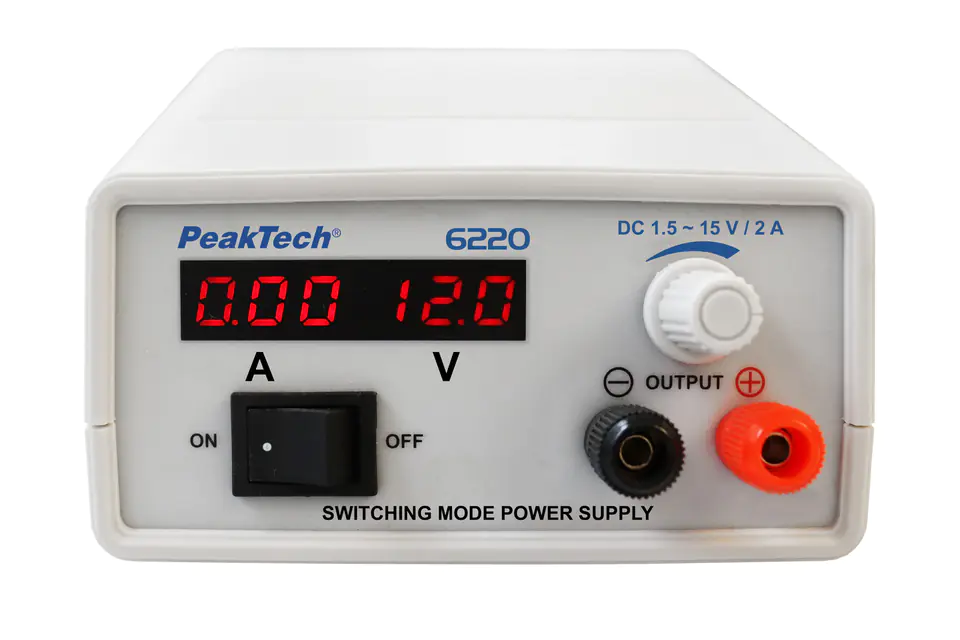

Mini Power Supply 1.5 - 15V / 2A DC PeakTech 6220
The PeakTech 6220 is a handy and lightweight DC switching power supply that convinces with high performance at the best price-performance ratio. The applied switched-mode power supply technology ensures high performance with small dimensions and low weight. The output voltage is regulated continuously using a potentiometer at the front, so that the current is limited to a maximum of 2A. Pole terminals with a 4 mm hole allow easy connection of individual wires, but also connection of 4 mm banana plugs. The network cable with euro plug is firmly connected to the power supply and the device turns on and off using the front power switch. This handy power supply fits into any workbench and can be used universally in hobby, service or training areas.
- Channels: 1 channel
- Input connector: Europlug type F
- Input voltage: 115 - 230 V AC 50/60 Hz
- Output connection: pole terminal (front)
- Output current: 0 - 2 A
- Output voltage: 1.5 - 15 V DC
- Power supply 1.5 - 15 V DC with stepless regulation
- Maximum output current 2 A DC (constant value)
- Modern switching power supply technology
- Stabilized output voltage

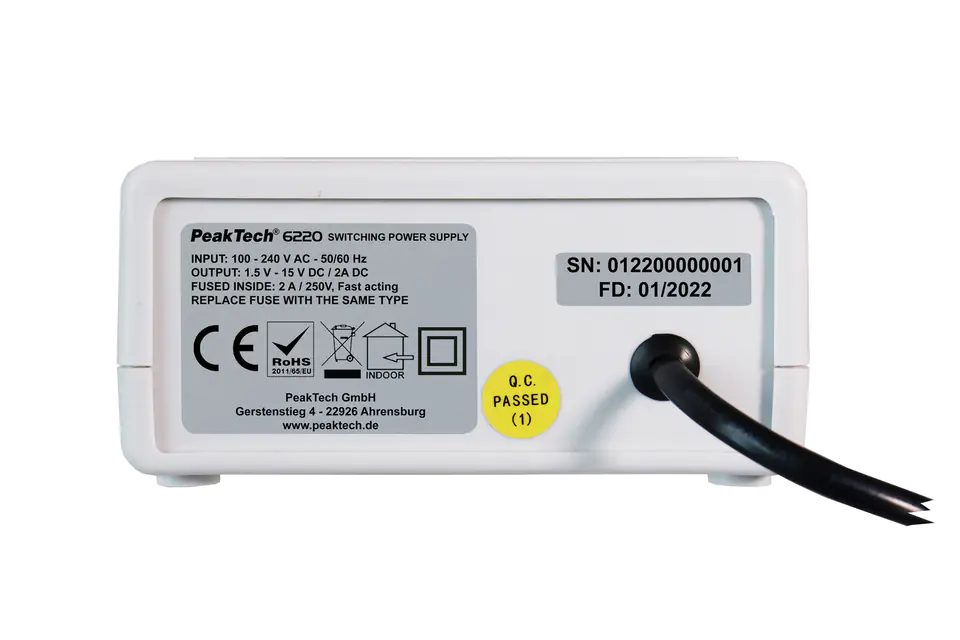

- Passive cooling and fixed power cord (130 cm)
- 4mm terminals for banana plugs or single wires
- Safety: EN-61010, protection class II
