86 x 150 x 160 mm

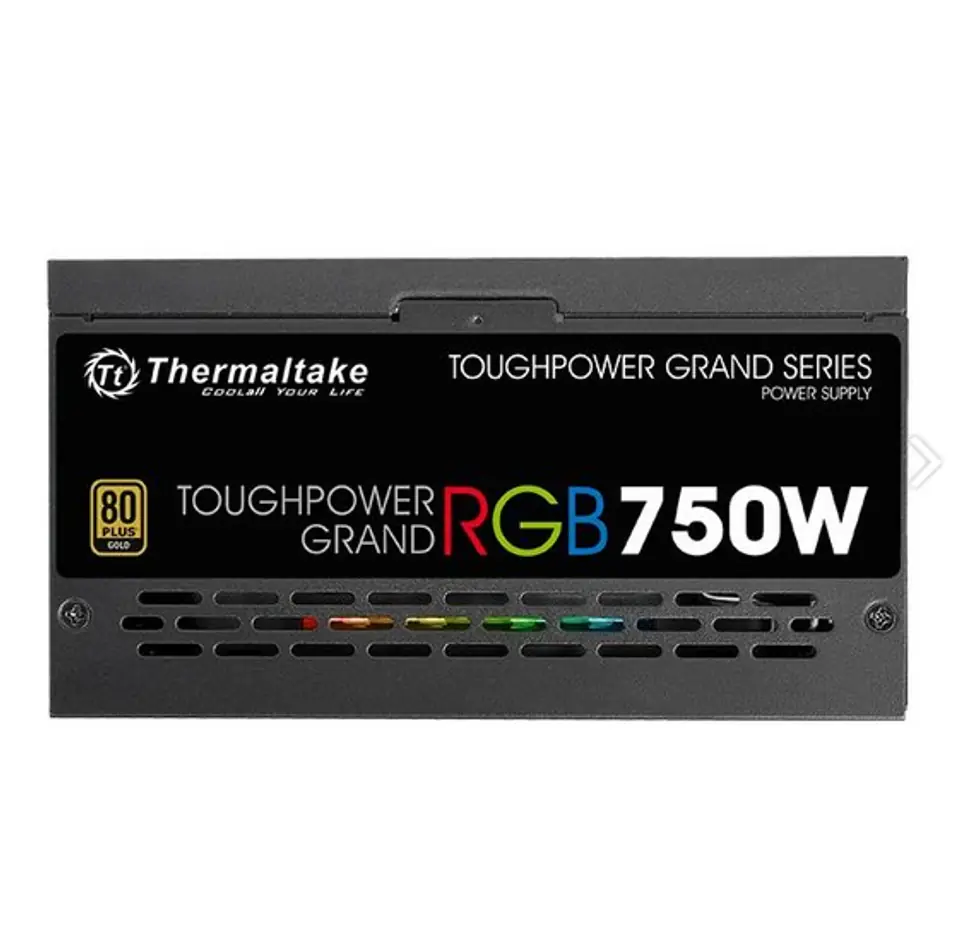

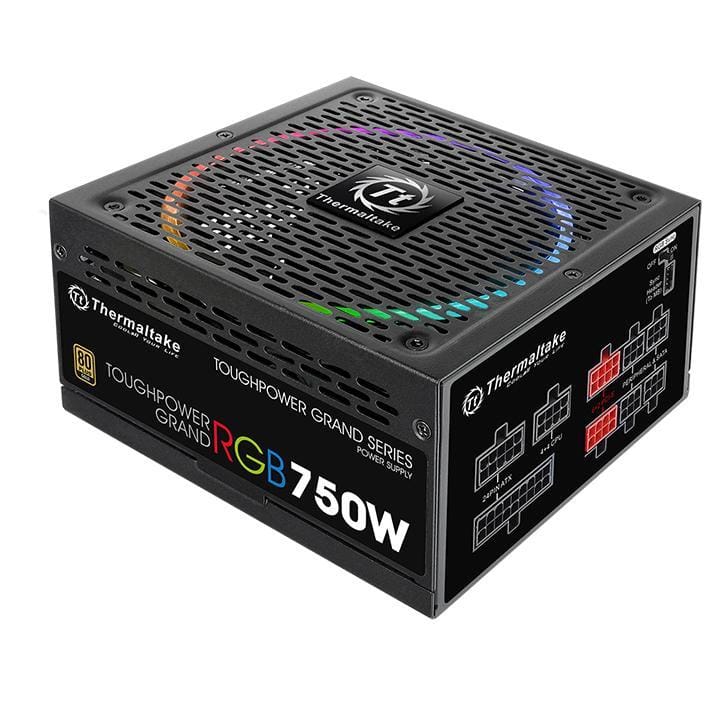

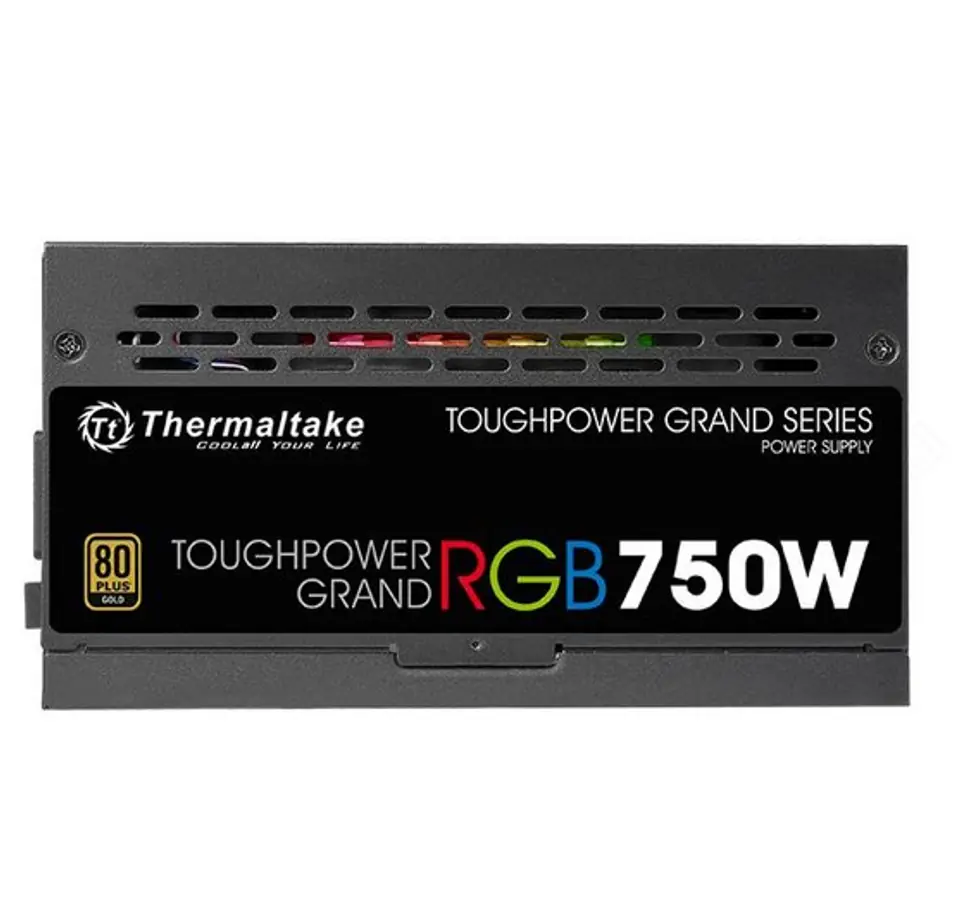

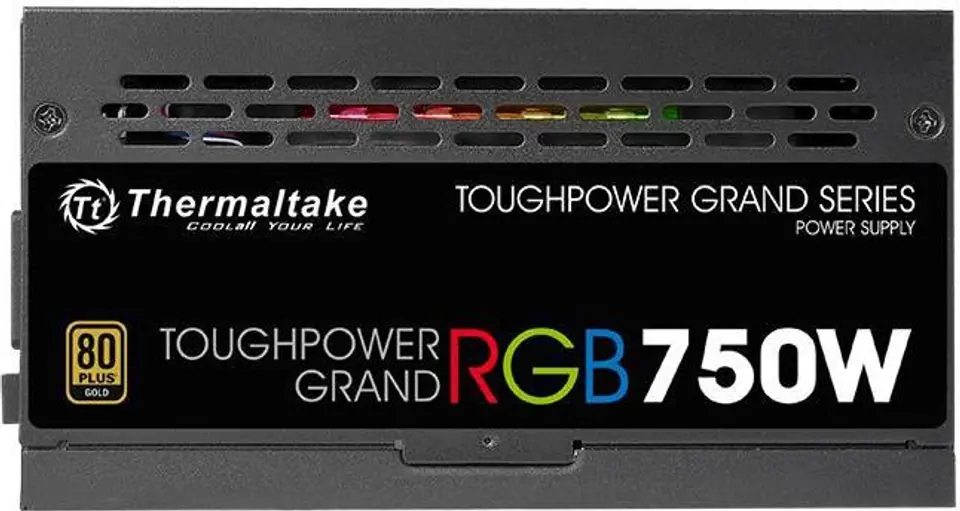

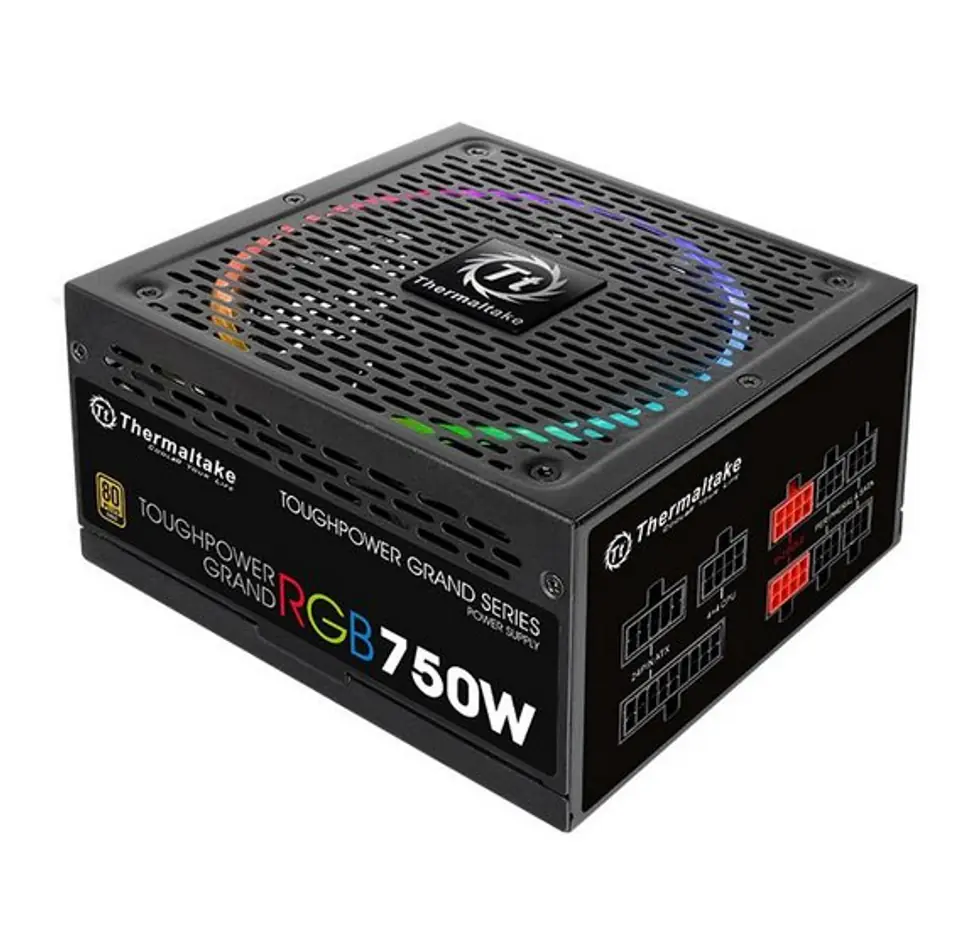

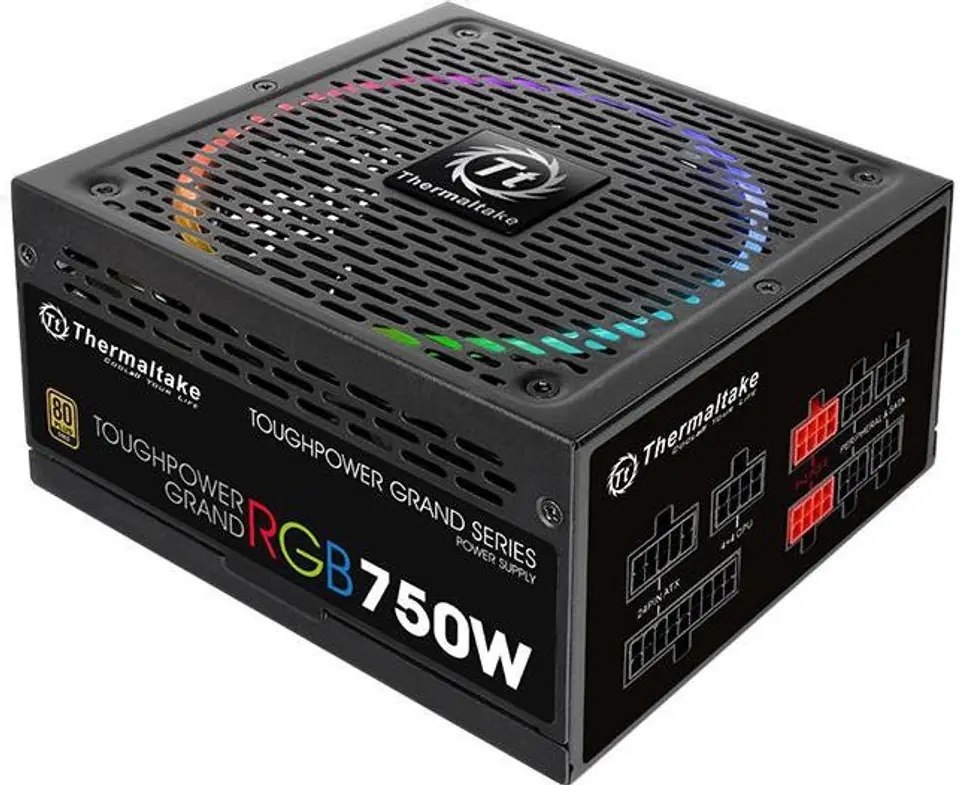

PC Power Supply THERMALTAKE 750W PS-TPG-0750FPCGEU-R
PLN 496.41
Shipping from warehouse: M7
Estimated shipping: Mon, Oct 27 - Wed, Oct 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Thermaltake
- Product code:
- PS-TPG-0750FPCGEU-R / 0841163066713
Share this product:
Specification

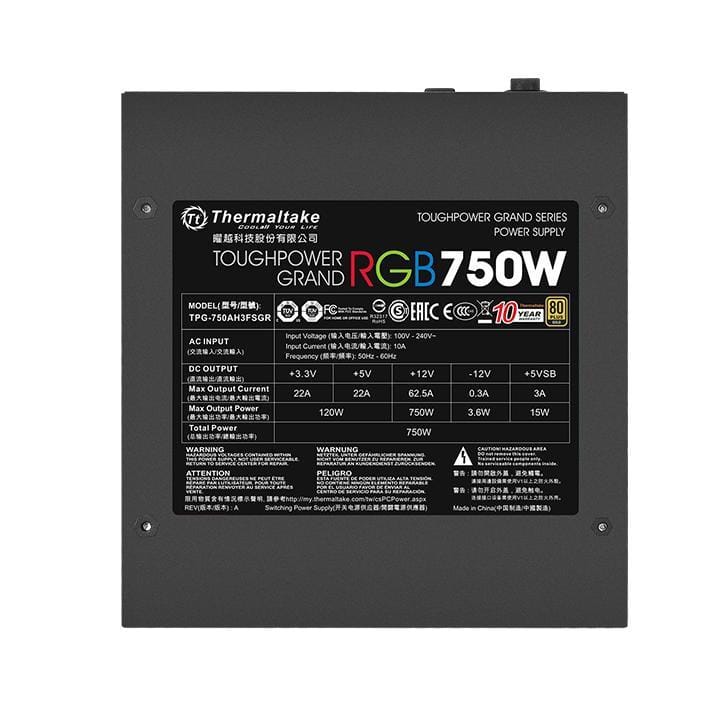

| 80 plus certification: | 80 PLUS Gold |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Applied backlight: | RGB |
| Atx 24-pin plugs (20+4): | 1 |
| Atx version: | 2.4 |
| Cabling type: | Fully-Modular |
| Combined power (-12v): | 3.6 W |
| Combined power (+12v): | 750 W |
| Combined power (+3.3v): | 120 W |
| Combined power (+5v): | 120 W |
| Combined power (+5vsb): | 15 W |
| Compliant standards: | ATX |
| Cooling type: | Active |
| Cpu power connector (4+4 pin): | Yes |
| Depth: | 160 mm |
| Depth (mm): | 160 |
| Efficiency: | 90% |
| Eps version: | 2.92 |
| Equipment: | Mounting screws, Cable ties, Operating instructions, Flat modular cables |

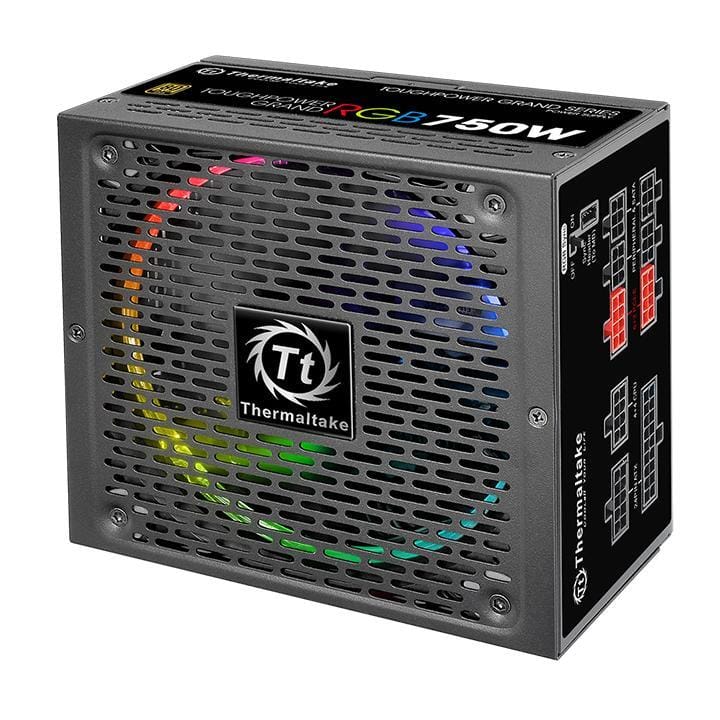

| Fan diameter: | 14 cm |
| Fan location: | Top |
| Floppy disk drive connector: | Yes |
| Floppy drive power connector: | 1 |
| Floppy plugins: | 1 |
| Height: | 86 mm |
| Height (mm): | 86 |
| Hold time: | 16 ms |
| Illumination: | Yes |
| Illumination colour: | Multi |
| Input current: | 10 A |
| Line: | Toughpower |
| Manufacturer's warranty: | 5 years |

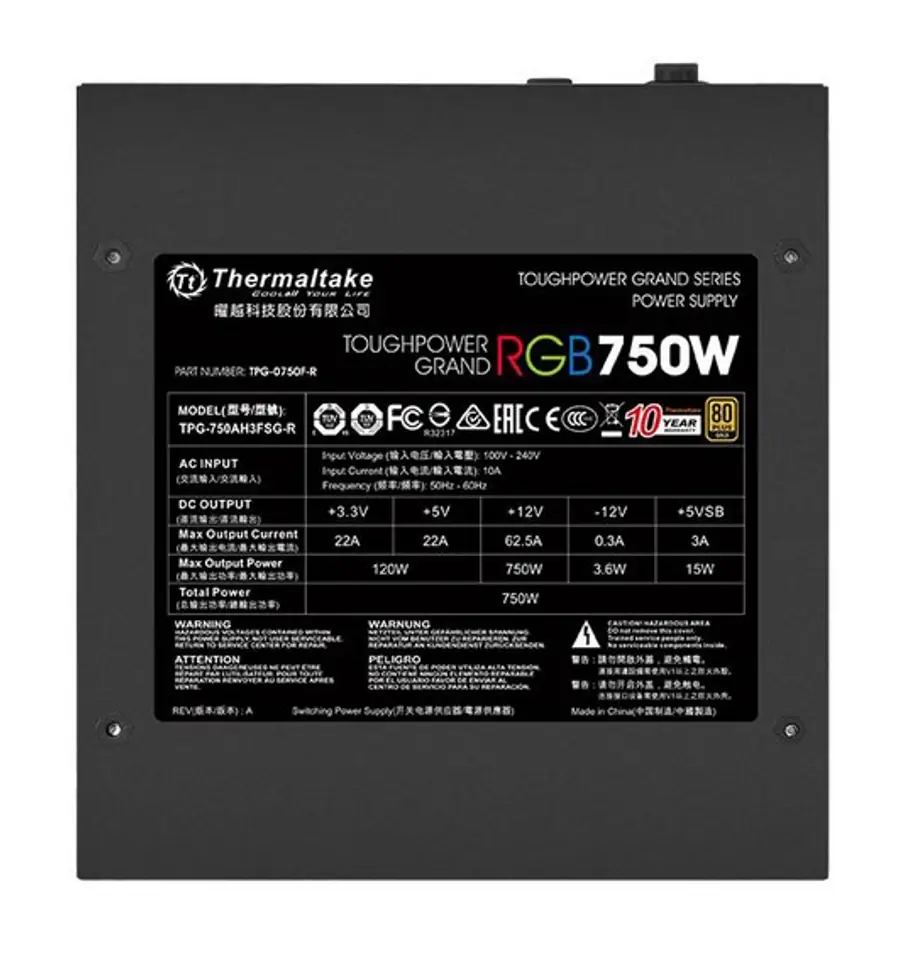

| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 62.5 A |
| Max output current (+3.3v): | 22 A |
| Max output current (+5v): | 22 A |
| Max output current (+5vsb): | 3 A |
| Mean time between failures (mtbf): | 120000 h |
| Modular wiring type: | yes |
| Molex plugins: | 4 |
| Motherboard power connector: | 24-pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 9 |
| On/off switch: | Yes |
| Operating relative humidity (h-h): | 20 - 90% |
| Operating temperature (t-t): | 0 - 50 °C |

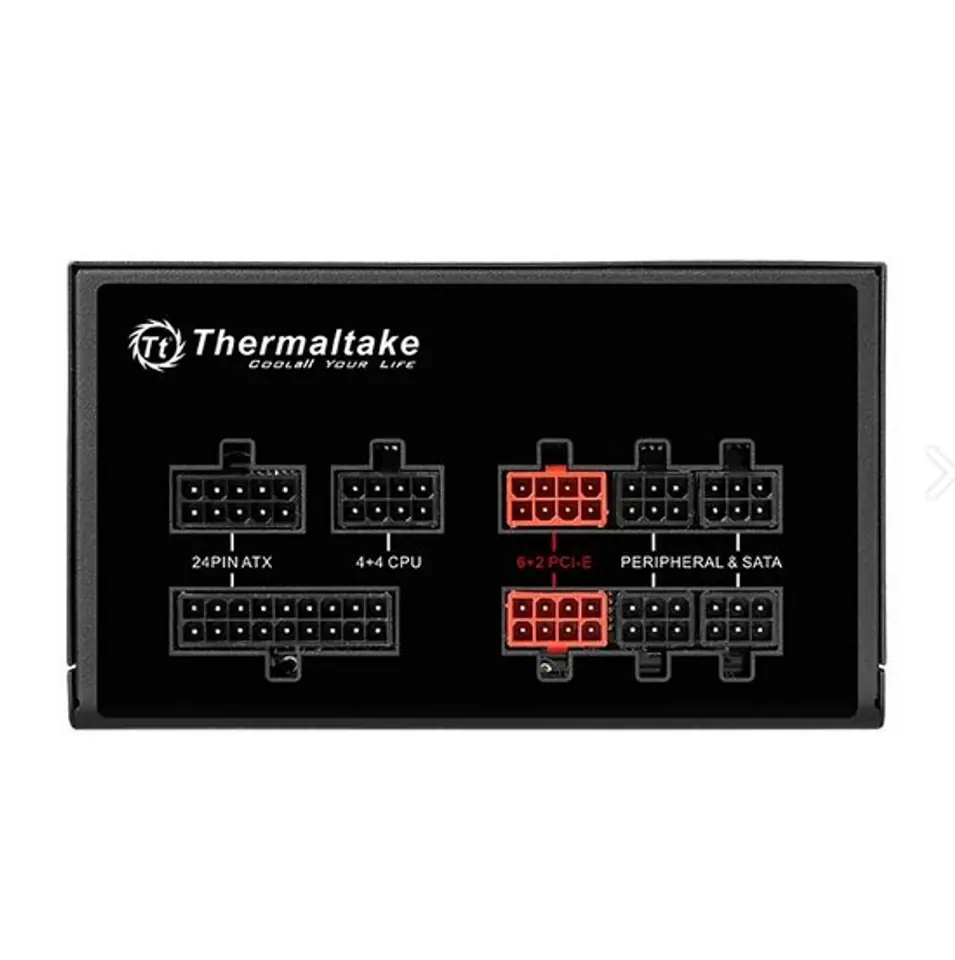

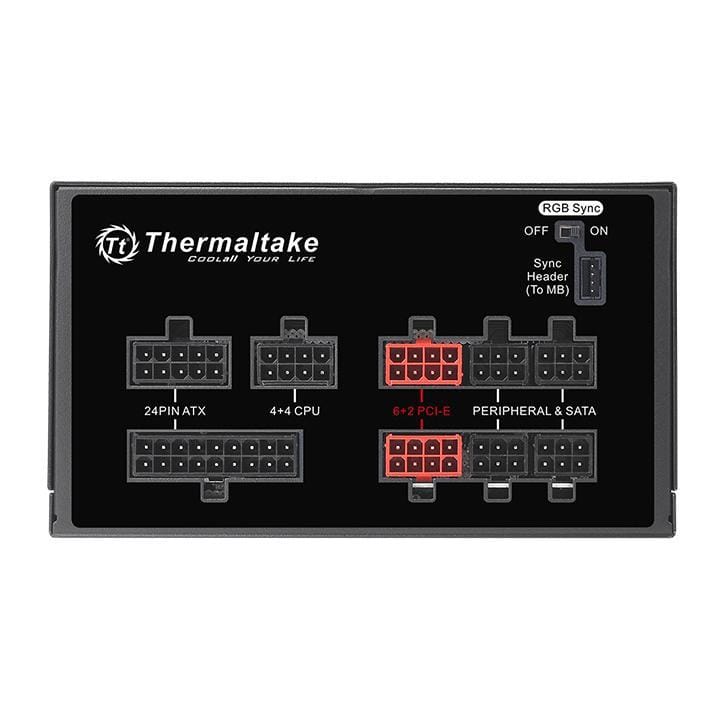

| Other connectors: | 1x 4+4-pin (8-pin) 12V |
| Other parameters: | 80 PLUS Gold |

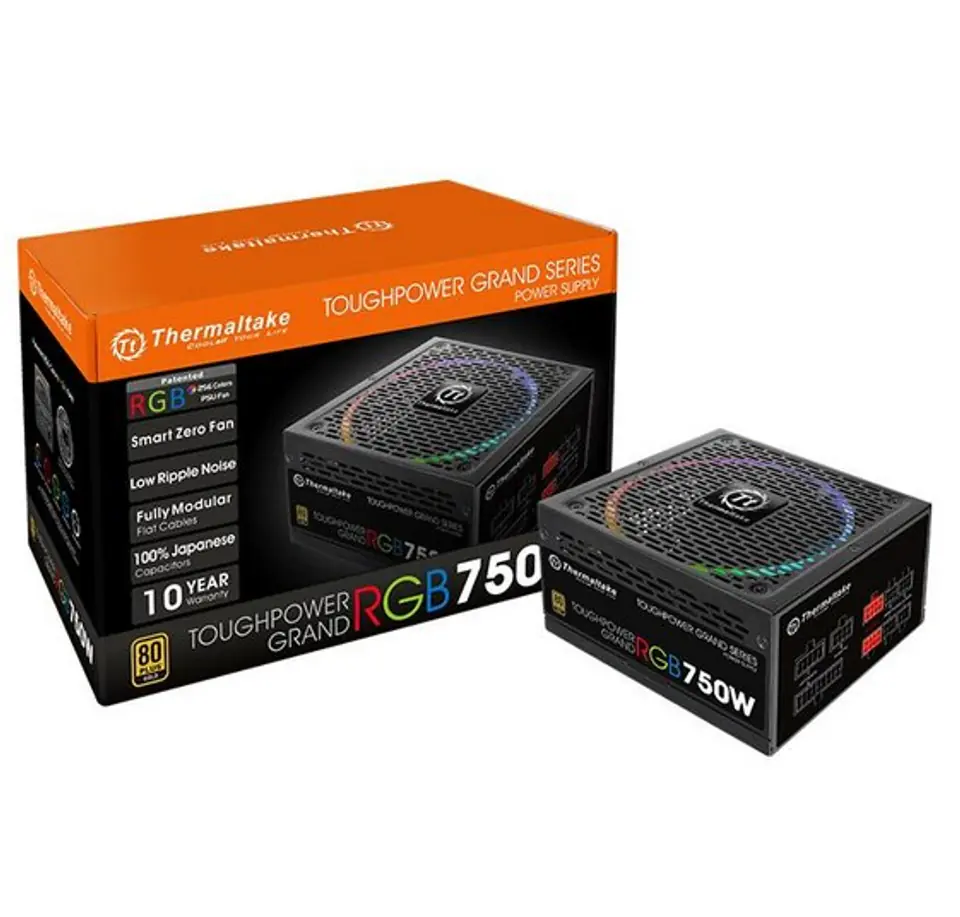

| Package type: | Box |
| Pci express power connectors (6+2 pin): | 4 |
| Pci-e 6-pin slots: | no |
| Pci-e 8-pin plugs (6+2): | 4 |
| Pci-e 8-pin slots: | no |
| Peak power: | 900 W |
| Peripheral (molex) power connectors (4-pin): | 4 |
| Pfc: | Active |
| Power factor correction (pfc) type: | Active |
| Power good signal delay range: | 100 - 500 ms |
| Power protection features: | Under voltage, Over current, Over power, Short circuit, Over voltage, Overheating |
| Power supply (w): | 750 |
| Power supply efficiency (%): | 89 |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Safety: | CE/cTUVus/TÜV SÜD/FCC/CCC/BSMI/EAC |
| Sata plugs: | 9 |
| Storage relative humidity (h-h): | 20 - 95% |
| Storage temperature (t-t): | -40 - 70 °C |
| Total power: | 750 W |
| Type of cooling: | Fan 140 mm |
| Width: | 150 mm |
| Width (mm): | 150 |
