PC Power Supply AKYGA 300W AK-S1-300

Name: PC Power Supply AKYGA 300W AK-S1-300
Brand: Akyga
SKU: 1192757
Price: 37.55 EUR
Availability: InStock

€37.55

Shipping from warehouse: ⁨M7⁩

Estimated shipping: Tue, Jul 29 - Fri, Aug 1

14 days returnUnconditional return policy

Availability:: large quantity
Brand:
Product code:: AK-S1-300 / 5901720135117

Specification

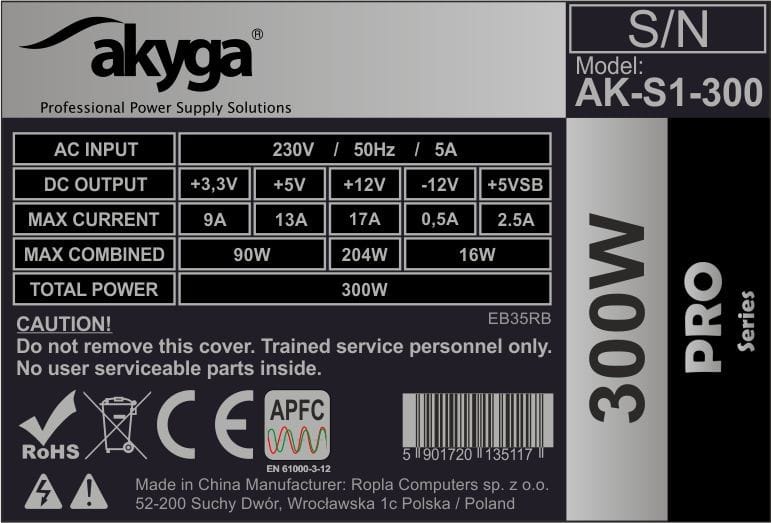

Ac input frequency:	50 - 60 Hz
Ac input voltage:	230 - 240 V
Atx power connector (20+4 pin):	Yes
Atx power connector (24-pin):	Yes
Cabling type:	Non-Modular
Combined power (-12v):	16 W
Combined power (+12v):	204 W
Combined power (+3.3v):	90 W
Combined power (+5v):	90 W
Combined power (+5vsb):	16 W
Cooling type:	Active
Cpu p4 connector (4-pin):	1
Cpu power cable length:	40 cm
Depth:	63.5 mm
Efficiency:	70%
Fan diameter:	8 cm
Fan location:	Top
Height:	100 mm
Input current:	5 A
Max output current (-12v):	0.5 A
Max output current (+12v):	17 A
Max output current (+3.3v):	9 A
Max output current (+5v):	13 A
Max output current (+5vsb):	2.5 A
Mean time between failures (mtbf):	100000 h
Motherboard power cable length:	35 cm
Motherboard power connector:	20+4 pin ATX
Noise level:	30 dB
Number of fans:	1 fan(s)
Number of sata power connectors:	2
Operating relative humidity (h-h):	0 - 60%
Operating temperature (t-t):	5 - 50 °C
Package depth:	63.5 mm
Package height:	150 mm
Package weight:	700 g
Package width:	125 mm
Peak power:	300 W
Peripheral (molex) power connectors (4-pin):	2
Power factor correction (pfc) type:	Passive
Power protection features:	Overheating, Over current, Over power, Short circuit, Over voltage
Power supply unit (psu) form factor:	SFX
Product colour:	Silver
Purpose:	PC
Sata power cable length:	350 mm
Storage relative humidity (h-h):	5 - 60%
Storage temperature (t-t):	0 - 60 °C
Sustainability certificates:	RoHS
Total power:	300 W
Weight:	600 g
Width:	125 mm

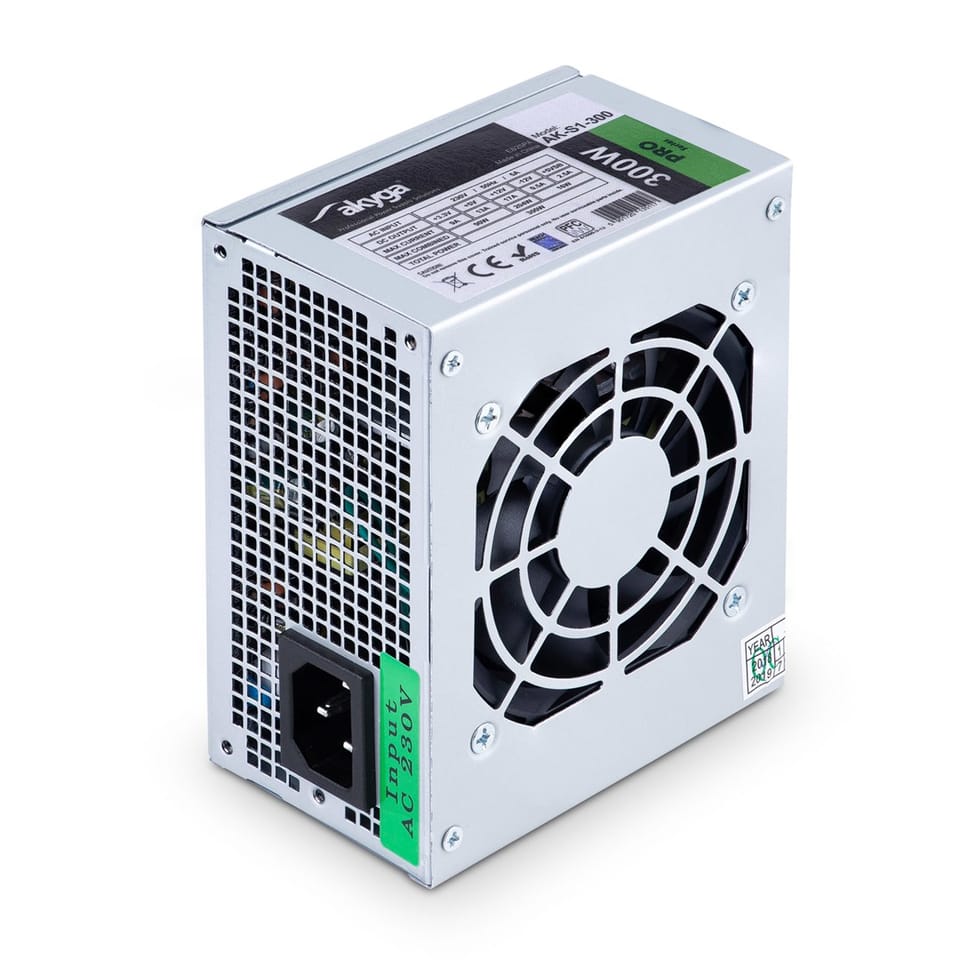

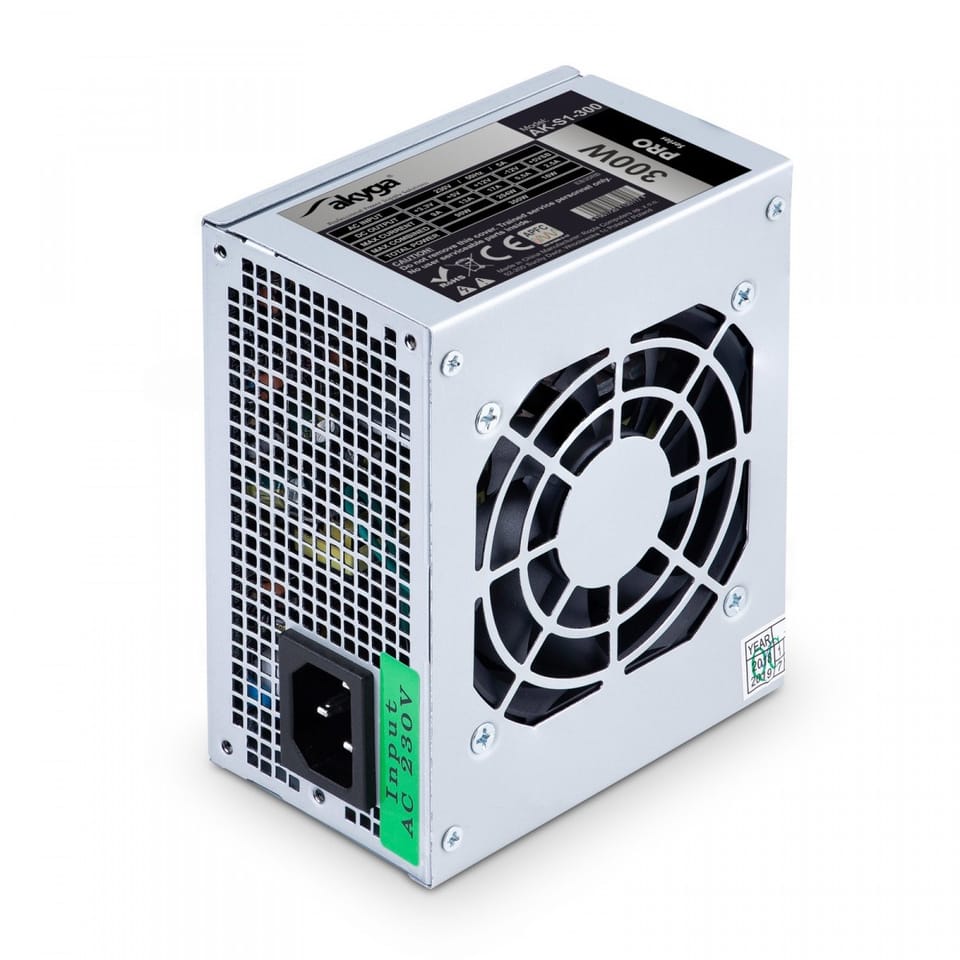

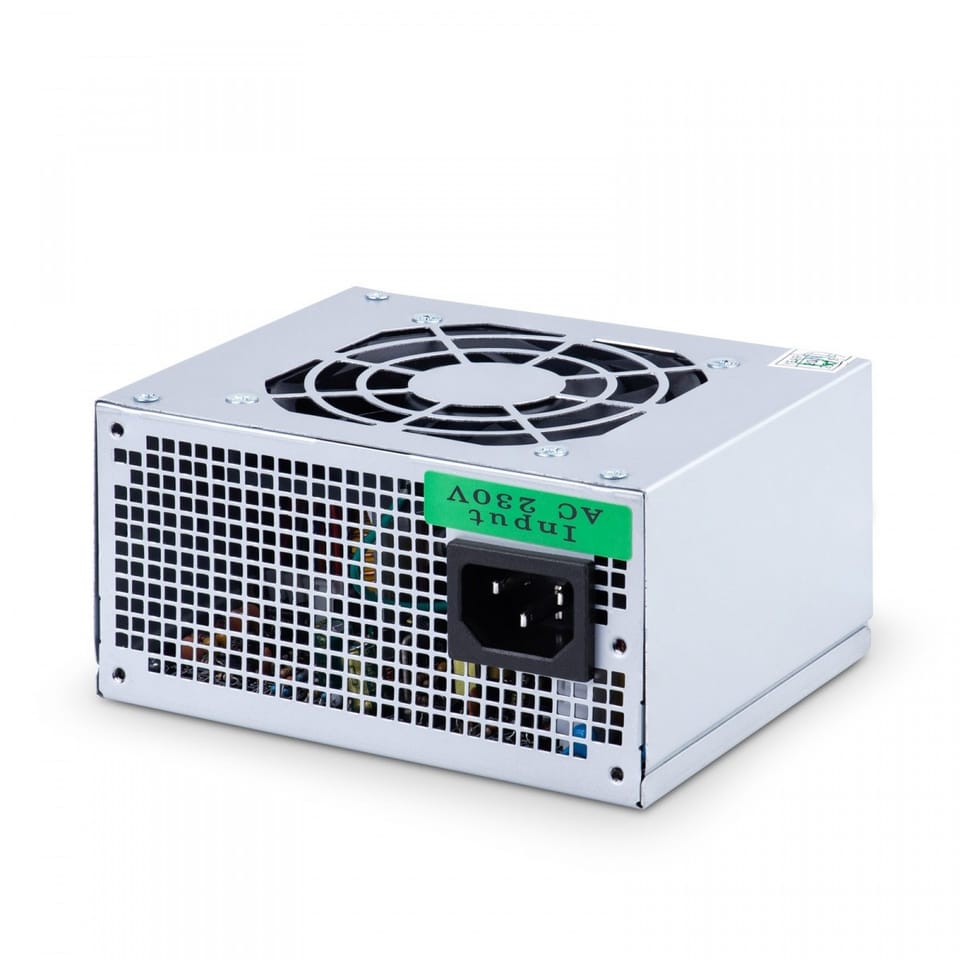

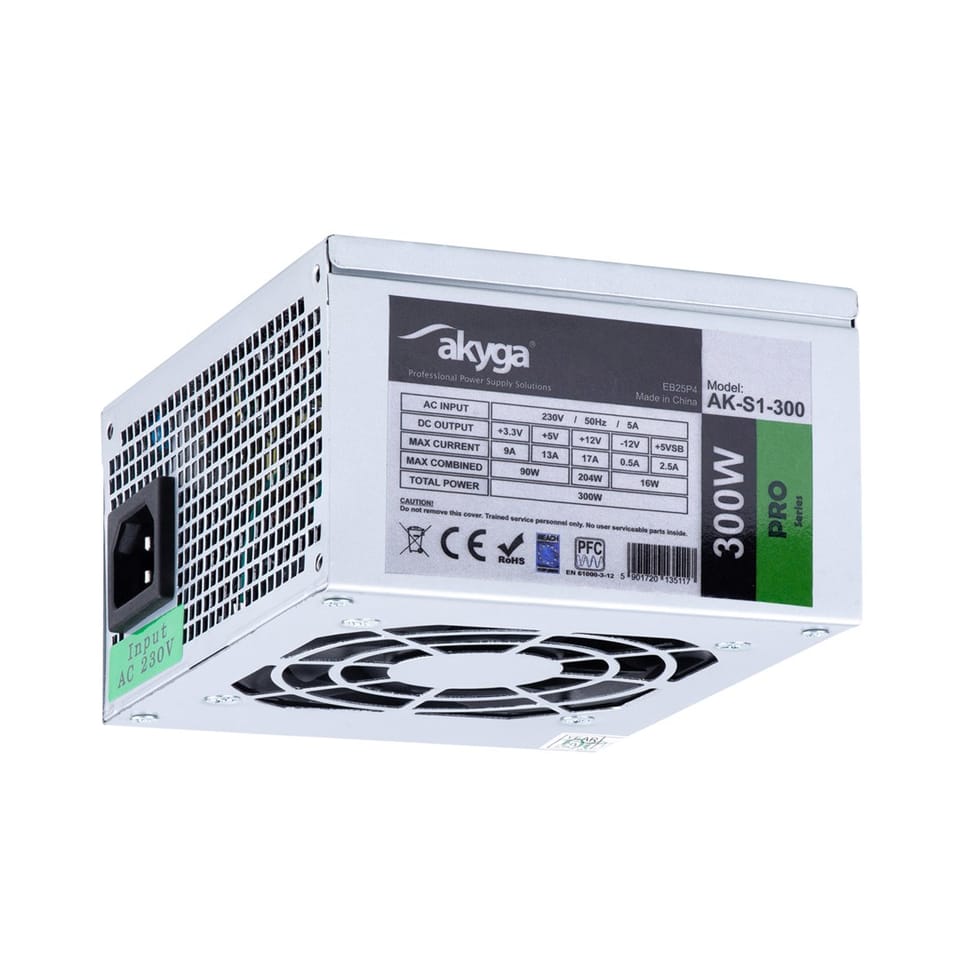

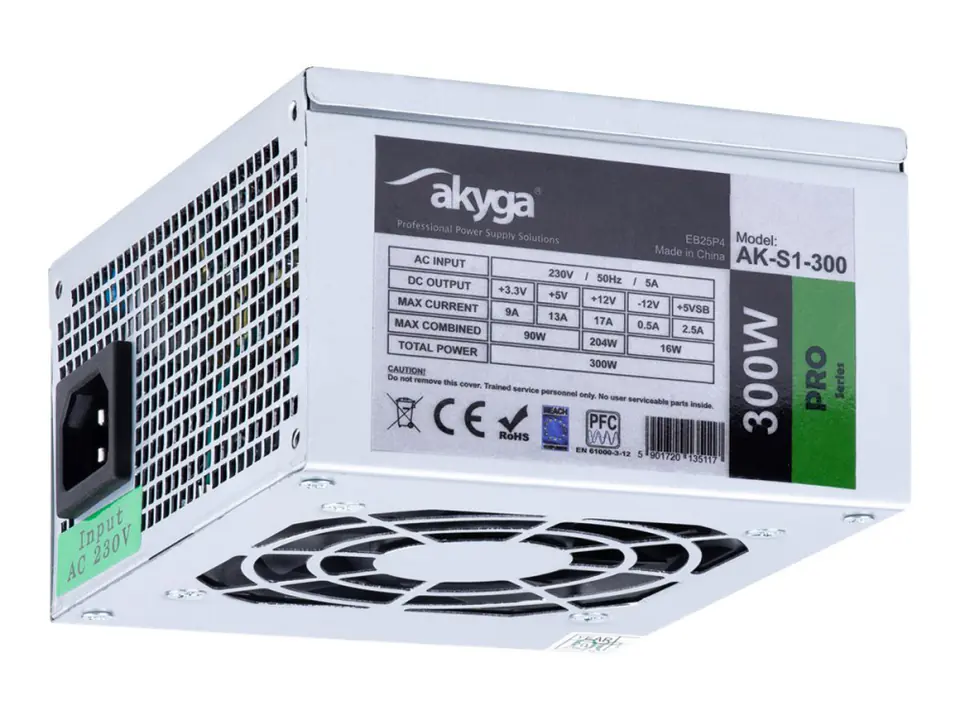

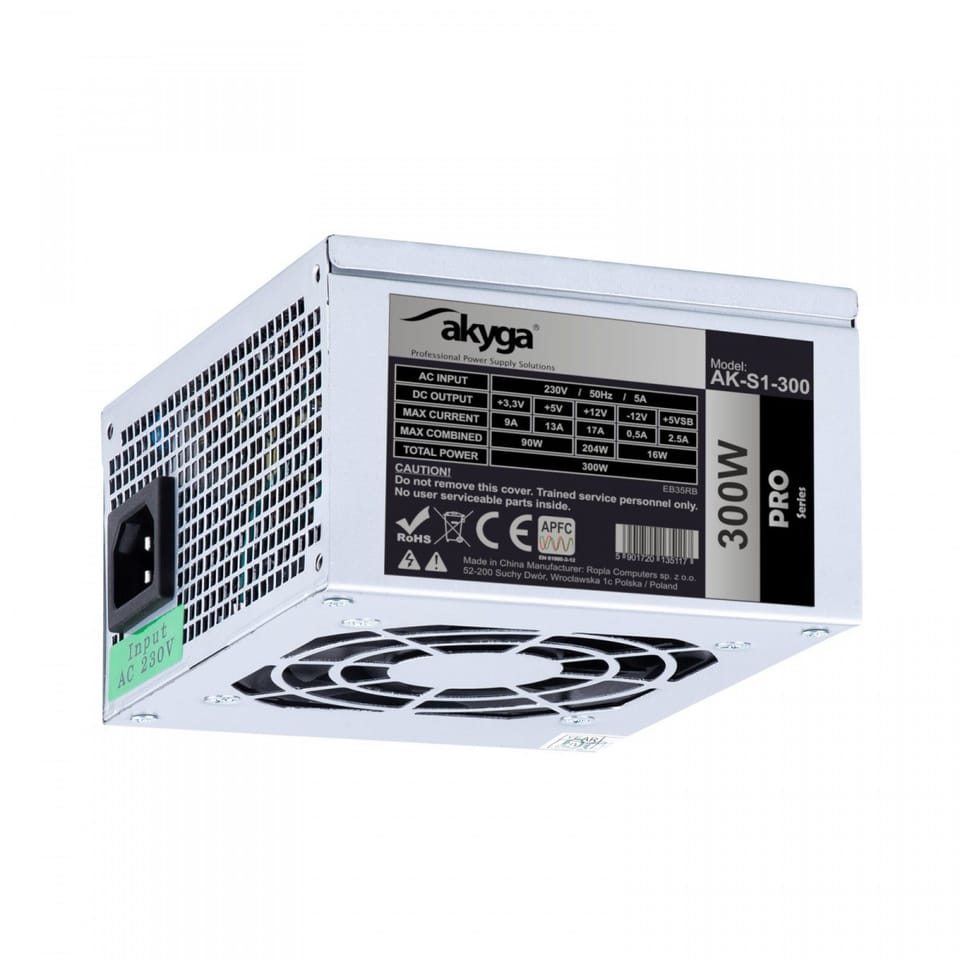

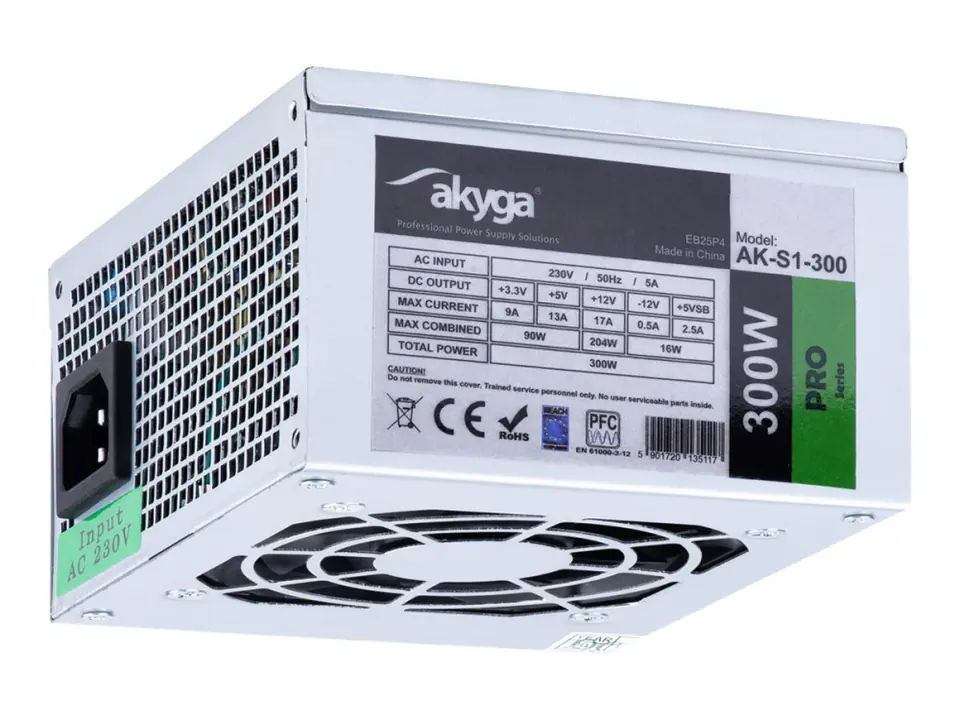

The modern SFX Akyga AK-S1-300 Pro series power supply with 300W power has been designed for mounting in compact computer enclosures in which space is limited.

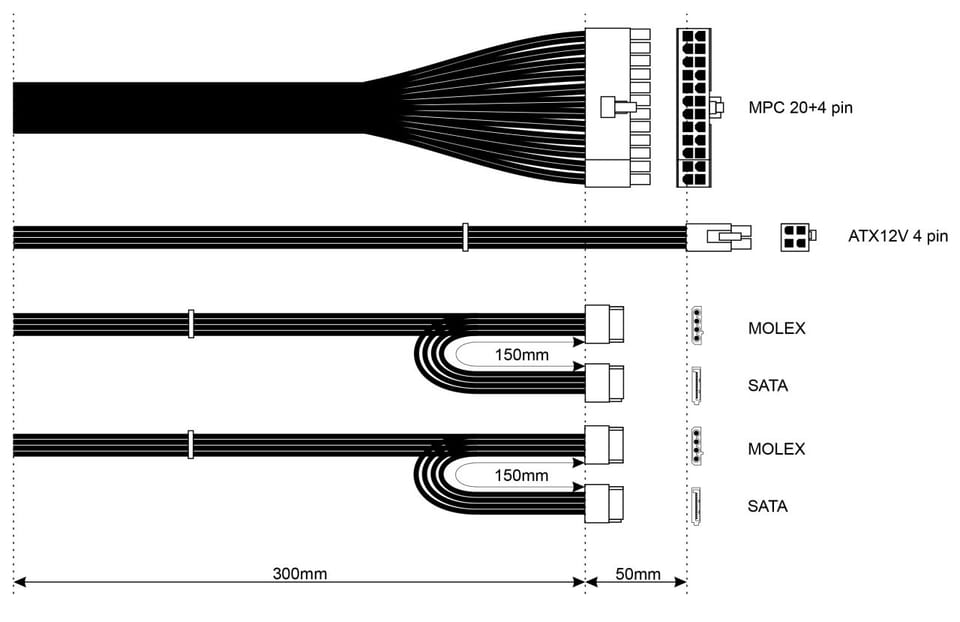

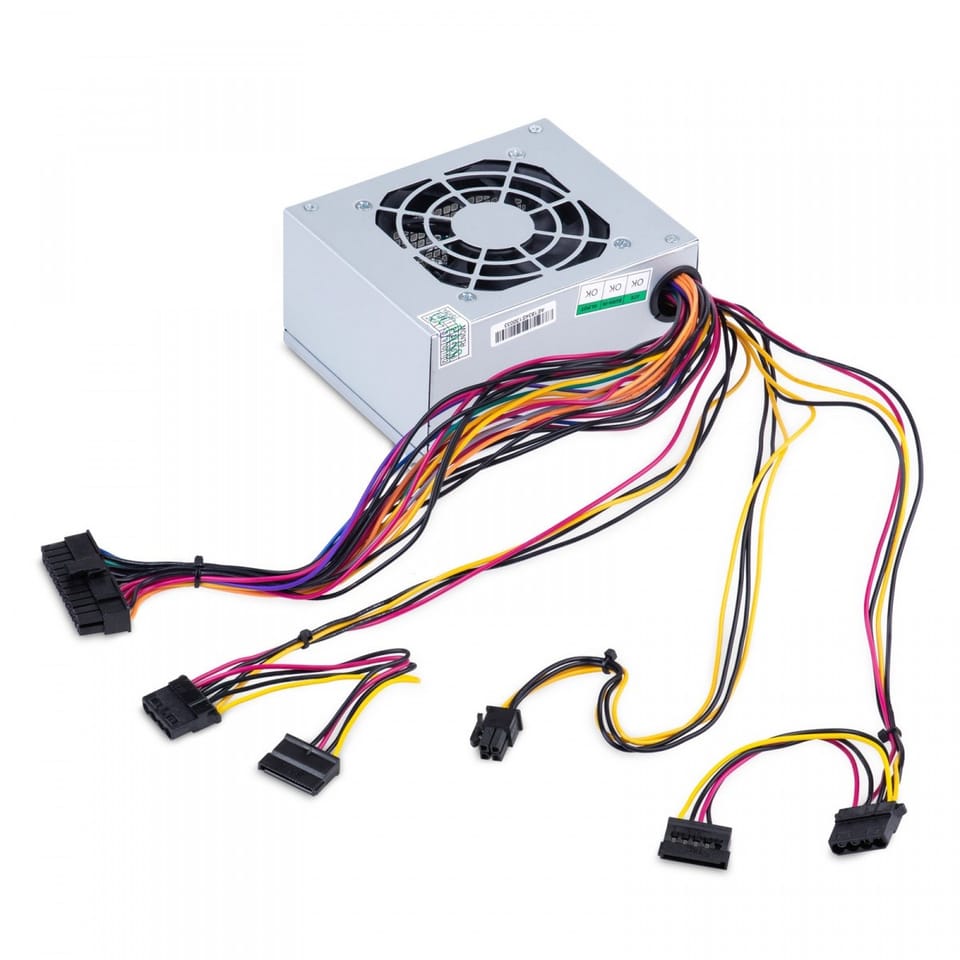

SFX has been equipped with a P4 4pin power connector, 2 MOLEX connectors, 2 SATA connectors and a universal 24pin connector for motherboards. For a better cooling effect, it has an 80 mm silent fan with automatic speed control. The power supply is characterized by high efficiency above 70%. It was made of durable, galvanized steel.The PFC filter and a number of protections (OVP, OCP, OPP, OTP, SCP, UVP) ensure stability of both the power supply itself and the powered components, protecting against damage, including motherboard and processor.

In the set with the power supply there is a power cable.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
