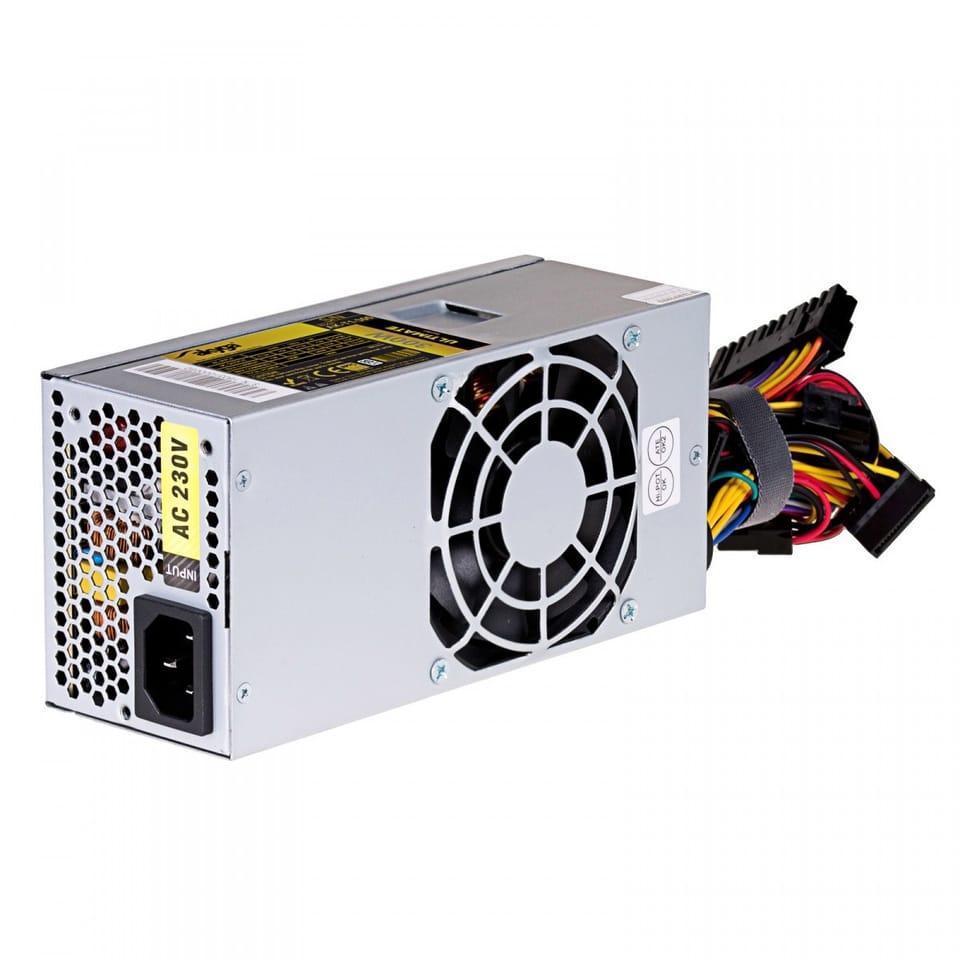

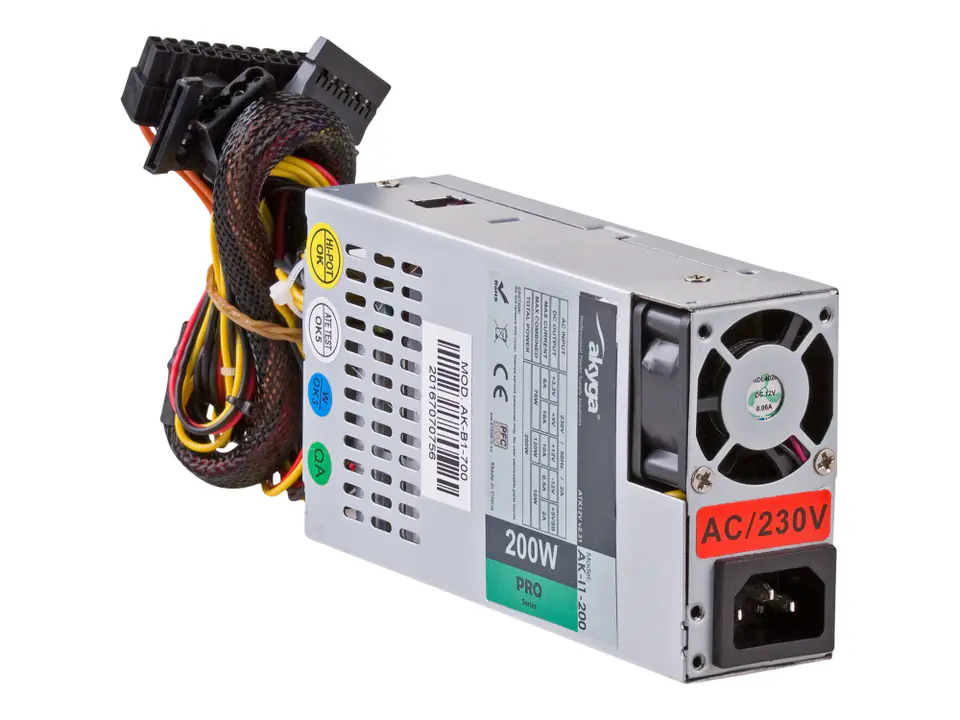

PC Power Supply AKYGA 200W AK-I1-200

Name: PC Power Supply AKYGA 200W AK-I1-200
Brand: Akyga
SKU: 786720
Price: 37.54 EUR
Availability: InStock

€37.54

Shipping from warehouse: ⁨M7⁩

Estimated shipping: Tue, Jul 29 - Fri, Aug 1

14 days returnUnconditional return policy

Availability:: large quantity
Brand:
Product code:: AK-I1-200 / 5901720132147

Specification

80 plus certification:	80 PLUS
Ac input frequency:	50 - 60 Hz
Ac input voltage:	230 V
Atx 24-pin plugs (20+4):	yes
Cables included:	AC
Combined power (-12v):	120 W
Combined power (+12v):	120 W
Combined power (+3.3v):	76 W
Combined power (+5v):	76 W
Combined power (+5vsb):	76 W
Compliant standards:	Flex ATX, Mini ITX
Cooling type:	Active
Cpu p4 connector (4-pin):	1
Depth:	150 mm
Depth (mm):	150
Efficiency:	70%
Equipment:	Documentation
Fan diameter:	4 cm
Height:	40 mm
Height (mm):	40
Line:	no
Line current:	+12V - 10A, +3.3V - 8A, +5V - 10A
Manual:	Yes
Max output current (-12v):	10 A
Max output current (+12v):	10 A
Max output current (+3.3v):	8 A
Max output current (+5v):	8 A
Max output current (+5vsb):	8 A
Mean time between failures (mtbf):	100000 h
Motherboard power connector:	24-pin ATX
Number of fans:	1 fan(s)
Number of sata power connectors:	1
Operating temperature (t-t):	5 - 50 °C
Other connectors:	1x ATX 12V, 2x 4-pin
Other parameters:	Compliance with standards: RoHS, REACH
Package depth:	211 mm
Package height:	41 mm
Package weight:	587 g
Package width:	101 mm
Peripheral (molex) power connectors (4-pin):	1
Power factor correction (pfc) type:	Active
Power supply (w):	200
Power supply efficiency (%):	70
Power supply unit (psu) form factor:	ATX
Product colour:	Grey
Purpose:	PC
Sata plugs:	2
Total power:	200 W
Type of cooling:	Fan 40 mm
Warranty:	2 years
Weight:	580 g
Weight (g):	580
Width:	81.5 mm
Width (mm):	81.5

Modern ITX power supply Akyga AK-I1-200 Pro series 200W, dedicated especially for mini-ITX cases like 1U case type. Commonly used both in ITX cases and racks.

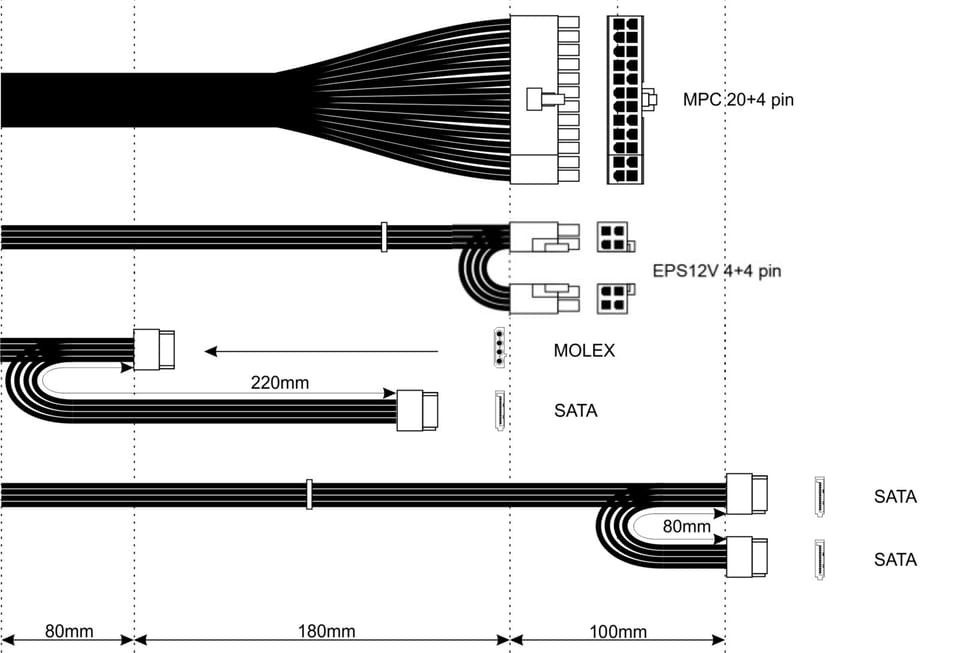

The power supply is equipped with P4 4-pin connector, 2 x MOLEX connectors, 2 x SATA connectors and a universal 24-pin motherboard connector. Effective cooling is provided by efficient, silent fan of 4 cm diameter with automatic speed control. High efficiency above 70% allows effective supplying and so the stable operation of the power supply affects the reliability of all components of the computer.

An important aspect is the presence of several important protectors (OVP, OCP, OPP, OTP, SCP, UVP) and PFC filter that protects and prevents motherboard, processor and other parts from damage and stabilize the operat

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
