| 80 plus certificate: | 80 PLUS Bronze |
|---|---|
| 80 plus certification: | 80 PLUS Bronze |
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 220 - 240 V |
| Applied backlight: | No |
| Atx 24-pin plugs (20+4): | 1 |
| Atx power connector (20+4 pin): | Yes |
| Atx power supply connector (20+4 pin): | Yes |
| Atx version: | 2.4 |
| Atx version: | 2.4 |
| Bulk box width (external): | 250 mm |
| Cables: | AC |
| Cables included: | AC |
| Combined power (-12v): | 3.6 W |

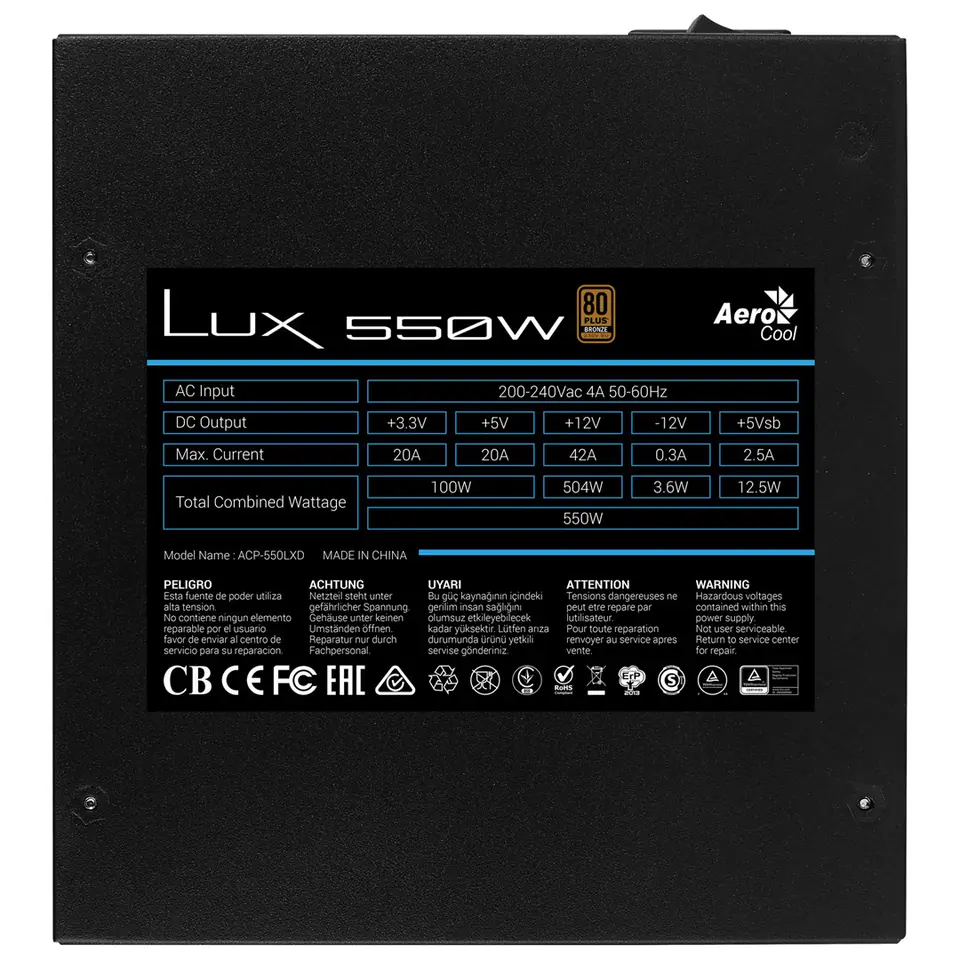

| Combined power (+12v): | 504 W |
| Combined power (+3.3v): | 100 W |
| Combined power (+5v): | 100 W |
| Combined power (+5vsb): | 12.5 W |
| Compliant standards: | ATX |

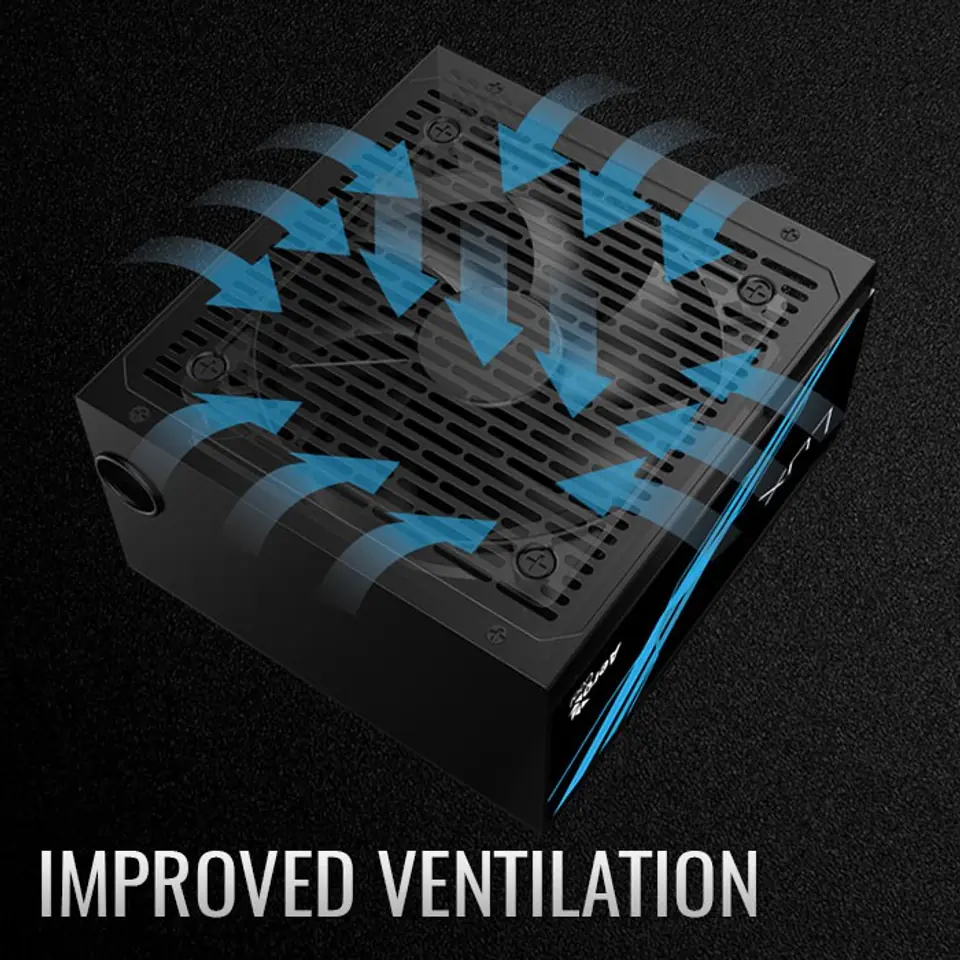

| Cooling type: | Active |
| Cpu connector (4+4 pin): | Yes |
| Cpu power cable length: | 55 cm |
| Cpu power connector (4+4 pin): | Yes |
| Depth (mm): | 140 |
| Destiny: | PC |
| Diameter of fan canopy: | 12 cm |
| Efficiency: | 88% |
| Fan diameter: | 12 cm |
| Height (mm): | 86 |
| Height of reference box (external): | 215 mm |
| Input current: | 4 A |
| Line: | LUX |
| Main box length (outer): | 495 mm |
| Manual: | Yes |
| Master (outer) case height: | 215 mm |
| Master (outer) case length: | 495 mm |
| Master (outer) case width: | 250 mm |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 42 A |
| Max output current (+3.3v): | 20 A |
| Max output current (+5v): | 20 A |
| Max output current (+5vsb): | 2.5 A |
| Maximum output current (-12 v): | 0.3 A |
| Maximum output current (+12 v): | 42 amps |
| Maximum output current (+3.3v): | 20 amps |
| Maximum output current (+5 v): | 20 amps |
| Maximum output current (+5 vsb): | 2.5 A |
| Modular wiring type: | No |
| Molex plugins: | 2 |
| Motherboard cable length: | 50 cm |
| Motherboard power cable length: | 50 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Number of fans: | 1 fan(s) |
| Number of pata power connectors: | 2 |
| Number of sata power connectors: | 4 |
| Other connectors: | 1x CPU 4+4 (8) pin |
| Other parameters: | Certificate: 80 Plus Bronze |
| Package depth: | 195 mm |
| Package height: | 95 mm |
| Package type: | Box |
| Package width: | 230 mm |
| Pci express connector: | Yes |
| Pci express power cable length: | 45 cm |
| Pci express power cable length: | 45 cm |
| Pci express power connectors (6+2 pin): | 1 |
| Pci express power connectors (6+2 pin): | 1 |
| Pci express slot: | Yes |
| Pci-e 6-pin slots: | No |
| Pci-e 8-pin plugs (6+2): | 1 |
| Pci-e 8-pin slots: | No |
| Pfc: | Active |
| Pfc (power factor correction) type: | Active |
| Power factor: | 0.9 |
| Power factor correction (pfc) type: | Active |
| Power supply (w): | 550 |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Sata plugs: | 4 |
| Sata power cable length: | 550 mm |
| Security measures applied: | OVP, OPP |
| Total power: | 550 W |
| Total power (-12v): | 3.6 W |
| Total power (+12 v): | 504 watts (Printing) |
| Total power (+3.3 v): | 100 watts (Printing) |
| Total power (+5 v): | 100 watts (Printing) |
| Total power (+5 vsb): | 12.5 W |
| Type of cooling: | Fan 120 mm |
| Type of packaging: | Box |
| Type of power supply (psu): | ATX |
| User's guide: | Yes |
| Warranty: | 2 years |
| Width (mm): | 150 |

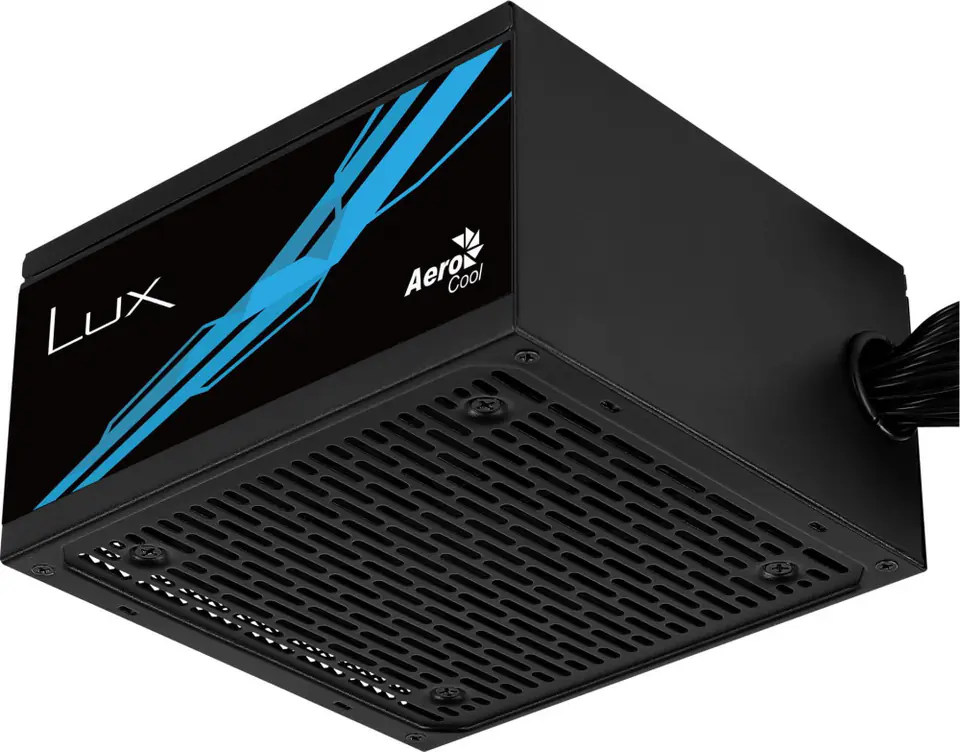

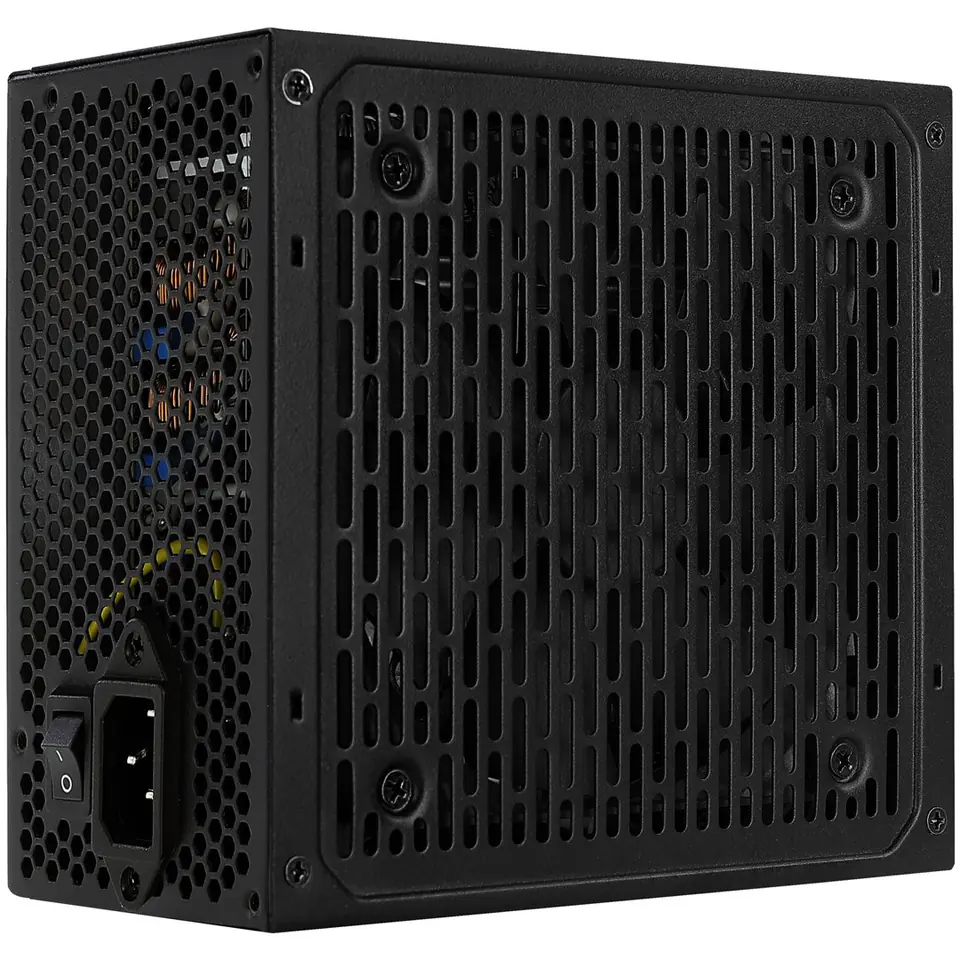

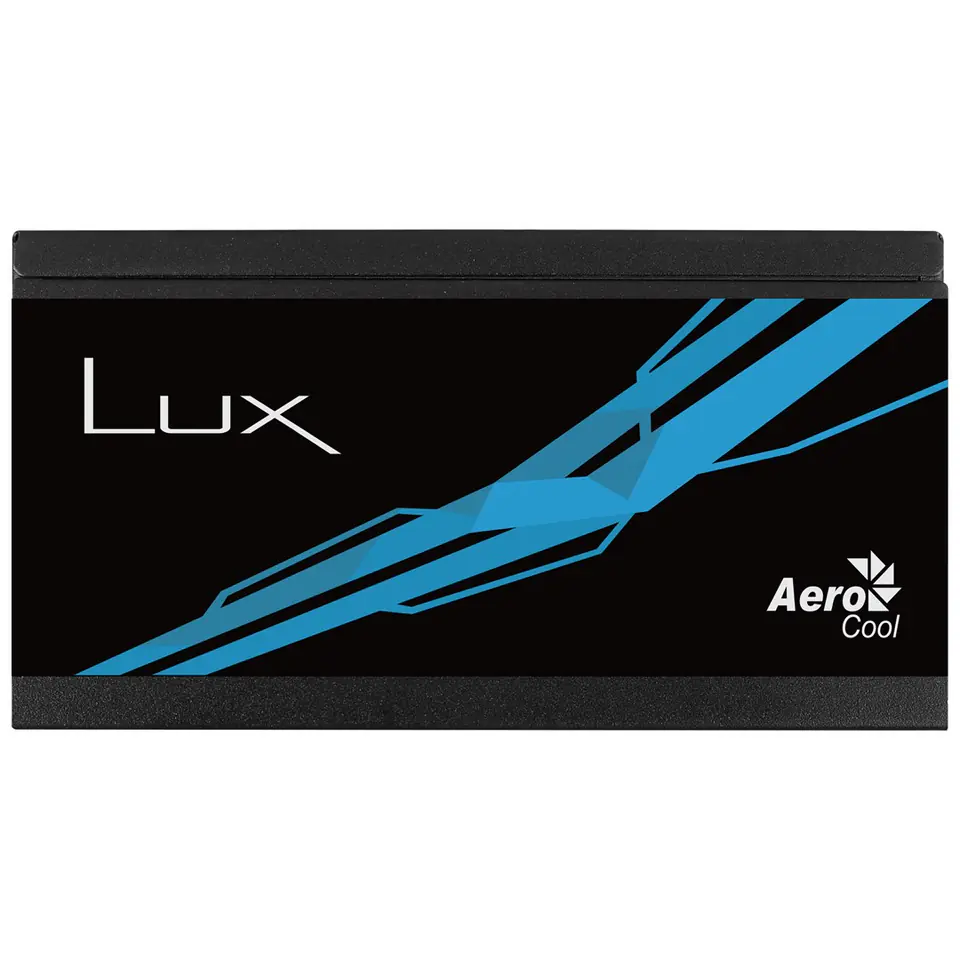

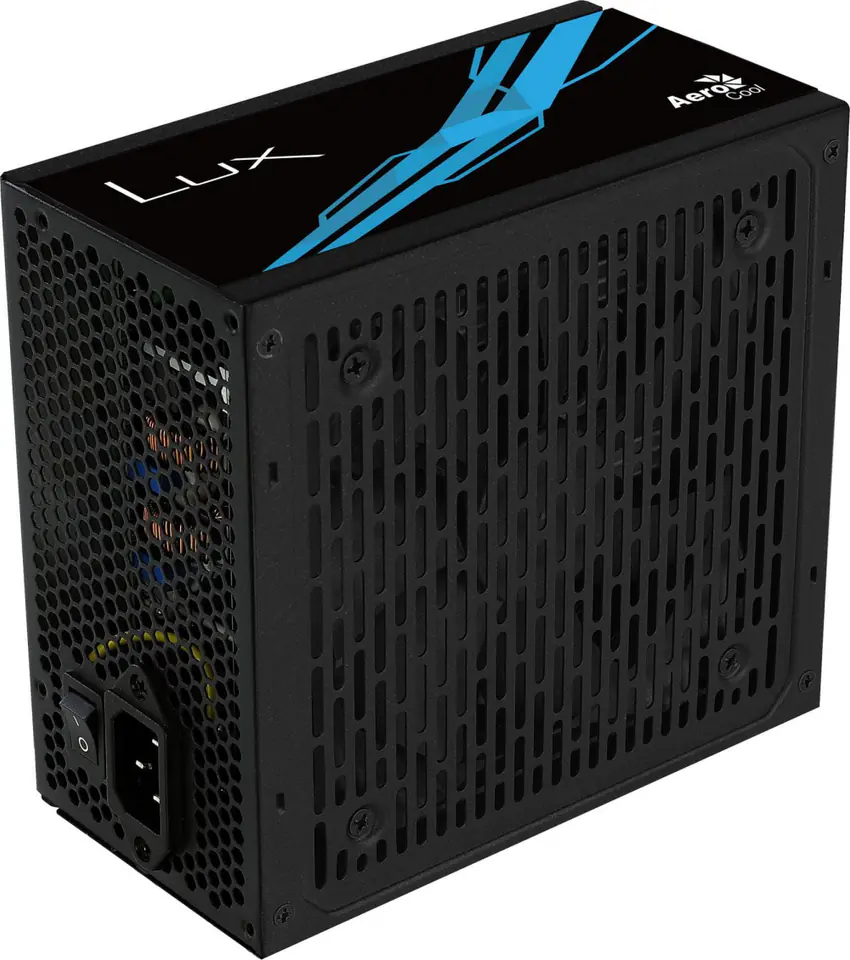

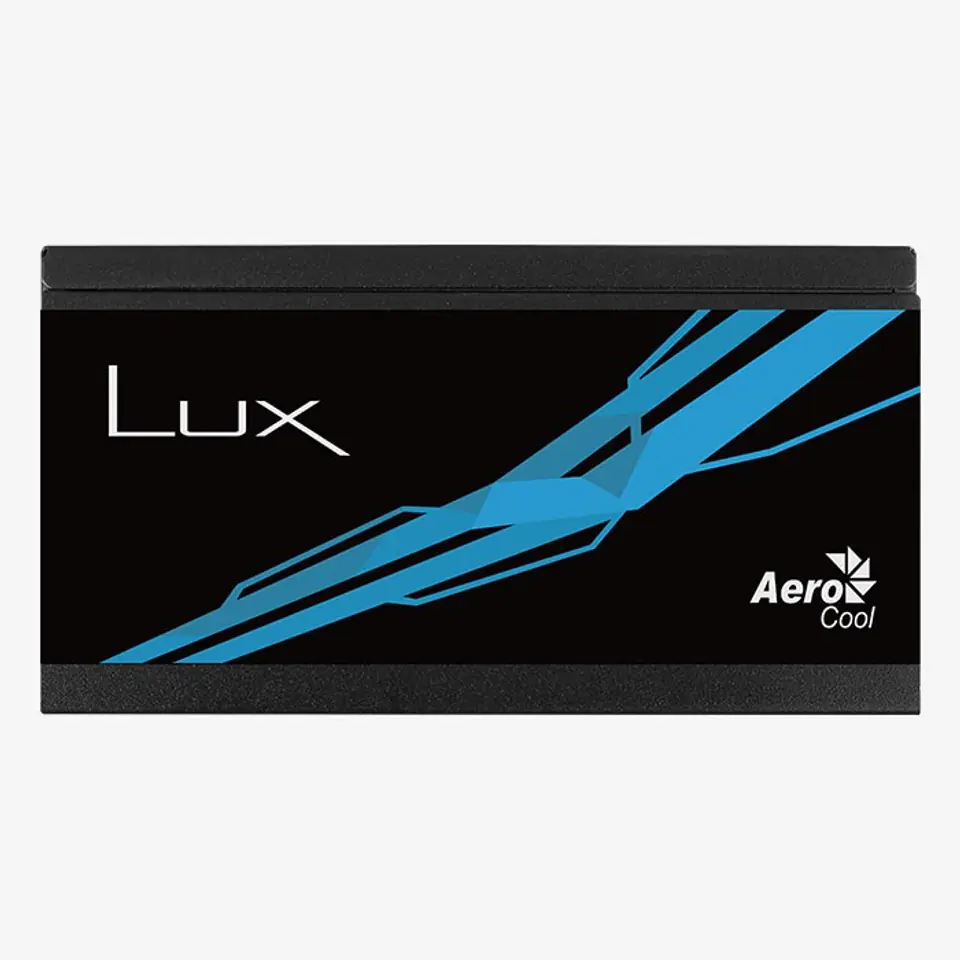

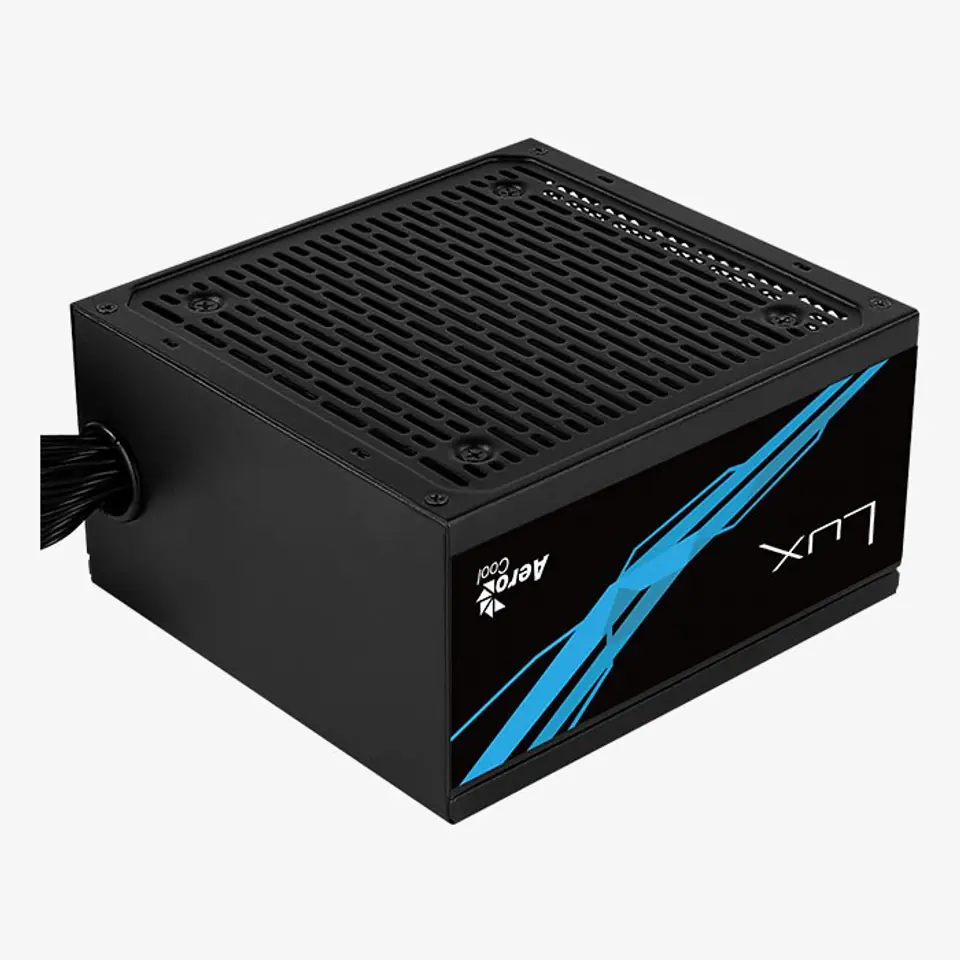

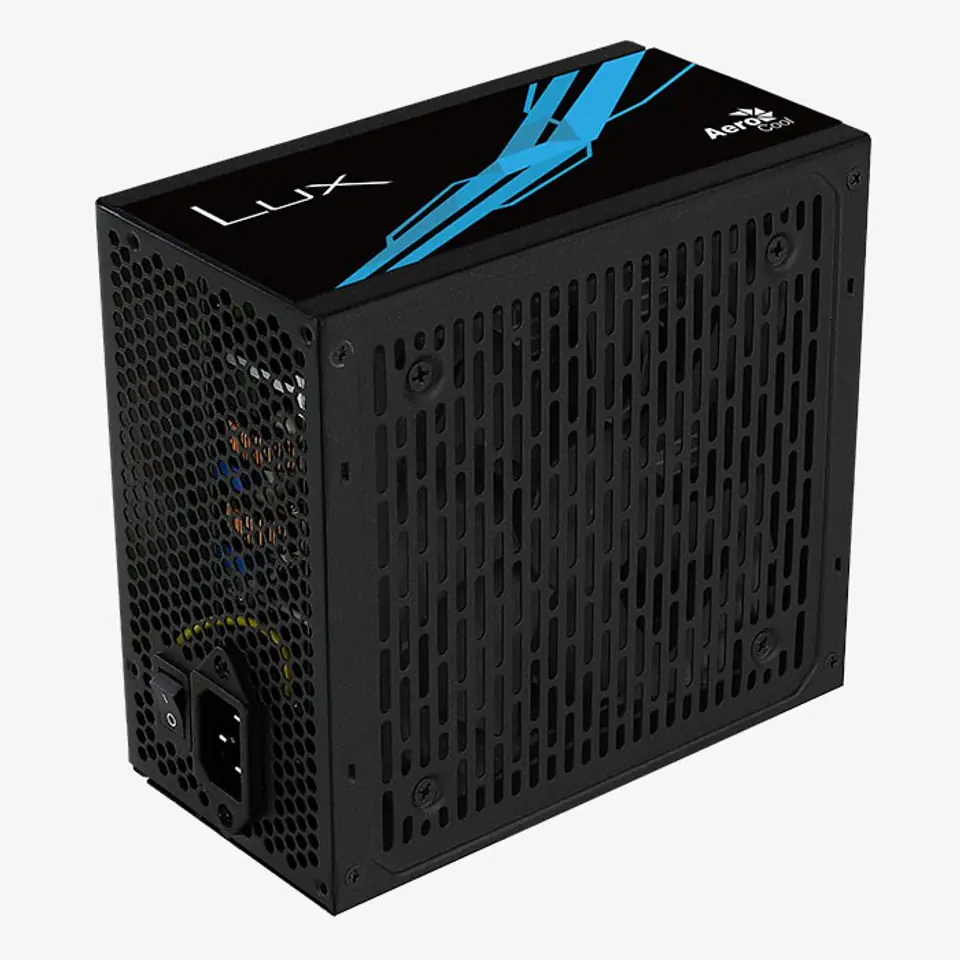

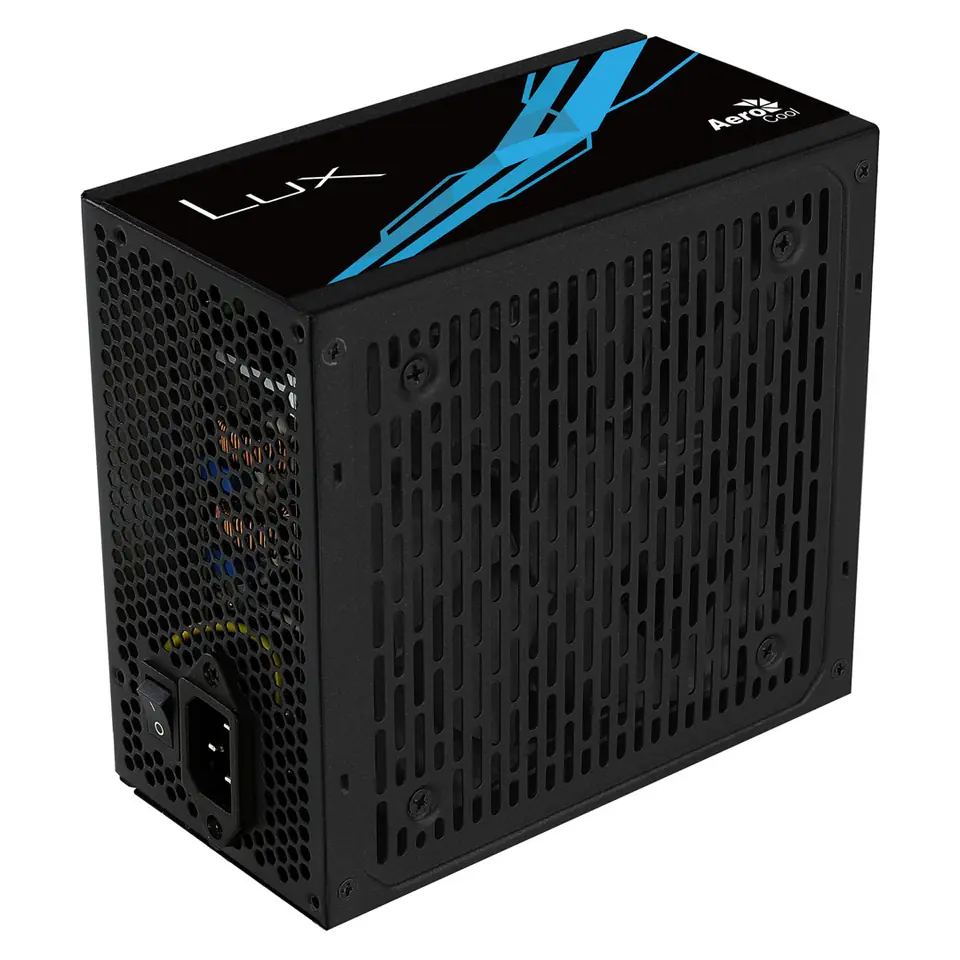

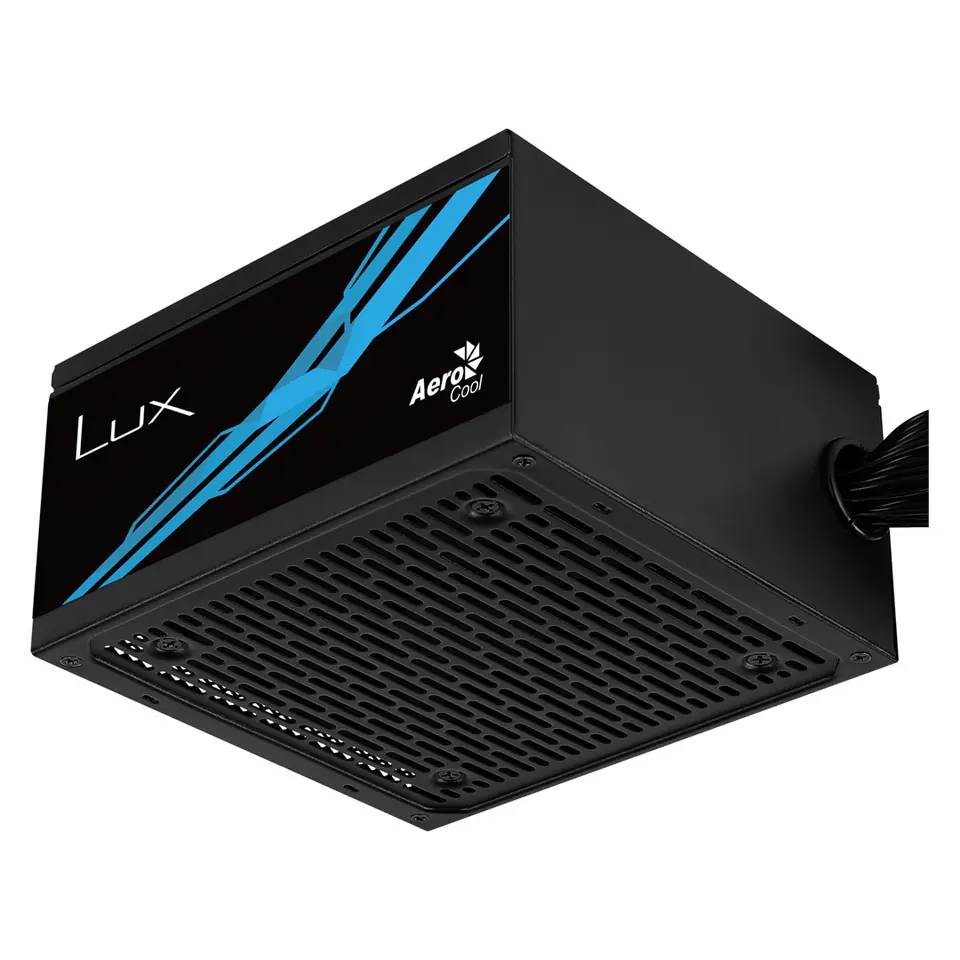

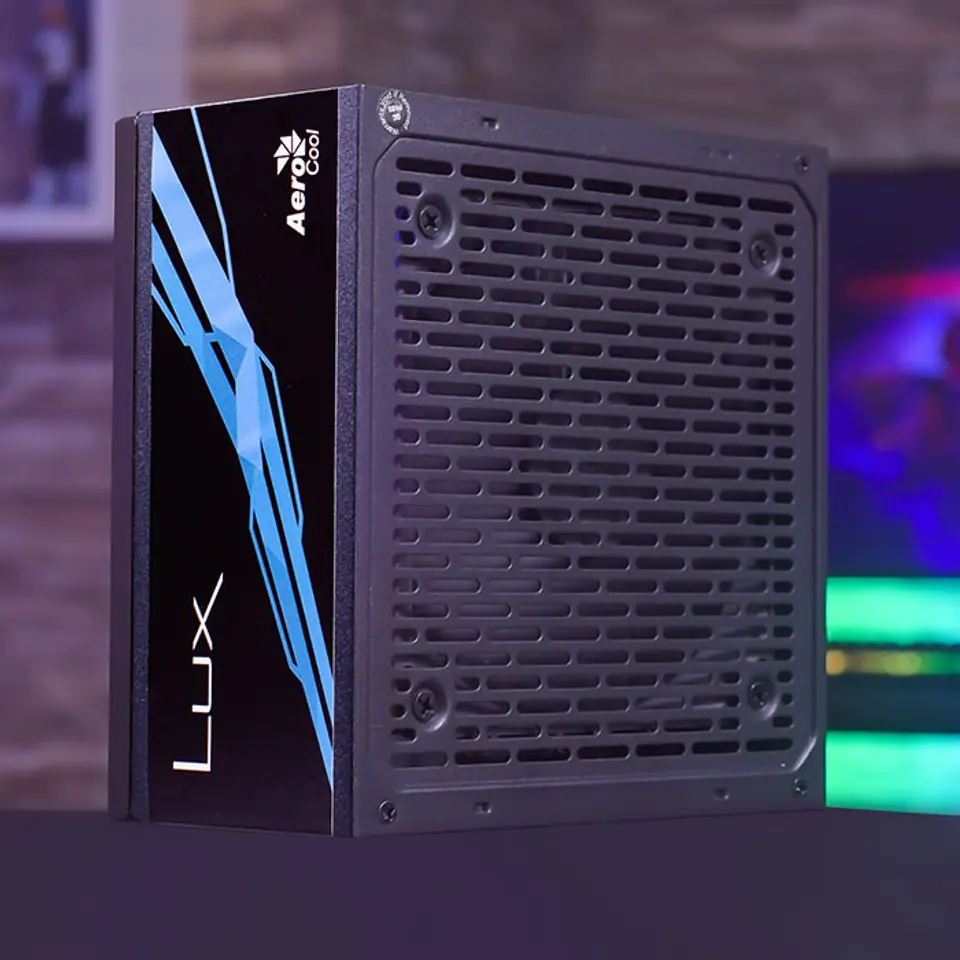

Power Supply LUX 550W 80+ Bronze ATX
