| Current efficiency of the power supply:: | 3.3 A550 mA / Output |
|---|---|
| Dimensions:: | 483 x 44 x 102 mm |
| Efficiency:: | 89 % |
| Housing type:: | 1 U Rack 19" |
| Manufacturer / brand:: | DELTA |
| Mtbf (mean time between failures):: | > 700000 h - Telcordia SR-332 |
| Number of inputs:: | 8 pcs. Reference (RJ-45) |
| Number of outputs:: | 8 pcs. Reference (RJ-45) |
| Operating temperature / relative humidity:: | -10 °C ... 70 °C / 10 % ... 80 % |
| Output voltage adjustment:: | 45.6 V ... 52.8 volts |
| Output voltage:: | 48 VDC |
| Power supply range:: | 100 m |
| Power supply type:: | Pulse |
| Power supply:: | 160 watts (Printing) |
| Scales:: | 0.74 kg |
| Security:: | 8 PTC Polymer Fuses - 550 mA Surge Protector Short-Circuit Overload |
| Selected features:: | Polymer fuse |
| Signal diodes:: | red diode - power supply 48 V green diode - fuse burnout |
| Supply voltage frequency:: | 47 ... 63 Hz |
| Supply voltage:: | selected by 90 V switch ... 132 V AC, 180 V ... 264 VAC |
| Warranty:: | 5 years |

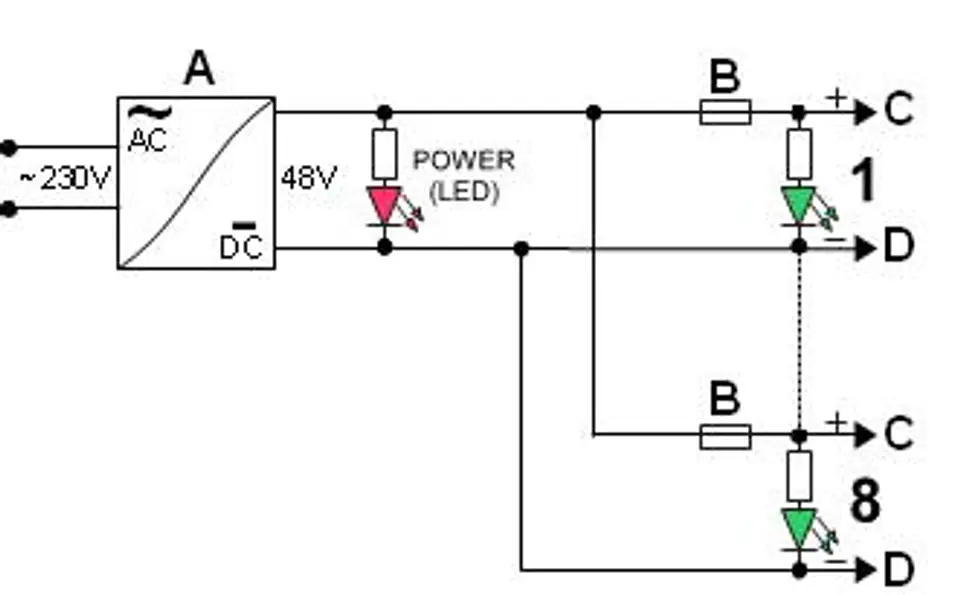

ZR48-158/POE-8 is a device in which a 48V power supply is connected to an 8-port PoE adapterAdapter allows you to enter a PoE supply voltage into a typical twisted pair cableThe device allows you to deliver data along with the power supply with one wire to various network devices

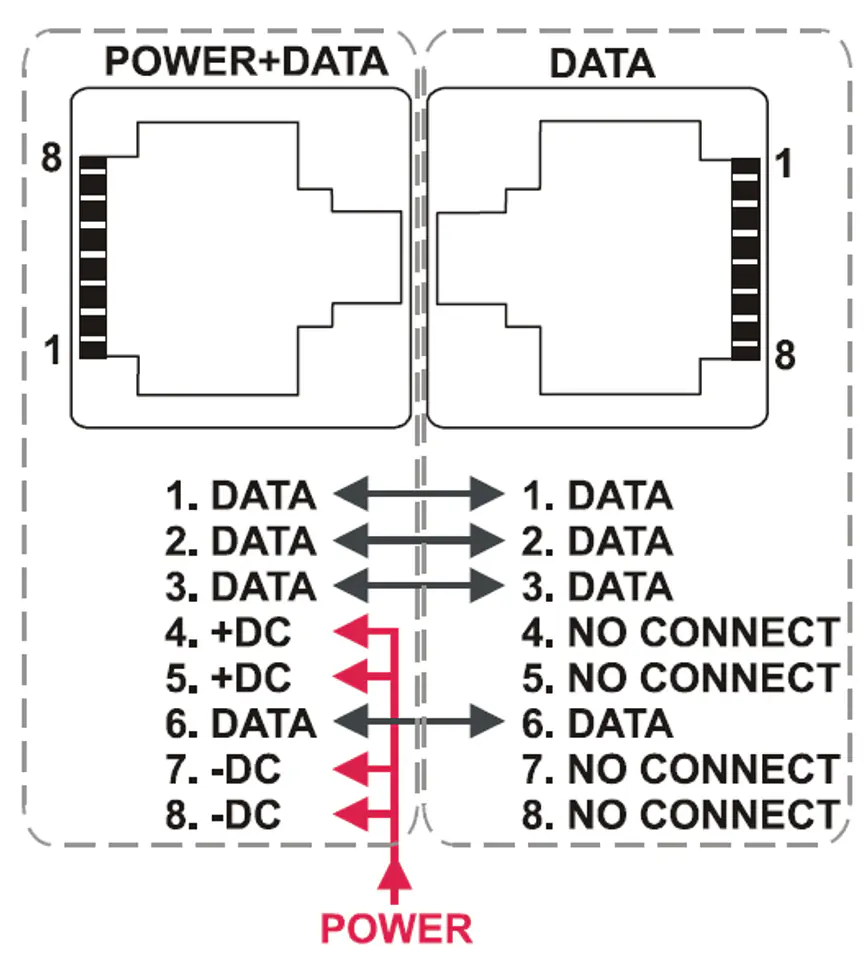

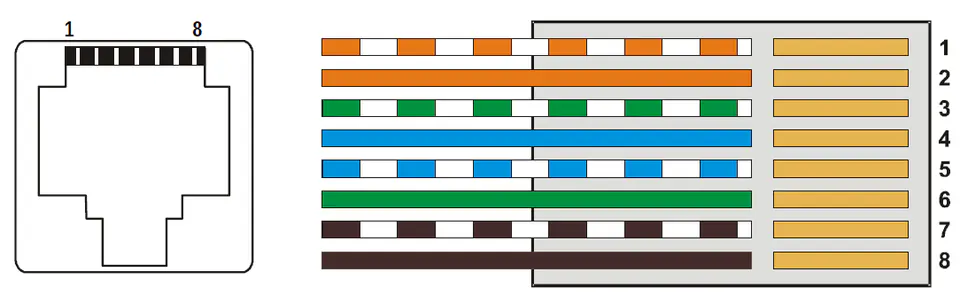

As a standard, the twisted pair cable uses 1, 2, 3 and 6 conductors For data transmission, the PoE panel adds 4.5(+) on the remaining wires; 7, 8(-) supply voltage
