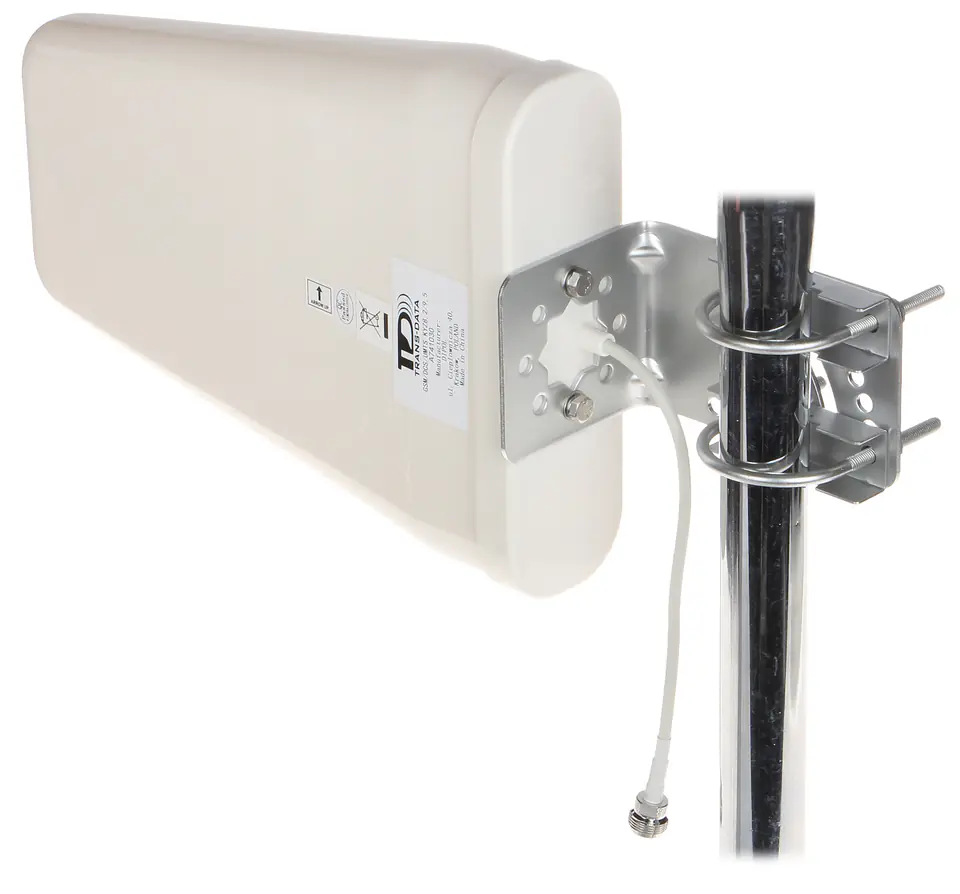

ATK-K1 is a panel directional antenna designed to transmit signals from/to gsm repeater
PANEL ANTENNA ATK-K1 GSM UMTS
€24.89
Shipping from warehouse: D4
Estimated shipping: Tue, Apr 30 - Fri, May 3
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- ATK-K1 / 5907634547022
Share this product:
Specification
| Dimensions:: | 293 x 210 x 65 mm |
|---|---|
| Energy gain :: | Max. 8.2 dBi GSMmax. 9.5 dBi UMTS |
| Frequency range:: | 806 ... 960 MHz, 1710 ... 2500 MHz |
| Impedance:: | 50 Ω |
| Joint:: | "N" Socket |
| Polarity:: | Vertical |
| Scales:: | 0.61 kg |
| Selected features:: | Very simple and quick installation Small dimensions |
| Vswr:: | < 1.5 |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
