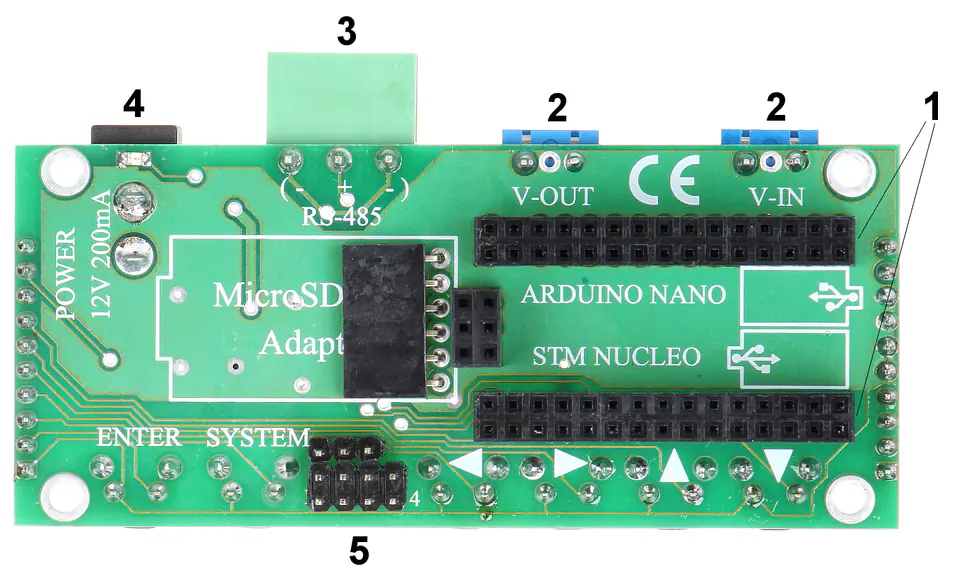

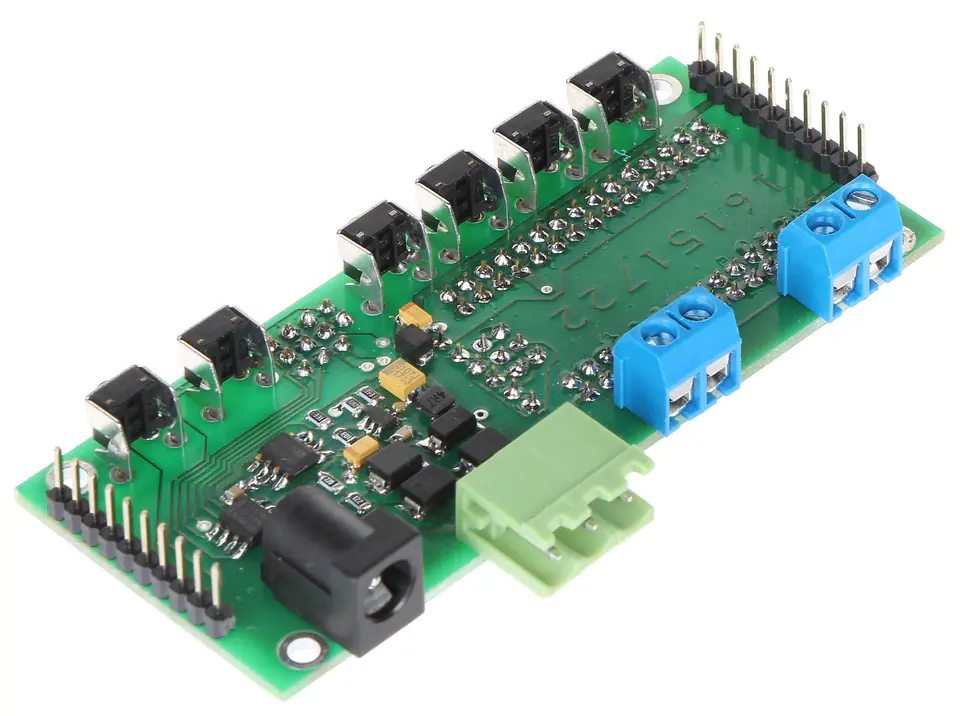

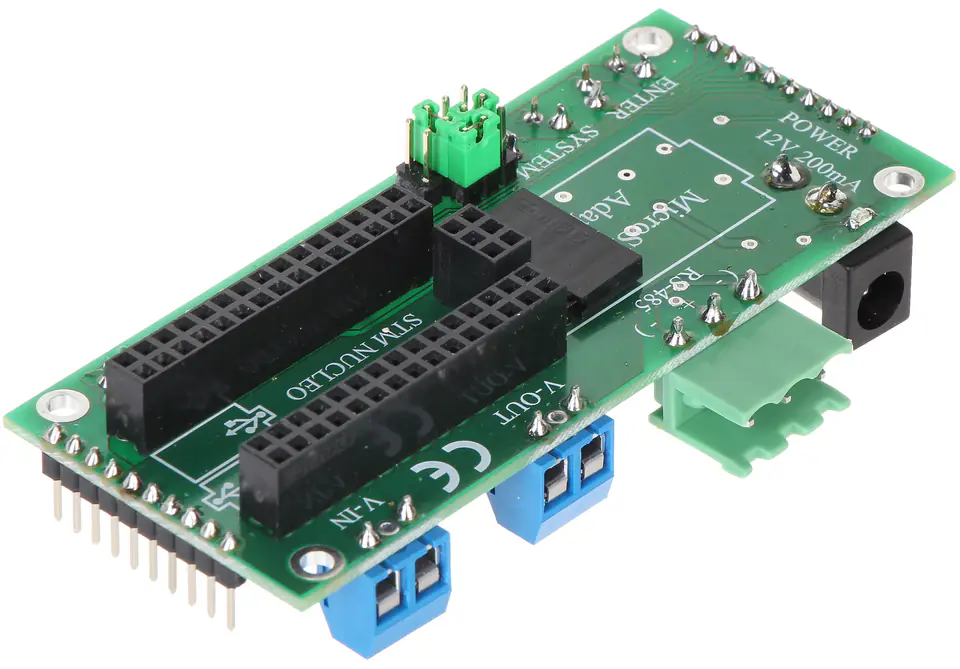

PORT-22 allows you to easily implement your own solutions based on the OSD-50HD device

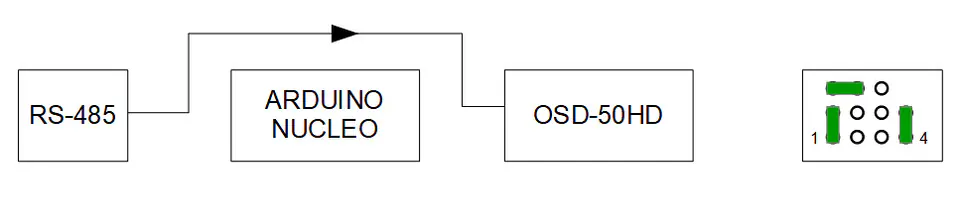

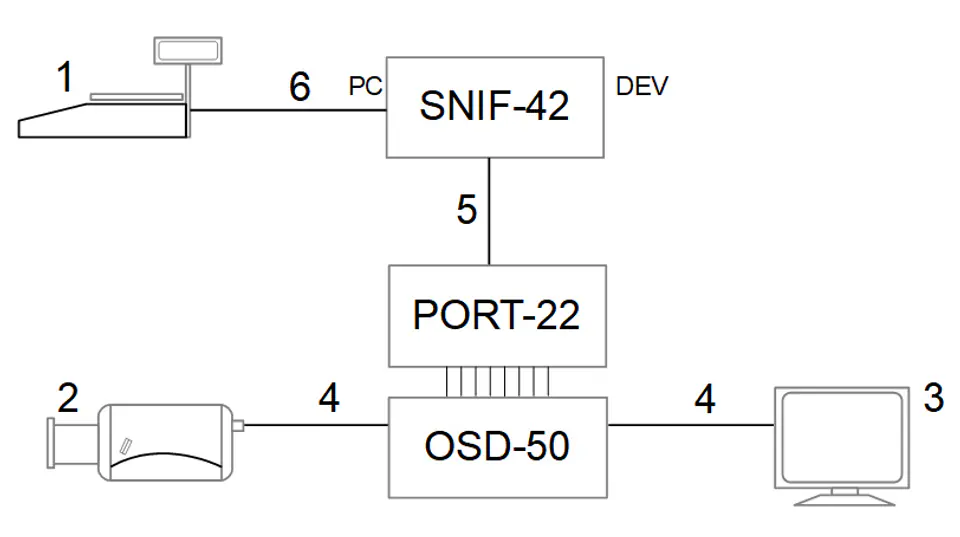

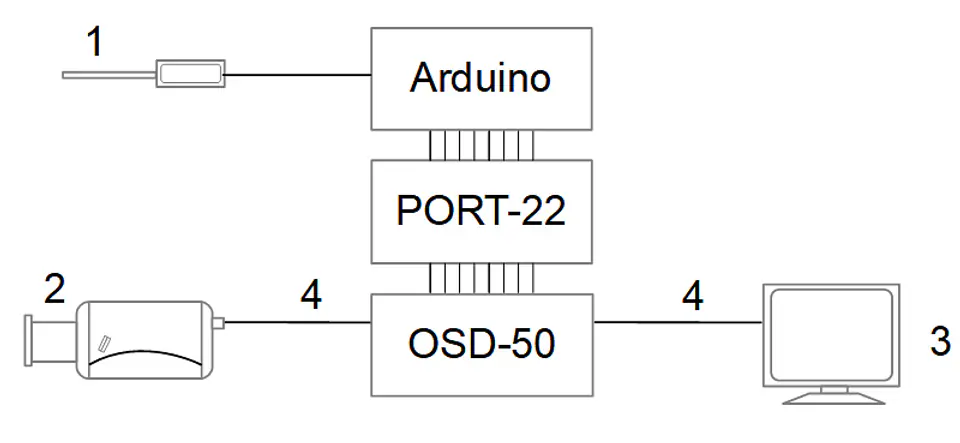

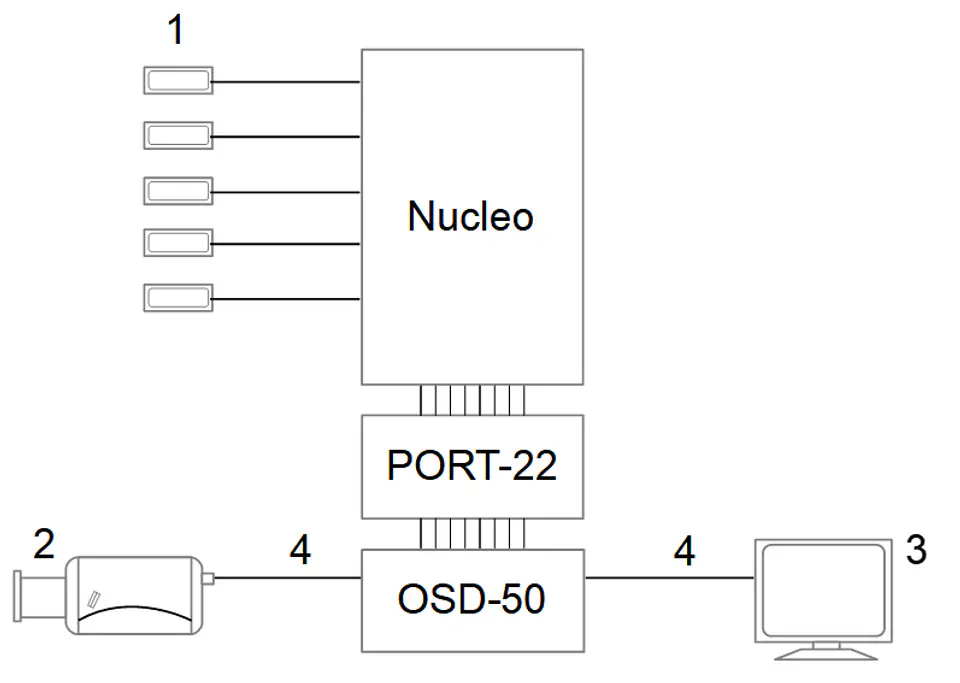

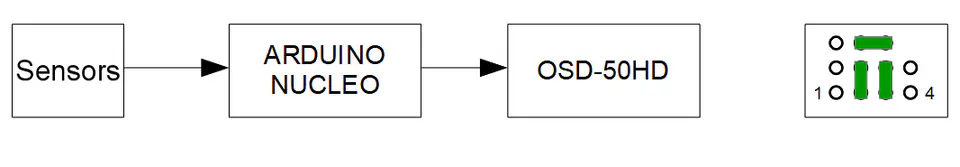

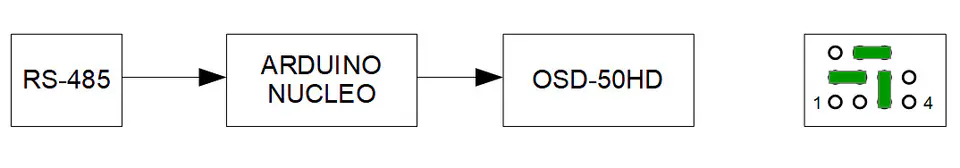

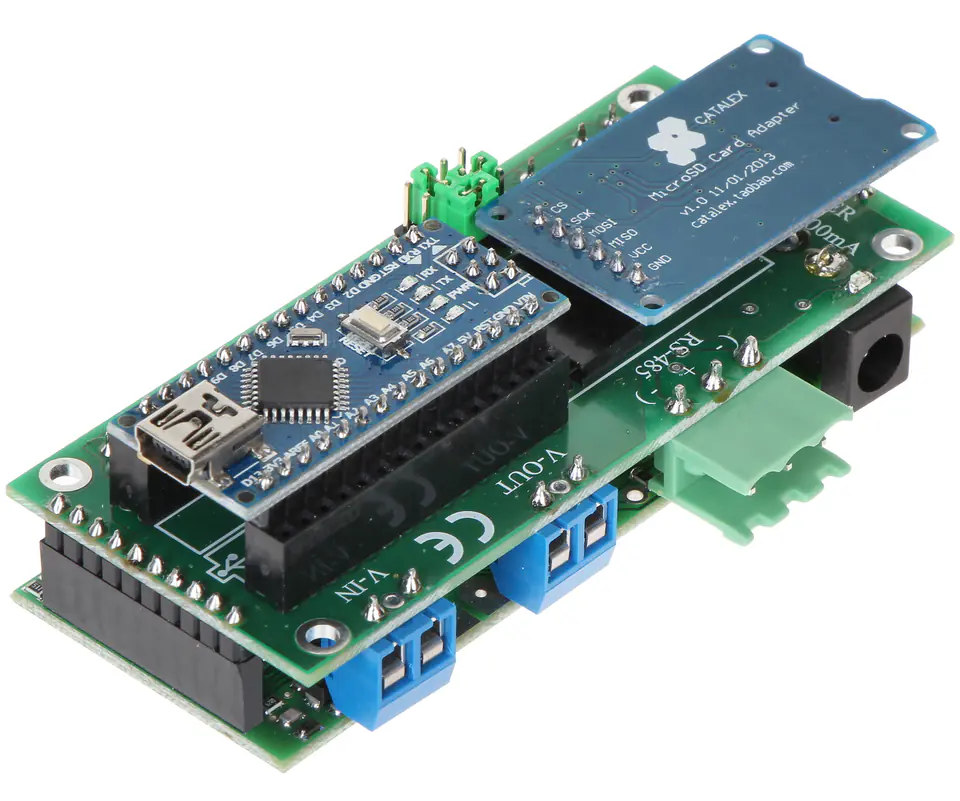

The device allows you to connect ARDUINO or NUCLEO and match existing protocols based on RS-485 or RS-232
More information about DSOs at www.osd.systems
OSD CHARACTER GENERATOR CONVERTER PORT-22
€27.57
Shipping from warehouse: D4
Estimated shipping: Tue, Apr 30 - Fri, May 3
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Delta
- Product code:
- PORT-22 / 5902887048807
Share this product:
Specification
| Communication using optional devices:: | RS-485 Micro SD Switch - Card |
|---|---|
| Communication:: | RS-485, RS-485 TTL, MODBUS, Arduino, STM Nucleo, Service buttons - 6 pcs. |
| Cooperation:: | OSD-50HD |

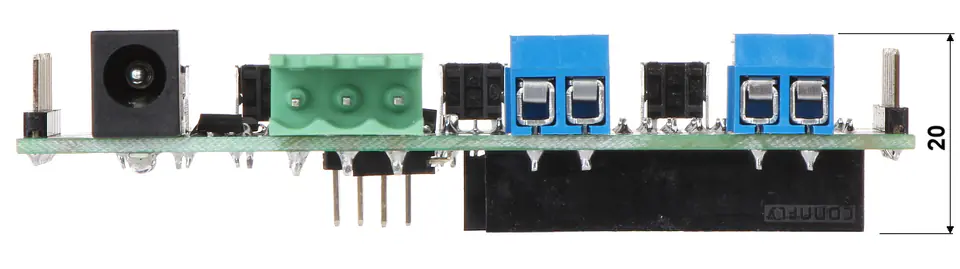

| Dimensions:: | 90 x 48 x 20 mm |
| Manufacturer / brand:: | DELTA |
| Number of video inputs:: | 1 x Cable Terminals |
| Number of video outputs:: | 1 x Cable Terminals |
| Power:: | 12V/200mA (no power supply included) |
| Rs-485 range:: | 1200 m terminal connector |
| Scales:: | 0.03 kg |
| Warranty:: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
