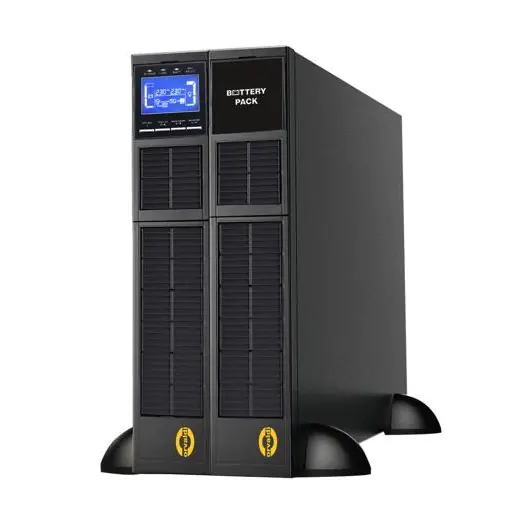

Orvaldi VR10K on-line 2U LCD 10kVA/10kW PARALLEL uninterruptible power supply (UPS) Double-conversion (Online) 10000 W
€1,508.21
Shipping from warehouse: A3
Estimated shipping: Tue, Jun 17 - Fri, Jun 20
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Orvaldi
- Product code:
- VGAR10K / 5904006036474
Share this product:
Specification
| Audible alarm modes: | Alarm when on battery, Fault, Low battery alarm, Overload alarm |
|---|---|
| Audible alarm(s): | Yes |
| Automatic voltage regulation (avr): | Yes |
| Charging current: | 4 A |
| Cold start: | Yes |
| Crest factor: | 3:1 |
| Depth: | 600 mm |
| Display type: | LCD |
| Eco mode: | Yes |
| Efficiency: | 94% |
| Efficiency (on-line mode): | 93% |
| Form factor: | Rackmount/Tower |
| Height: | 88 mm |
| Input frequency: | 46/64 Hz |
| Input operation voltage (max): | 300 V |
| Input operation voltage (min): | 110 V |
| Led indicators: | Yes |
| Noise level: | 55 dB |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature (t-t): | 0 - 40 °C |
| Output frequency: | 50 Hz |
| Output operation voltage (max): | 240 V |
| Output operation voltage (min): | 200 V |
| Output power: | 10000 W |
| Output power capacity: | 10 kVA |
| Output voltage regulation: | 1% |
| Output voltage total harmonic distortion (thd): | 1% |
| Power factor: | 1 |
| Product colour: | Black |
| Rack capacity: | 2U |
| Serial interface: | Yes |
| Serial interface type: | RS-232 |
| Serial ports quantity: | 1 |
| Sustainability certificates: | CE |
| Sustainability compliance: | Yes |
| Ups topology: | Double-conversion (Online) |
| Usb port: | Yes |
| Waveform: | Sine |
| Weight: | 20 kg |
| Width: | 438 mm |
