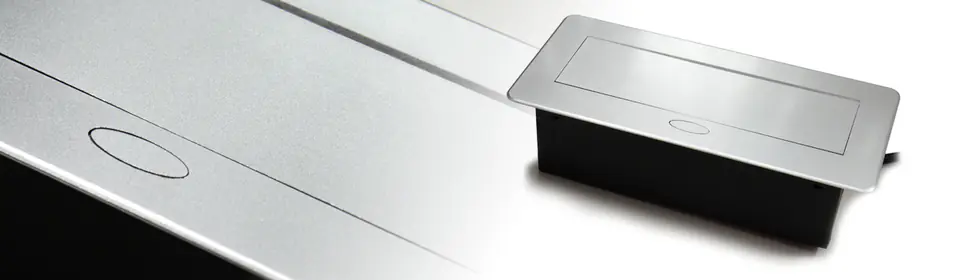

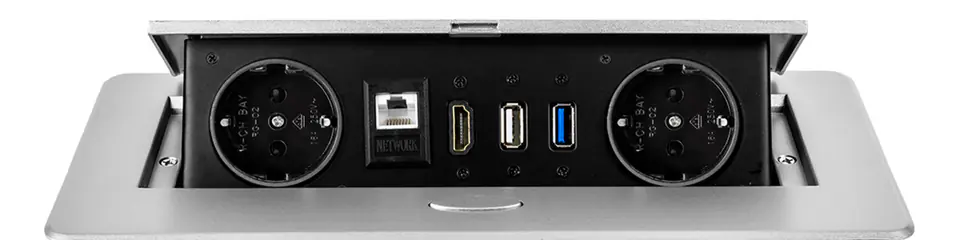

Spacetronik SPS-D26S V2 opening table top socket (silver)

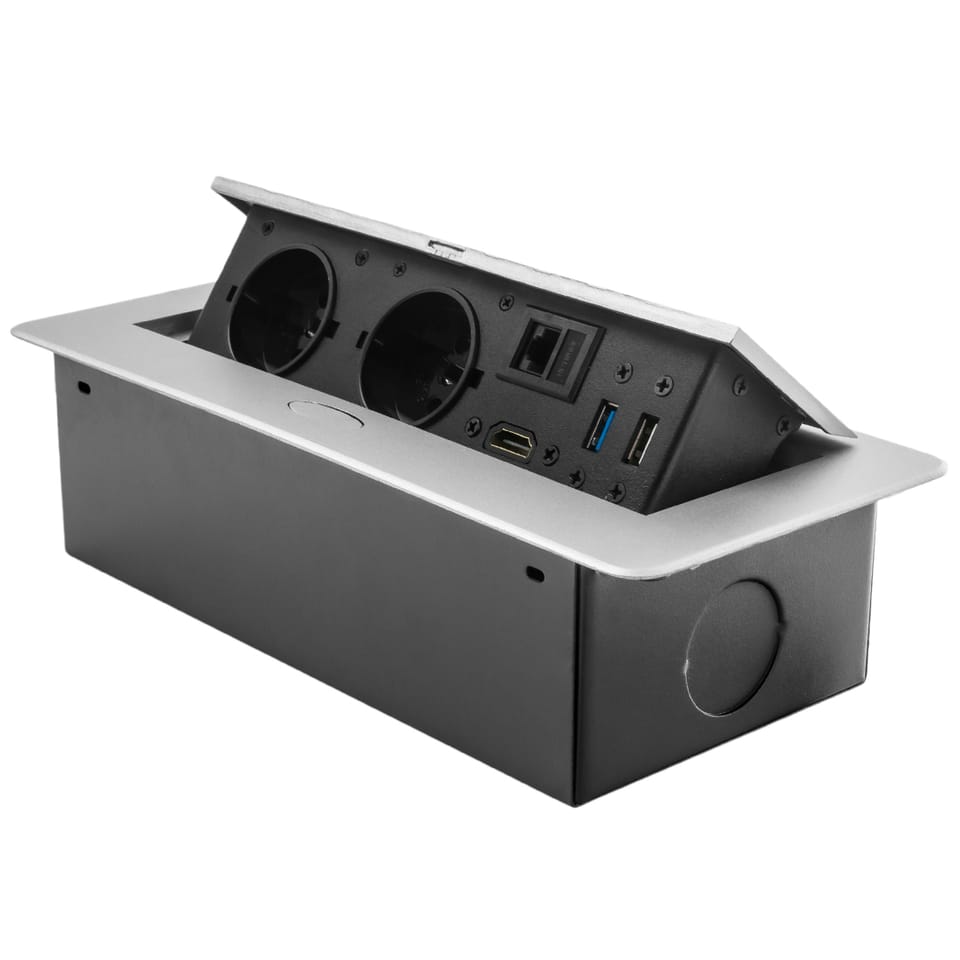

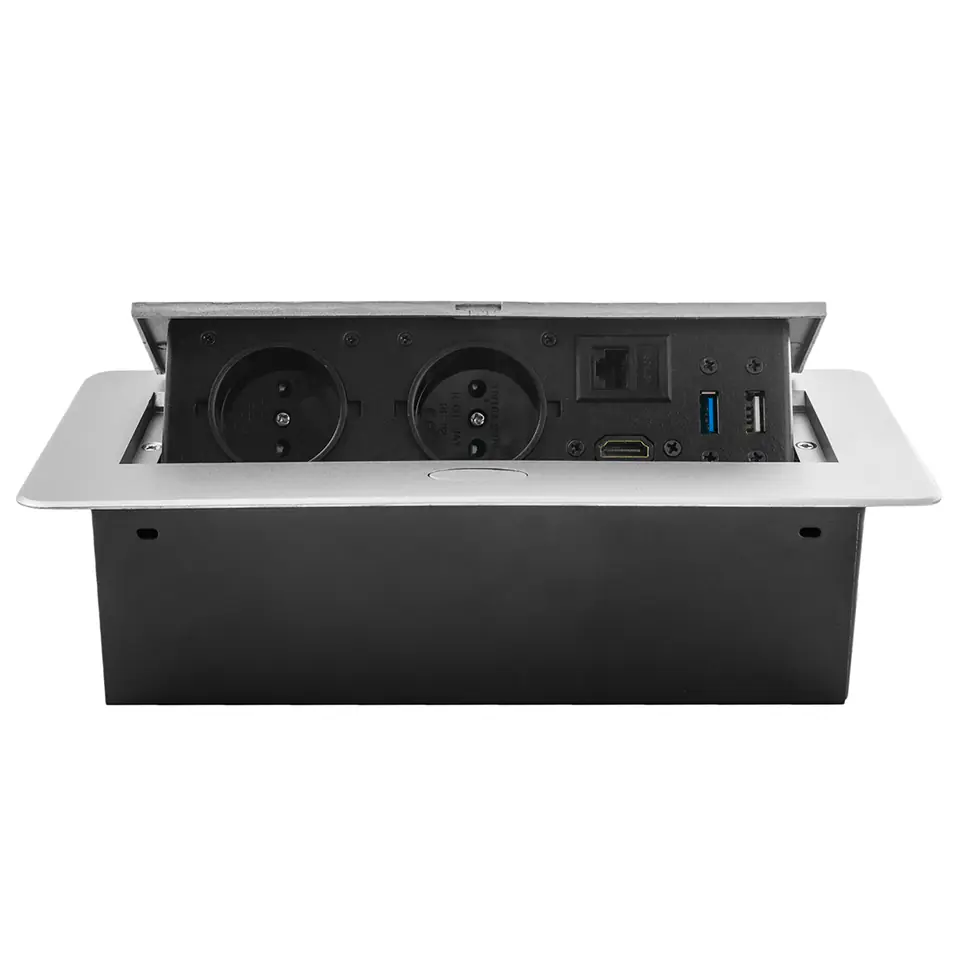

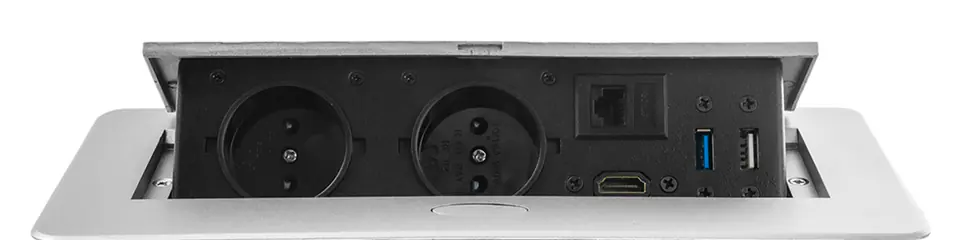

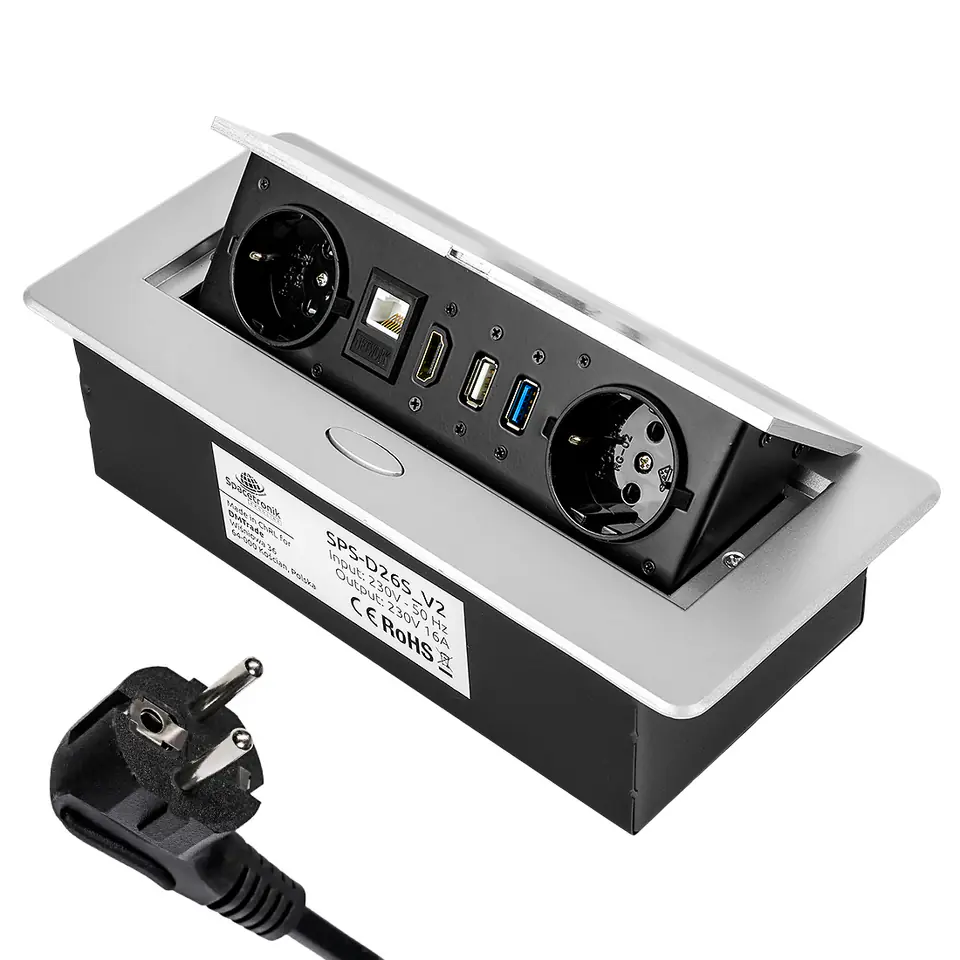

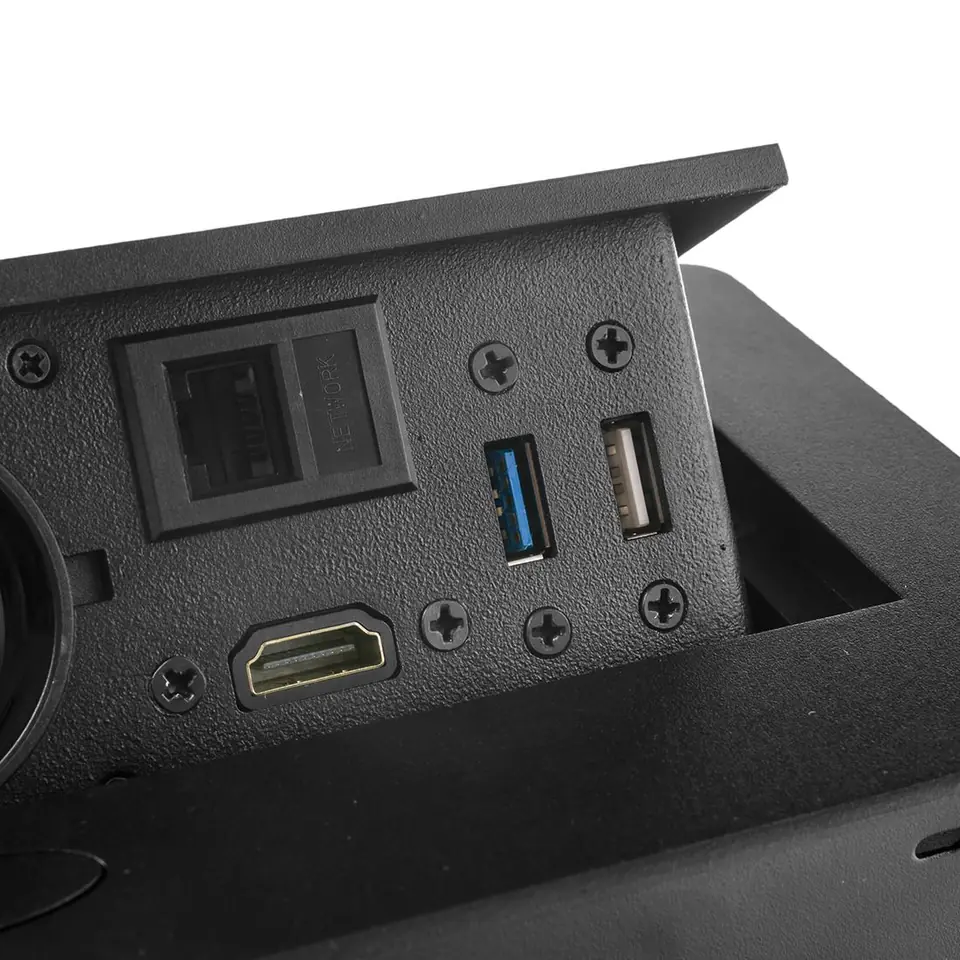

Mediaport Spacetronik ERGOLINE SPS-D26S V2 is a modern solution that is used in stores, showrooms, conference rooms, offices and at home. Press the button and the sockets will open smoothly. Made of aluminum and high quality components. The product is designed for indoor installation in desks, countertops and tables, both in a vertical and horizontal position, providing access to sockets. Mediaport is equipped with 2 110-250 V sockets (Schuko type), HDMI port, RJ-45 category 6 Ethernet socket and two USB ports: 2.0 and 3.0.

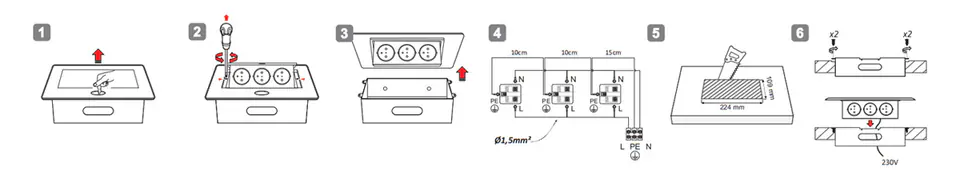

1. Press the button to open mediaport.
2. Unscrew the 2 screws on the sides at the top of the mediaport.
3. Pull off the top panel.
4. Check connections.
5. Cut a hole of suitable dimensions.
6. Place the mediaport in the hole and screw it.
- Power cable length: 1.5m
- Mains power supply: 230 V 50 Hz
- 2 x German type socket (Schuko) 110-250 V (16 A)

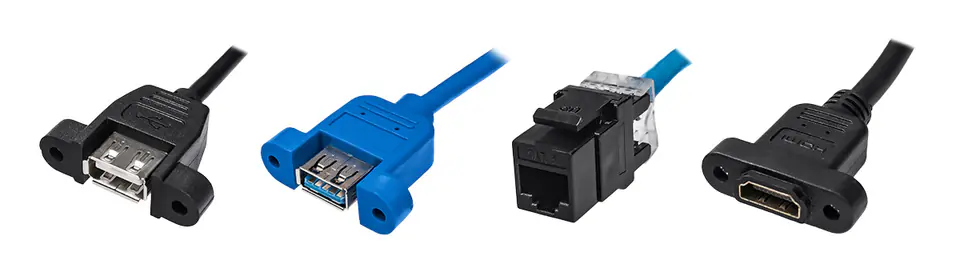

- 1 x HDMI port (on the back of the keystone socket on the cable with a length of 20-25 cm)
- 1x Ethernet cat6 RJ-45 port (20-25 cm long keystone socket on the back)
- 1x USB 2.0 port (keystone socket on the cable with a length of 20-25 cm)
- 1x USB 3.0 port (keystone port on the cable with a length of 20-25 cm)
- Can dimensions: 22 cm x 10.8 cm x 6.7 cm (width/height/depth)
- External dimensions: 26.6 cm x 11.8 cm
Declaration of Conformity (Polish / English)
