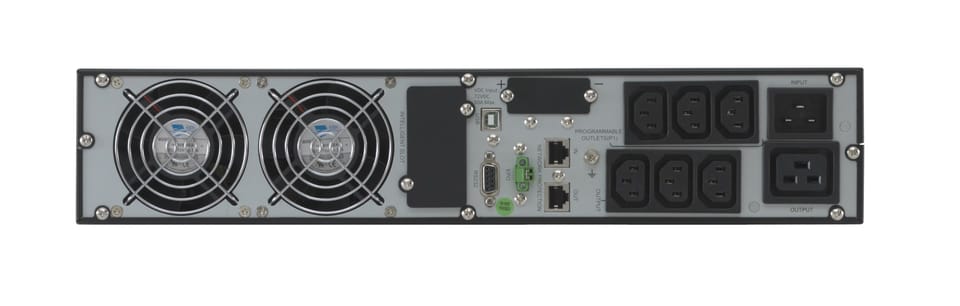

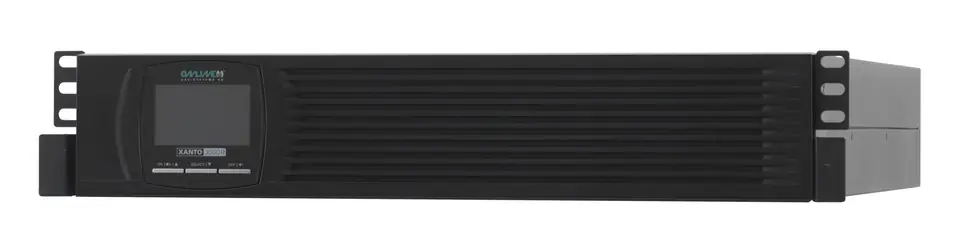

ONLINE USV-Systeme XANTO 3000R uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 3000 W 7 AC outlet s
Specification
| Ac outlet types: | C13 coupler, C19 coupler |
|---|---|
| Ac outlets quantity: | 7 AC outlet(s) |
| Audible alarm modes: | Low battery alarm, Overload alarm |
| Audible alarm(s): | Yes |
| Battery capacity: | 9 Ah |
| Battery recharge time: | 4 h |
| Battery voltage: | 12 V |
| Cables included: | Input power cable, Power load cable, USB cable |
| Cold start: | Yes |
| Cooling type: | Active |
| Depth: | 632 mm |
| Display type: | LCD |
| Efficiency: | 97% |
| Emergency power off (epo): | Yes |
| Form factor: | Rackmount/Tower |
| Harmonized system (hs) code: | 85078000 |
| Height: | 88 mm |
| Input frequency: | 50/60 Hz |
| Input operation voltage (max): | 300 V |
| Input operation voltage (min): | 110 V |
| International protection (ip) code: | IP20 |
| Management protocols: | SNMP |
| Maximum current: | 17.6 A |
| Mean time between failures (mtbf): | 50000 h |
| Noise level: | 50 dB |
| Number of batteries supported: | 6 |
| Operating relative humidity (h-h): | 20 - 90% |
| Operating temperature (t-t): | 0 - 40 °C |
| Output frequency: | 50/60 Hz |
| Output operation voltage (max): | 240 V |
| Output operation voltage (min): | 208 V |
| Output power: | 3000 W |
| Output power capacity: | 3 kVA |
| Package type: | Box |
| Power plug: | C20 coupler |
| Product colour: | Black |
| Rack capacity: | 2U |
| Rs-232 ports: | 1 |
| Serial interface: | Yes |
| Serial interface type: | RS-232 |
| Serial ports quantity: | 1 |
| Surge protection features: | Fax, Modem, Network |
| Typical backup time at full load: | 6 min |
| Typical backup time at half load: | 17 min |
| Ups topology: | Double-conversion (Online) |
| Usb 2.0 ports quantity: | 1 |
| Usb port: | Yes |
| Waveform: | Sine |
| Weight: | 27.5 kg |
| Width: | 438 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
