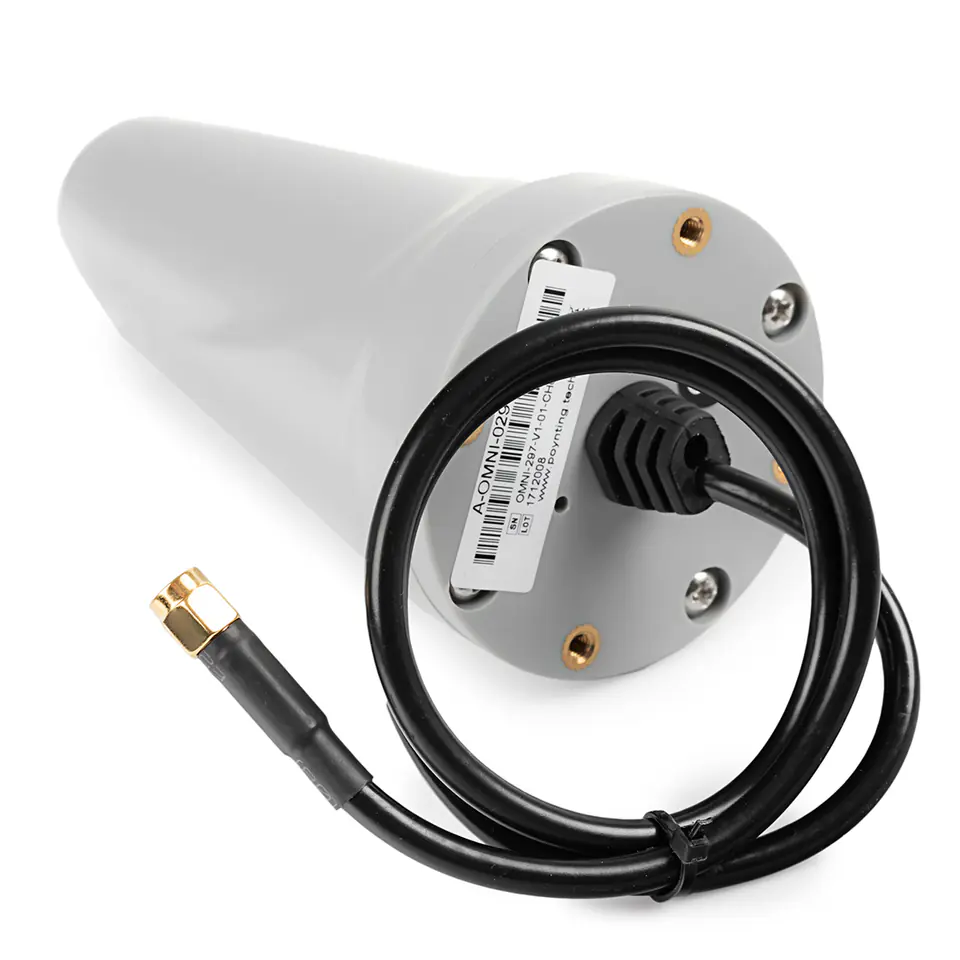

Omnidirectional broadband antenna Poynting OMNI-297
The new OMNI-297 antenna is part of our new "Rhyno" antenna series. Omni-297 is a broadband cellular antenna operating in the range from 698 to 3800 MHz, covering all modern 5G and LTE frequency bands. The antenna is designed for excellent pattern control over the entire frequency range, making the OMNI-297 a unique omnidirectional antenna considering its size. Constant amplification across the entire frequency range improves LTE performance characteristics such as Multi Carrier Aggregation (CA). Ideal work for permanent installations of any cellular bands. It is also ideal for machine-to-machine (M2M) and Internet (IoT) applications that communicate via GSM networks (GPRS/EDGE/3G/HSPA/LTE).
- Suitable for all 5G networks up to 3800MHz
- Medium gain omnidirectional antenna

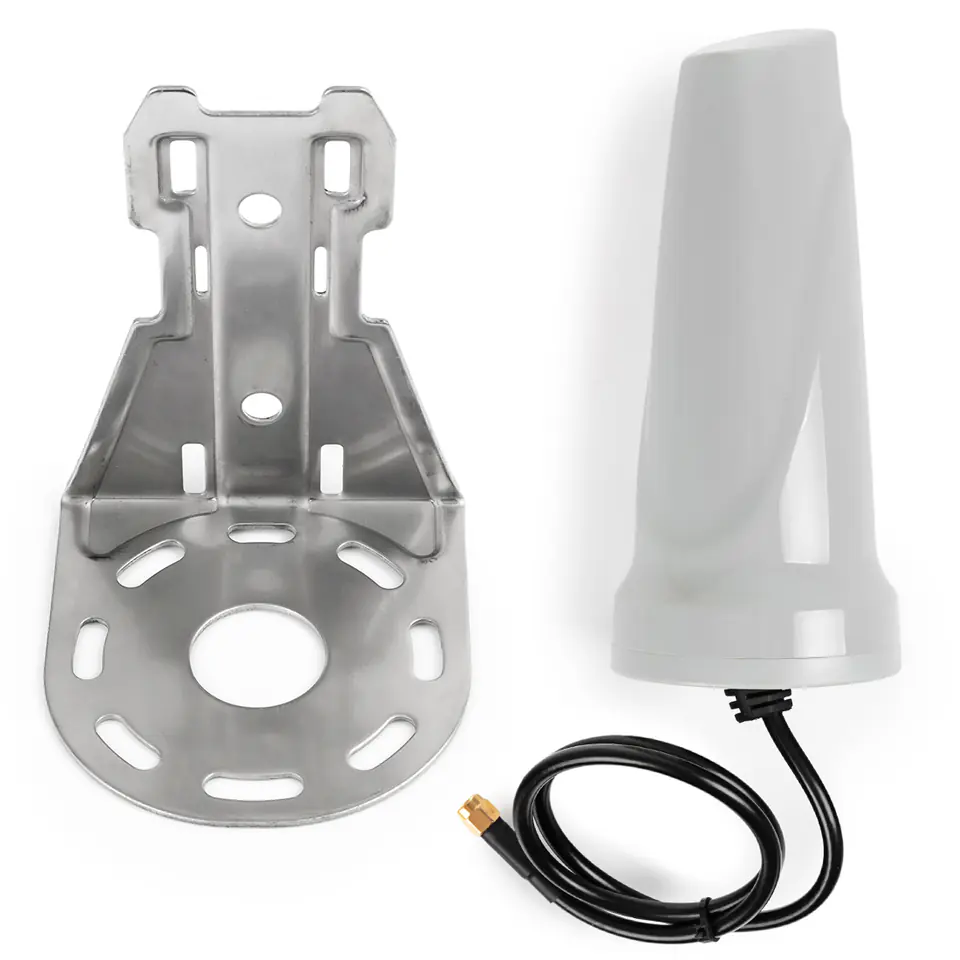

- Can be mounted on a wall or pole for easy installation
- Protection against vandalism and dust ingress
- Aesthetic appearance
- Machine to machine (M2M) and Internet of Things (IoT)
- Poor data signal reception (inside or outside)
- Improves slow data connection
- Increases the reliability of system transmission
- Advanced applications of industrial routers
- Improves reception in mobile offices
The Rhyno omnidirectional antenna is the latest version of the amplified Poynting antennas. This solution was created for very difficult working conditions in a dusty environment, exposed to chemicals or weather conditions. Perfect for industry, using heavy equipment.
Omni antennas from Poynting are a mobile solution that can be used, for example, on construction machines. You can forget to replace the antenna every few months due to wear or cracking of the housing and violation of the design of the device. It is an industrial antenna that will survive years of use.

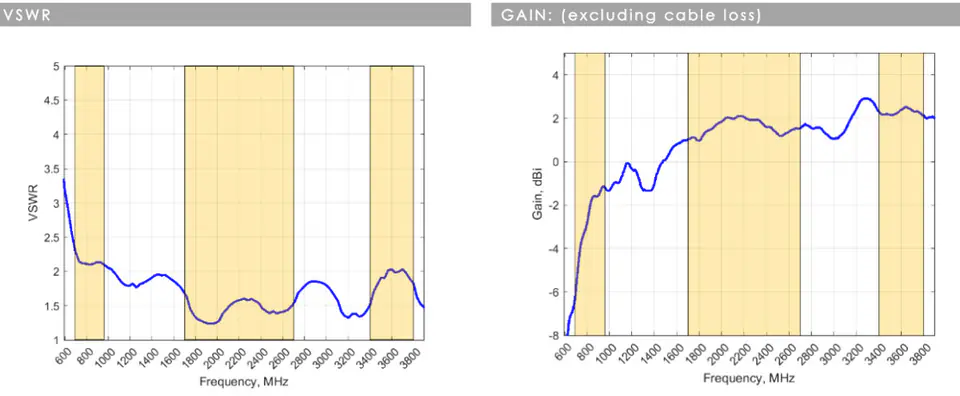

Voltage Wave Factor (VSWR)*
VSWR is a measure of the efficiency of transmitting radio frequency power from a power source through a transmission line to a load. In an ideal system, 100% of the energy is transmitted, which corresponds to VSWR 1:1,
Omni-297 provides excellent performance on all bands with VSWR <2.5:1 * VSWR antennas measured with a 2 meter low loss cable.
Gain in dBi
2 dBi peak power in all bands from 698-3800 MHz
- gain at 698-960 MHz: -1.5 dBi
- gain at 1710-2700 Mhz: 2 dBi
- gain at 3400-3800 Mhz: 2 dBi
* Antenna gain measured with standard antenna polarized

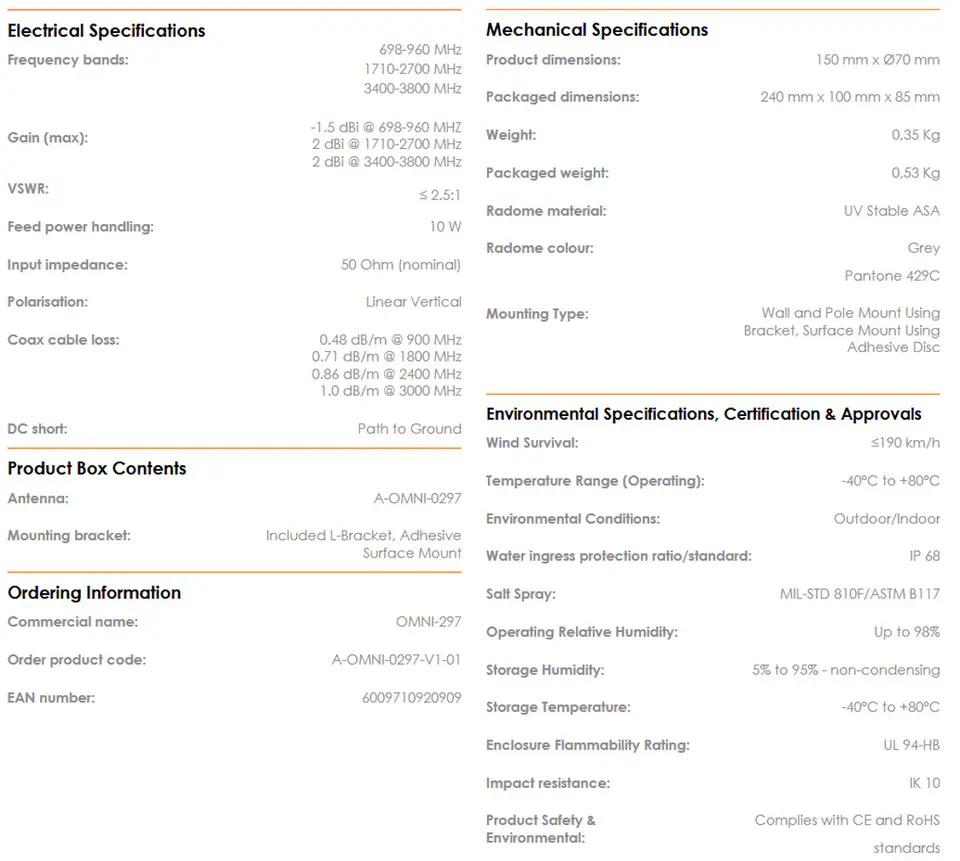

Click here for full technical documentation of the antenna.
