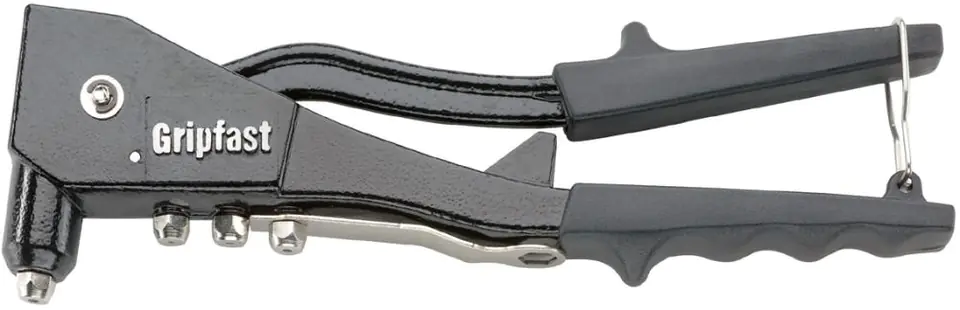

NTH Hand Riveter
Execution: Made of high-grade die-cast aluminum, forged steel jaws. In addition, the hand riveter is equipped with handy flange handles and a swing spring for automatic pin ejection and optimal one-handed operation, as well as a safety buckle.
Use: For machining one-sided closed rivets up to Ø 5 mm made of aluminium and up to Ø 4 mm made of stainless steel.
Kit Contents: NTH hand riveting machine, 4 sockets 10/18, 10/24, 10/27, 10/32, mounting wrench.
Cap assignment:
Rivet Ø: 2,4; Material: Al; cap: 10/18
Rivet Ø: 3 and 3,2; materials: Al, Cu, steel, stainless steel, Stinox, Al/Al, Al PolyGrip, PolyGrip steel; Cap material: Al; cap: 10/24
Ø rivet: 4; materials: Al, Cu; cap: 10/24
Ø rivet: 4; materials: steel, Al CAP, Cu CAP, Al/Al, Al PG; Cap: 10/27
Rivet Ø: 4,8 and 5; materials: Al, Al PG; cap: 10/32
NTH hand riveter, 8mm GESIPA travel
€16.95
Shipping from warehouse: B6
Estimated shipping: Wed, May 8 - Mon, May 13
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- GESIPA
- Product code:
- 1456647 / 4007081060028
Share this product:
Specification
| Working stroke: | 8 mm |
|---|
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
