| Angle of rotation: | 6° |
|---|---|

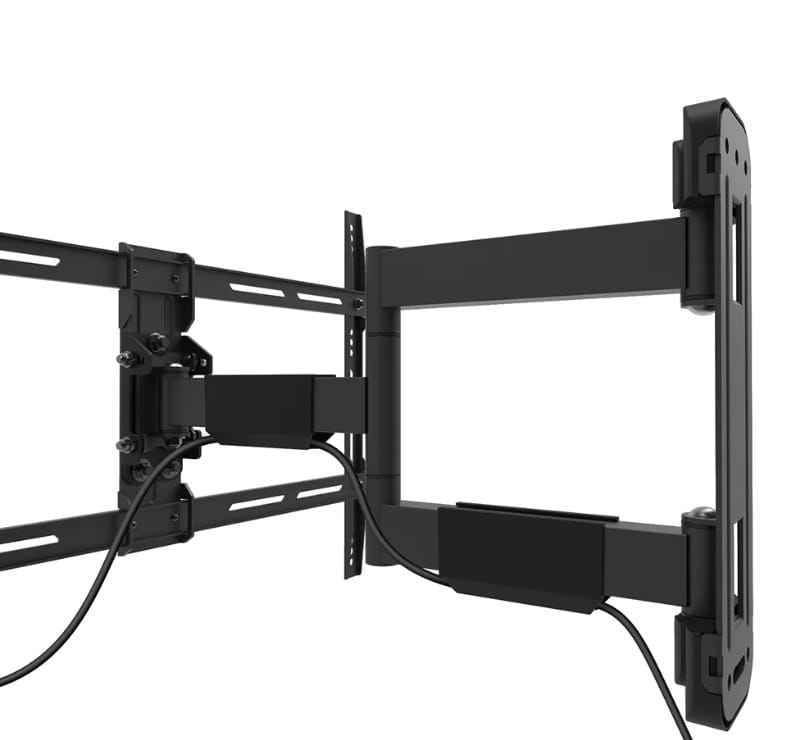

| Cable management: | Yes |
| Depth: | 53 mm |
| Distance to the wall (max): | 49 cm |
| Distance to the wall (min): | 5.3 cm |
| Harmonized system (hs) code: | 7326909890 |
| Height: | 436 mm |
| Height adjustment: | No |
| Housing material: | Steel |
| Lockable: | Not lockable |
| Master (outer) case gross weight: | 20.4 kg |
| Master (outer) case height: | 343 mm |
| Master (outer) case length: | 185 mm |
| Master (outer) case net weight: | 18 kg |
| Master (outer) case width: | 704 mm |
| Maximum screen size: | 165.1 cm (65") |
| Maximum vesa mount: | 600 x 400 mm |
| Maximum weight capacity: | 40 kg |
| Minimum screen size: | 101.6 cm (40") |
| Minimum vesa mount: | 200 x 100 mm |
| Mounting kit: | Yes |
| Mounting type: | Wall |
| Number of displays supported: | 1 |
| Package depth: | 323 mm |
| Package height: | 56 mm |
| Package net weight: | 6.6 kg |
| Package width: | 684 mm |
| Panel mounting interface: | 600 x 400, 400 x 400 mm, 300 x 200, 300 x 300, 600 x 300, 200 x 400, 200 x 300, 200 x 100, 200 x 200 mm, 400 x 300, 600 x 200, 400 x 200, 440 x 400 |

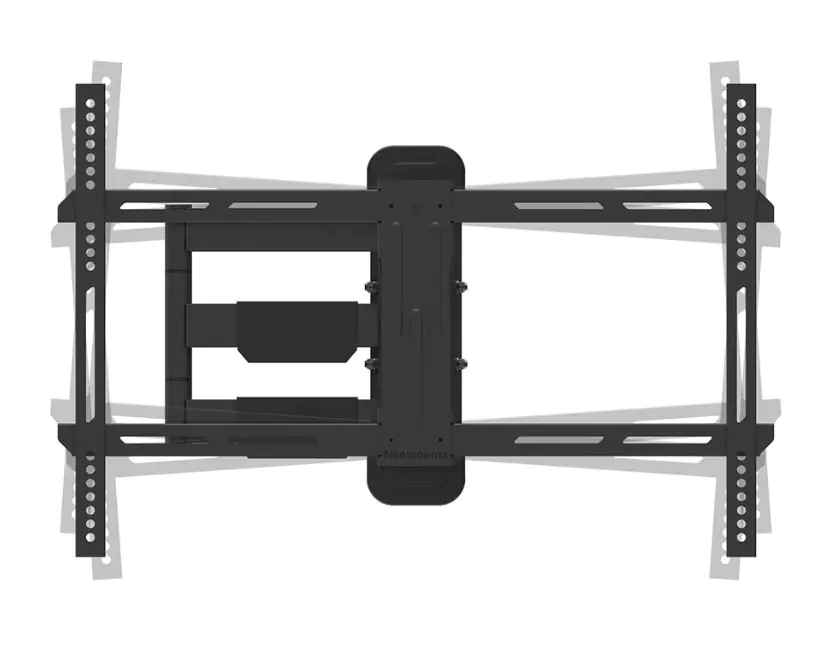

| Pivot angle: | -3 - 3° |
| Product colour: | Black |
| Products per master (outer) case: | 3 pc(s) |
| Products per pallet (eu): | 72 pc(s) |
| Quantity per pack: | 1 pc(s) |
| Rotating: | Yes |
| Swivel angle: | 40° |
| Swivel angle range: | -45 - 45° |
| Swivelling: | Yes |
| Tilt adjustment: | Yes |
| Tilt angle range: | -2 - 12° |
| Type: | Full motion |
| Width: | 660 mm |

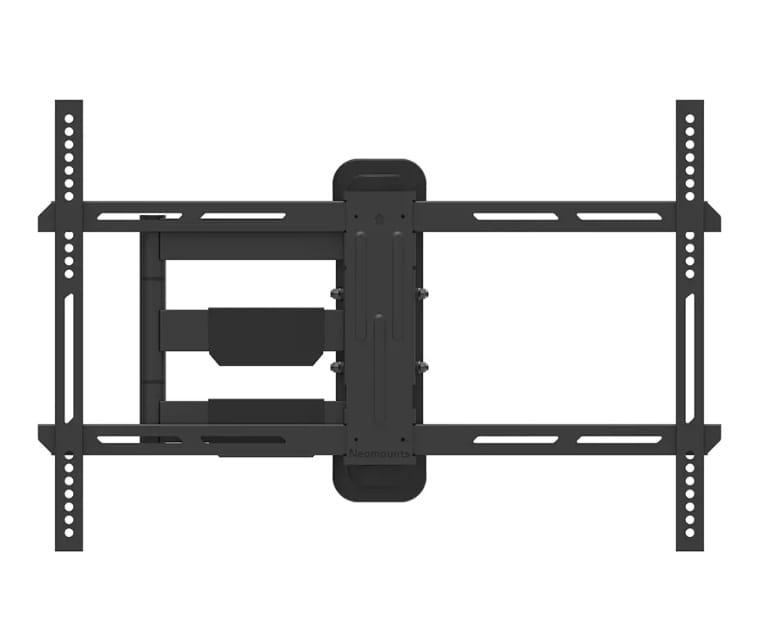

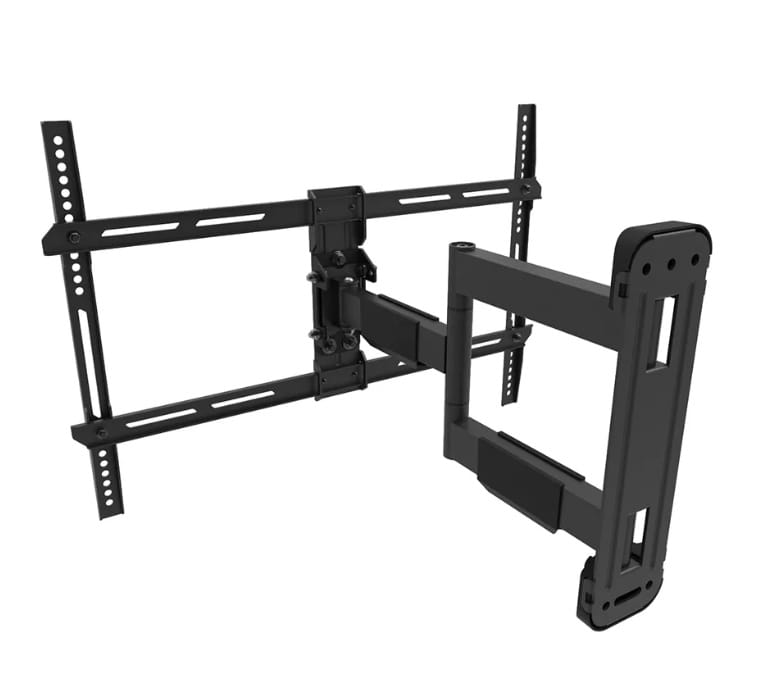

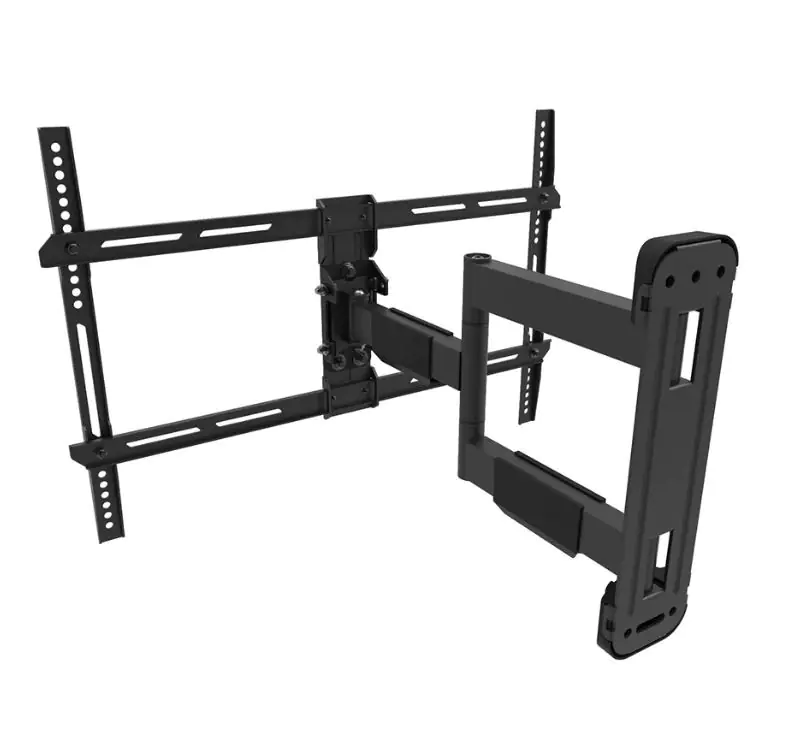

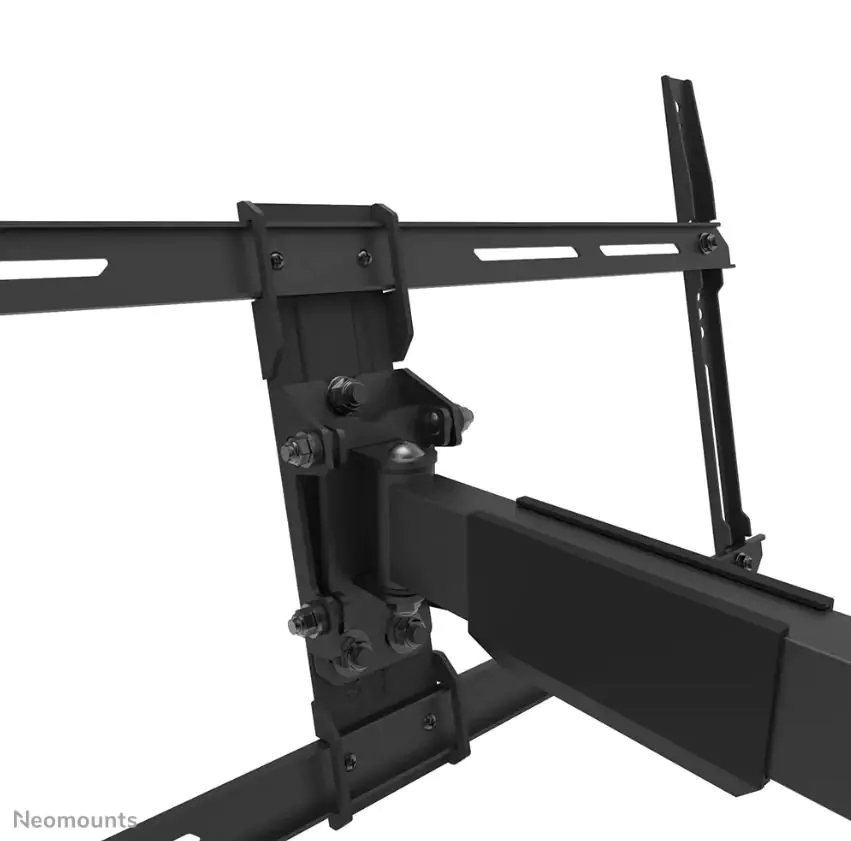

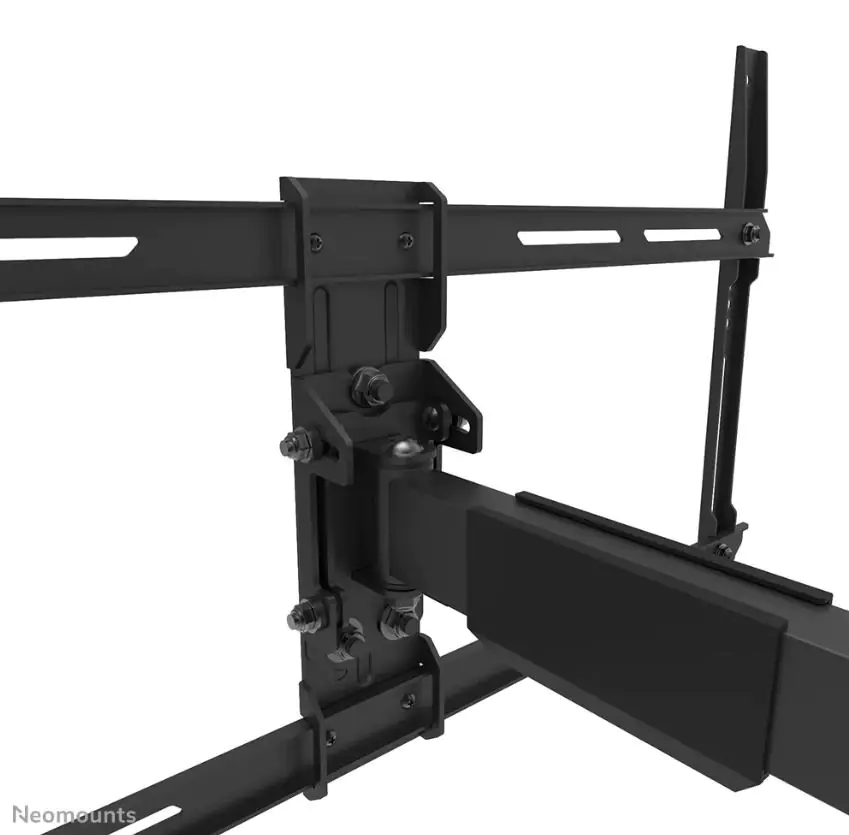

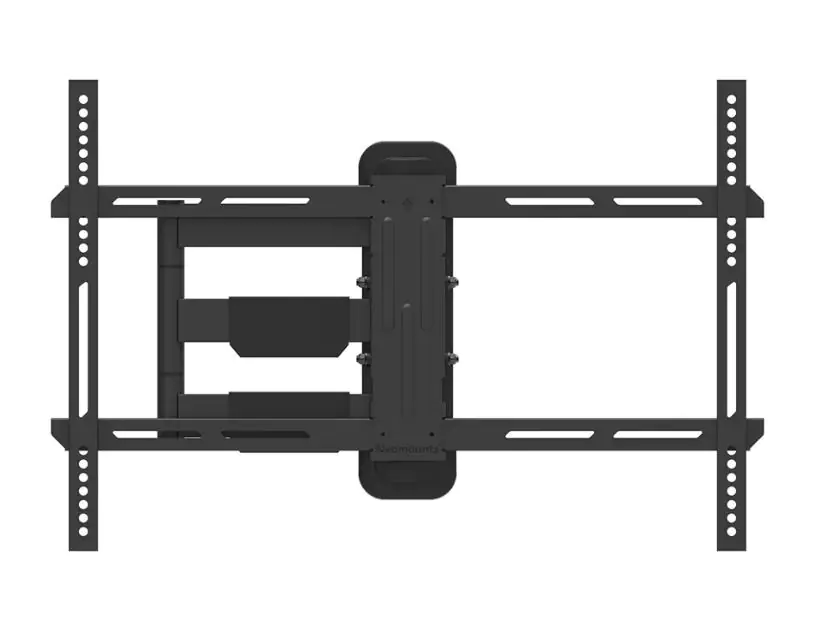

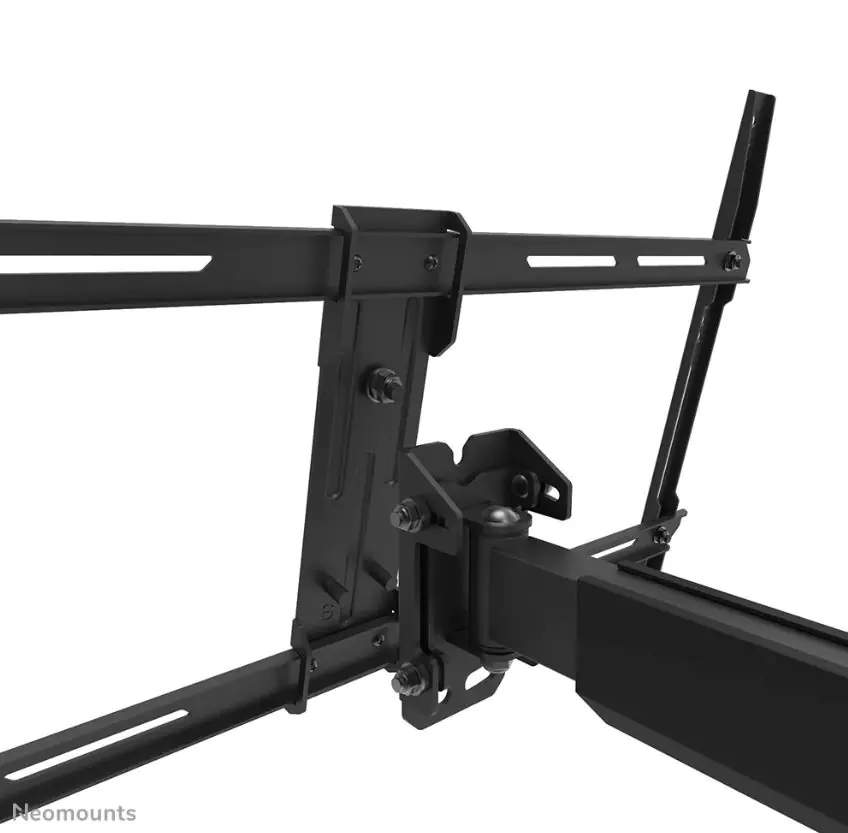

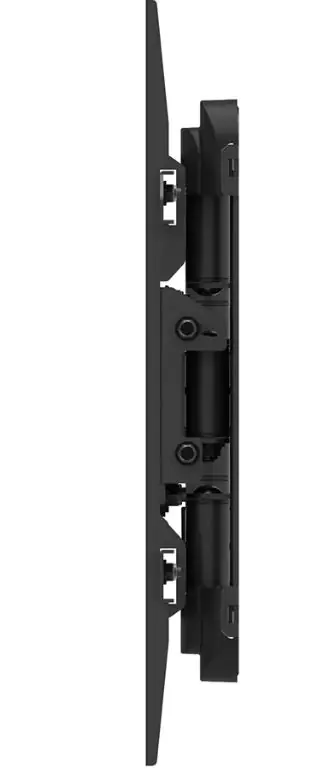

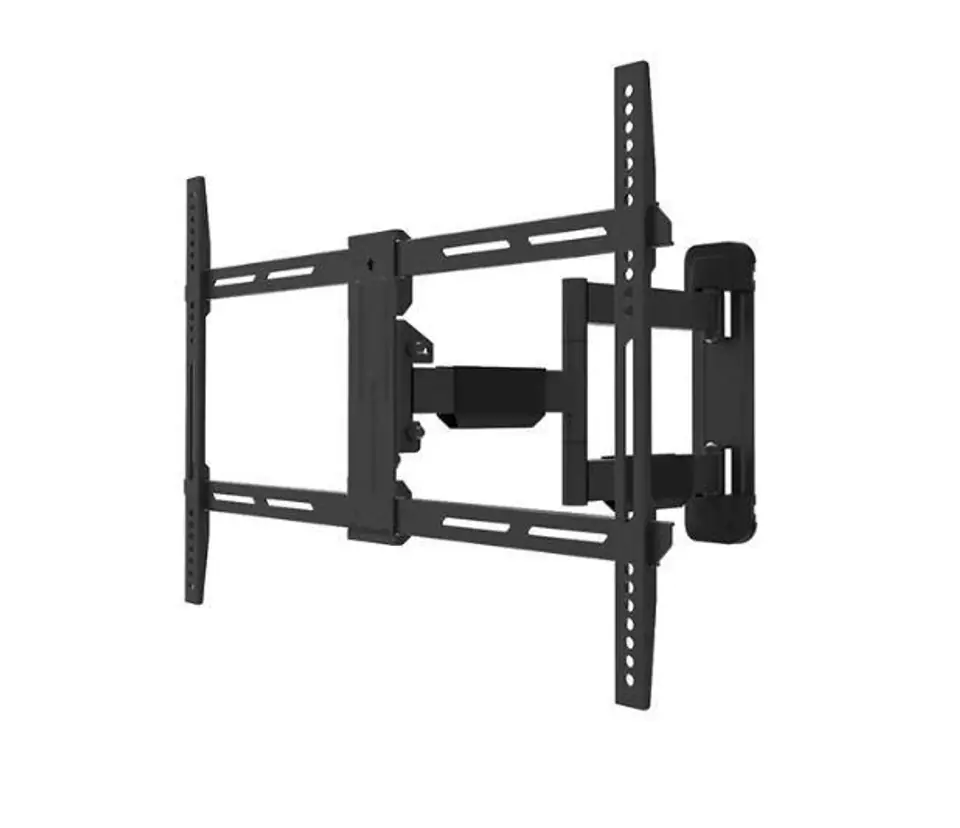

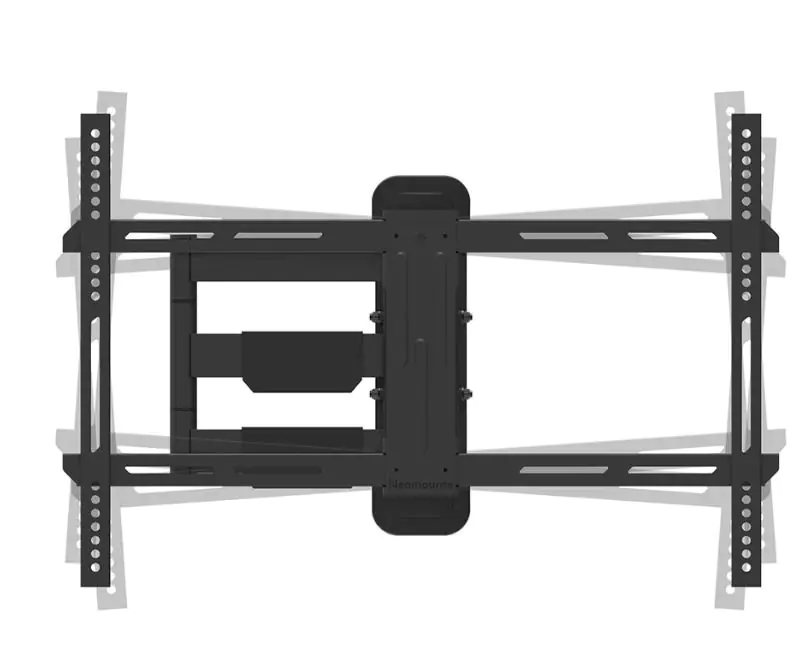

Neomounts WL40-550BL16 is a Full Motion wall mount for flat panel monitors up to 65 with a maximum load capacity of 40 kg. The versatile tilt (14°) and swivel (40°) technology allows for an optimal viewing angle. The bracket can be levelled for perfect installation

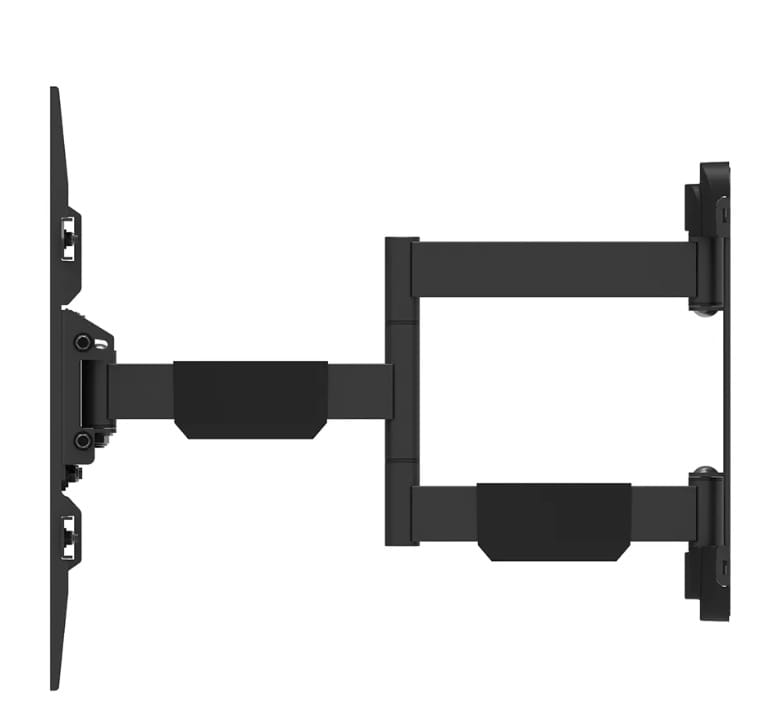

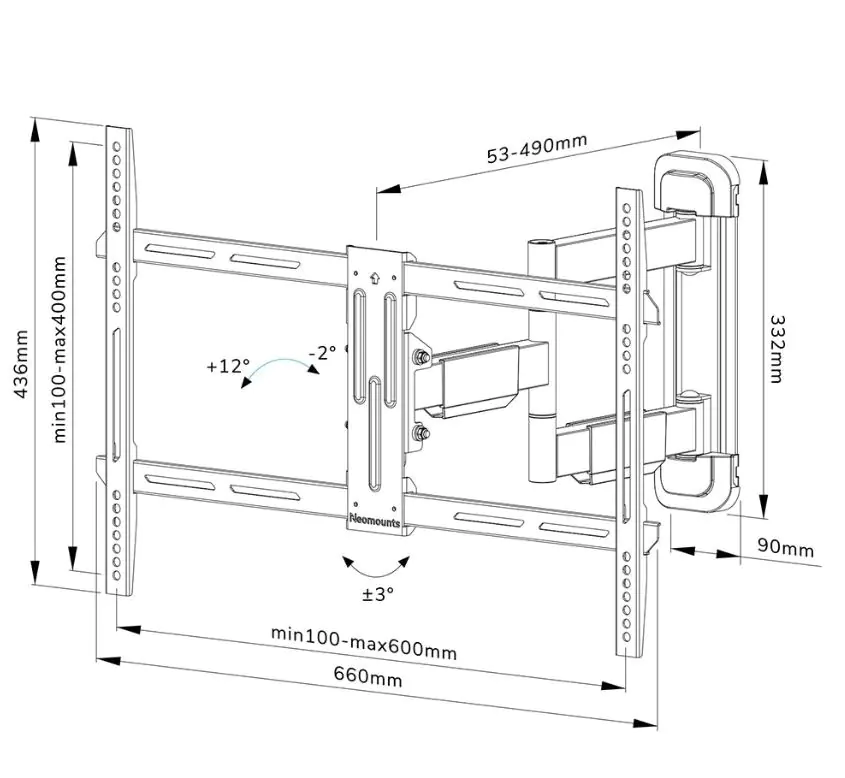

The WL40-550BL16 has a depth of 5.3-49 cm and is suitable for screens meeting VESA 100x100 to 600x400 mm requirements.
