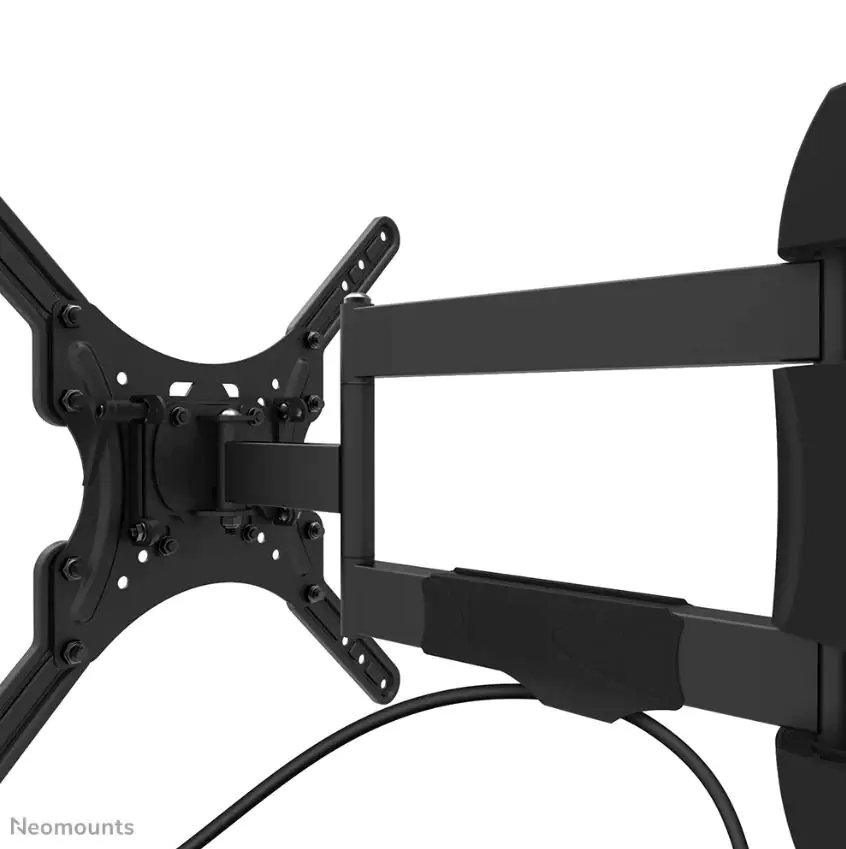

| Cable management: | Yes |
|---|---|
| Country of origin: | China |
| Depth: | 45 mm |
| Distance to the wall (max): | 42 cm |
| Distance to the wall (min): | 4.5 cm |
| Harmonized system (hs) code: | 7326909890 |
| Height: | 433 mm |
| Height adjustment: | No |
| Housing material: | Steel |
| Lockable: | Not lockable |
| Master (outer) case gross weight: | 22.7 kg |
| Master (outer) case height: | 330 mm |
| Master (outer) case length: | 295 mm |
| Master (outer) case net weight: | 21 kg |
| Master (outer) case width: | 349 mm |
| Maximum screen size: | 139.7 cm (55") |
| Maximum vesa mount: | 400 x 400 mm |
| Maximum weight capacity: | 35 kg |
| Minimum screen size: | 81.3 cm (32") |
| Minimum vesa mount: | 100 x 100 mm |

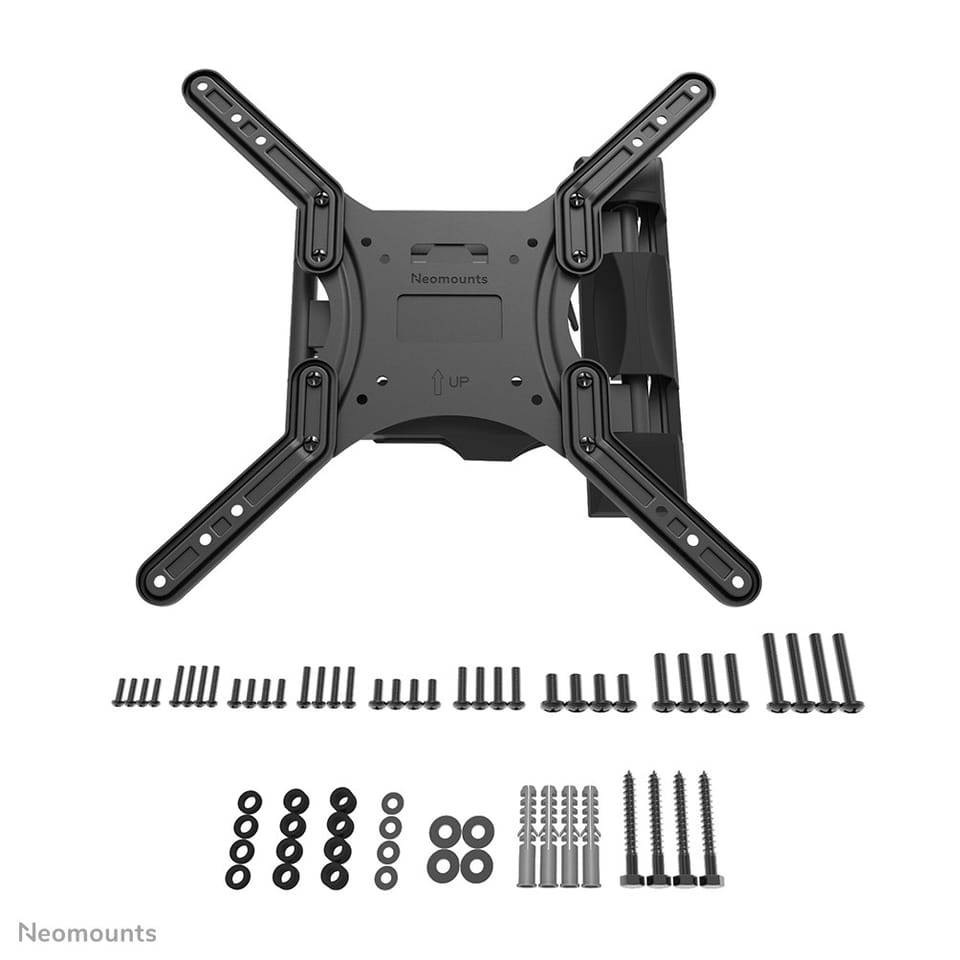

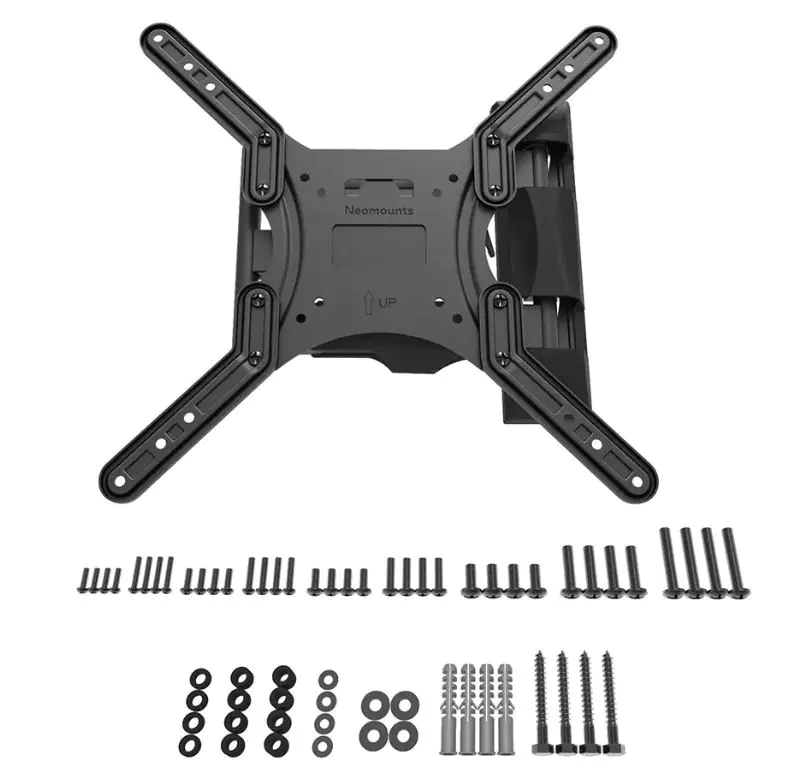

| Mounting kit: | Yes |
| Mounting type: | Wall |
| Number of displays supported: | 1 |
| Package depth: | 310 mm |
| Package height: | 55 mm |
| Package net weight: | 4.5 kg |
| Package width: | 329 mm |
| Panel mounting interface: | 200 x 100, 200 x 200, 400 x 300, 400 x 400, 300 x 200, 200 x 300, 300 x 300, 100 x 100 mm, 200 x 400, 400 x 200 |
| Product colour: | Black |
| Products per master (outer) case: | 5 pc(s) |
| Products per pallet (eu): | 160 pc(s) |
| Quantity per pack: | 1 pc(s) |
| Rotating: | Yes |
| Swivel angle: | 40° |
| Swivel angle range: | 0 - 40° |
| Swivelling: | Yes |
| Tilt adjustment: | Yes |
| Tilt angle range: | -2 - 12° |
| Type: | Full motion |
| Width: | 433 mm |

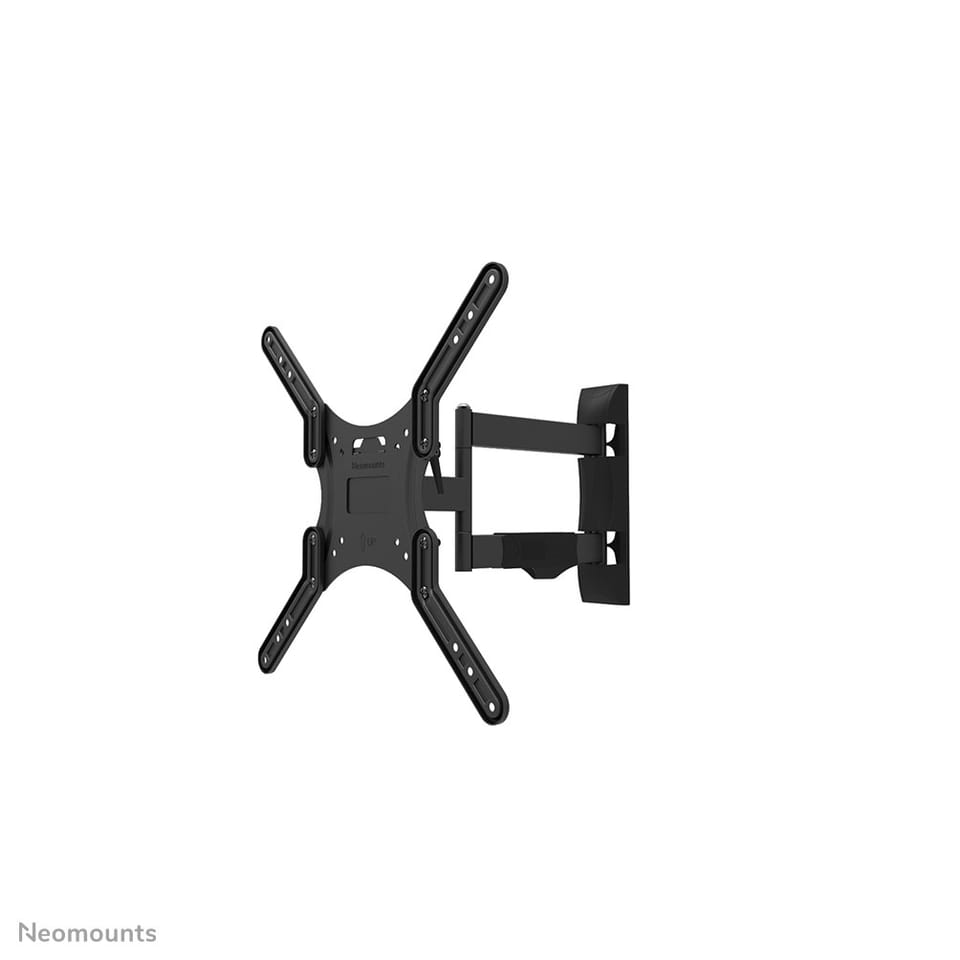

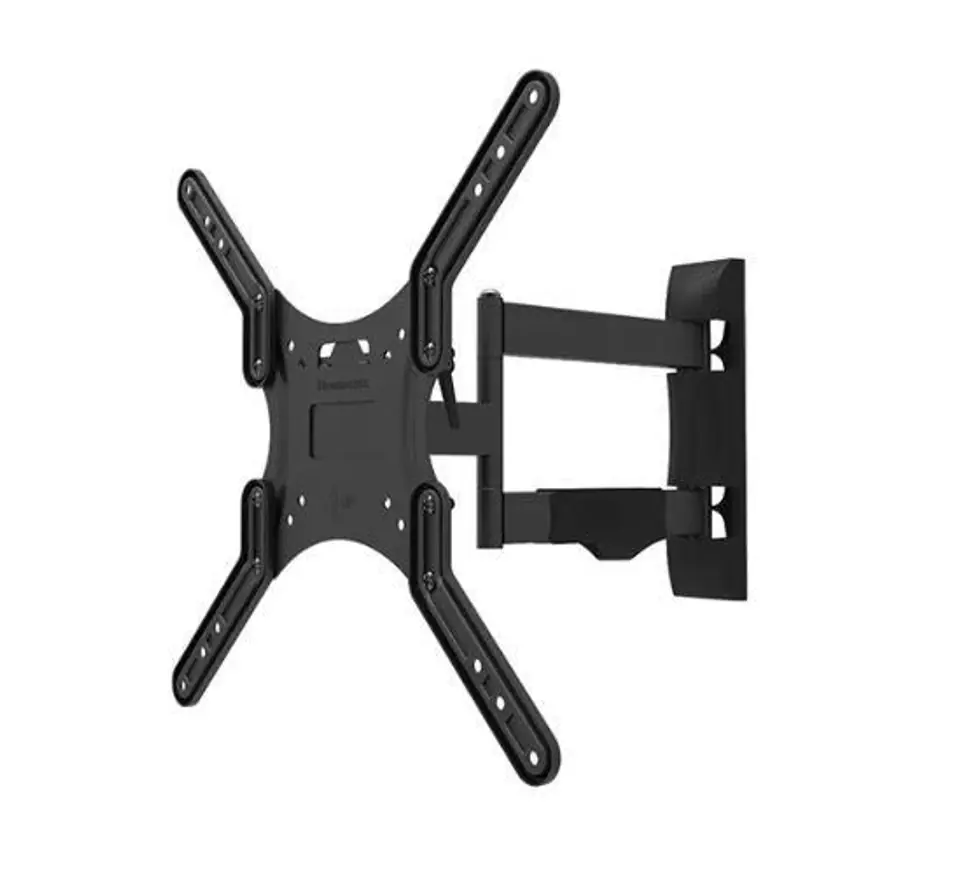

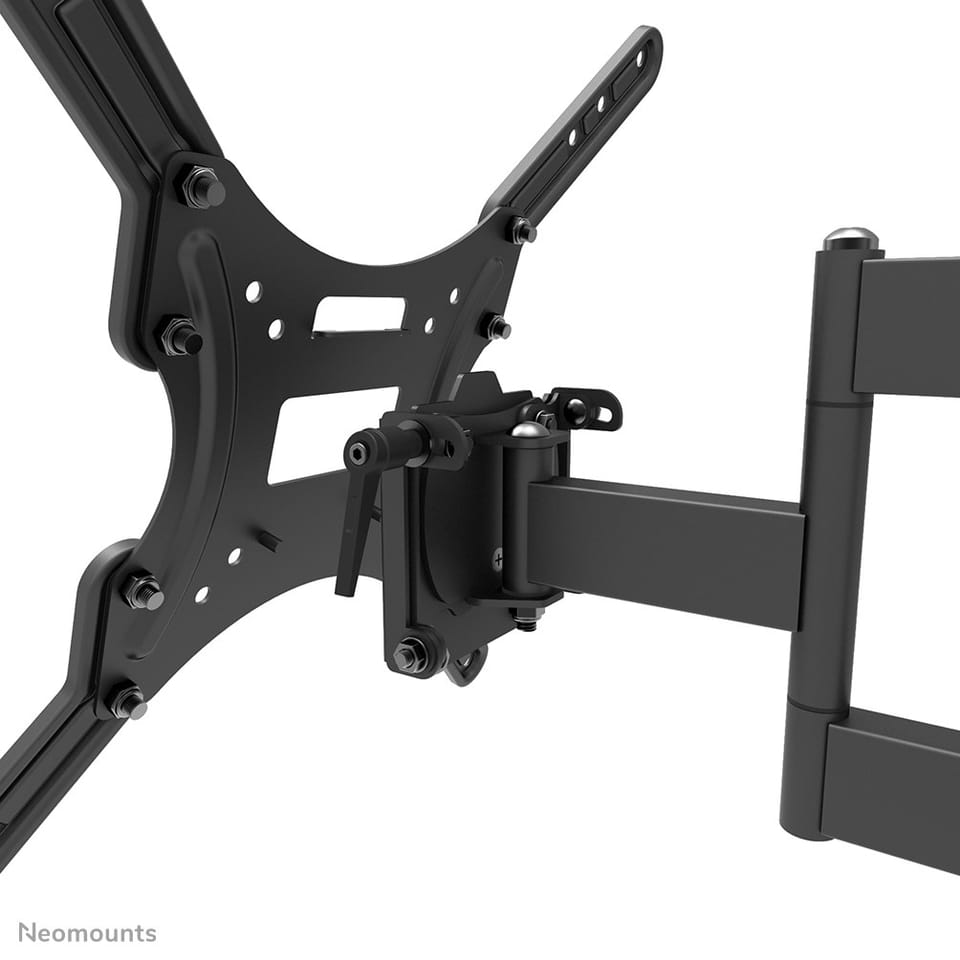

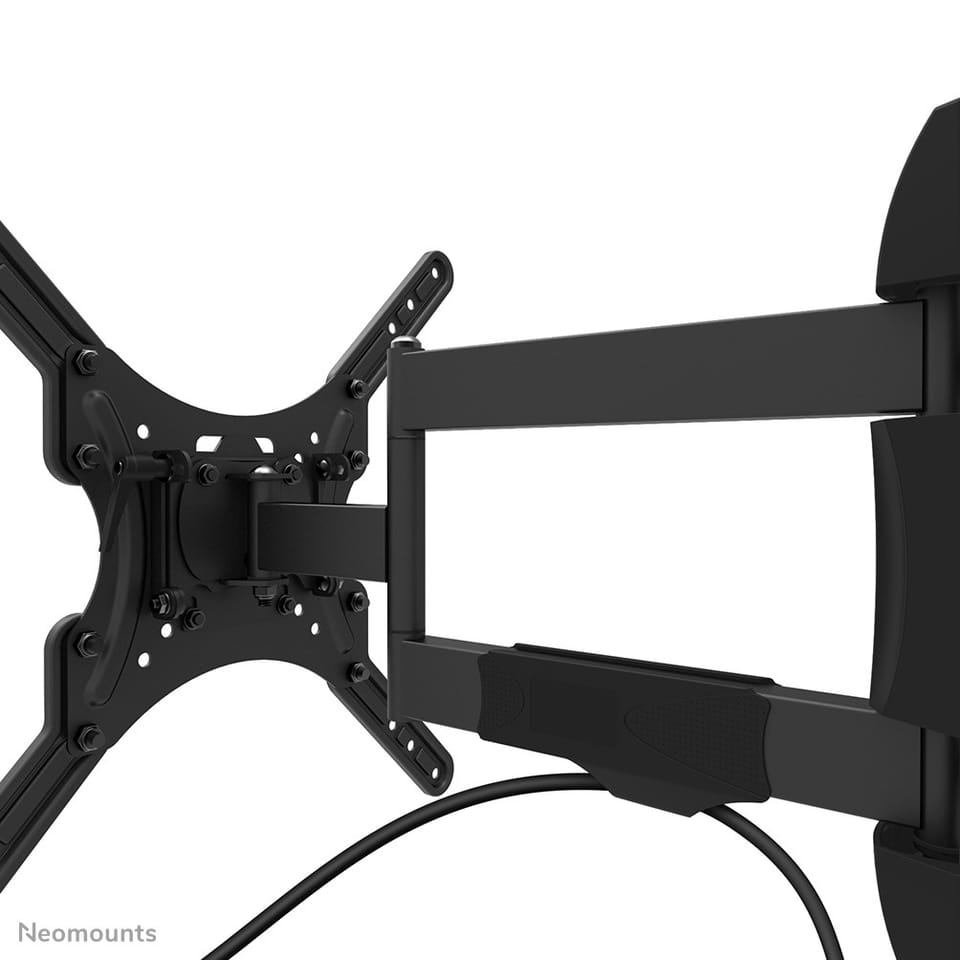

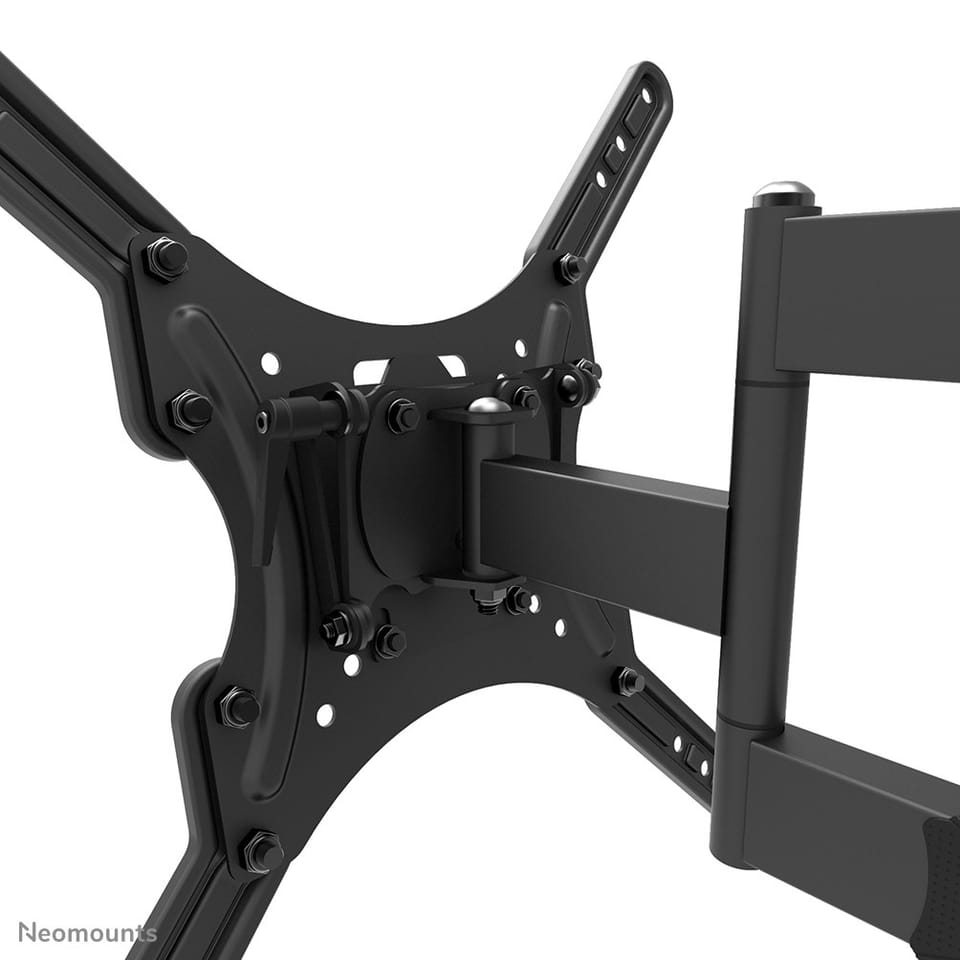

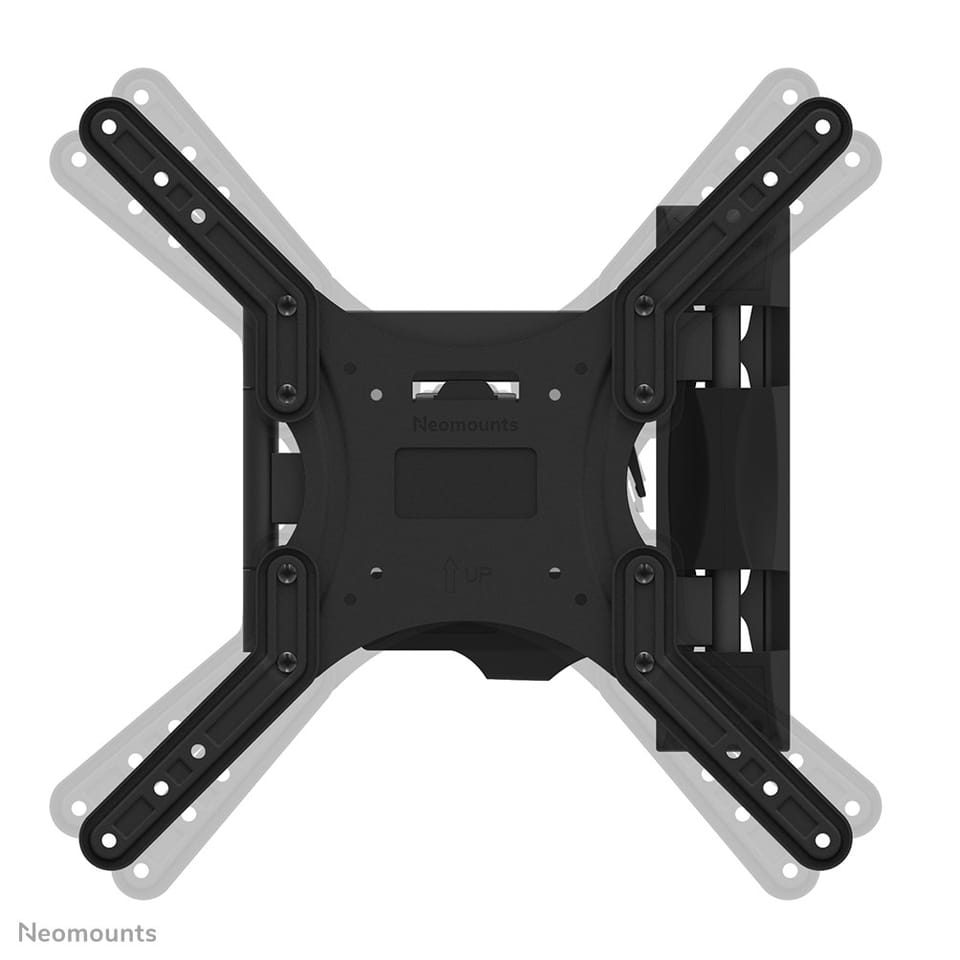

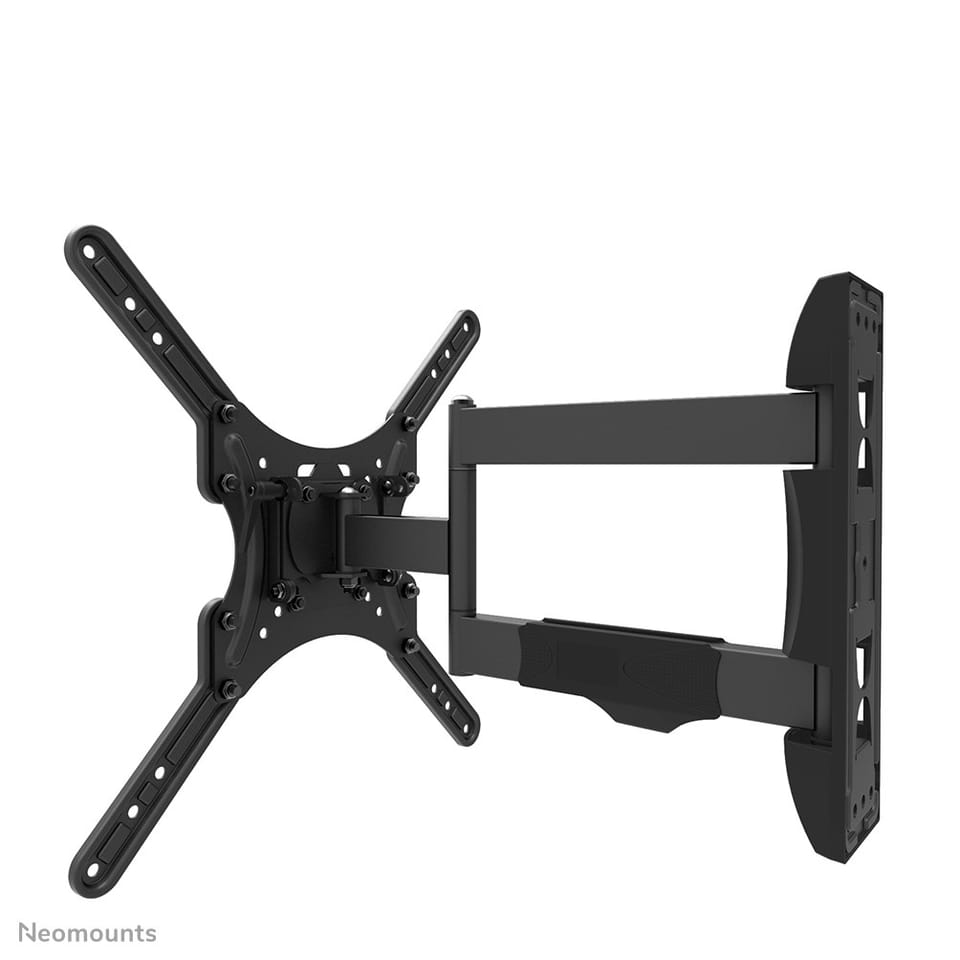

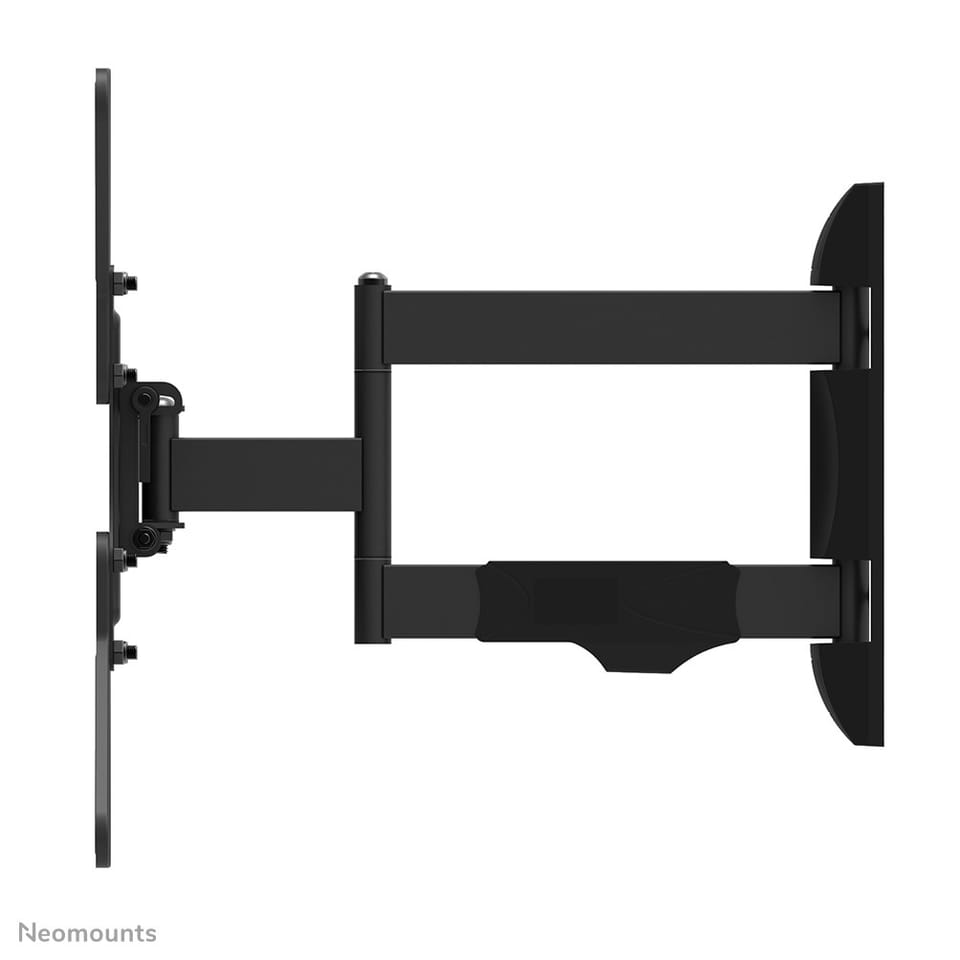

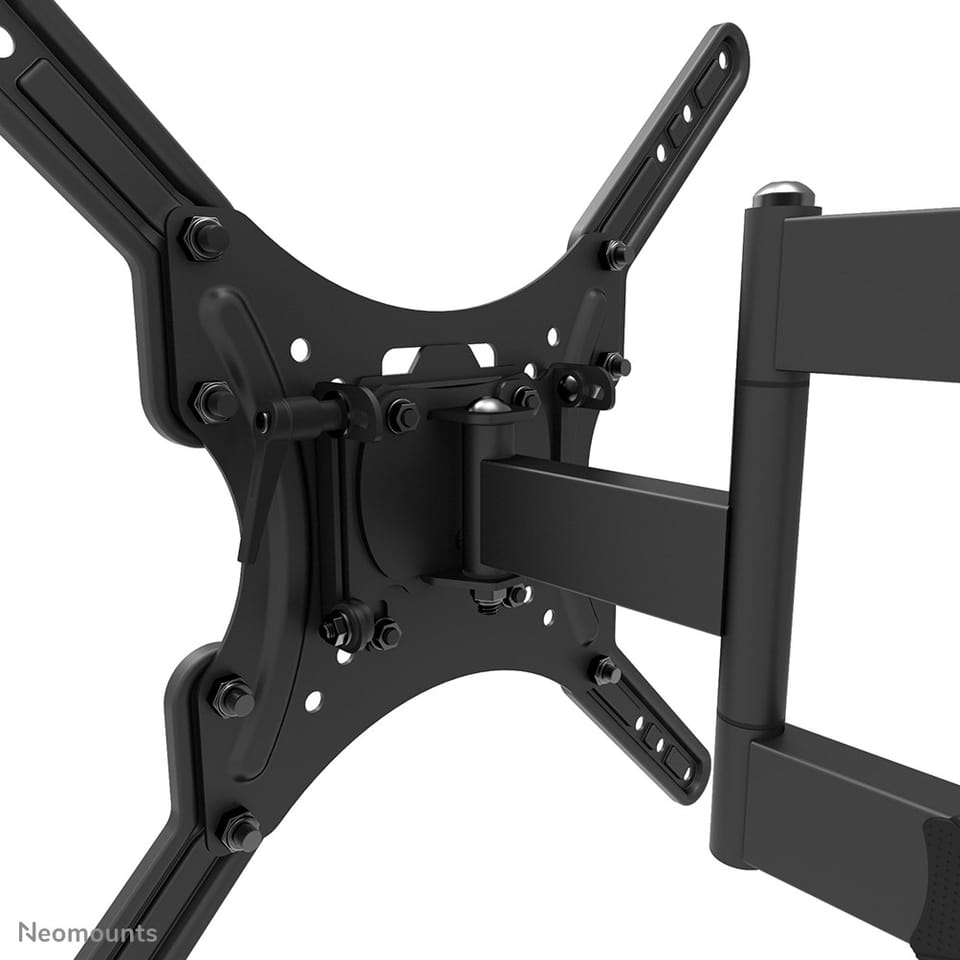

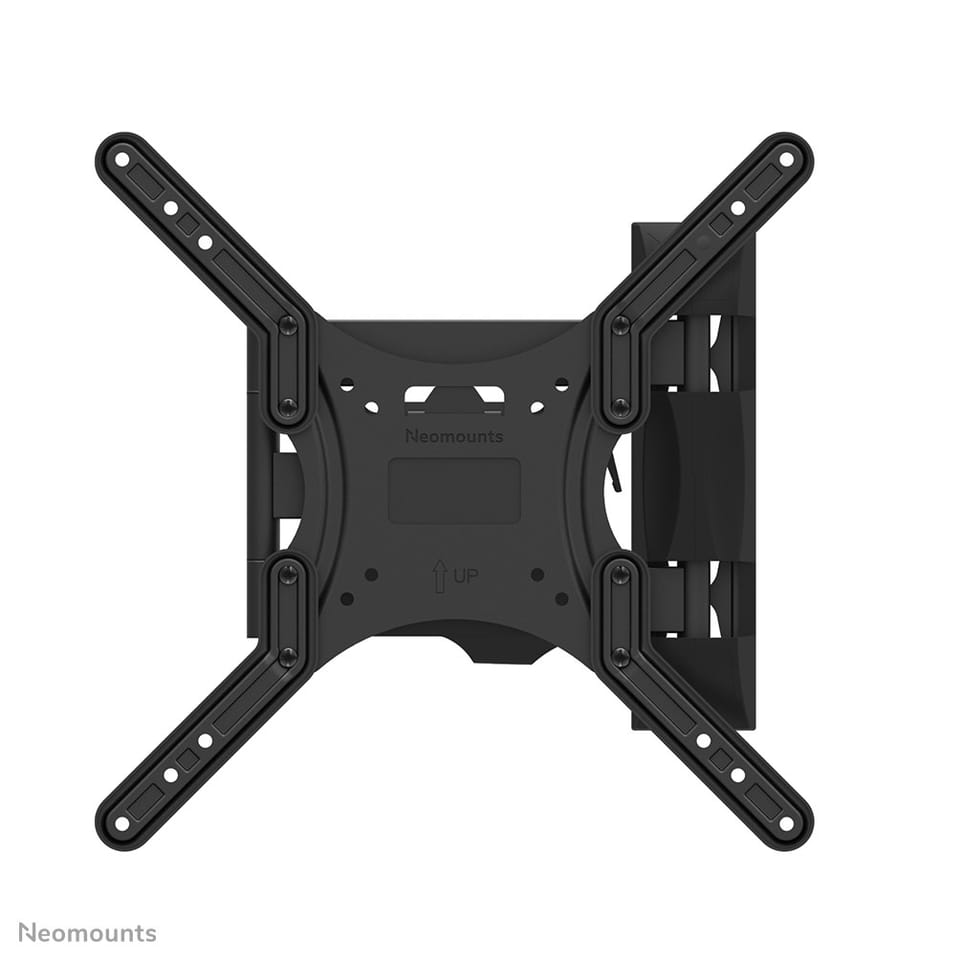

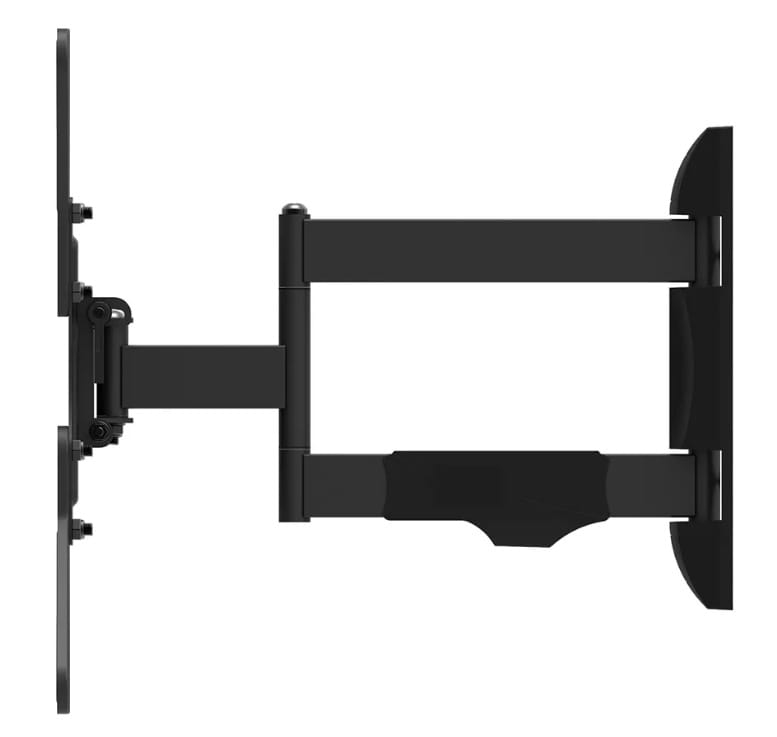

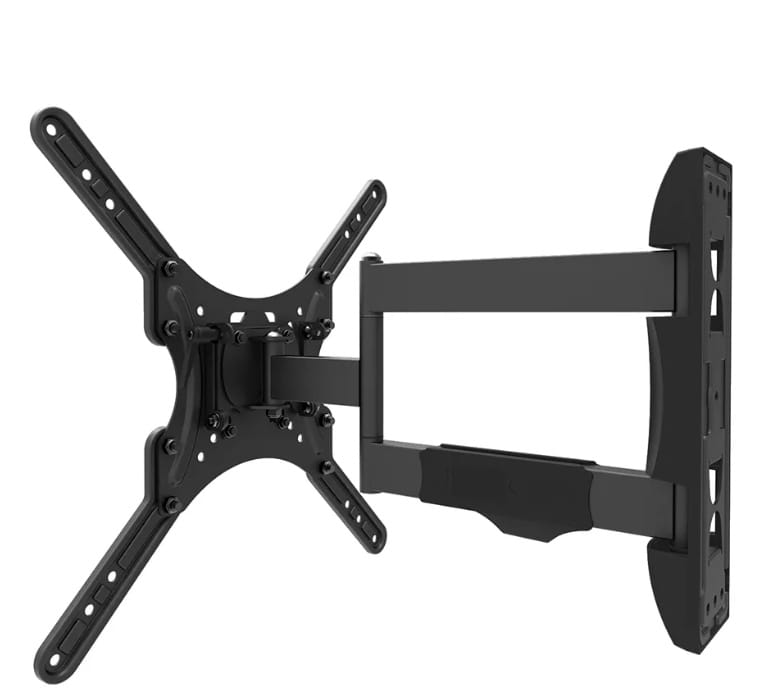

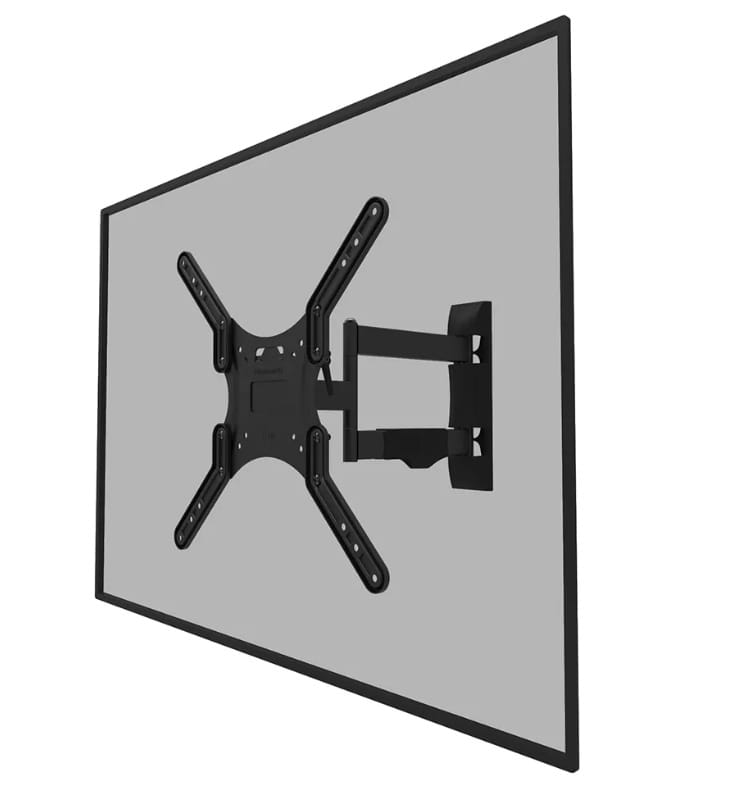

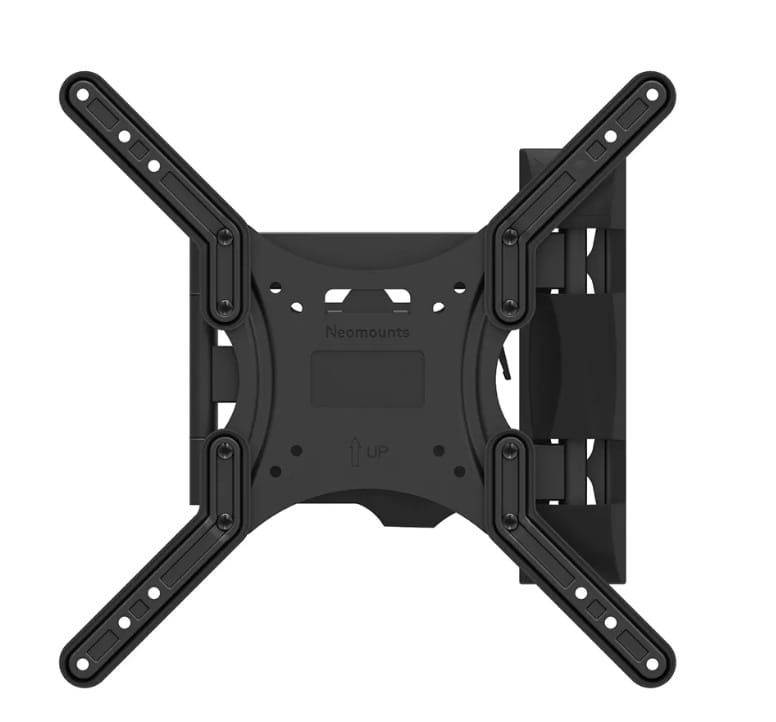

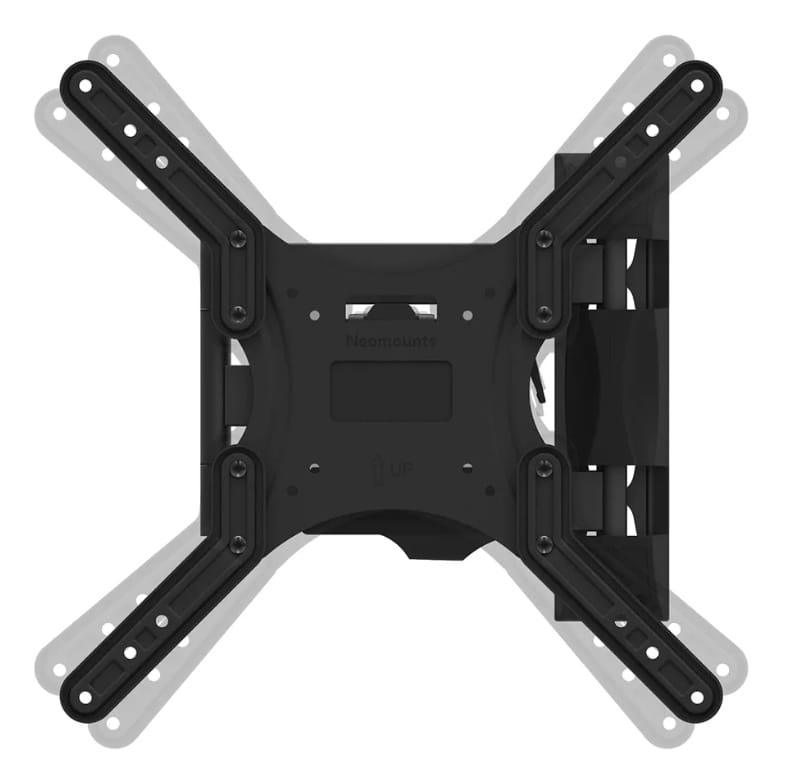

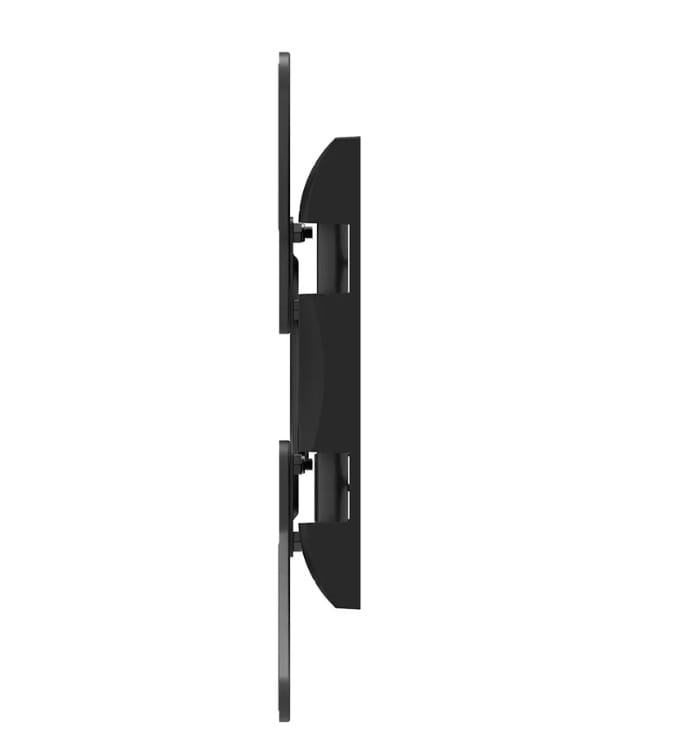

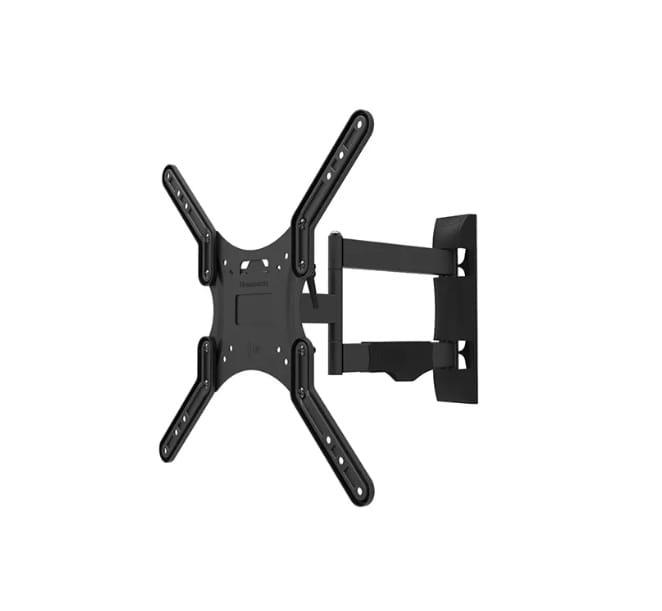

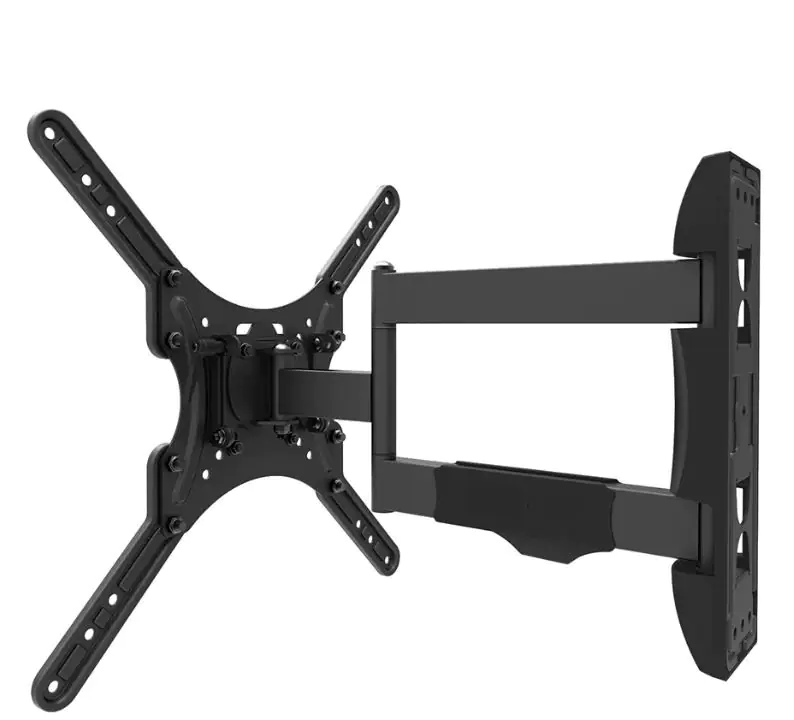

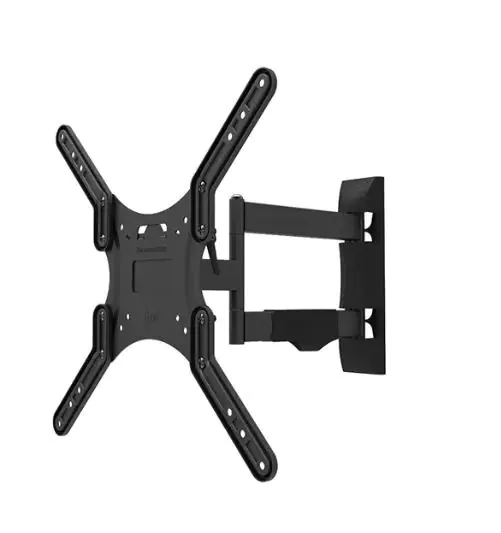

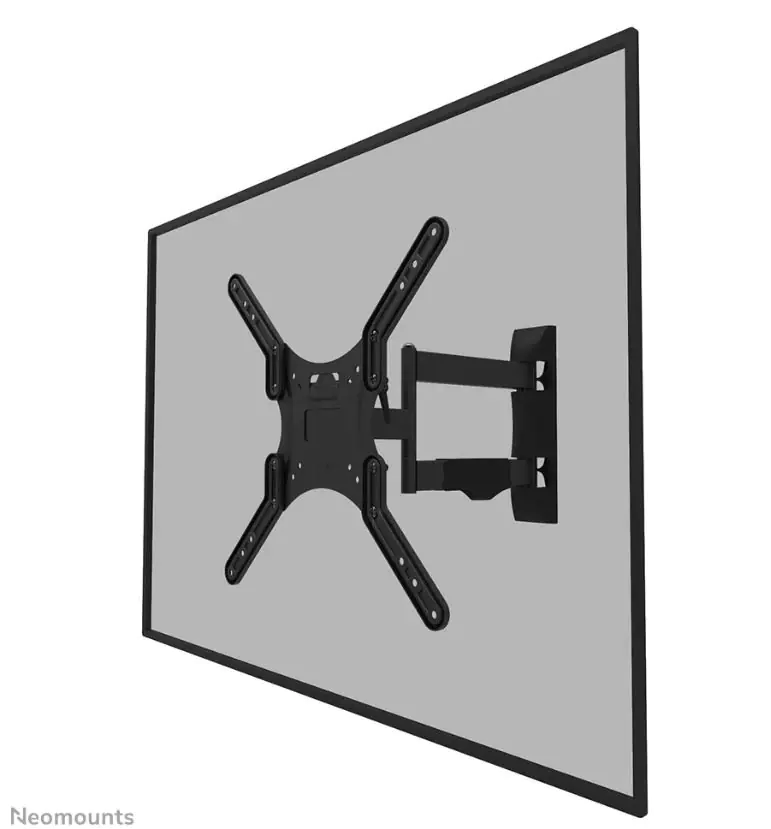

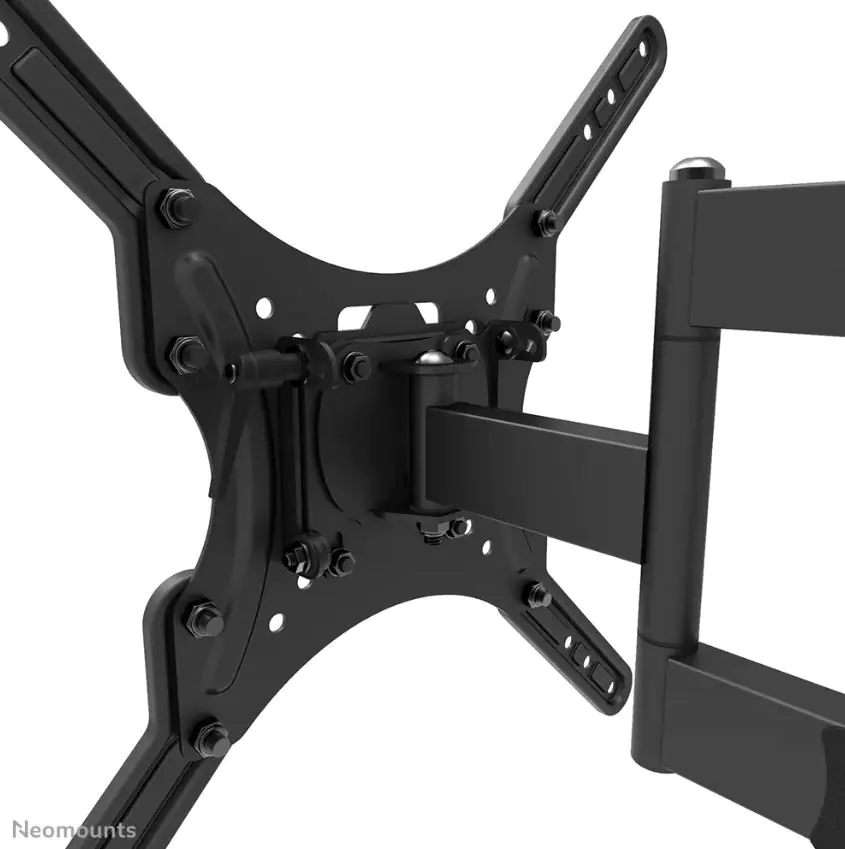

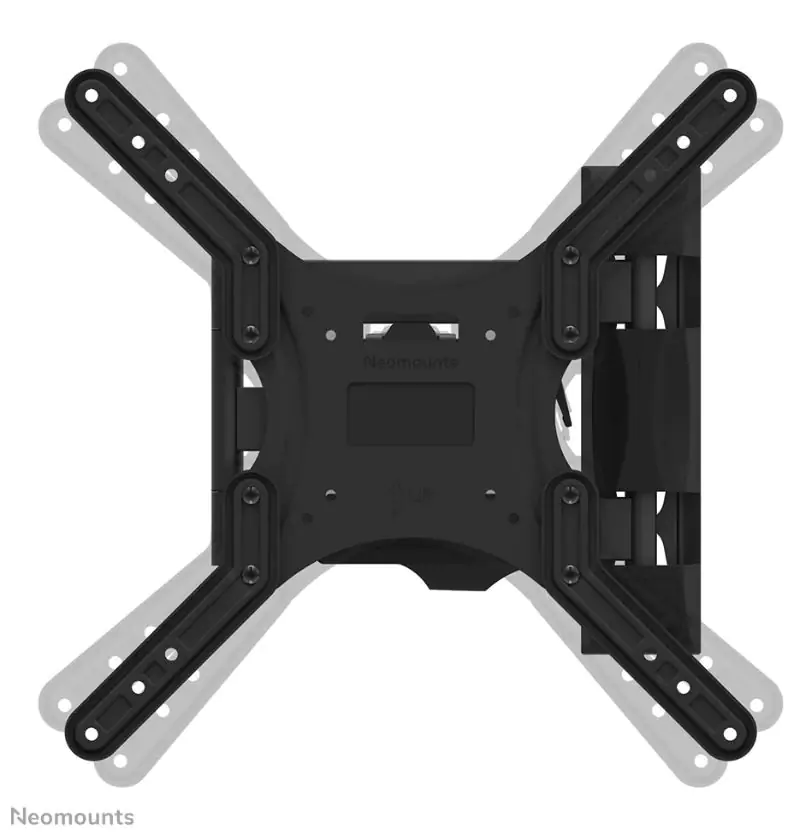

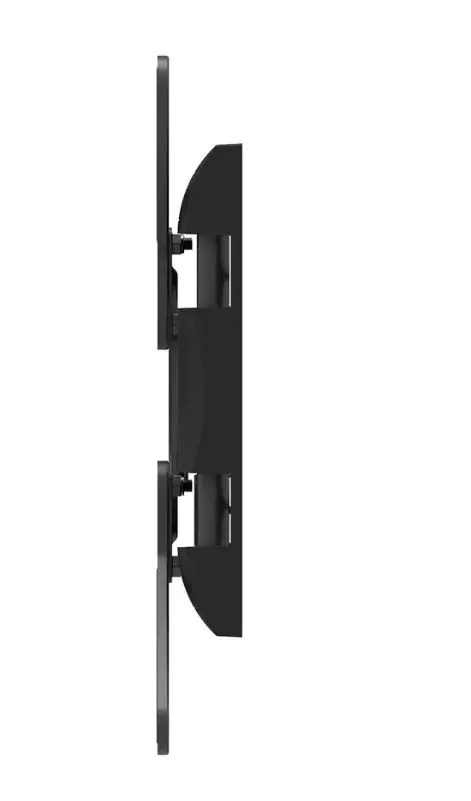

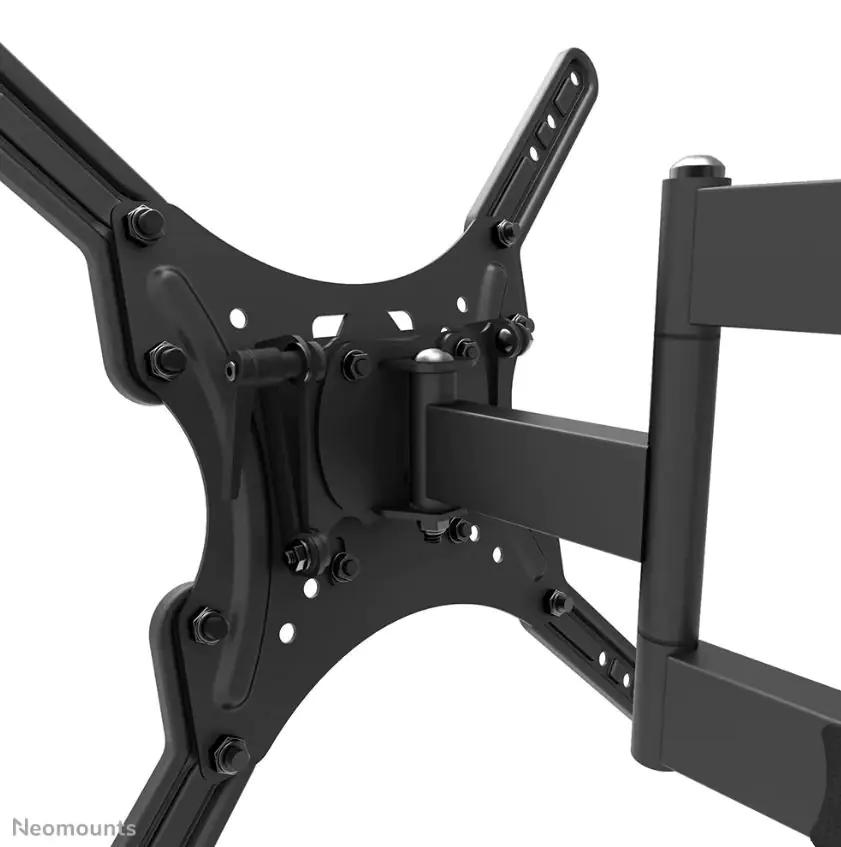

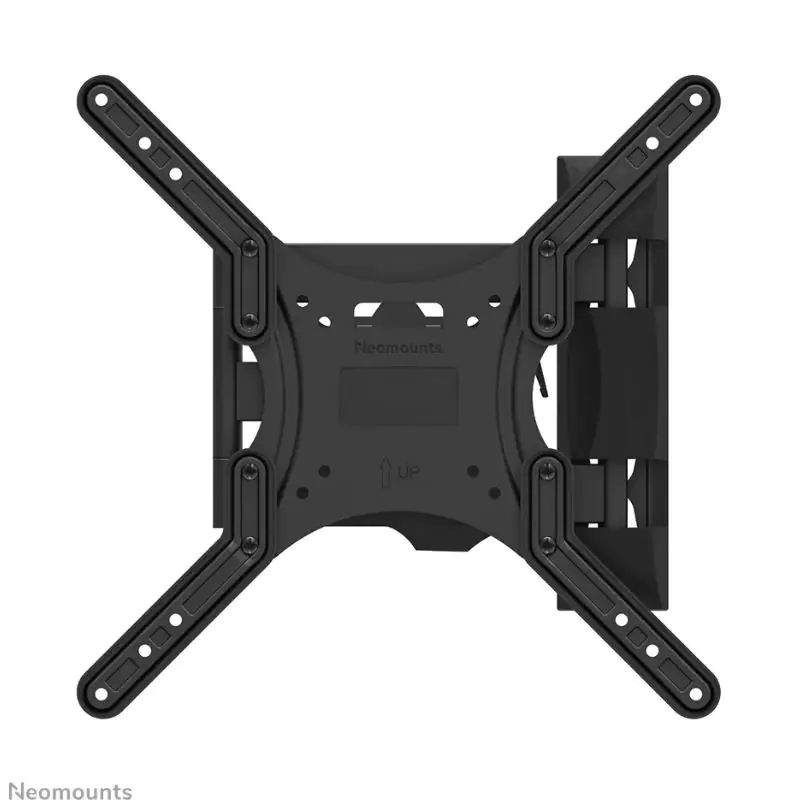

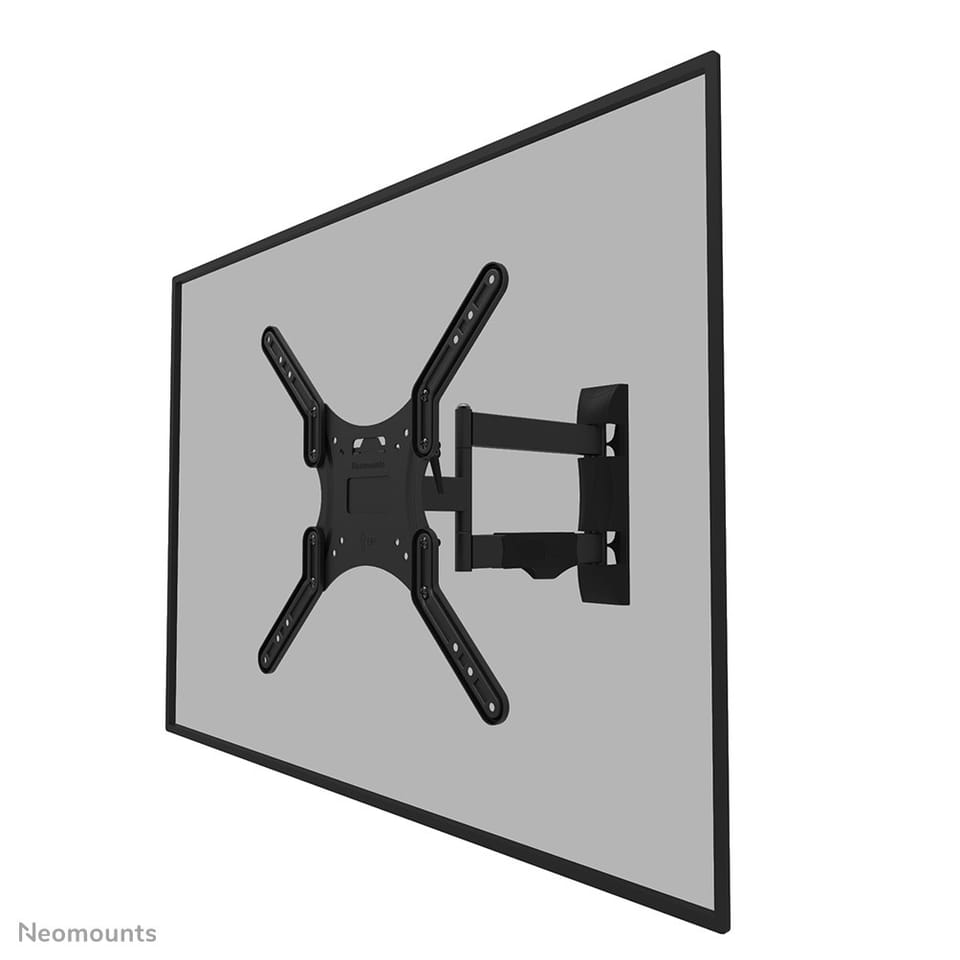

Neomounts WL40-550BL14 is a Full Motion wall mount for flat panel monitors up to 55 with a maximum load capacity of 35kg. The versatile tilt (14°) and swivel (40°) technology allows for an optimal viewing angle. The bracket can be levelled for perfect installation.

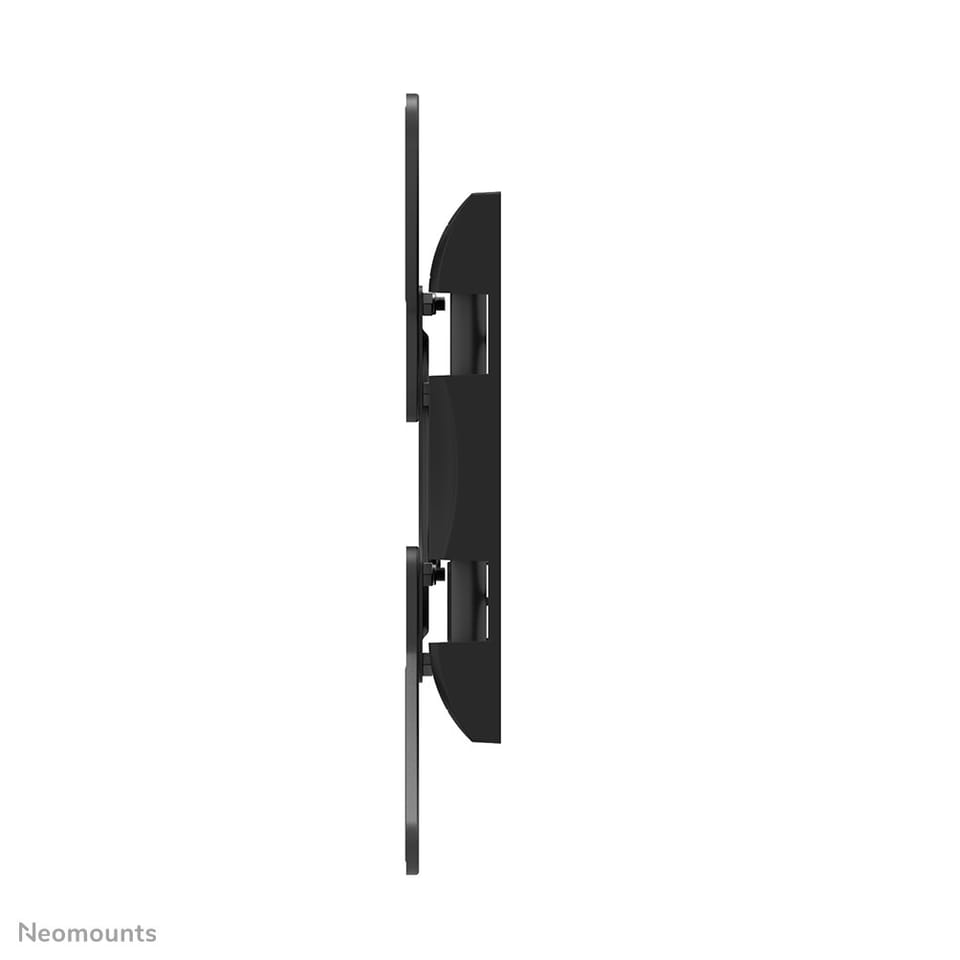

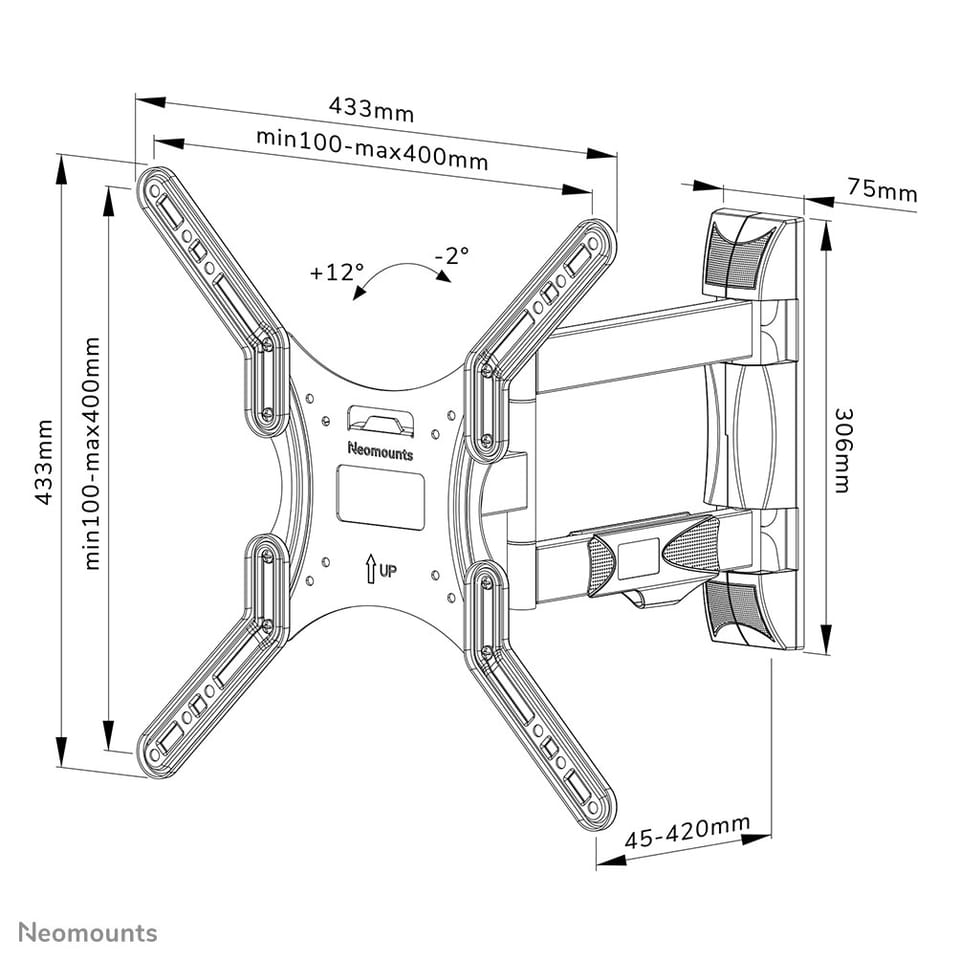

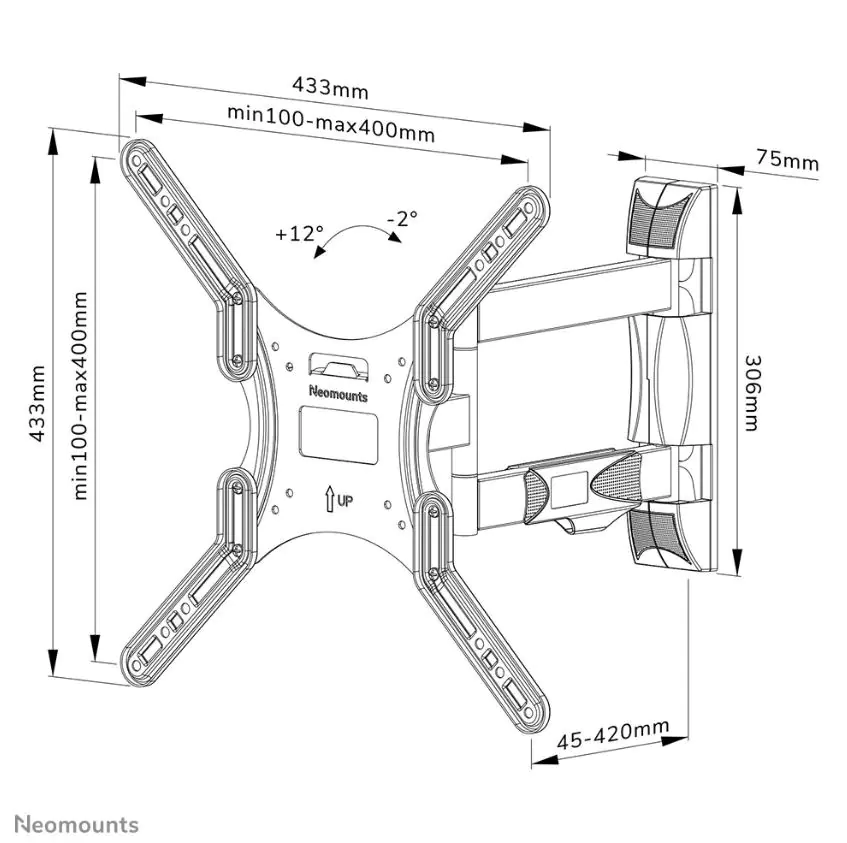

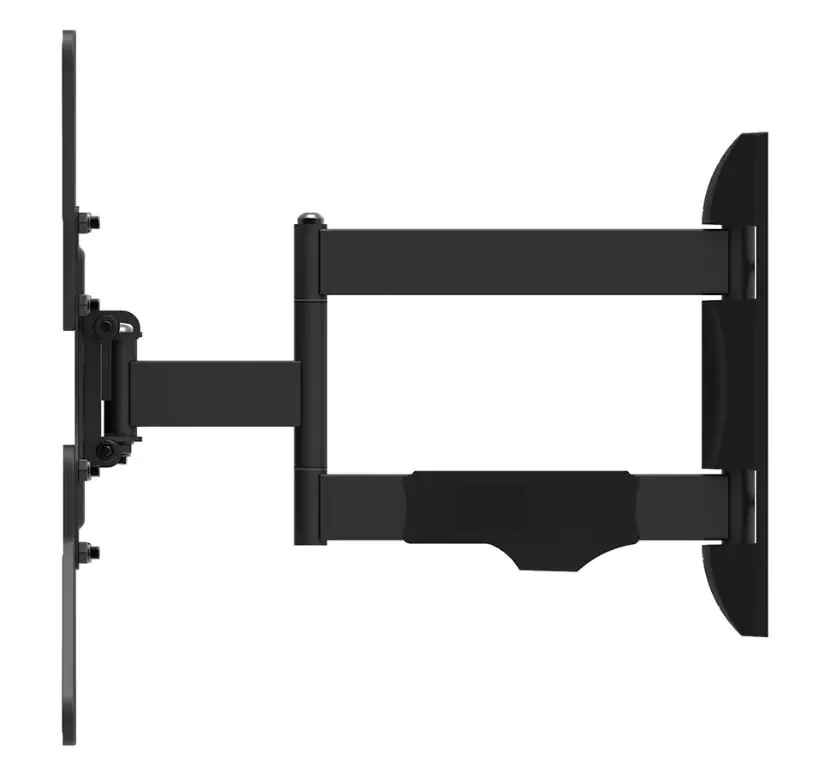

The WL40-550BL14 has a depth of 4.5-42 cm and is suitable for screens meeting VESA 100x100 to 400x400 mm requirements.
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
