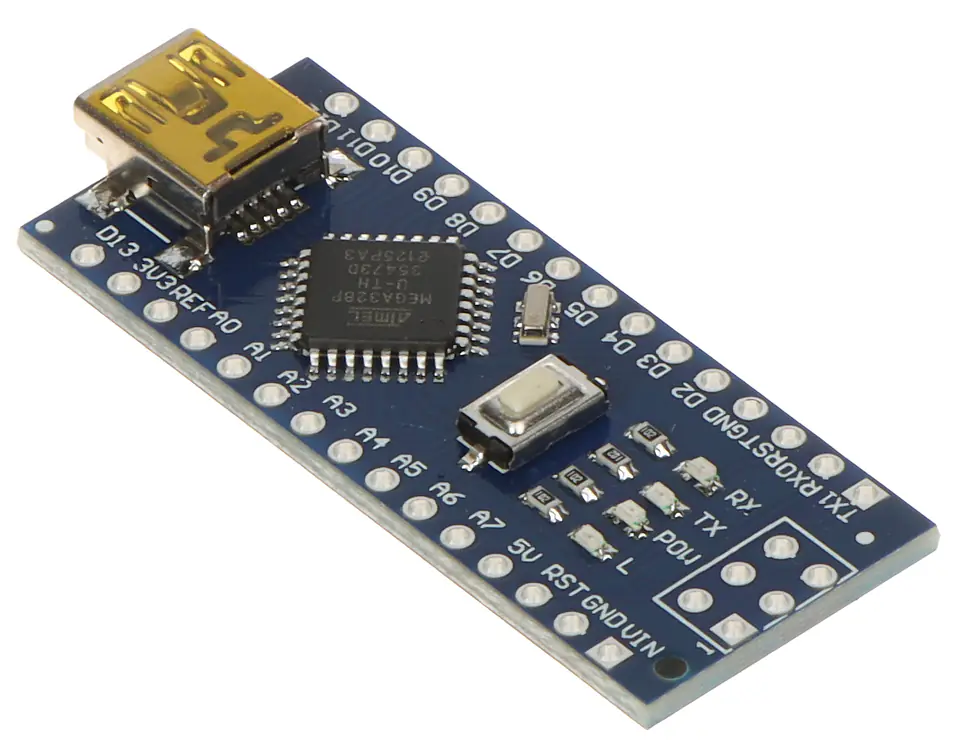

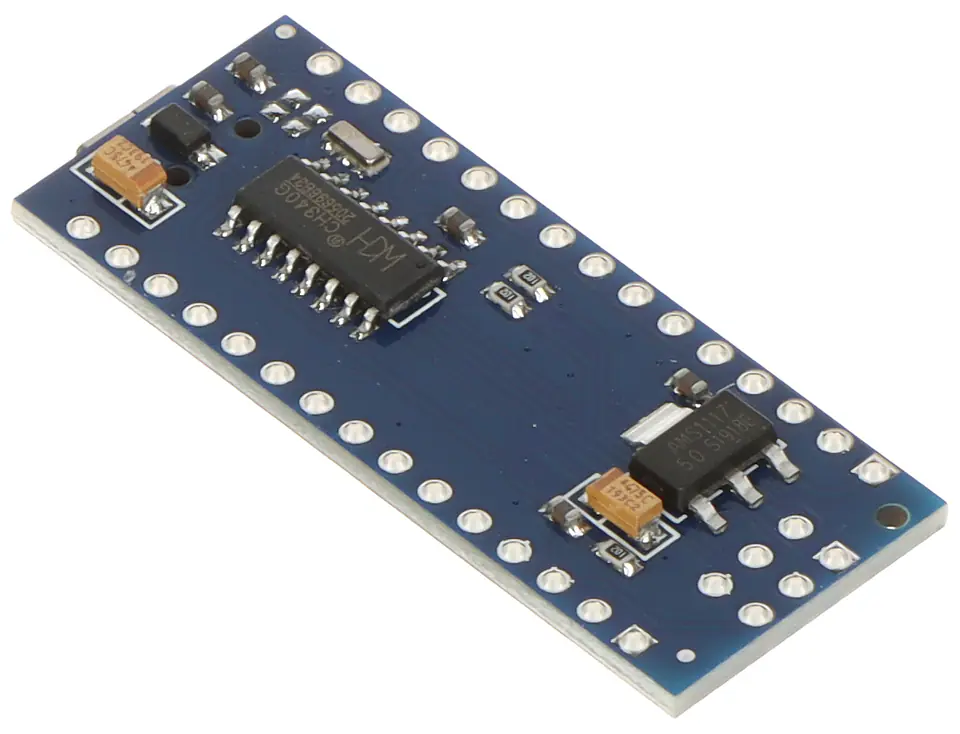

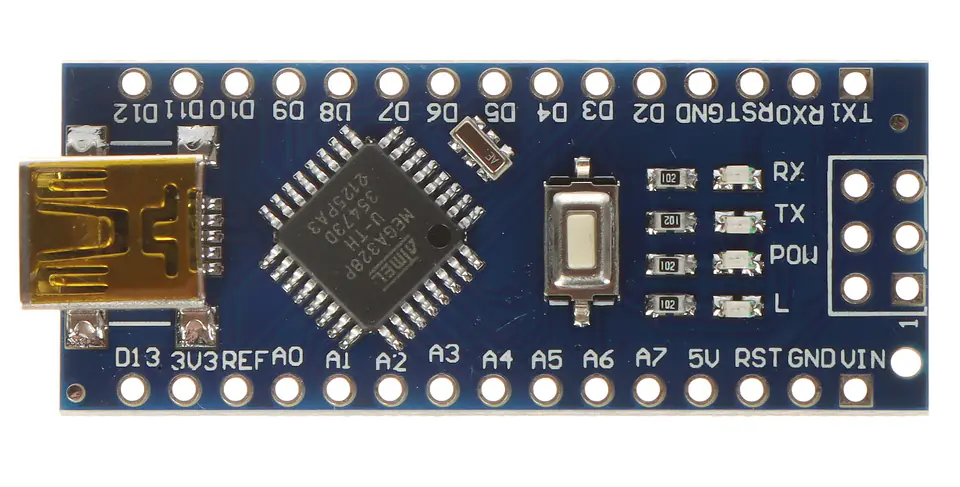

The NANO-V3/CH340 board is a functional clone of the Arduino NANO chipThanks to minor modifications to the chip, the manufacturer managed to maintain full compatibility with the Arduino environment with a significant reduction in production costsThe heart of the chip remained - unchanged compared to the original, the Atmega328Pkey change, while it concerns the USB<>TTL converter, whose function here is performed by the popular and reliable CH340 chip

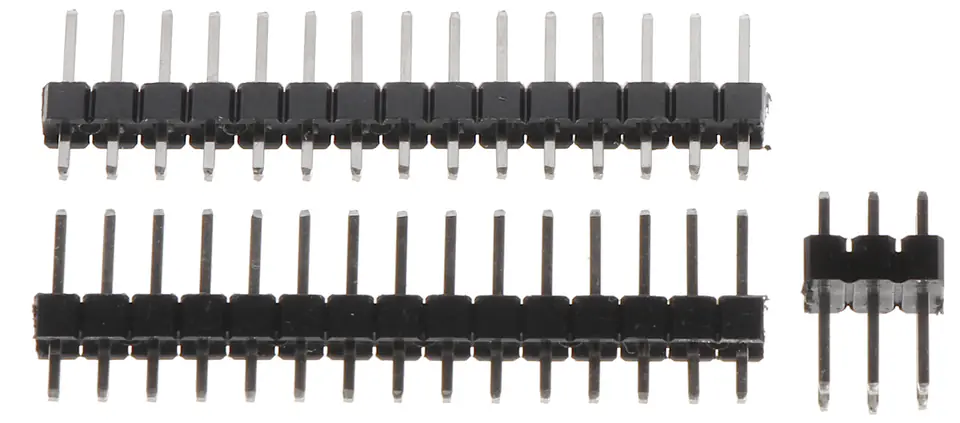

Goldpins attached to the board are not soldered, which allows the user to decide how to connect the system with other devicesThis is particularly important when installing the system in places with very limited space

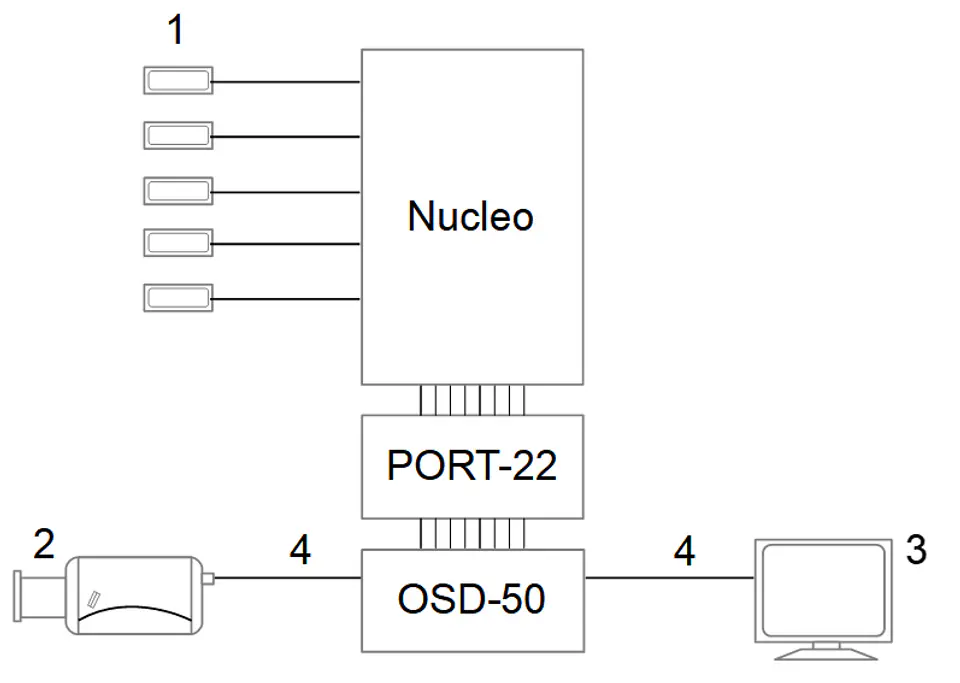

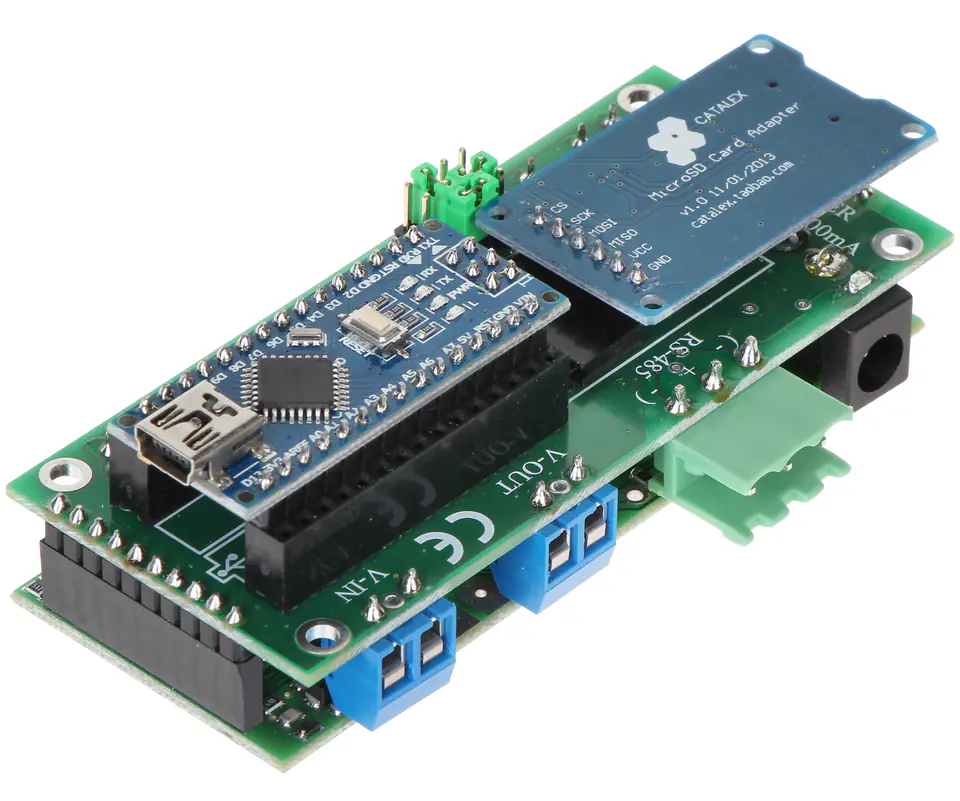

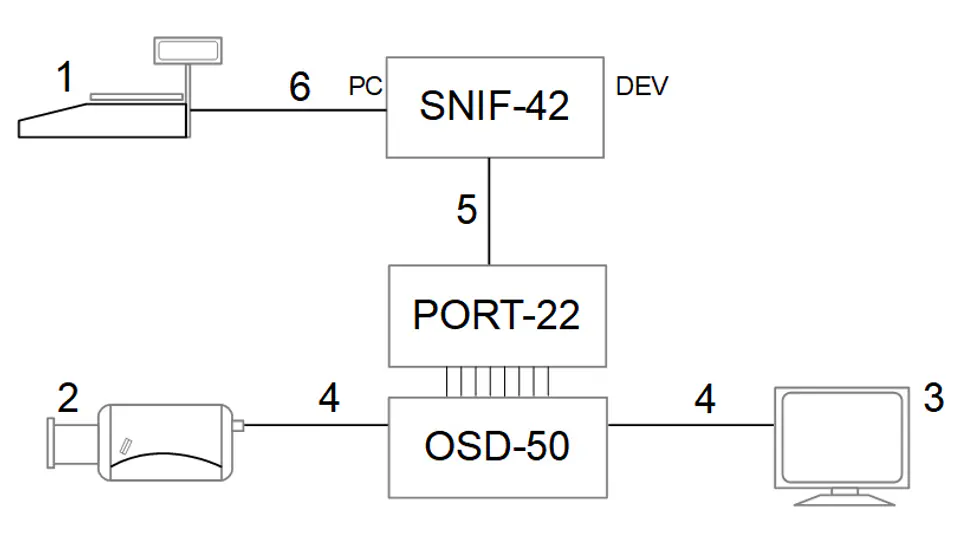

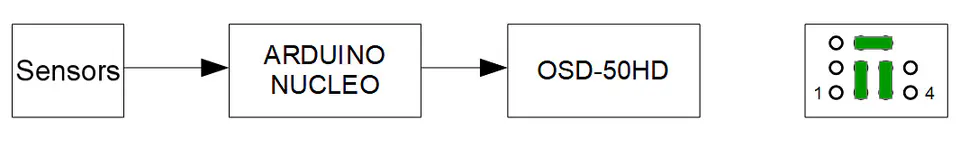

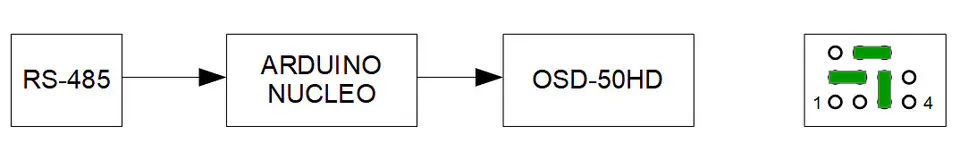

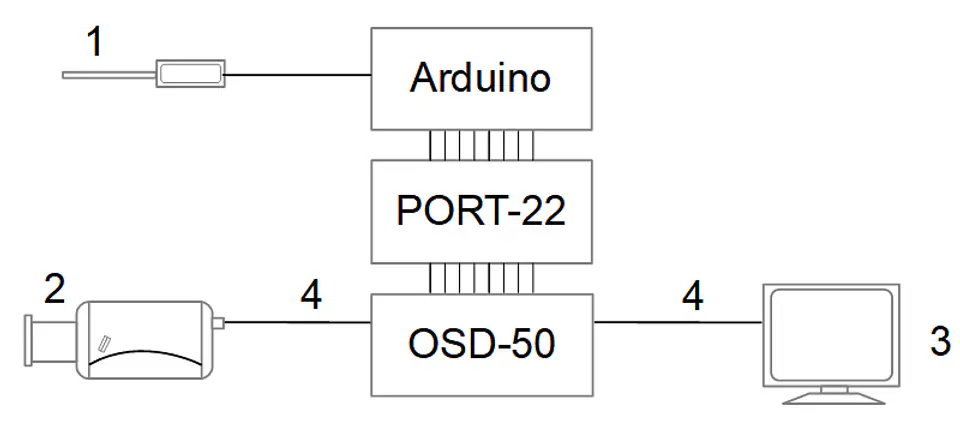

Full compatibility with the Arduino environment and the pre-installed BOOTLOADER allow you to program the system in the same way as the original, using the same Arduino IDEsoftware Thanks to this, the product can be a perfect complement to the OSD-50HD character generator combined with the PORT-22 character converter
More information about DSOs at www.osd.systems
