| Baud: | 10/100 Mbps |
|---|---|
| Dimensions: | 120 x 72 x 27 mm |
| Number of fibres: | 1 pc |
| Operating temperature: | -10 °C ... 50 °C |
| Optical wavelength: | 1550 / 1310 nm |
| Permissible relative ambient humidity: | 5 % ... 95 % |
| Port lan: | 1 pc (RJ-45. UTP/STP) |

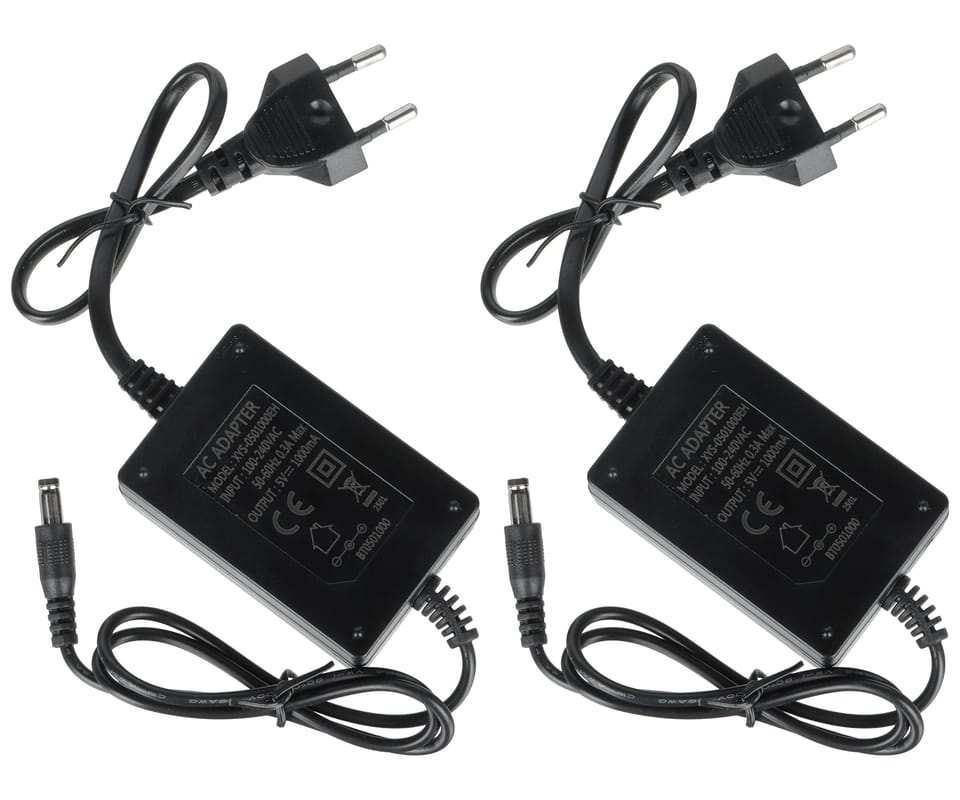

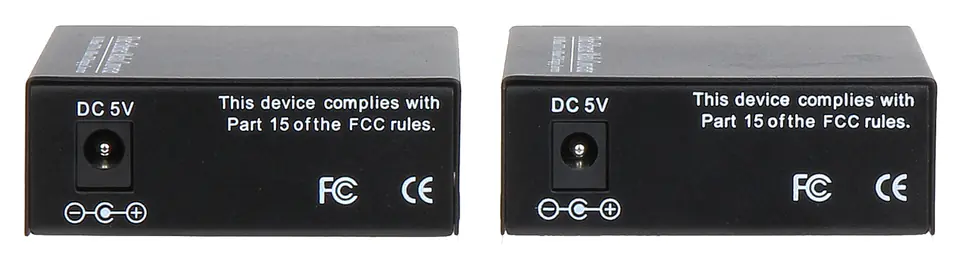

| Power: | 5 V DC / 2 A (power adapter included) |
| Scales: | 0.140 kg |
| Selected features: | Auto MDI/MDI-X detection - automatically detects data transmission mode Auto bit rate detection Two-way transmission via single optical fiber LEDs indicating correct operation of the device WDM optical wavelength multiplication technology (Tx 1550nm / Rx 1310nm) |
| Supported standards: | IEEE 802.3, IEEE 802.3u |
| Transmission range: | 2 km - Multimode fiber |
| Type of optical connector: | SC / PC |
| Warranty: | 2 years |

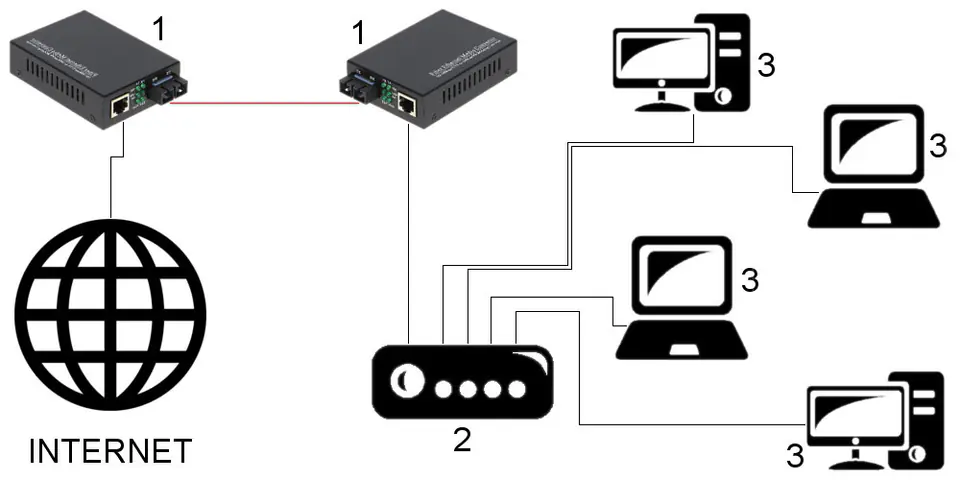

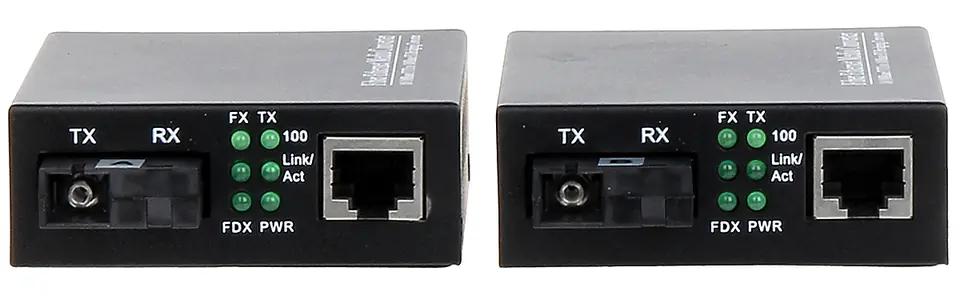

The OM1-MM converter allows to change the conductive medium (data stream) from standard STP/UTP cable to multimode fiber optic cable
The device is equipped with SC connector for reliable connectionsThe optical signal is transmitted and received in the II and III transmission window 1310/1550 nm
